TP-LINK

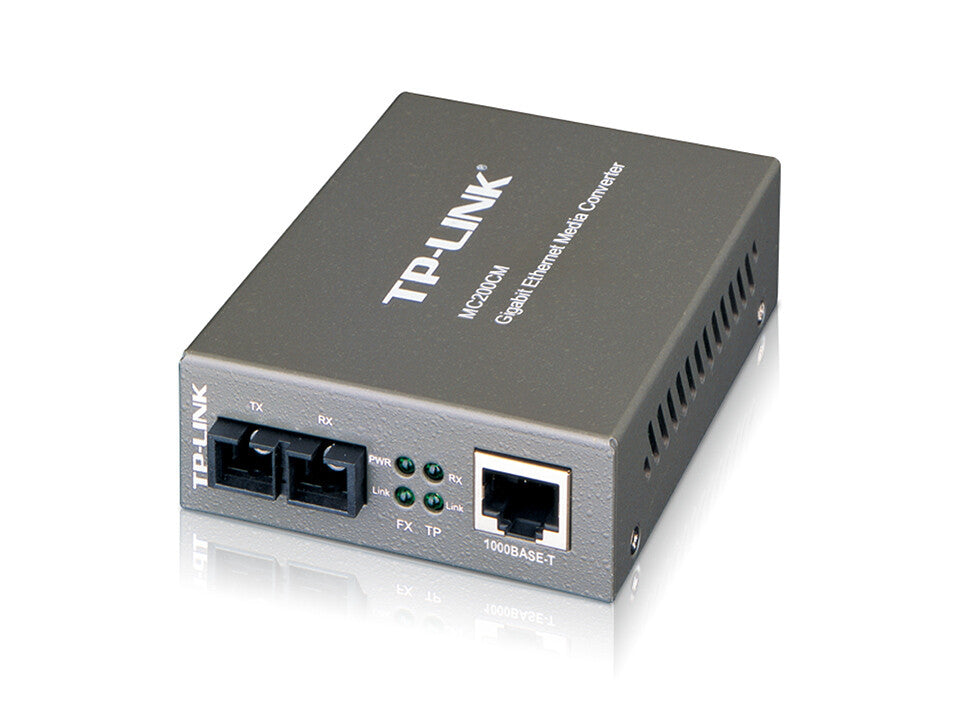

TP-Link Gigabit Multi-Mode Media Converter

TP-Link Gigabit Multi-Mode Media Converter

£32.41 GBP
£32.41 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MC200CM V1

202 in stock

  • Wired
  • 1000 Mbit/s 550 m 850 nm
  • Ethernet LAN (RJ-45) ports: 1 DC-in jack
  • Multi-mode Fiber ports quantity: 1 SC 50/125,62.5/125 µm
  • Black
MC200CM 1x 1000M SC, 1x 1000M RJ45, IEEE 802.3ab & IEEE 802.3z

- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 0.5km

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.

Network
Auto MDI/MDI-X Yes
Ethernet LAN data rates 1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Maximum data transfer rate 1000 Mbit/s
Ports & interfaces
DC-in jack Yes
Fiber optic connector SC
Fiber ports quantity 1
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Performance
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
Fiber mode structure Multi-mode
Wavelength 850 nm
Maximum transfer distance 550 m
Design
Certification FCC, CE
LED indicators Link
Product colour Black
Internal No
Power
Power consumption (max) 5.5 W
Weight & dimensions
Height 27 mm
Depth 73 mm
Width 94.5 mm
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Packaging data
Package height 65 mm
Package depth 165 mm
Package width 204 mm
Technical details
Compliance certificates RoHS
Sustainability certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
