TP-LINK

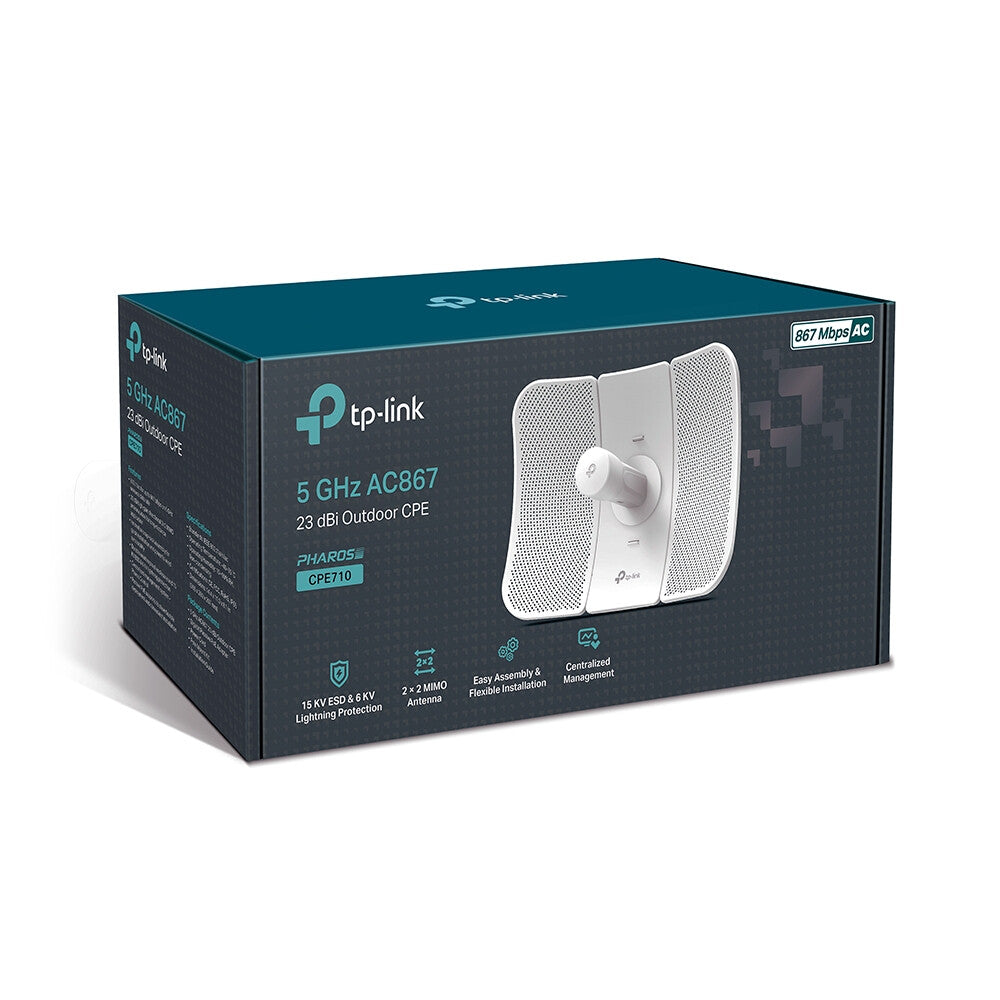

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi

Regular price £91.56 GBP
Regular price Sale price £91.56 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:CPE710

33 in stock

  • 802.11ac for up to 867Mbps on 5GHz wireless data rate
  • 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation
5GHz 867Mbps, 27dBm, 2x2 MIMO, 802.3a/n/ac, 23dBi, IP65

Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.

Performance
Antenna gain level (max) 23 dBi
Frequency band 5.15 - 5.85 GHz
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Gain 23 dBi
Vertical beam width
Horizontal beam width
Built-in processor Yes
Processor frequency 750 MHz
Flash memory 16 MB
Internal memory 128 MB
Wi-Fi standards 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Features
Antenna type Directional antenna
Antenna connector type PoE/LAN
International Protection (IP) code IP65
LED indicators Power
Housing material Plastic
Product colour White
Certification CE, FCC, RoHS, IC
Power
Power source type PoE
Input voltage 24 V
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Weight & dimensions
Width 366 mm
Depth 280 mm
Height 207 mm
Packaging content
Cables included AC
Package type Box
Logistics data
Export Control Classification Number (ECCN) EAR99
Harmonized System (HS) code 85176990
