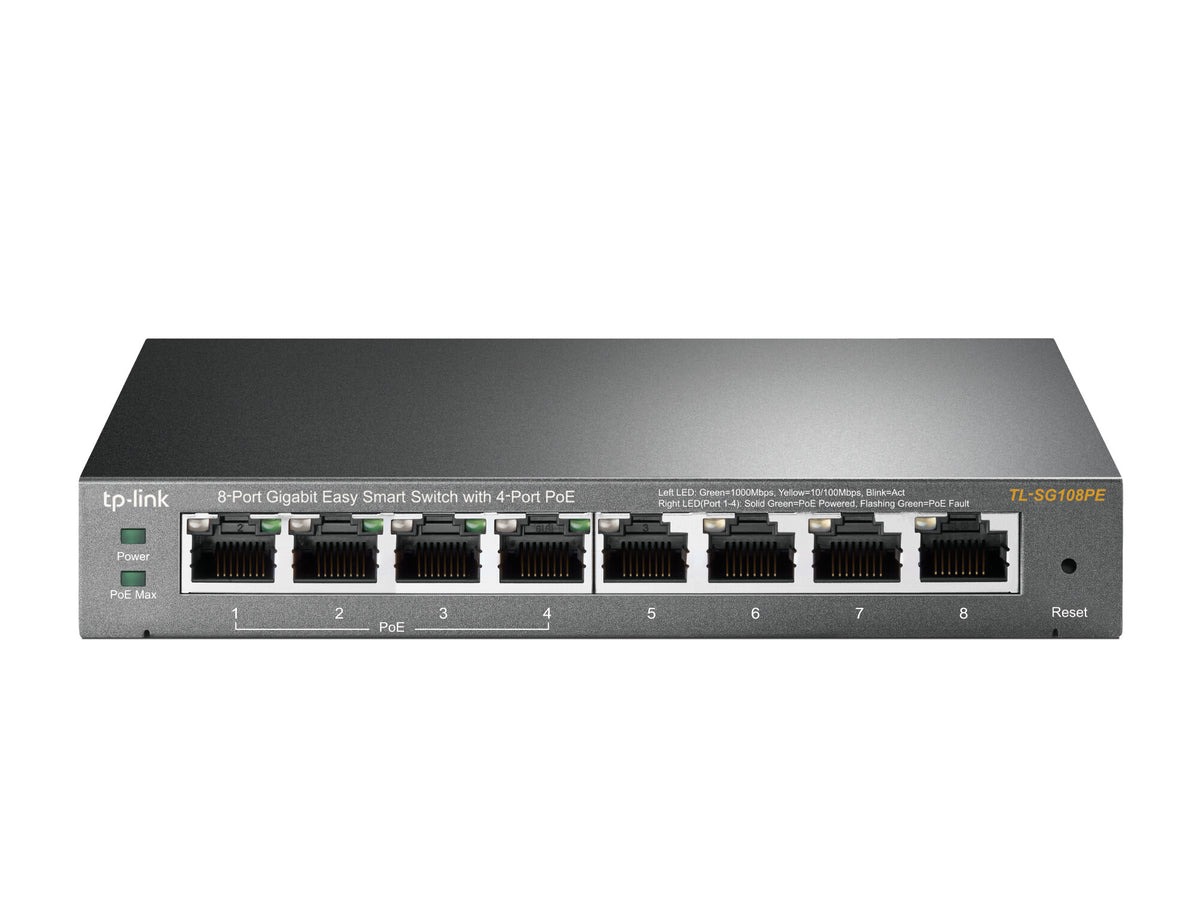

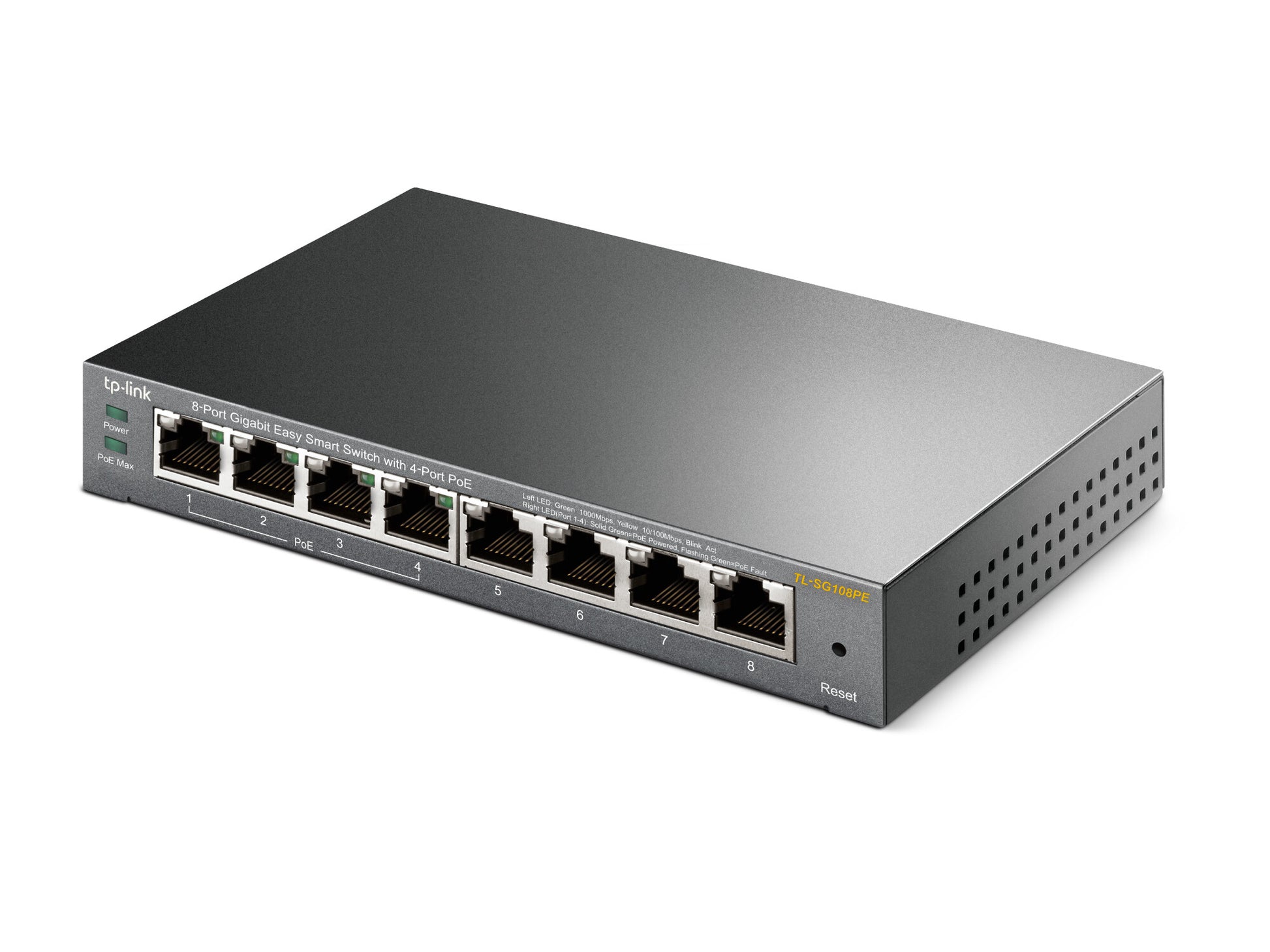

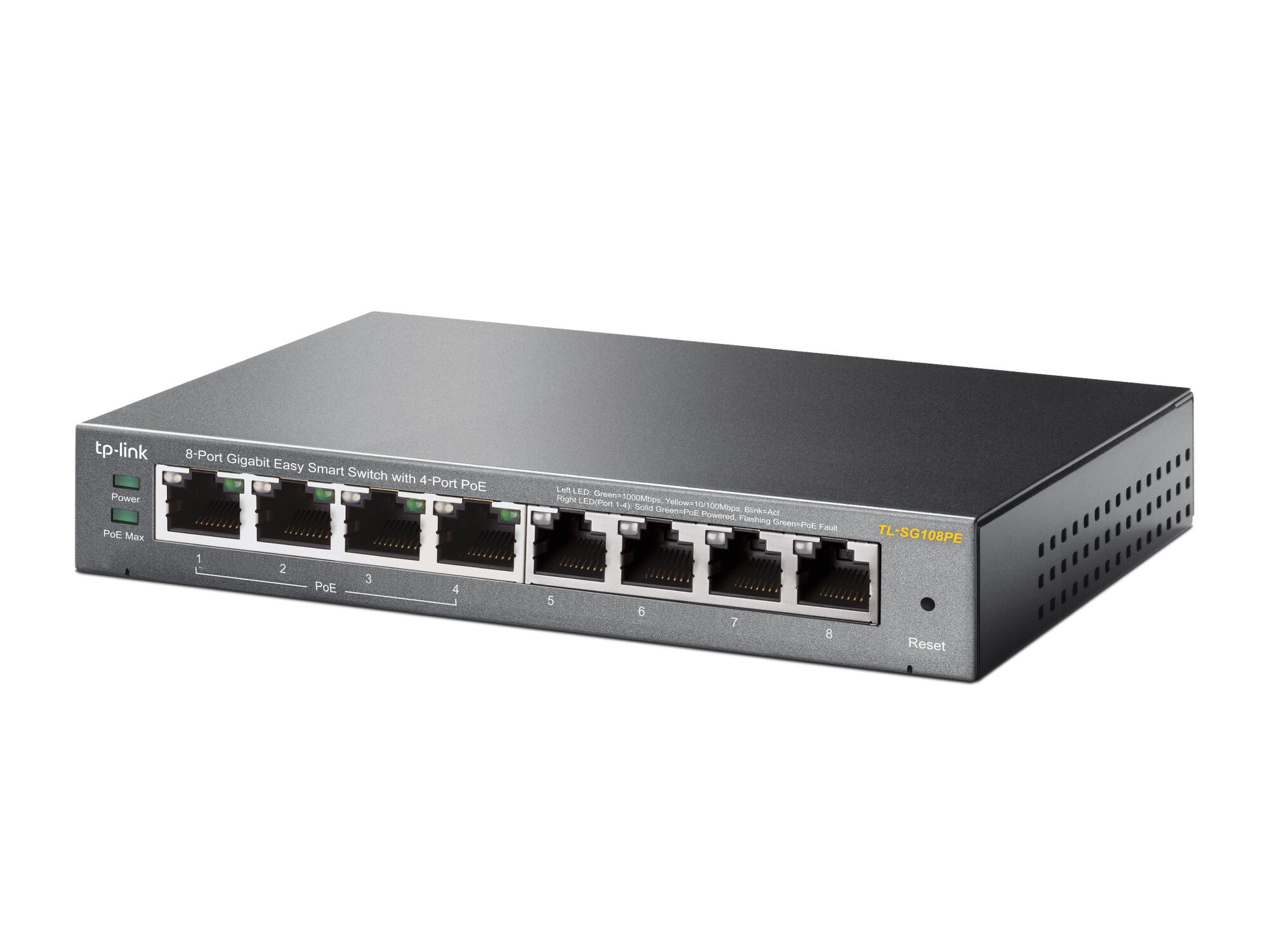

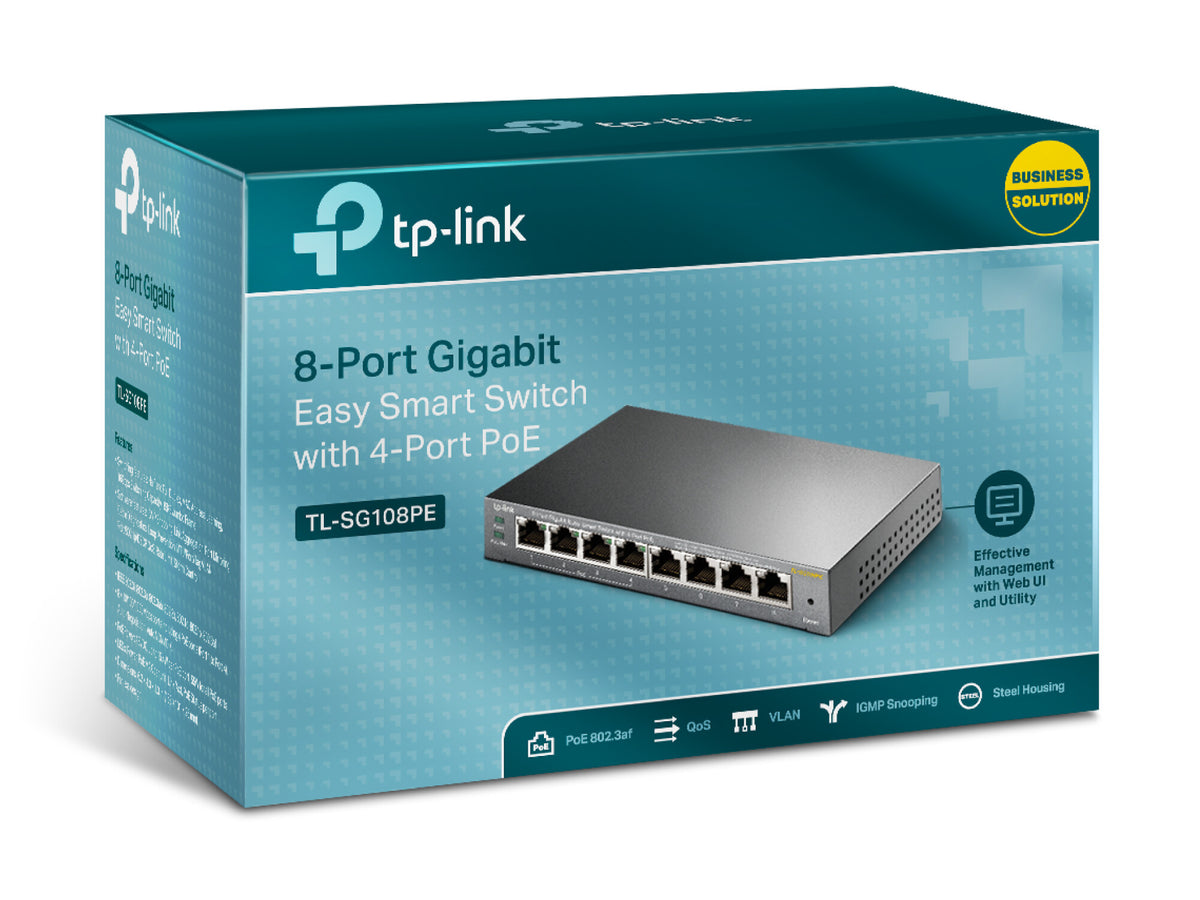

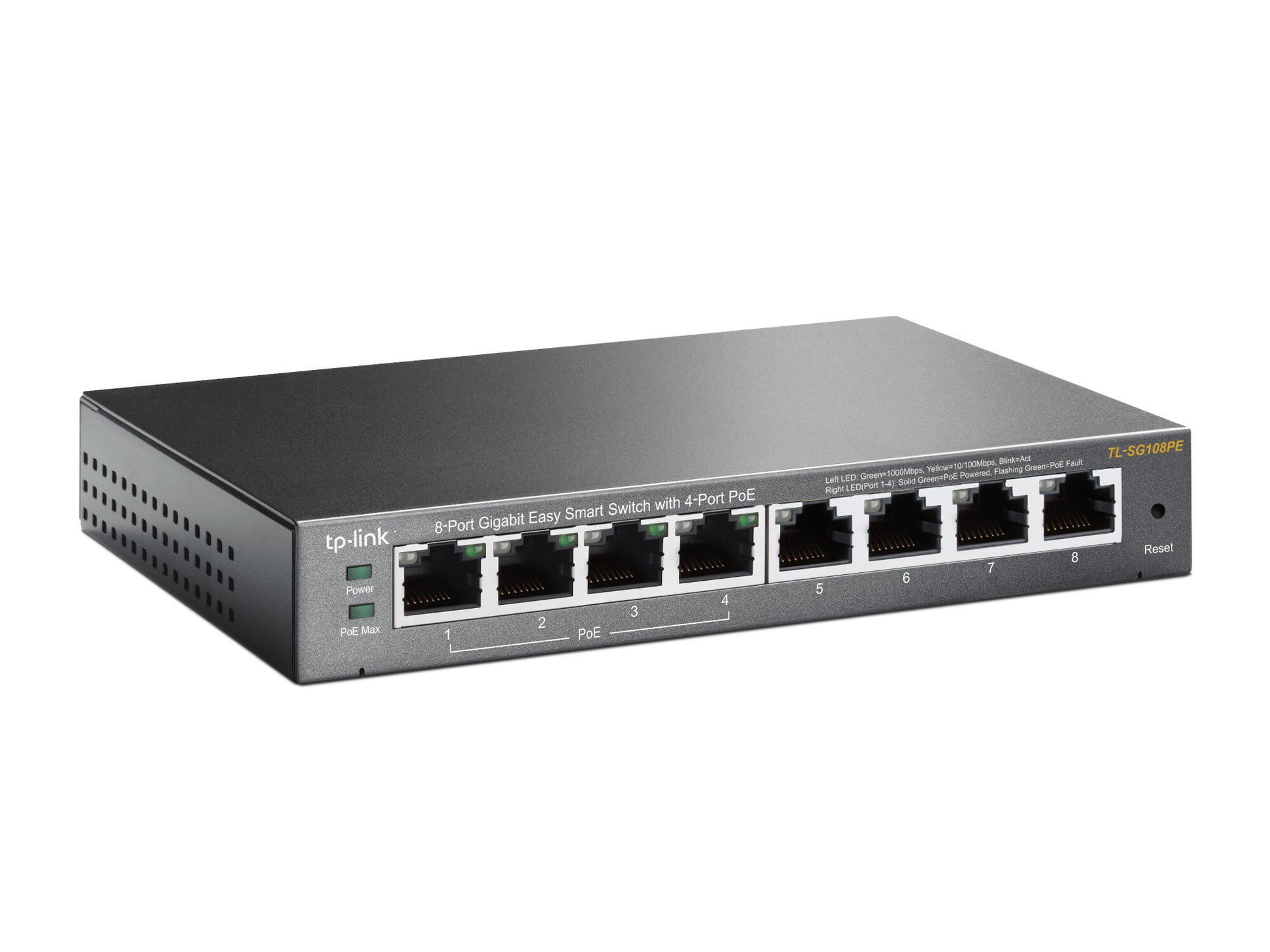

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE
TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE
SKU:TL-SG108PE V2
131 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
- Supports PoE power up to 55W for all PoE ports
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 32 |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Port mirroring | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Packet forwarding rate (1 Gbps) | 11900000 pps |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Forwarding rate | 11.9 Mpps |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| IGMP snooping | Yes |
| Design | |
|---|---|
| Certification | FCC, CE, RoHS |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Product colour | Black |
| Power | |
|---|---|
| Power consumption (max) | 65.2 W |
| Input voltage | 48 V |
| Input current | 1.25 A |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 64 W |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 256.19 BTU/h |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 25 mm |
| Depth | 101 mm |
| Width | 158 mm |
| Packaging data | |
|---|---|
| Package weight | 860 g |
| Package height | 121 mm |
| Package depth | 196 mm |
| Package width | 131 mm |
| Package type | Box |
| User guide | Yes |
| Cables included | AC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
