1 5

TP-LINK

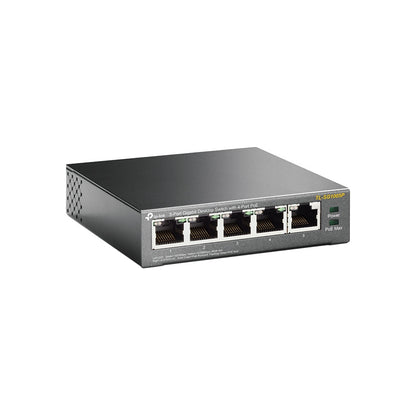

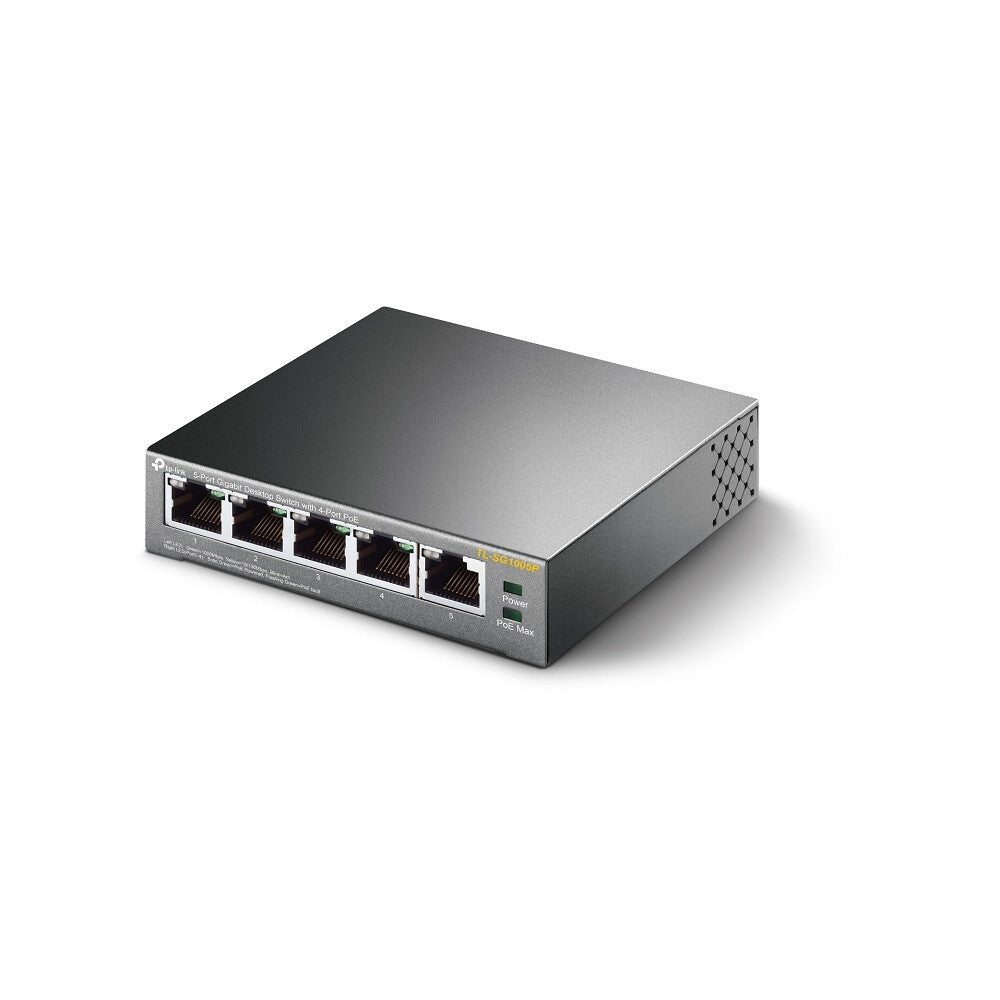

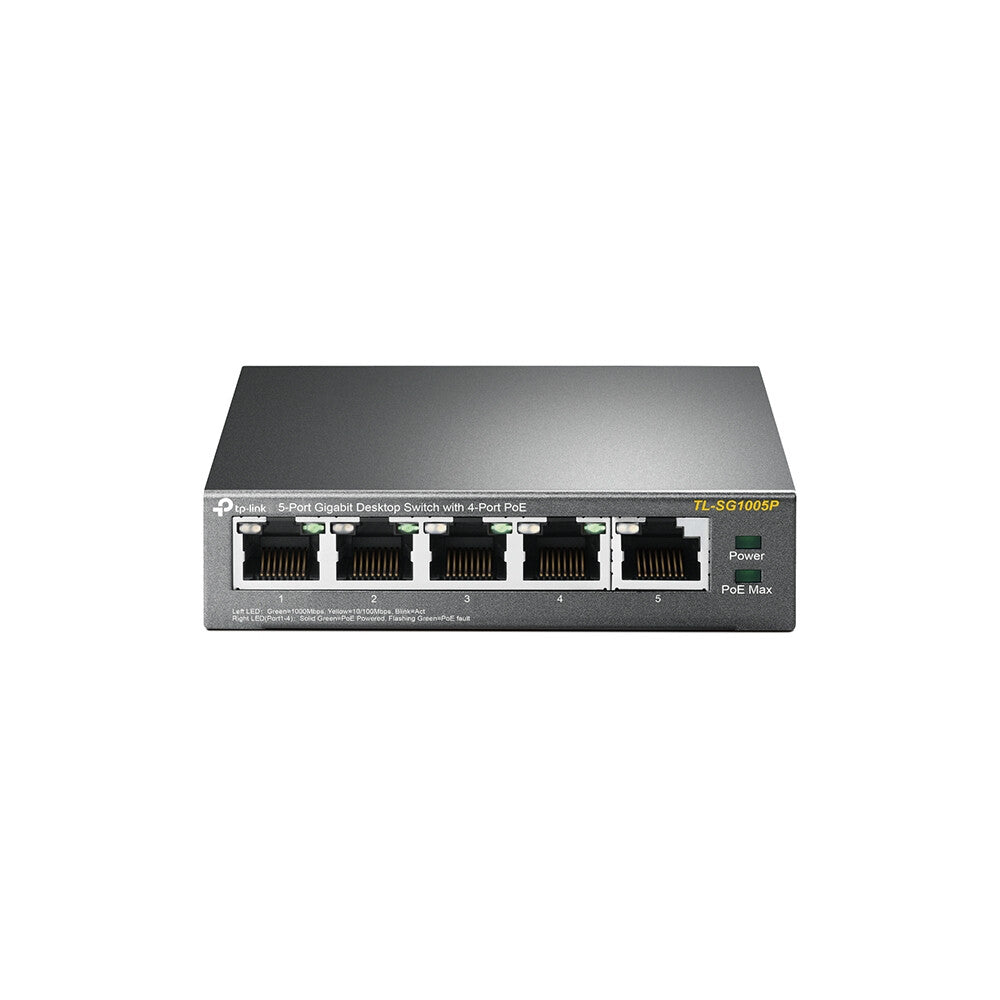

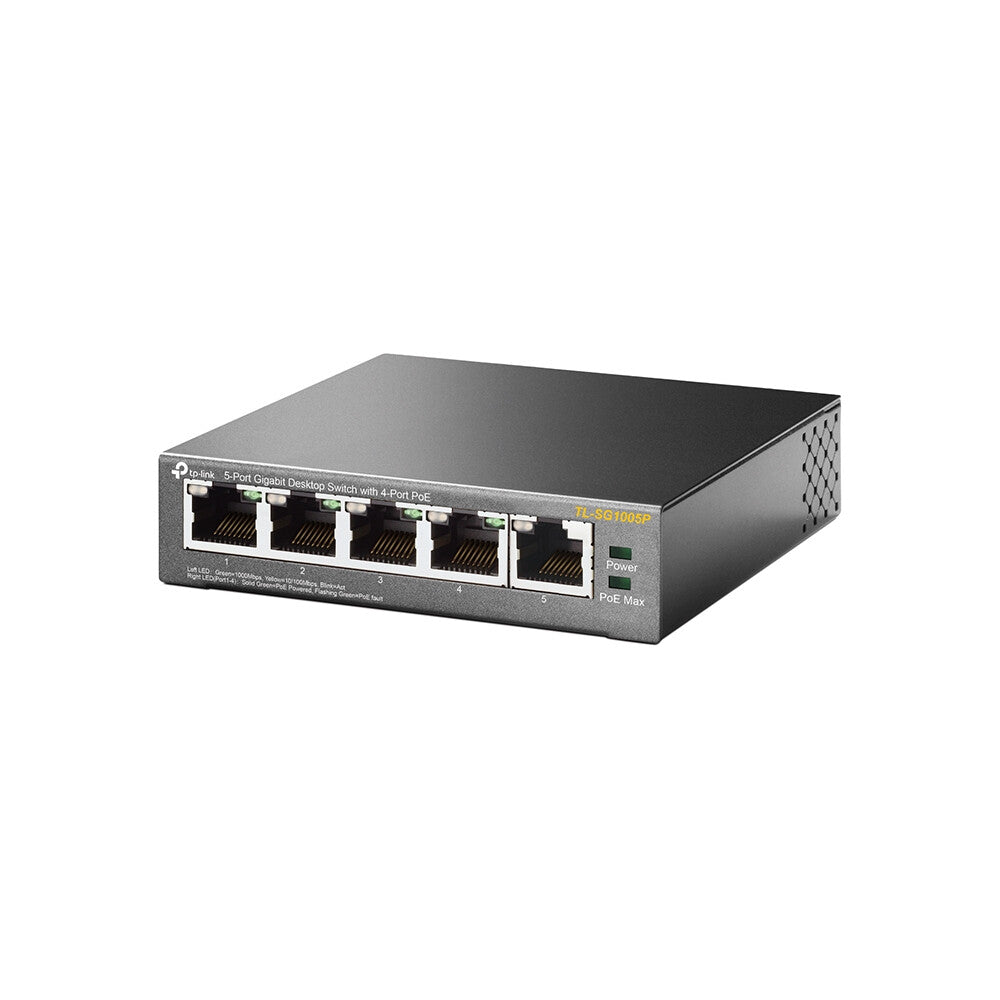

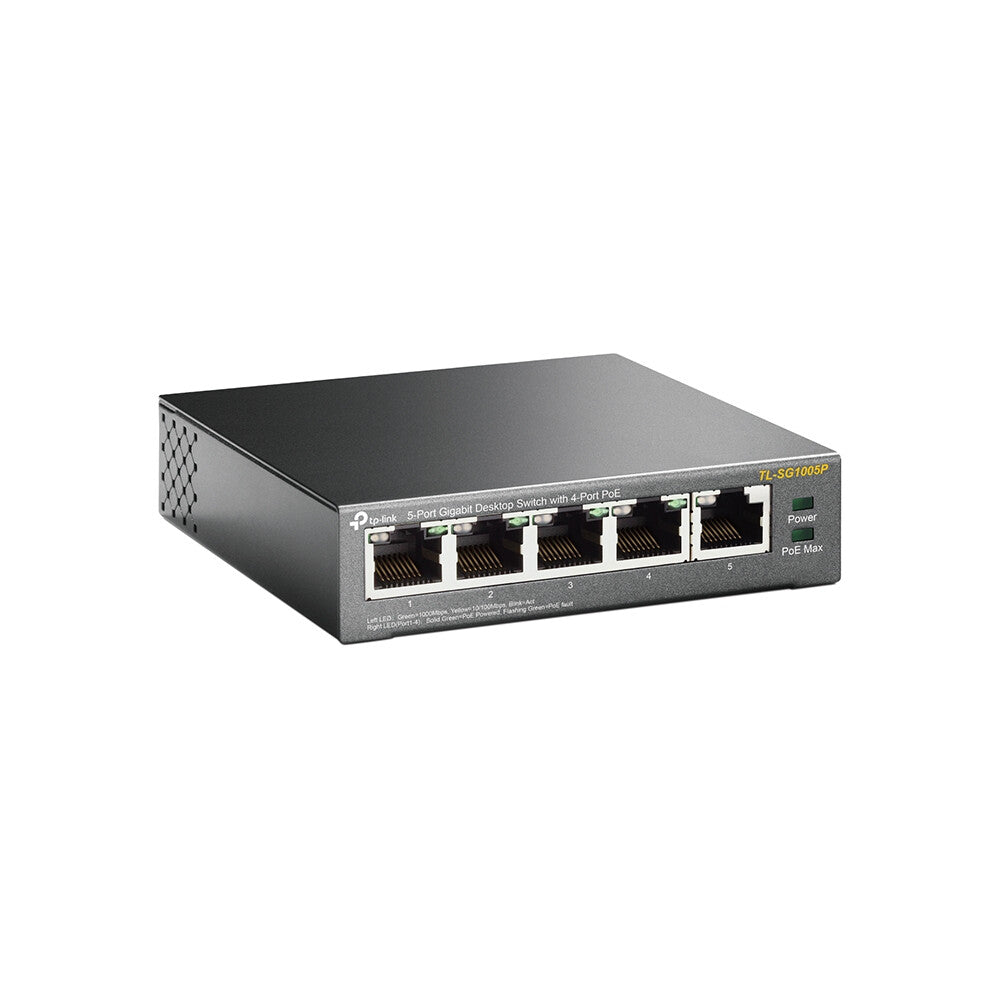

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port

£46.07 GBP
£46.07 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TL-SG1005P V1

132 in stock

  • 5 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 15.4W for each PoE port
  • Supports PoE Power up to 56W for all PoE ports
  • Requires no configuration and installation
5x 10/100/1000Mbps RJ-45, 10 Gbps, PoE, QoS, 99.8x98x25 mm

PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5
Network
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
MAC address auto-aging supported Yes
MAC address auto-learning supported Yes
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Data transmission
MAC address table 2000 entries
Switching capacity 10 Gbit/s
Forwarding rate 7.44 Mpps
Store-and-forward Yes
Security
IGMP snooping Yes
Design
Rack mounting No
Stackable No
Product colour Black
LED indicators Yes
Certification FCC, CE, RoHS
Performance
Maximum cable length 100 m
Fanless Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Power
Power source DC/PoE
Power supply included Yes
AC input voltage 100 - 220 V
AC input frequency 50 Hz
DC input voltage 48 V
Input current 1.25 A
Power consumption (max) 64.44 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Total Power over Ethernet (PoE) budget 56 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 219.87 BTU/h
Weight & dimensions
Width 99.8 mm
Depth 98 mm
Height 25 mm
Sustainability
Sustainability compliance Yes
Packaging data
Cables included AC
Quick start guide Yes
Manual Yes

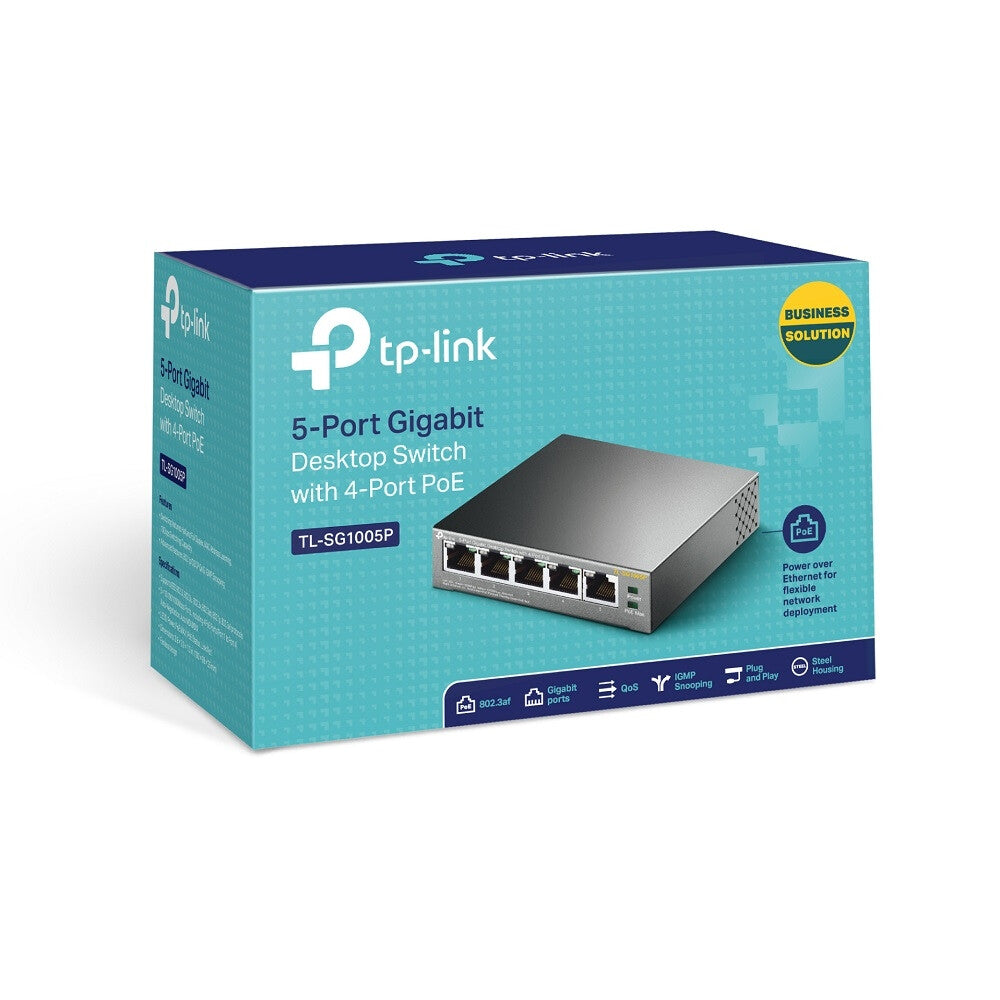

Package type Box
AC adapter included Yes
User guide Yes
Package width 131 mm
Package depth 196 mm
Package height 121 mm
Package weight 761 g
Logistics data
Harmonized System (HS) code 85176990
