TP-Link 5-Port 10/100Mbps Desktop Network Switch

TP-Link 5-Port 10/100Mbps Desktop Network Switch

LS1005 V1

£9.36 GBP£7.80 GBP
£0.00 GBP £9.36 GBP£7.80 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

16 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3X flow control provides reliable data transfer
  • Plastic casing and desktop design
  • Plug and play, no configuration required
  • Fanless design ensures quiet operation
5× 10/100Mbps, IEEE 802.3i/802.3u/802.3x, 83.6 × 45.7 × 22.8 mm

5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3X flow control provides reliable data transfer
Plastic casing and desktop design
Plug and play, no configuration required
Fanless design ensures quiet operation

Easily Expand Your Network and Save Energy
5-Port 10/100 Mbps Desktop Switch

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.

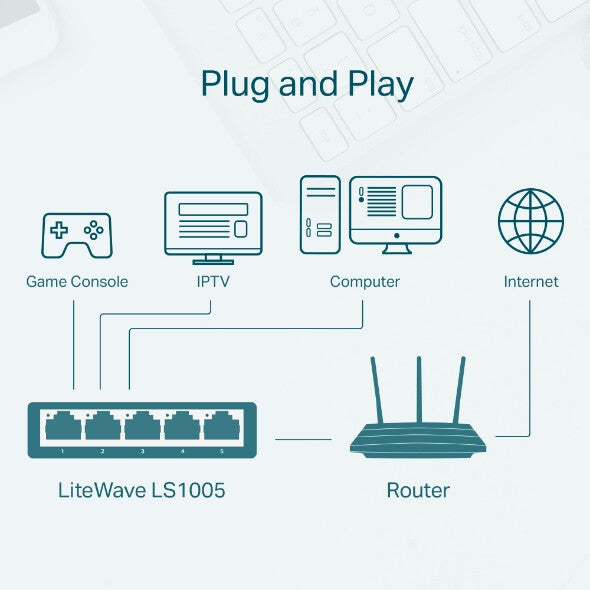

Use Where You Need, However You Need
The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Power connector DC-in jack
Network
Networking standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 2000 entries
Switching capacity 1 Gbit/s
Forwarding rate 0.7 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 2000
Design
Rack mounting No
Product colour White
Housing material Plastic
LED indicators Activity, Link, Power
Wall mountable No
Certification CE, FCC, RoHS
Power
Power source DC
Power supply included Yes
Input current 0.6 A
Input voltage 5 V
Power consumption (max) 1.65 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 5.627 BTU/h
Weight & dimensions
Width 83.6 mm
Depth 45.7 mm
Height 22.8 mm
Packaging data
Quick start guide Yes
Package type Box
Package width 82 mm
Package depth 88 mm
Package height 84 mm
Package weight 80 g
Logistics data
Harmonized System (HS) code 85176990
