TP-LINK

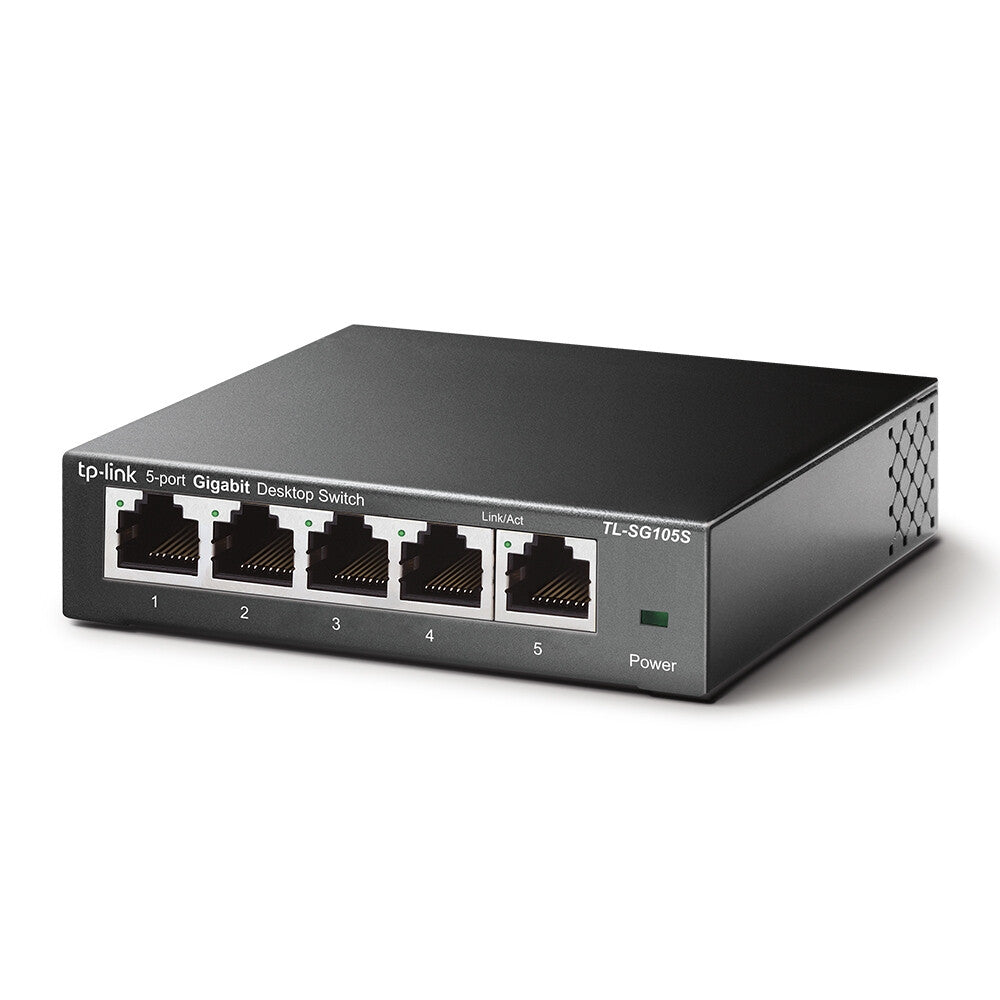

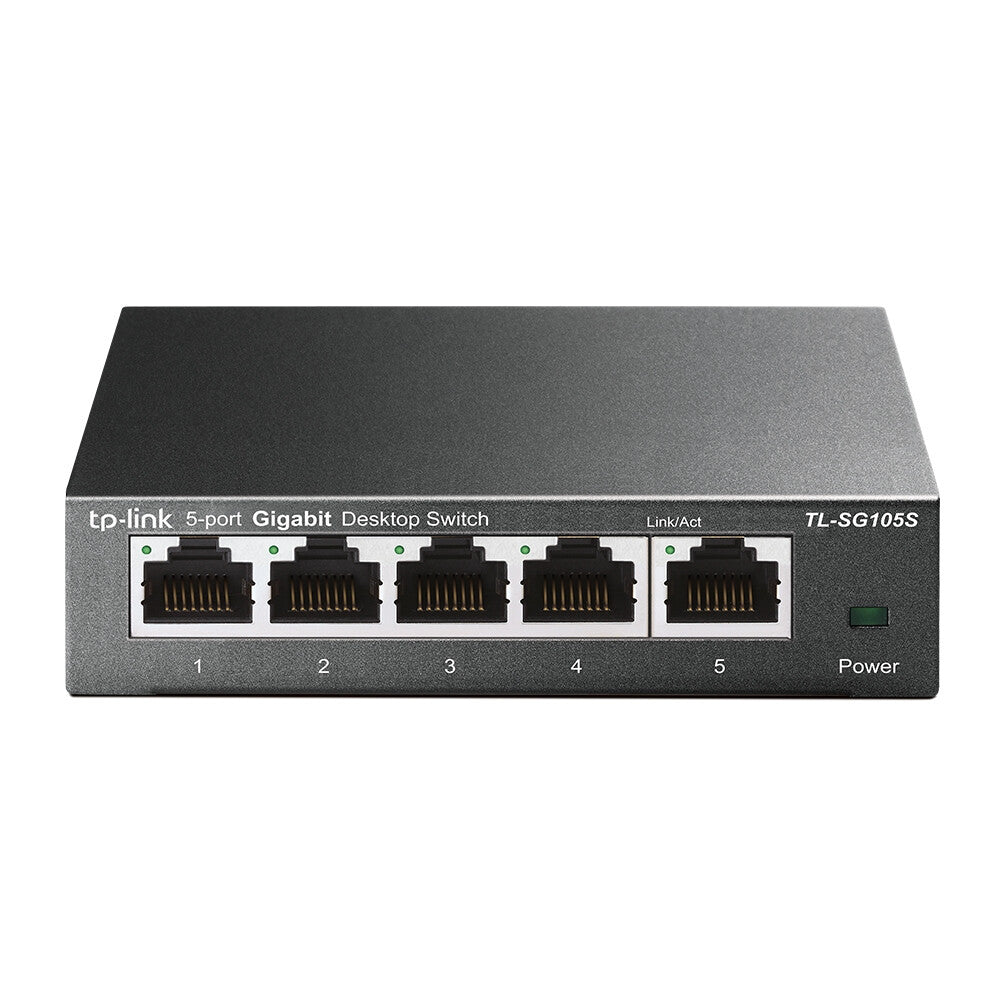

TP-Link 5-Port Gigabit Desktop Switch
TP-Link 5-Port Gigabit Desktop Switch
Couldn't load pickup availability
SKU:TL-SG105S V2
Low stock: 2 left
- 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
What This Product Does
The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |

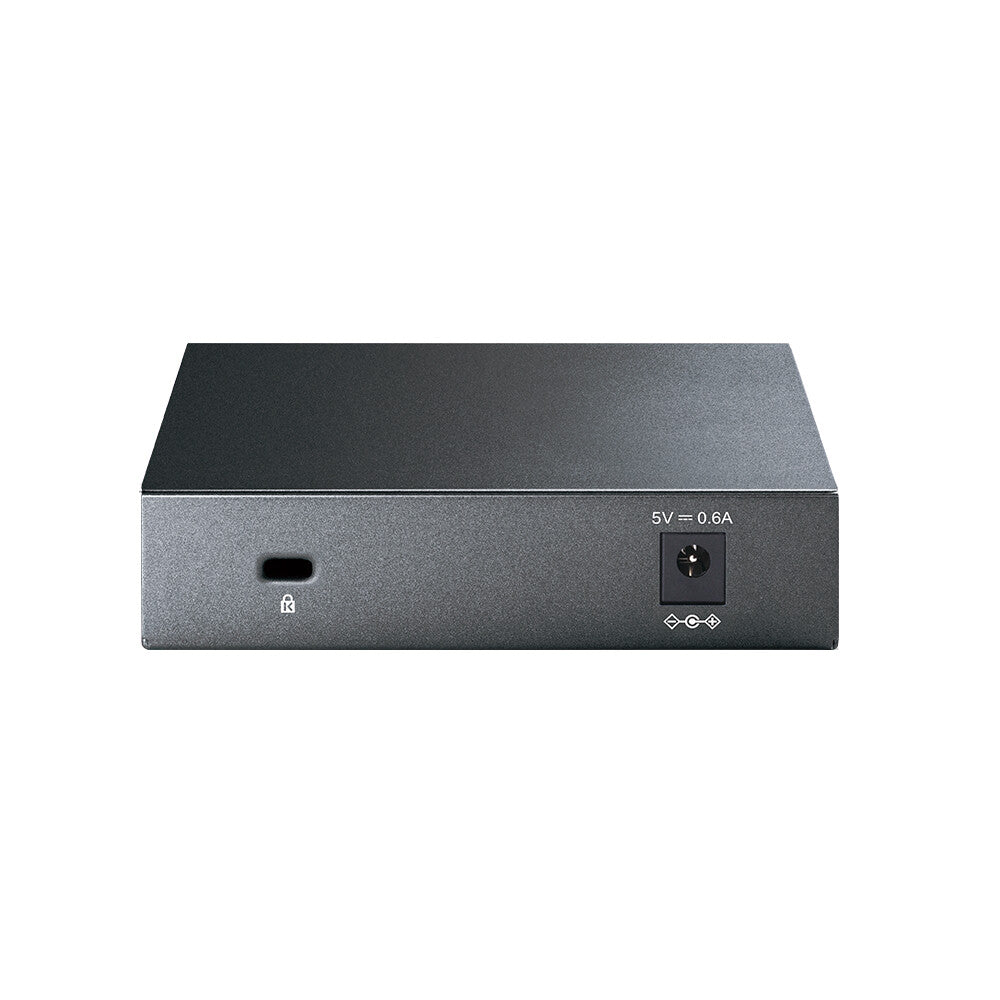

| Power connector | DC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Forwarding rate | 7.4 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| Security | |
|---|---|
| IGMP snooping | Yes |
| Design | |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Wall mountable | Yes |
| Certification | CE, FCC, RoHS |
| Performance | |
|---|---|
| Plug and Play | Yes |
| Power | |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 5 V |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Output voltage | 9 V |
| Output current | 0.6 A |
| Power consumption (max) | 2.3 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 7.83 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 100 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Packaging data | |
|---|---|
| Cables included | AC |
| Rubber feet | Yes |
| Package type | Box |
| AC adapter included | Yes |
| User guide | Yes |
| Package width | 107 mm |
| Package depth | 192 mm |
| Package height | 107 mm |
| Package weight | 476 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
