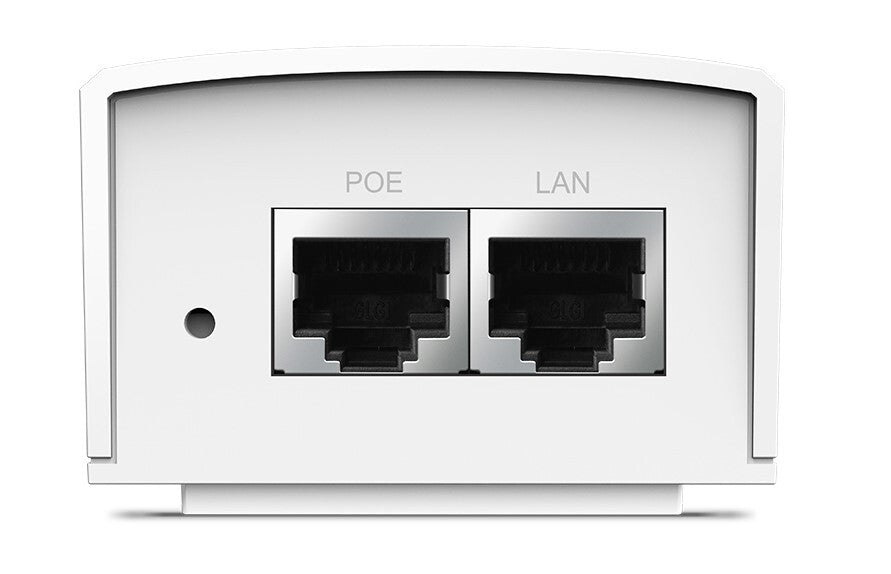

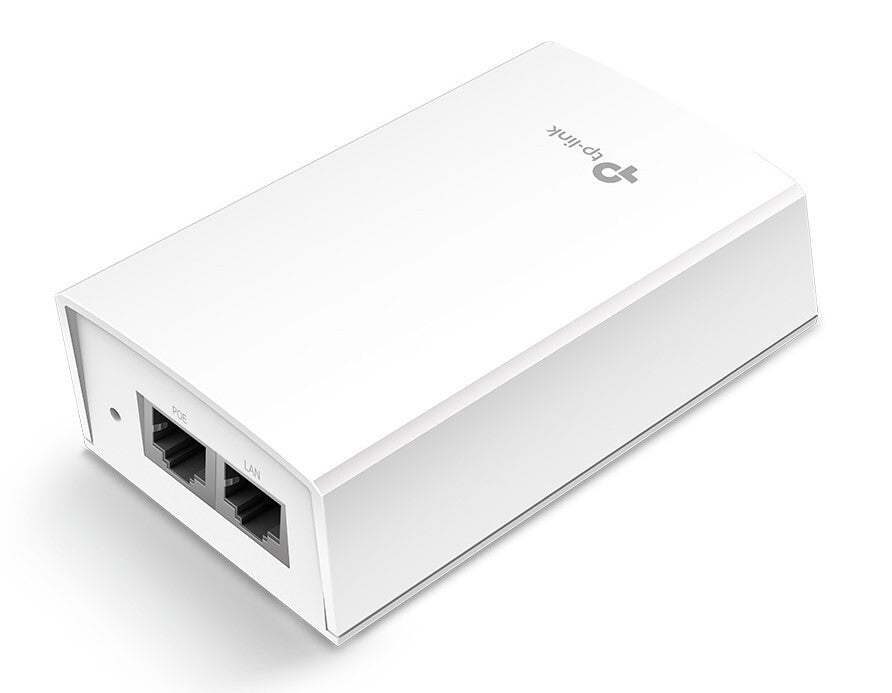

TP-Link 48V Passive PoE Adapter
TP-Link 48V Passive PoE Adapter
SKU:POE4824G
20 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Gigabit network ports
- 48VDC passive PoE injector
- Auto-detect and auto-supply the necessary power required
- Convenient wall-mount kit
- Plug-and-Play, requires no configuration
Passive PoE Adapter
Powers TP-Link products that
support 48V passive PoE
Power Your Devices
Use the passive PoE adapter TL-POE4824 to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE4824 offers a convenient wall-mounting brackets to be easily installed on a wall.
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
| Power over Ethernet (PoE) | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Features | |
|---|---|
| Product colour | White |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Power |
| Certification | FCC, CE, RoHS |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) voltage | 48 V |
| Output power | 24 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 110 mm |
| Depth | 57 mm |
| Height | 38.8 mm |
| Packaging data | |
|---|---|
| Package width | 65 mm |
| Package depth | 198 mm |
| Package height | 65 mm |
| Package weight | 370 g |
| Packaging content | |
|---|---|
| Wall mounting kit | Yes |
| Number of products included | 1 pc(s) |
| Power cord included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85044095 |
