Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access
Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi
Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction
Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere

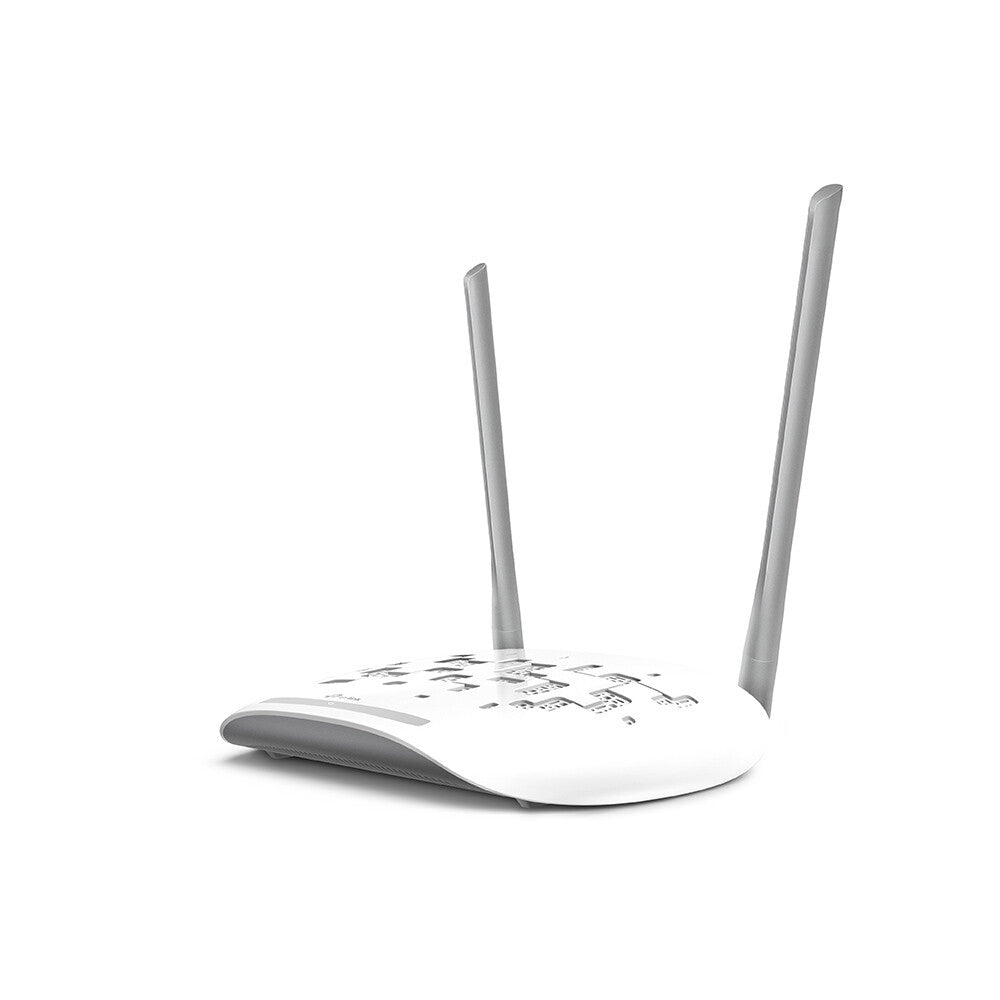

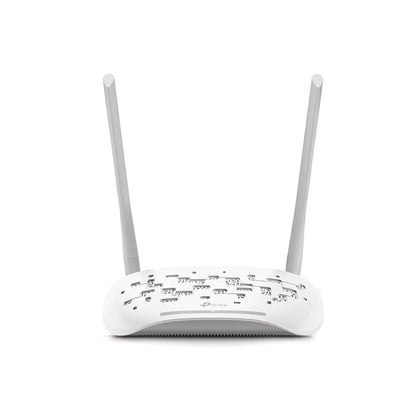

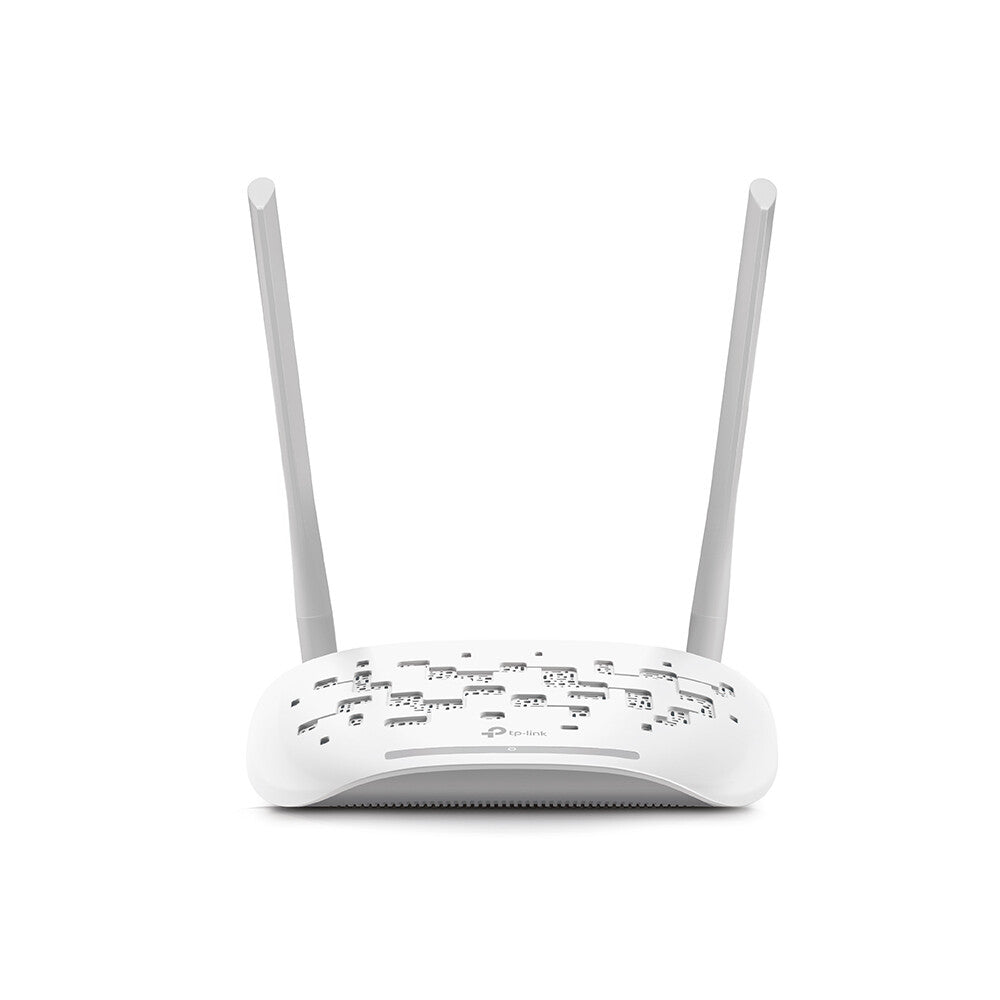

Simple yet Powerful The Best VDSL for Every Home 300Mbps Wireless N VDSL/ADSL Modem Router
Superfast VDSL Modem Router VDSL2 technology delivers VDSL broadband speeds of up to 100Mbps simultaneously in both the upstream and downstream directions. The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs. *The TD-W9960 is compatible with VDSL2, ADSL2+, ADSL2 and ADSL.

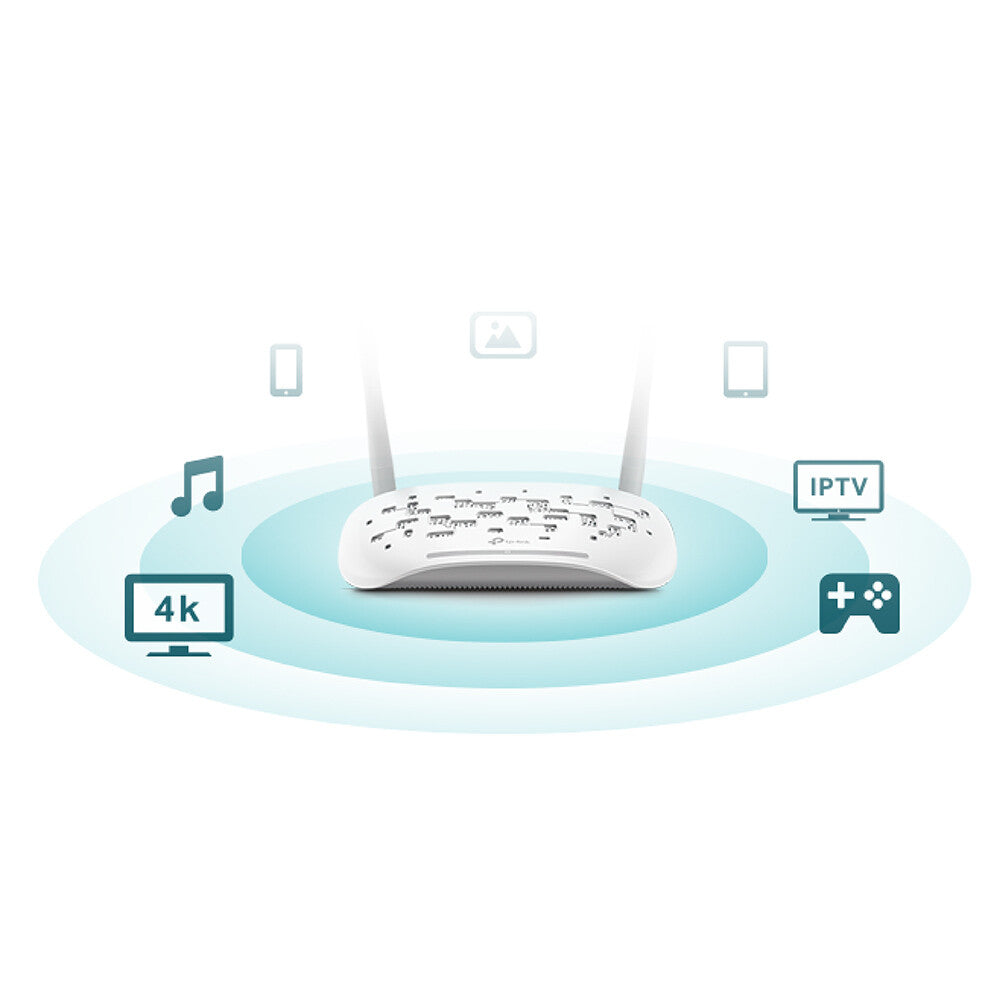

Wi-Fi Speed Up to 300Mbps With 300Mbps wireless speeds on the 2.4GHz band and 4 megabit LAN ports, the TD-W9960 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.
Easy Setup and Management Set up the TD-W9960 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Control your home network whenever and wherever you are.

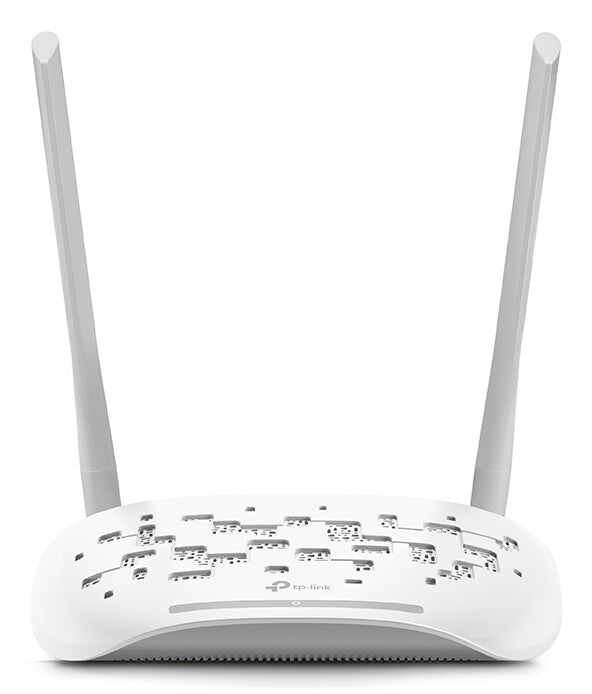

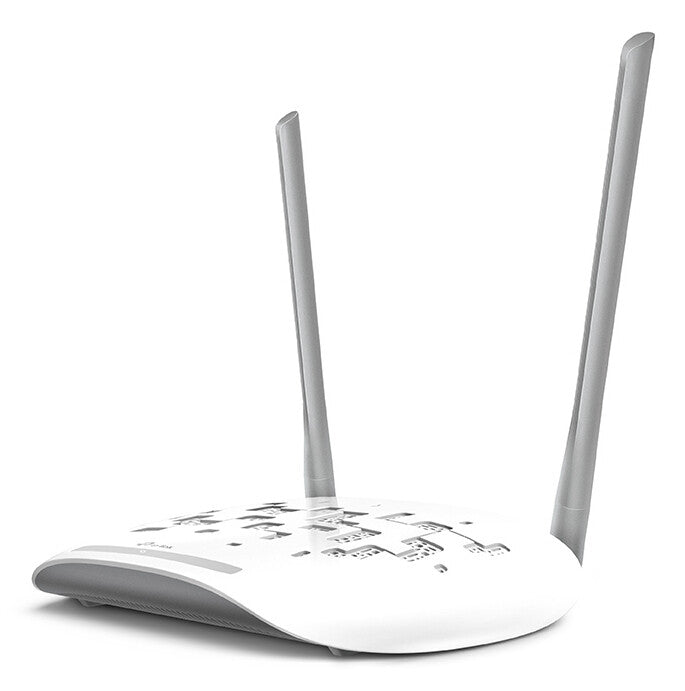

Powerful Antennas Two external 5dBi high-gain antennas beam signal to every corner of your home, creating a strong, stable Wi-Fi network.
6kV Lightning Protection Lightning protection shields TD-W9960 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.
Secure Surfing Parental Controls limit the online time and access of specified devices. Guest Network creates a separate Wi-Fi network for visitors, keeping your main network secure.
WAN connection
Ethernet WAN
Yes
DSL WAN
Yes
SIM card slot
No
3G/4G USB modem compatibility
No
WAN connection type
RJ-45
Wireless LAN features
Wi-Fi band
Single-band (2.4 GHz)
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
300 Mbit/s
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
Ethernet LAN
Yes
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Cabling technology
10/100Base-T(X)
Networking standards
IEEE 802.3u
Dynamic DNS (DDNS)
Yes
VPN Passthrough
Yes
Mobile network
4G
No
3G
No
DSL features
ADSL
Yes
VDSL2
Yes

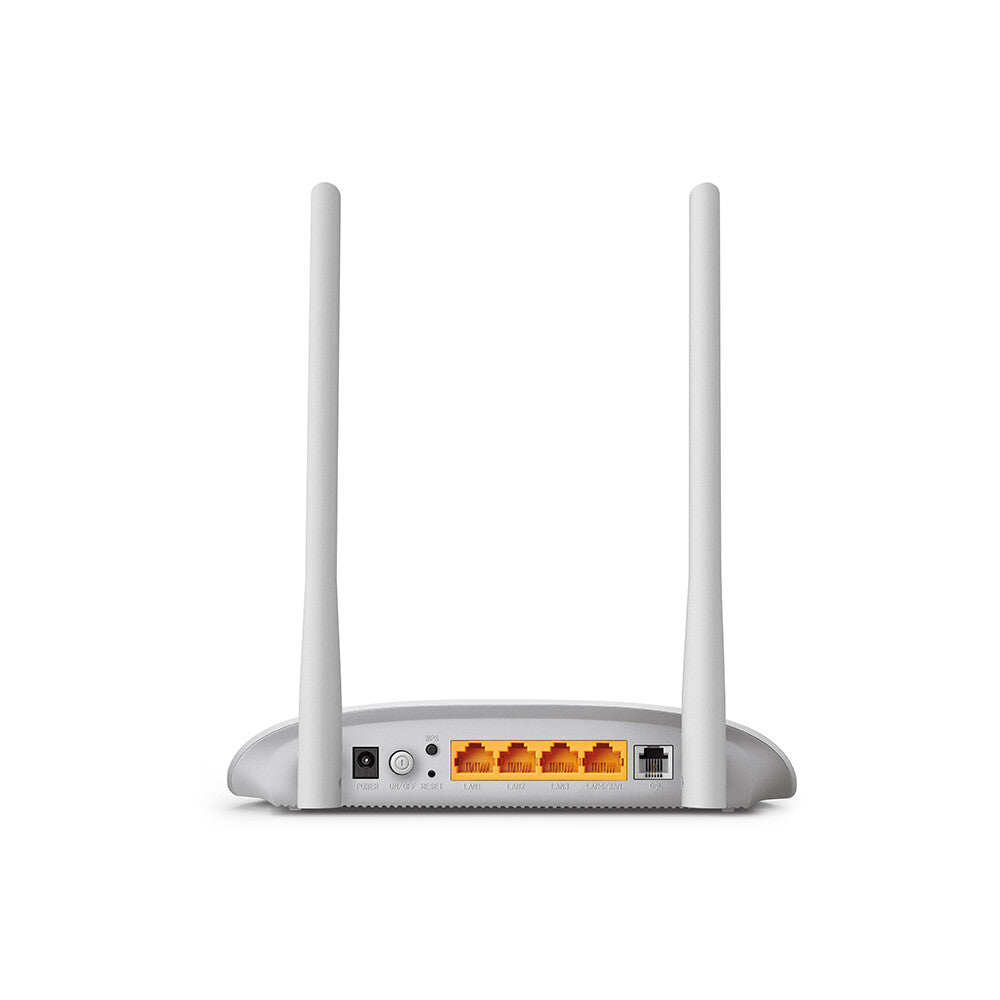

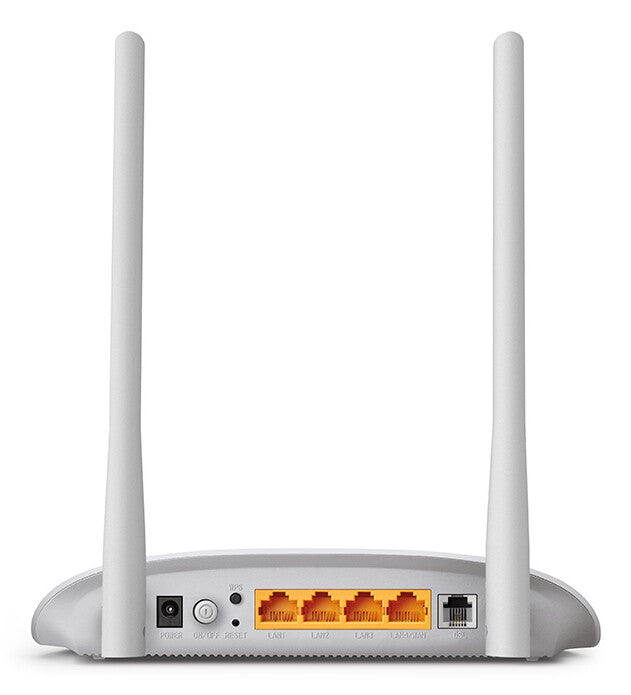

Ports & interfaces
Ethernet LAN (RJ-45) ports
4
USB port
No
RJ-11 ports quantity
1
Memory card slot(s)
No
DC-in jack
Yes
Management features
Quality of Service (QoS) support
Yes
Reset button
Yes
WPS push button
Yes
Security
Security algorithms
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2
Firewall
Yes
Filtering
Yes
MAC address filtering
Yes
DMZ support
Yes
Network address translation (NAT)
Yes
Protocols
Universal Plug and Play (UPnP)
Yes
Supported network protocols
IPv4, IPv6
Design
Product type
Tabletop router
Product colour
White
Wall mountable
Yes
LED indicators
LAN, Status, WLAN
On/off switch
Yes
Packaging content
Cables included
LAN (RJ-45), Phone (RJ-11)
AC adapter included
Yes
Quick start guide
Yes
Antenna
Antenna design
External
Antenna gain level (max)
5 dBi
Antennas quantity
2
Features
Firmware upgradeable
Yes
Certification
CE, RoHS
Power
Power source type
DC
Output voltage
9 V
Output current
0.6 A
Operational conditions
Storage relative humidity (H-H)
5 - 90%
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
System requirements
Windows operating systems supported
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP Home, Windows XP Professional
