TP-LINK

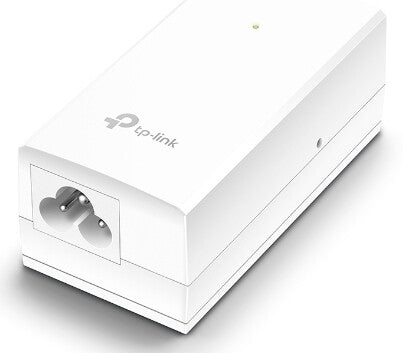

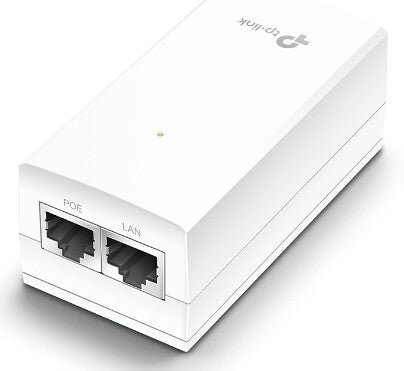

TP-Link 24V Passive PoE Adapter

TP-Link 24V Passive PoE Adapter

£11.76 GBP
£11.76 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TL-POE2412G

16 in stock

  • Gigabit Ethernet ports
  • 24VDC passive PoE supported
  • Auto-adjusted power depends on requirements
  • Convenient wall-mounting design
  • Plug-and-Play, no configuration required
24V Passive PoE Adapter

Passive PoE Adapter
Powers TP-Link products that
support 24V passive PoE
TL-POE2412G

Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.

Network
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000
Power over Ethernet (PoE) Yes
Auto MDI/MDI-X Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Features
Product colour White
Wall mountable Yes
Plug and Play Yes
Maximum operating distance 100 m
LED indicators Power
Auto-negotiation Yes
Certification FCC, CE, RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power
Power over Ethernet (PoE) voltage 24 V
Output power 12 W
Operational conditions
Operating temperature (T-T) 32 - 104 °F
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 85.8 mm
Depth 43.9 mm
Height 35 mm
Dimensions (WxDxH) 43.9 x 85.8 x 35 mm
Packaging data
Package width 60 mm
Package depth 180 mm
Package height 60 mm
Package weight 290 g
Packaging content
Wall mounting kit Yes
Number of products included 1 pc(s)
Power cord included Yes
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85044095
View full details
