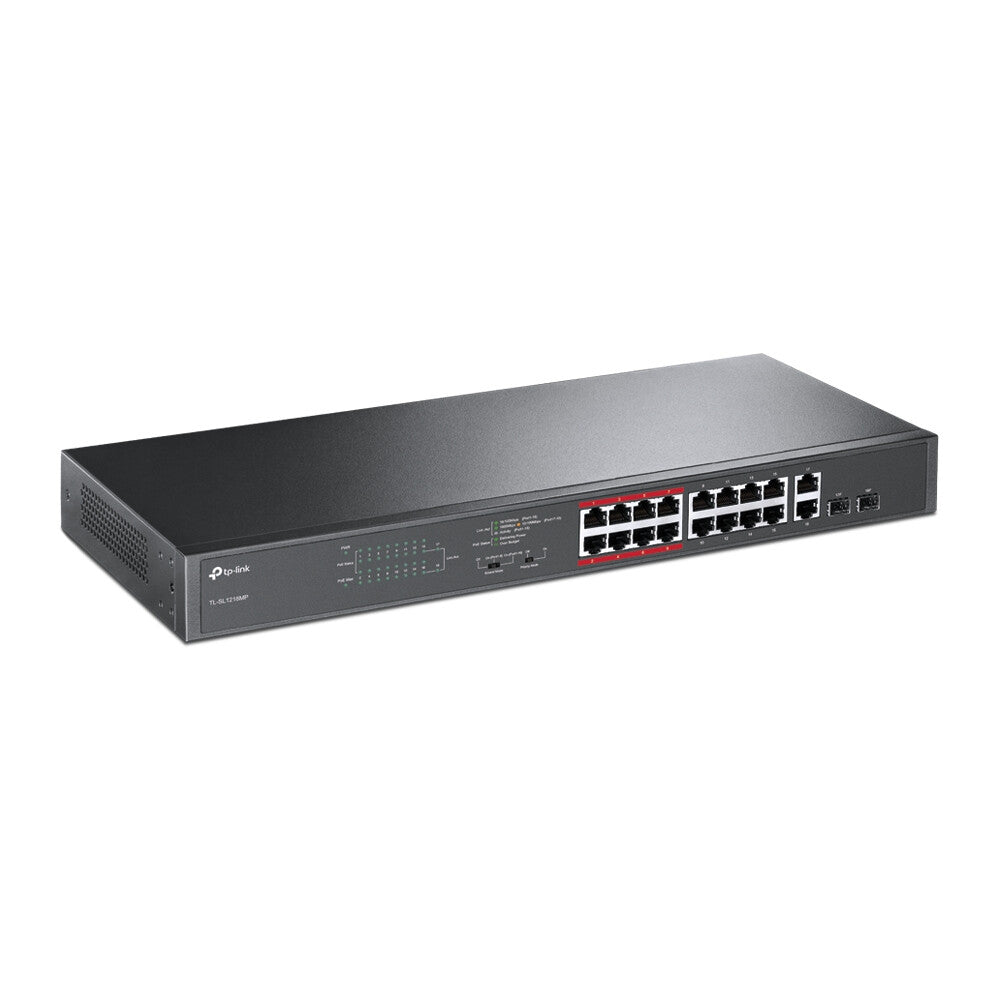

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

£188.00 GBP
£188.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TL-SL1218MP V1

19 in stock

  • 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
  • Up to 250m data and power transmission under extend mode specially designed for surveillance system
  • Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
  • High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
  • Easy to use, with no configuration and installation needed
16x PoE+, 2x 1000Mbps, 2x Combo Gigabit SFP, 2x Fans, Bandwidth 7.2 Gbps, 802.3at/802.3af, 192W

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

Management features
Switch type Unmanaged
Ports & interfaces
Combo SFP ports quantity 2
Gigabit Ethernet (copper) ports quantity 2
Fast Ethernet (copper) ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 20
Network
MAC address auto-aging supported Yes
Auto MDI/MDI-X Yes
MAC address auto-learning supported Yes
Auto-negotiation Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
10G support No
Networking standards IEEE 802.3af, IEEE 802.3at
Data transmission
Packet buffer memory 4.1 MB
Jumbo frames 10000
Jumbo frames support Yes
Store-and-forward Yes
Forwarding rate 5.36 Mpps
Switching capacity 7.2 Gbit/s
MAC address table 8000 entries
Design
Certification CE, FCC, RoHS
Number of fans 2 fan(s)
LED indicators LAN, PoE, Status
Product colour Black
Form factor 1U
Stackable No
Rack mounting Yes
Power
Power consumption (max) 217.22 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 192 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 16
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 741.15 BTU/h
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 44 mm
Depth 180 mm
Width 440 mm
Packaging data
Package weight 2.96 kg
Package height 80 mm
Package depth 528 mm
Package width 250 mm
Manual Yes
Package type Box
Cables included LAN (RJ-45)
Logistics data
Harmonized System (HS) code 85176990
