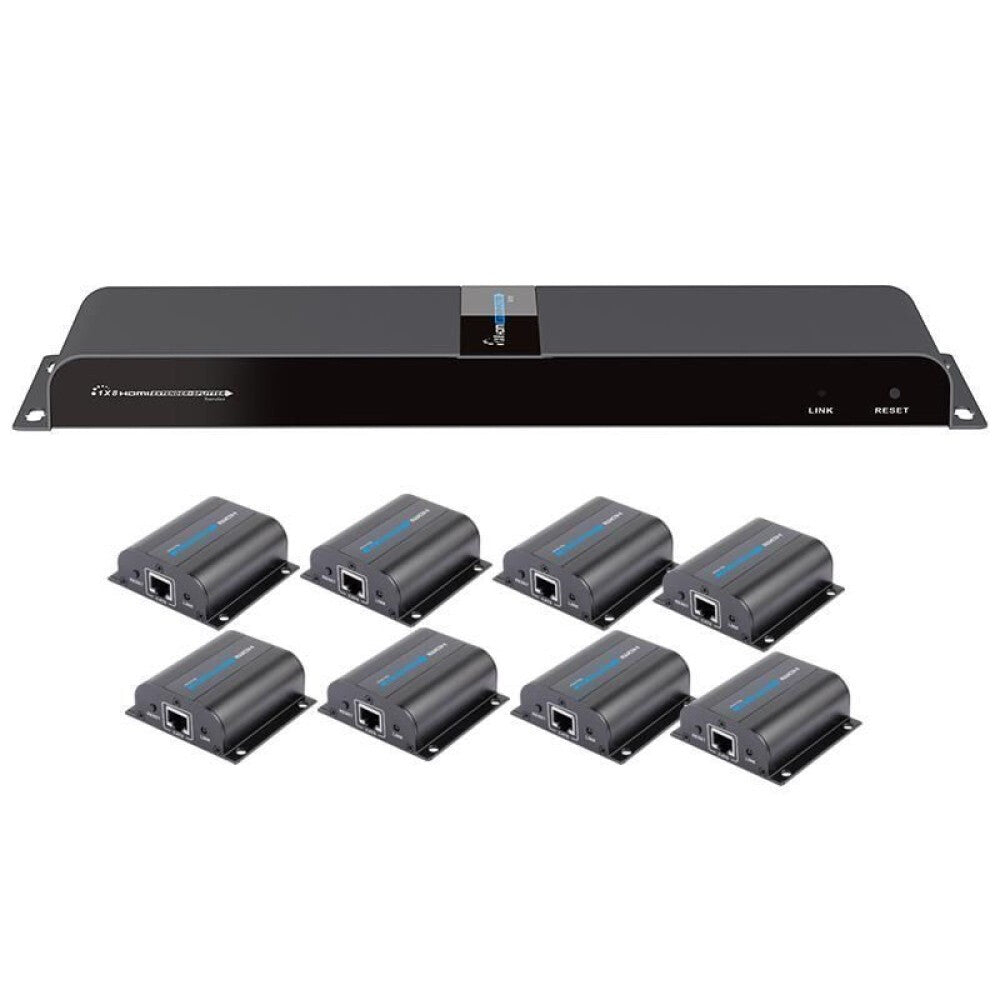

Techly HDMI 1x8 Extender Splitter over CAT6/6a/7 50m with IR pass-back IDATA EX-HL81TY
Techly HDMI 1x8 Extender Splitter over CAT6/6a/7 50m with IR pass-back IDATA EX-HL81TY
Regular price
£690.10 GBP
Regular price
Sale price
£690.10 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:IDATA-EX-HL81TY
Low stock: 3 left

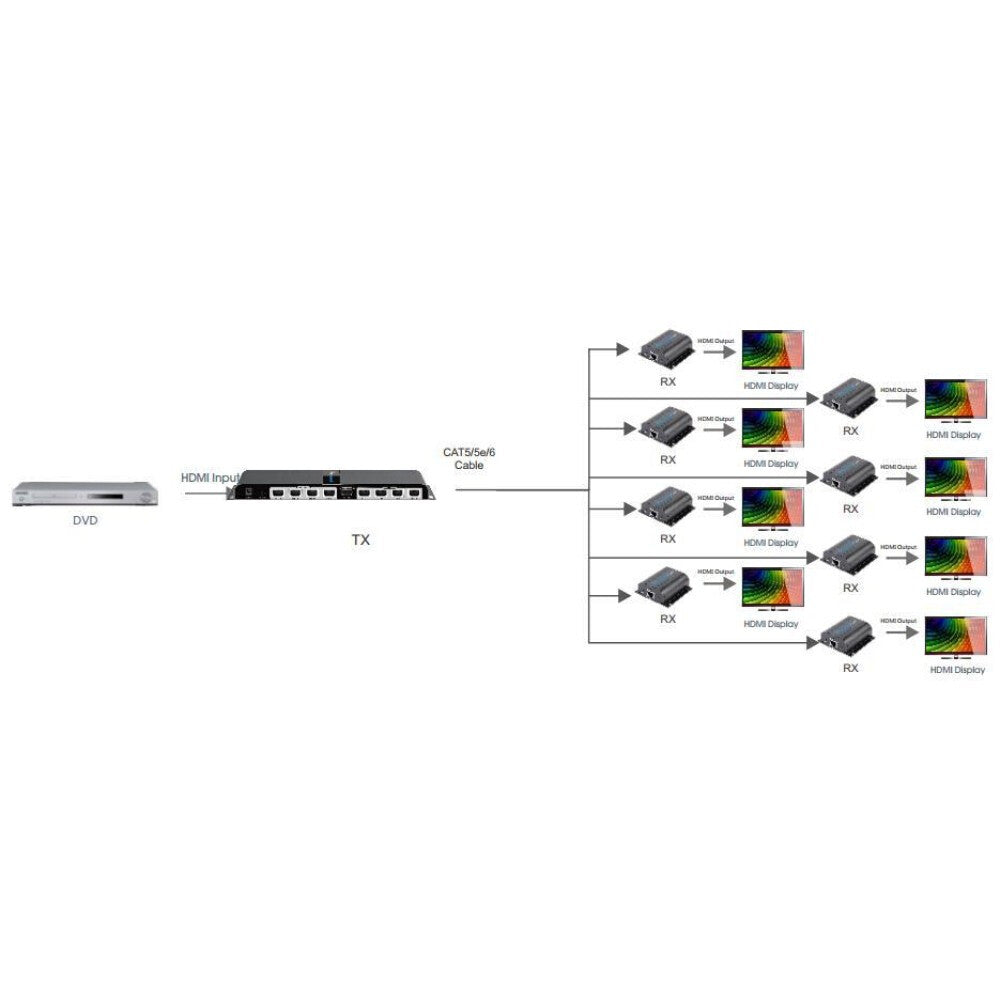

- Distribute 1 HDMI source to 8 HD displays over network cable simultaneously
- Compatible with CAT6/6a/7 network cables
- The highest resolution supported is up to 1080p@60Hz
- Extend HDMI signal up to 50m/164ft over CAT6 cable
- Support IR pass back for remote control source device easily
- Uncompressed and zero latency
- Plug and play
HDMI 1x8 Extender Splitter over CAT6/6a/7 50m with IR pass-back
- Distribute 1 HDMI source to 8 HD displays over network cable simultaneously
- Compatible with CAT6/6a/7 network cables
- The highest resolution supported is up to 1080p@60Hz
- Extend HDMI signal up to 50m/164ft over CAT6 cable
- Support IR pass back for remote control source device easily
- Uncompressed and zero latency
- Plug and play
| Features | |
|---|---|
| Certification | CE, FCC |
| Product colour | Black |
| Remote control type | IR |
| 3D | No |
| HDCP & EDID bypass | Yes |
| Wall mountable | Yes |
| HDCP version | 1.2 |
| Plug and Play | Yes |
| Audio formats supported | PCM |
| HDCP | Yes |
| Material | Aluminium |
| LED indicators | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Colour depth | 36 bit |
| Maximum refresh rate | 60 Hz |
| Maximum transfer distance | 40 m |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum resolution | 1920 x 1080 pixels |
| Type | AV transmitter & receiver |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 9 |
| HDMI version | 1.3 |
| RJ-45 output ports | 8 |
| RJ-45 input ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| External power adapter | Yes |
| Power consumption (typical) | 24 W |
| Operating voltage (receiver) | 5 V |
| Input current | 3 A |
| Operating voltage | 12 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Transmitter dimensions (WxDxH) | 276 x 95.98 x 23 mm |
| Receiver dimensions (WxDxH) | 71.6 x 66.6 x 22.6 mm |
| Weight | 2.18 kg |
| Packaging content | |
|---|---|
| IR blaster included | Yes |
| Quick start guide | Yes |
| Cables included | IR |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Audio support | Yes |
| Compliance certificates | CE |
| Supplier features | |
|---|---|
| Vendor code | 028207 |
