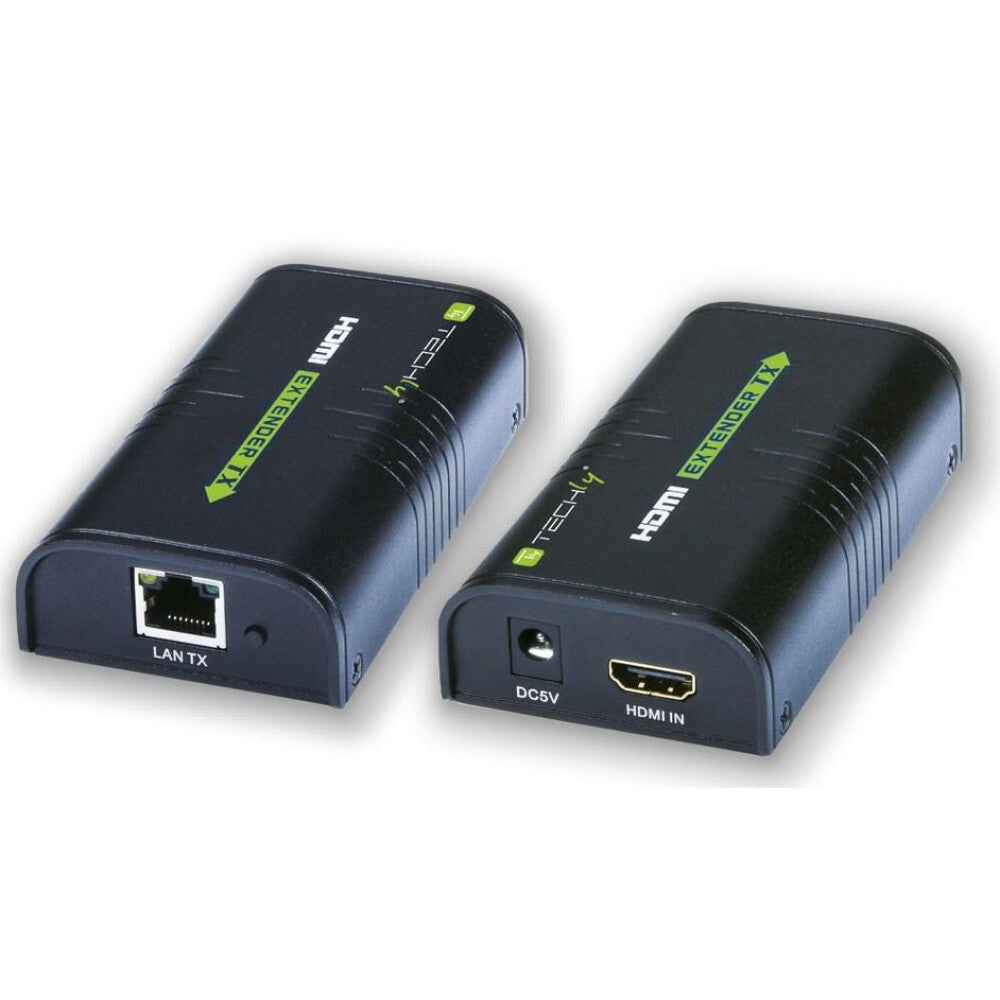

Techly Amplifier / Splitter HDMI Over IP Network IDATA EXTIP-373

Techly Amplifier / Splitter HDMI Over IP Network IDATA EXTIP-373

£93.84 GBP
£93.84 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

IDATA EXTIP-373

15 in stock

  • It transmits the audio signal from your local digital video (transmitter) that is connected to the HDMI source to a remote unit (receiver) connected to the screen via network cable

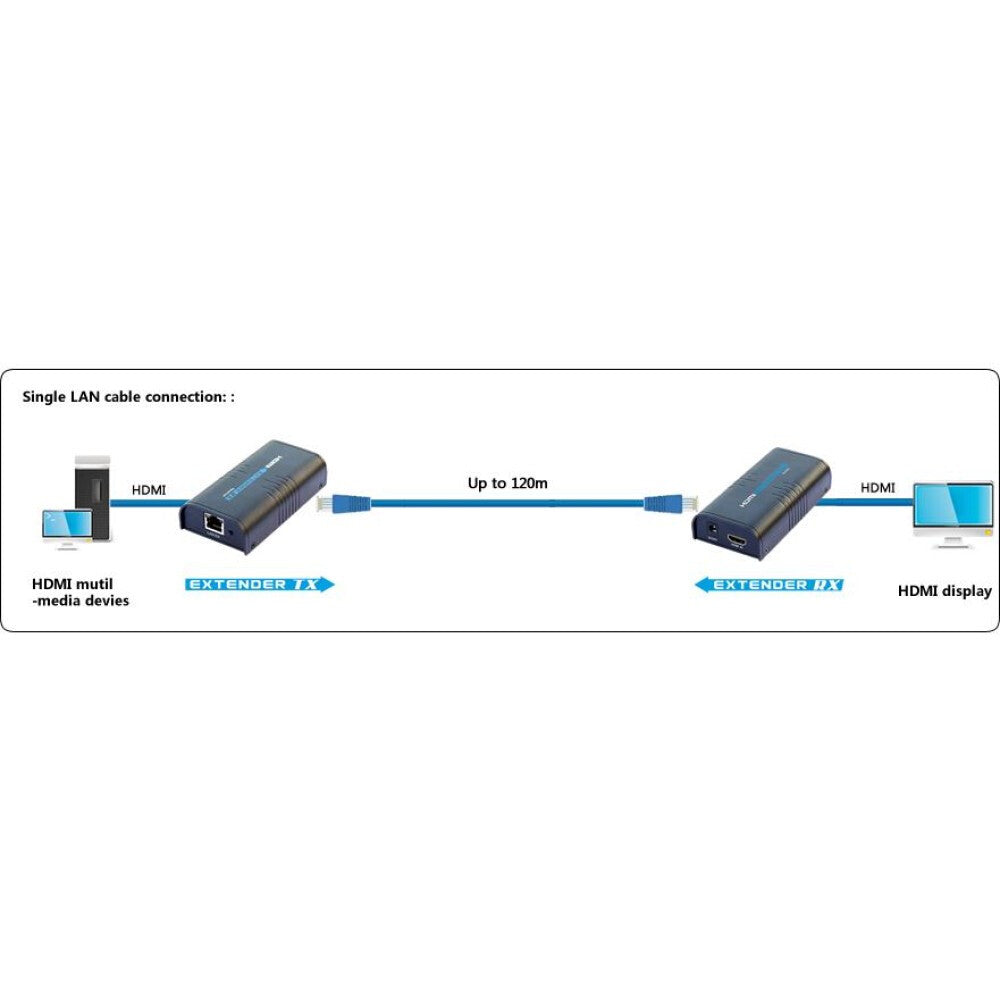

  • Carry your HDMI signal up to 120 m using a network cable Cat.6

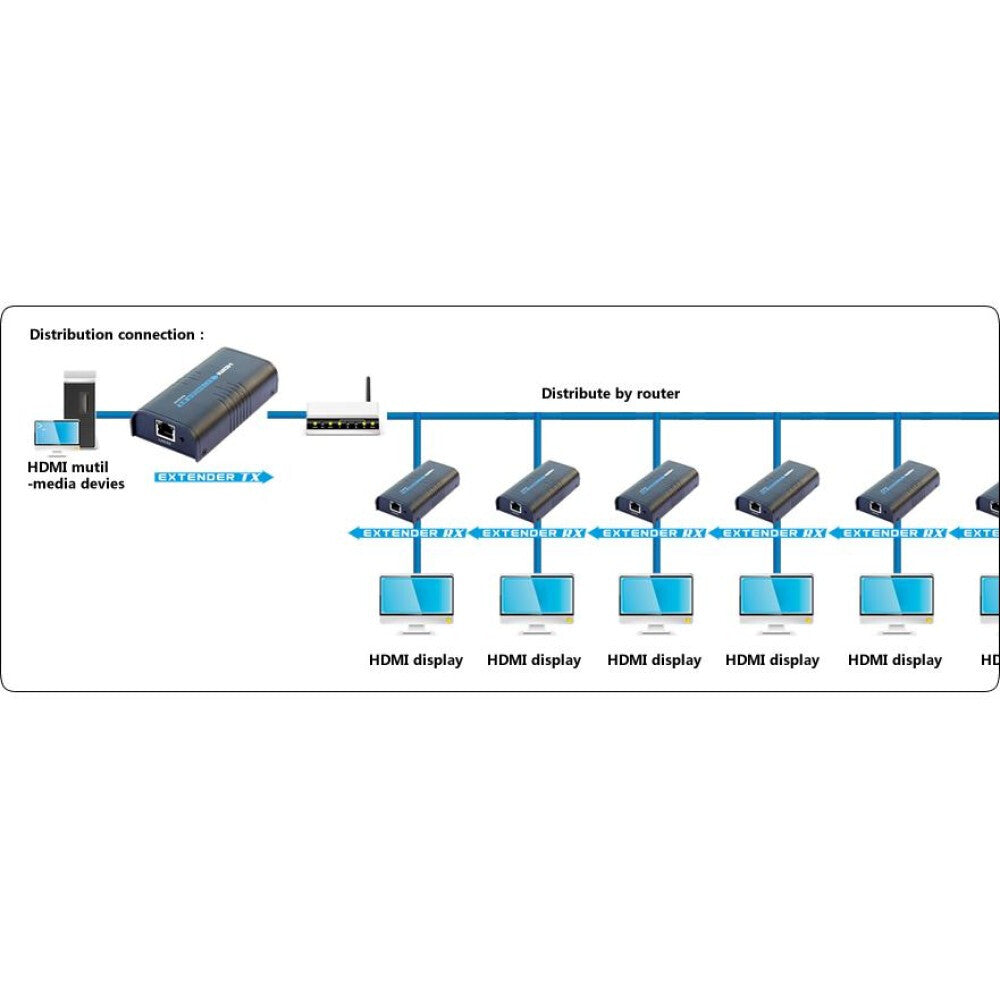

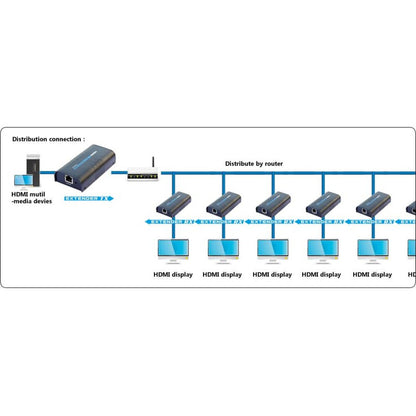

  • The local unit if it is connected to several remote units via a switching hub, thus creating links point to multi-point
  • Supports HDCP1.2
  • Resolution HDMI input: 480i @ 60Hz 480p @ 60Hz, 576i @ 50Hz 576p @ 50Hz 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz;
  • Resolution HDMI output: 480p @ 60Hz 576p @ 50Hz 720p @ 50 / 60Hz, 1080p @ 50 / 60Hz
  • Color Format Video Support: 24bit / 30bit Deep color / Deep color 36bit
  • supported audio format: DTS-HD / Dolby True-HD / LPCM7.1 / DTS / Dolby-AC3 / DSD
  • Max Transmission Speed​​: 10.2Gbps
  • TMDS signal: 0.5-1.5Vp-p (TMDS)
  • DDC Signal: 5Vp-p (TTL)
  • Cable length input: ≤5m (High Speed ​​HDMI Cable AWG26)
  • Length of output cable: ≤5m (High Speed ​​HDMI Cable AWG26)
  • Connector Type: RJ45
  • Interface: Cat5e / 6 twisted pair
  • Transmission distance: up to 120m Cat6 cable (Cat5e up to 100m)
Amplifier / Splitter HDMI Over IP Network
Features
Type AV transmitter & receiver
Maximum resolution 1920 x 1200 pixels
Cable types supported Cat5e, Cat6
Maximum transfer distance 120 m
Colour depth 36 bit
3D No
Supported graphics resolutions 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes 1080p
HDCP Yes
Product colour Black
Certification CE, FCC, RoHS
Ports & interfaces
RJ-45 input ports 1
RJ-45 output ports 1
Number of HDMI outputs 1
HDMI in 1
DC-in jack Yes
Power
Operating voltage 5 V
Power consumption (typical) 3 W
Current 1 A
Operational conditions
Operating relative humidity (H-H) 20 - 90%
Operating temperature (T-T) -10 - 60 °C
Weight & dimensions
Width 57 mm
Depth 106 mm
Height 26 mm
Weight 540 g
Receiver dimensions (WxDxH) 58 x 110 x 26 mm
Receiver weight 239 g
Transmitter dimensions (WxDxH) 58 x 110 x 26 mm
Transmitter weight 239 g
Packaging content
AC adapter included Yes
Manual Yes
Supplier features
Vendor code 306004
Technical details
Compliance certificates CE, RoHS
Audio support Yes
