Synology

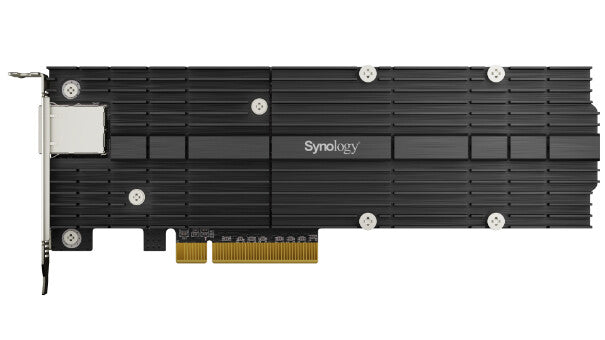

Synology E10M20-T1 interface cards/adapter Internal PCIe
Synology E10M20-T1 interface cards/adapter Internal PCIe
SKU:E10M20-T1
14 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Internal
- Host interface: PCIe
- Output interface: PCIe
- NVMe
- Purpose: NAS / Storage server
- 10 Gbit/s
- Black
10GbE bandwidth and M.2 SSD cache, all at once
Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.
- Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.
- Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.
- Free up primary drive bays for data storage.
A perfect match with Synology SNV3000 series NVMe SSD
Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | PCIe |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 3.0 |
| NVMe | Yes |
| Design | |
|---|---|
| Internal | Yes |
| Product colour | Black |
| Purpose | NAS / Storage server |
| Cooling type | Passive |
| Features | |
|---|---|
| Data transfer rate (max) | 10 Gbit/s |
| Full duplex | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 200.1 mm |
| Depth | 17.7 mm |
| Height | 71.8 mm |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Compatibility | SA series:SA3600, SA340022 series:DS3622xs+, DS2422+21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+20 series:RS820RP+, RS820+19 series:DS2419+, DS2419+II, DS1819+18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII |
