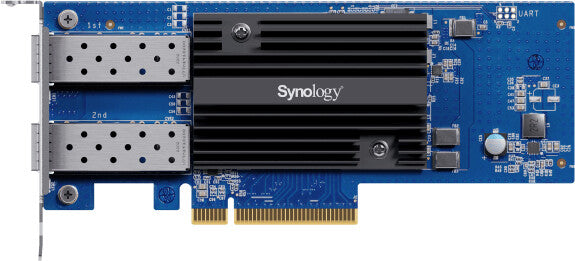

Synology E10G30-F2 network card Internal 10000 Mbit/s
Synology E10G30-F2 network card Internal 10000 Mbit/s
SKU:E10G30-F2
24 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Wired
- PCI Express 3.0
- 10000 Mbit/s
- Internal Component for: NAS/storage server
Flexible SFP+ options
Support for short-range and long-range transceivers as well as DAC options enables flexible connectivity choices.
Link aggregation
Dual 10GbE ports can be combined into a Link Aggregation Group to boost throughput up to 20 Gb/s, while also providing port failover and load balancing functionality.1
CPU offloading and load balancing
Support for CPU offloading and load balancing technologies enables optimal system performance.
| Ports & interfaces | |
|---|---|
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Link aggregation | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
|---|---|
| Component for | NAS/storage server |
| Internal | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 69 mm |
| Depth | 17.3 mm |
| Width | 168 mm |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
