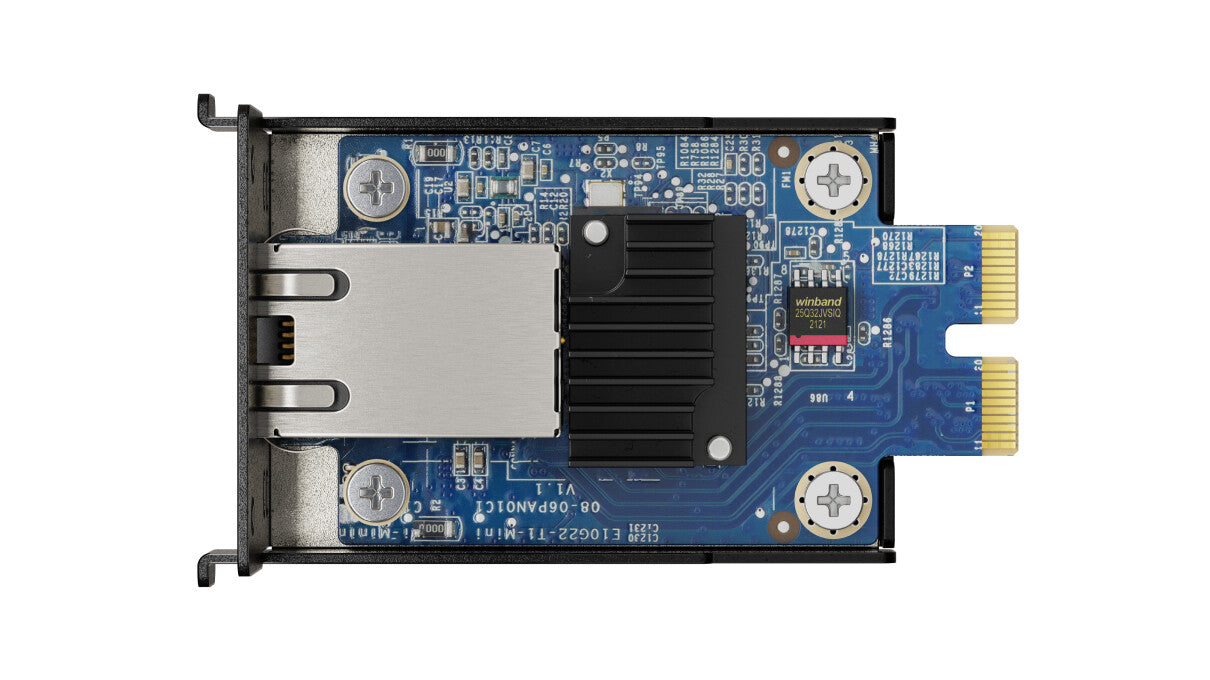

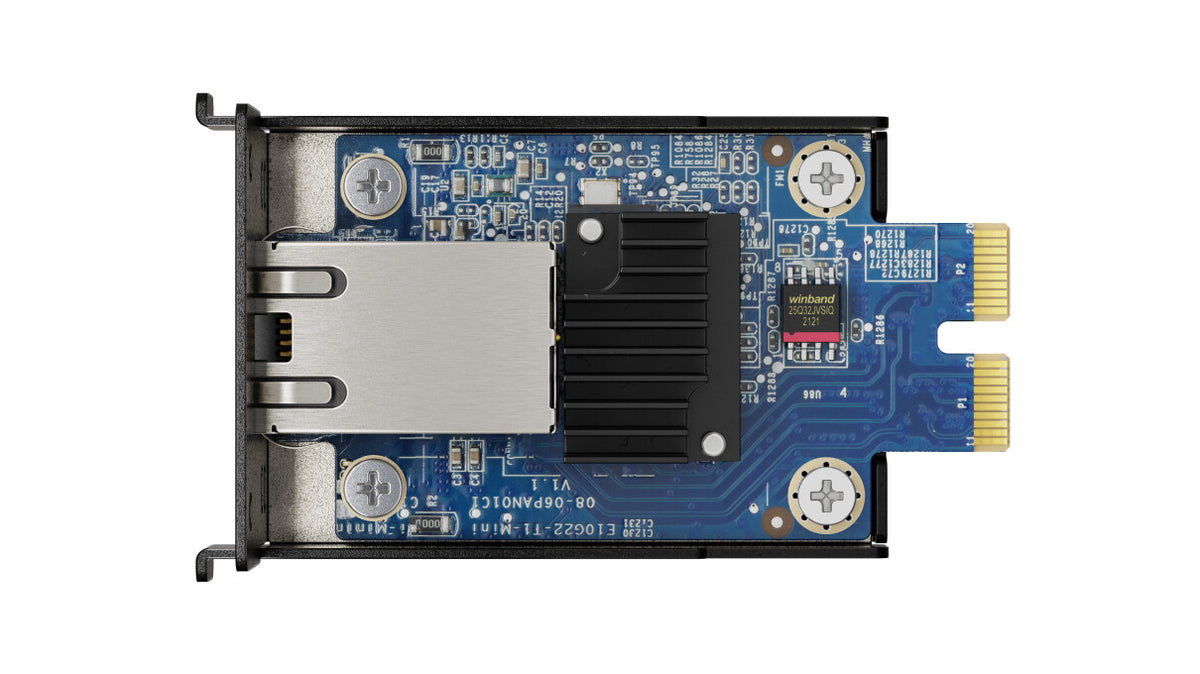

Synology E10G22-T1-Mini Internal Ethernet 10000 Mbit/s

Synology E10G22-T1-Mini Internal Ethernet 10000 Mbit/s

E10G22-T1-MINI

£135.35 GBP£112.79 GBP
£0.00 GBP £135.35 GBP£112.79 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 6 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Wired
  • PCI Express Ethernet
  • 10 Gigabit Ethernet 10000 Mbit/s 10GBase-T
  • Internal Component for: NAS/storage server
10GbE RJ-45 network upgrade module

10GbE RJ-45 network upgrade module for compact Synology servers.

Maximize bandwidth to tackle heavy-duty applications

The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity. Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.

Throughput

Expand system capabilities with 10GbE connectivity

Flexibility

Integrate easily with support for 10/5/2.5/1 Gbps networks

Compatibility

Designed for maximum performance and reliability in Synology systems.

Simple installation

Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly add bandwidth availability in Synology servers featuring compact-size enclosures.

Multi-gig support

Integrate into any RJ-45 network environment with autonegotiation between 10, 5, 2.5, 1 Gbps, and 100 Mbps data rates based on actual network conditions.

Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Ethernet
Ethernet LAN (RJ-45) ports 1
Network
Maximum data transfer rate 10000 Mbit/s
Networking standards IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet LAN Yes
Ethernet interface type 10 Gigabit Ethernet
Ethernet LAN data rates 100,1000,2500,5000,10000 Mbit/s
Cabling technology 10GBase-T
Wi-Fi No
Full duplex Yes
Auto-negotiation Yes
Jumbo frames 9000
Jumbo frames support Yes
Design
Internal Yes
Component for NAS/storage server
Product colour Blue
Compatible products Synology RS422+, DS1522+
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 45.4 mm
Depth 75.7 mm
Height 26.4 mm
Other features
Interface type PCIe 3.0 x2
