Supermicro

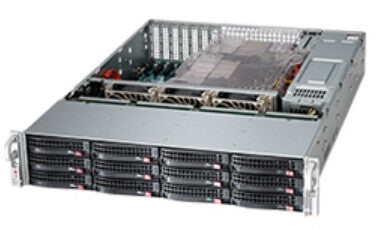

Supermicro SC826BE1C4-R1K23LPB Rack Black 1200 W

Supermicro SC826BE1C4-R1K23LPB Rack Black 1200 W

£1,842.52 GBP
£1,842.52 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

CSE-826BE1C4-R1K23LPB

Low stock: 1 left

  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  • 12 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay
  • 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
  • 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm
  • 7 low-profile expansion slot(s)
  • 3 x 8cm high-performance PWM fan(s)
2U, 12x 3.5" hot-swap SAS/SATA, 7x LP, 1200W

Supermicro's SC826 chassis maximizes the storage capacity of a 2U form factor by offering 12 hot-swap hard drive bays for extra storage. The chassis design optimizes every aspect of interior space without compromising superior cooling. It is also equipped with a redundant 740W, 920W and 1280W Platinum Level(95%) high efficiency power supply for superb power savings. 1200W chassis models come with palletized package designed to protect system during the shipping. SC826 with SAS3 support is the ideal storage chassis for limited rack space constrain.

Design
LED indicators Fan fail, HDD, LAN, Power
On/off button Yes
Reset button Yes
Side window No
Rack capacity 2U
Rack mounting Yes
Number of expansion slots 7
Number of 3.5" bays 12
Supported motherboard form factors ATX, EATX
Product colour Black
Type Server
Form factor Rack
Power supply
80 PLUS certification 80 PLUS Titanium
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Number of power supply units 1
Power supply 1200 W
Power supply included Yes
Ports & interfaces
Audio output No
Audio input No
Storage
Supported HDD sizes 3.5"
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 8 - 90%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Power supply dimensions (WxDxH) 76 x 360 x 40 mm
Height 89 mm
Depth 647 mm
Width 437 mm
Packaging data
Package weight 24.9 kg
Package height 290 mm
Package depth 876 mm
Package width 678 mm
Logistics data
Harmonized System (HS) code 84733080
Other features
Backplanes support Yes
View full details
