SUNIX Group

SUNIX Group USB4300N interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)

SUNIX Group USB4300N interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)

USB4300N

£32.48 GBP£27.07 GBP
£0.00 GBP £32.48 GBP£27.07 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 6 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Internal
  • Host interface: PCIe
  • Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
  • 5 Gbit/s
PCI Express Gen2, USB 3.0 x 4, 4-pin Connector

Super-Speed USB 3.0 interface is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. With 10 times faster throughput than USB 2.0 standard and backward compatible with current USB device features, USB 3.0 interface will be the trendy of IT technology.

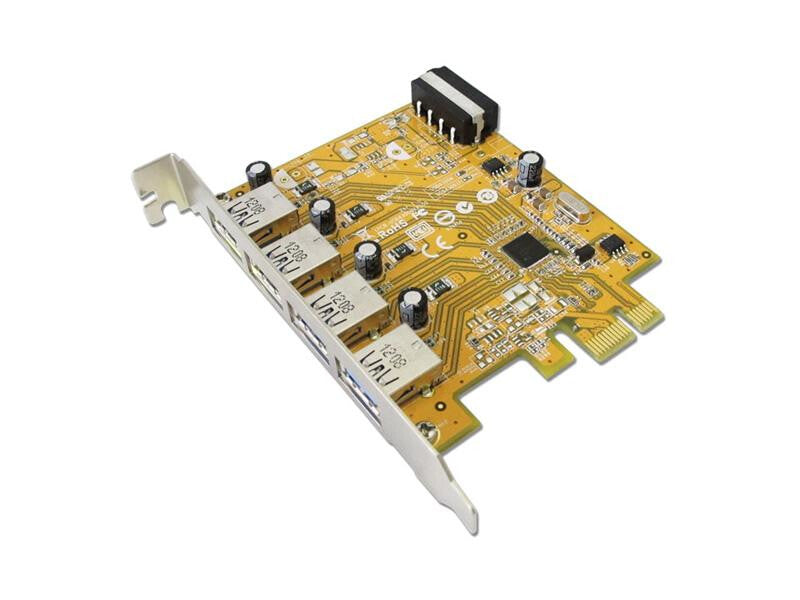

SUNIX USB4300N is a four-port Super-Speed USB 3.0 PCI Express card, and it is compliant with the PCI Express Generation 2 specification for host PC system. It works up to 5 Gbps for data transfer when connecting to USB 3.0 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. With USB Hot-Swapping and Plug-n-Play function, you don't have to worry about running out of slots on your mother board or complicated hardware installation process.
SUNIX USB4300N card supports USB 3.0 High-Speed device and backward compatible with USB 2.0 High-Speed and USB 1.1 Full-Speed devices. It is an ideal choice for external storage devices, MP3 players, external writer, digital cameras, webcam, networking and video devices, and all other USB devices.

Ports & interfaces
Host interface PCIe
Output interface USB 3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Peripheral (Molex) power connectors (4-pin) 1
Design
Internal Yes
Certification EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3US: FCC Part 15 Class BTAIWAN: BSMI: CNS13438JAPAN: VCCI
Features
Data transfer rate (max) 5 Gbit/s
Operational conditions
Operating temperature (T-T) 0 - 57 °C
Storage temperature (T-T) -20 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates RoHS
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Weight & dimensions
Width 78 mm
Depth 121 mm
Height 18 mm
Packaging data
Manual Yes
