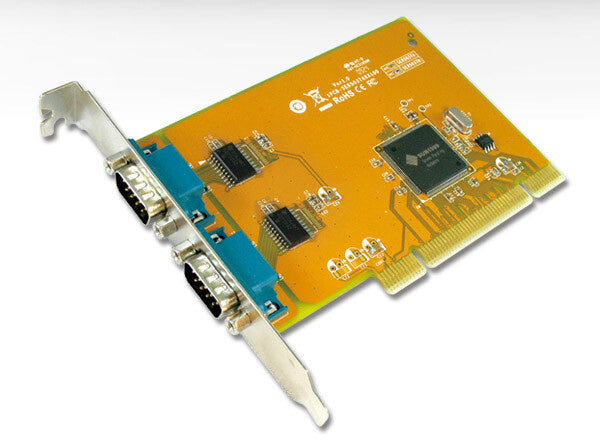

SER5037A - 2-port RS-232 Universal PCI Serial Board

SUNIX SER5037A, Universal PCI serial communication board, allows users to add or expand two RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER5037A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Ports & interfaces
Host interface PCI
Features
Plug and Play Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -20 - 85 °C
Operating temperature (T-T) 0 - 60 °C
Weight & dimensions
Depth 82 mm
Width 120 mm
Other features
Compatible operating systems Windows XP/Vista/7 (X86/X64), Windows 2000/2003/2008 (X86/X64), Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009, Linux 2.4.x / 2.6.x, DOS, FreeBSD 5.3~5.5 / 6.0~6.4, QNX 6.3.2/6.4.0, WARP 3/WARP 4, UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0, Solaris 10
Mac compatibility No
Connectivity technology Wired
Ports quantity 2
Data transfer rate 0.1152 Mbit/s
