SUNIX Group

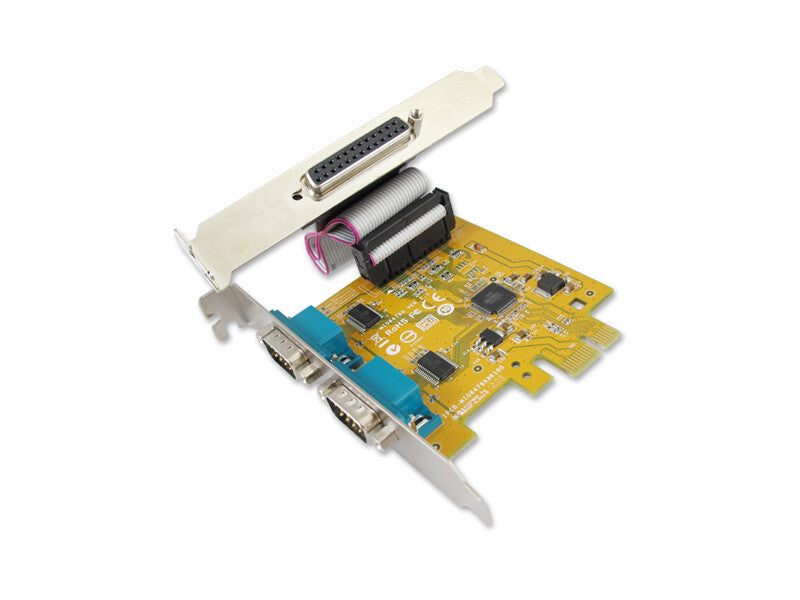

SUNIX Group MIO6479A interface cards/adapter Internal Parallel, Serial

SUNIX Group MIO6479A interface cards/adapter Internal Parallel, Serial

MIO6479A

£30.17 GBP£25.14 GBP
£0.00 GBP £30.17 GBP£25.14 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 2 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Internal
  • Host interface: PCIe
  • Output interface: Parallel, Serial
PCI Express - 2 x RS-232 & 1 x Paralllel, Plug & Play

The majority of today’s motherboards are not equipped with any RS-232 or Parallel port. With SUNIX MIO6479A Multi I/O board, users can expand two RS-232 COM and one IEEE1284 LPT ports to their system, allowing them to use serial and parallel devices further. This board is compatible with PCI Express x1, x2, x4, x8 and x16 lane, allowing the board to be installed in virtually any PC system. SUNIX MIO6479A built-in SUNIX high performance and realizable native PCI Express controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.

- Expands 2-port RS-232 COM and 1-port IEEE1284 LPT on system.
- With high reliable SUNIX SUN2410 native PCI Express 16C950 UART and IEEE1284 controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Support IEEE 1284-1994 parallel port standard.
- ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port).
- SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port).
- Plug-n-Play, I/O address and IRQ assigned by system.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.

Ports & interfaces
Host interface PCIe
Output interface Parallel, Serial
Expansion card standard PCIe 2.0
Serial ports quantity 2
Serial interface type RS-232
Parallel ports quantity 1
Design
Internal Yes
Certification CE, FCC
Features
Supports EPP and ECP Yes
Plug and Play Yes
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Storage temperature (T-T) -20 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates RoHS
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Weight & dimensions
Width 78 mm
Depth 85 mm
Other features
RS-232 interface Yes
