Dual 4K@120Hz over USB4: Connect two 4K 120Hz or 60Hz displays through a single USB4 or Thunderbolt 4 port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression

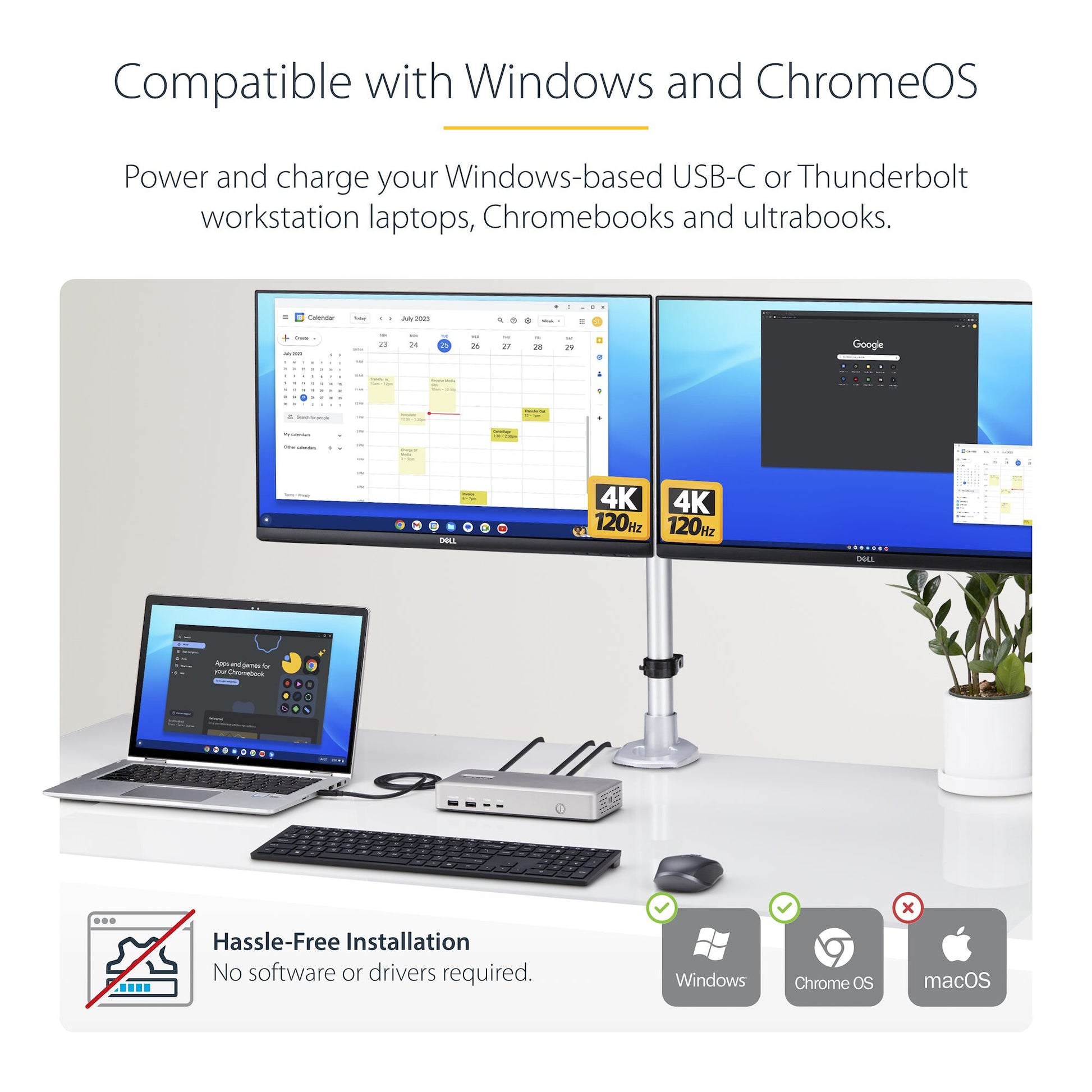

Driverless Deployment: Plug-and-play on Windows and ChromeOS with no drivers or software to install (not compatible with macOS); Engineered for scalable zero-touch rollouts across shared workspaces, corporate, and BYOD environments
2.5G Ethernet for High-Speed Networking: Transfer large files or work directly from cloud environments with a reliable 2.5GbE connection; Supports PXE Boot and Wake-on-LAN for IT-managed deployments

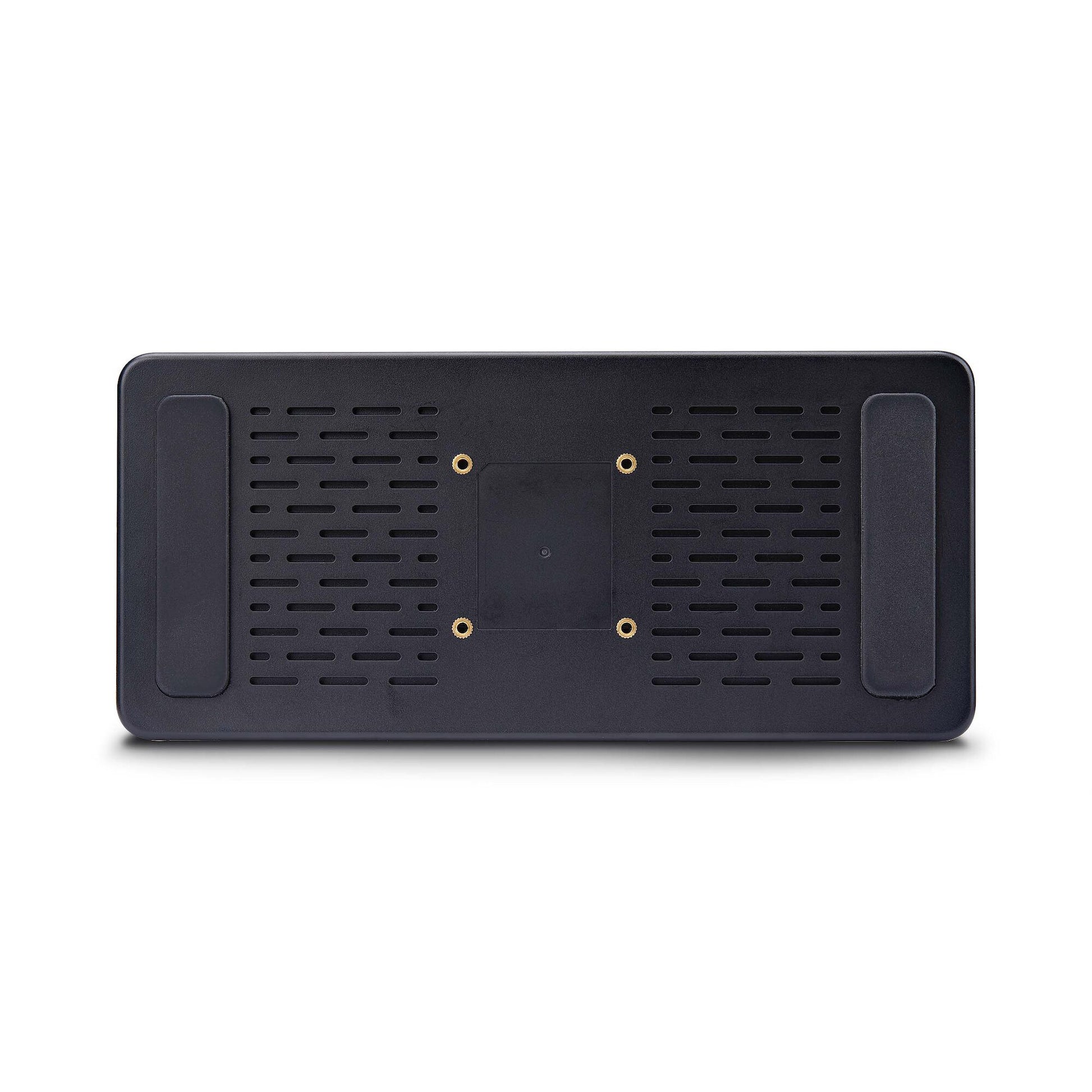

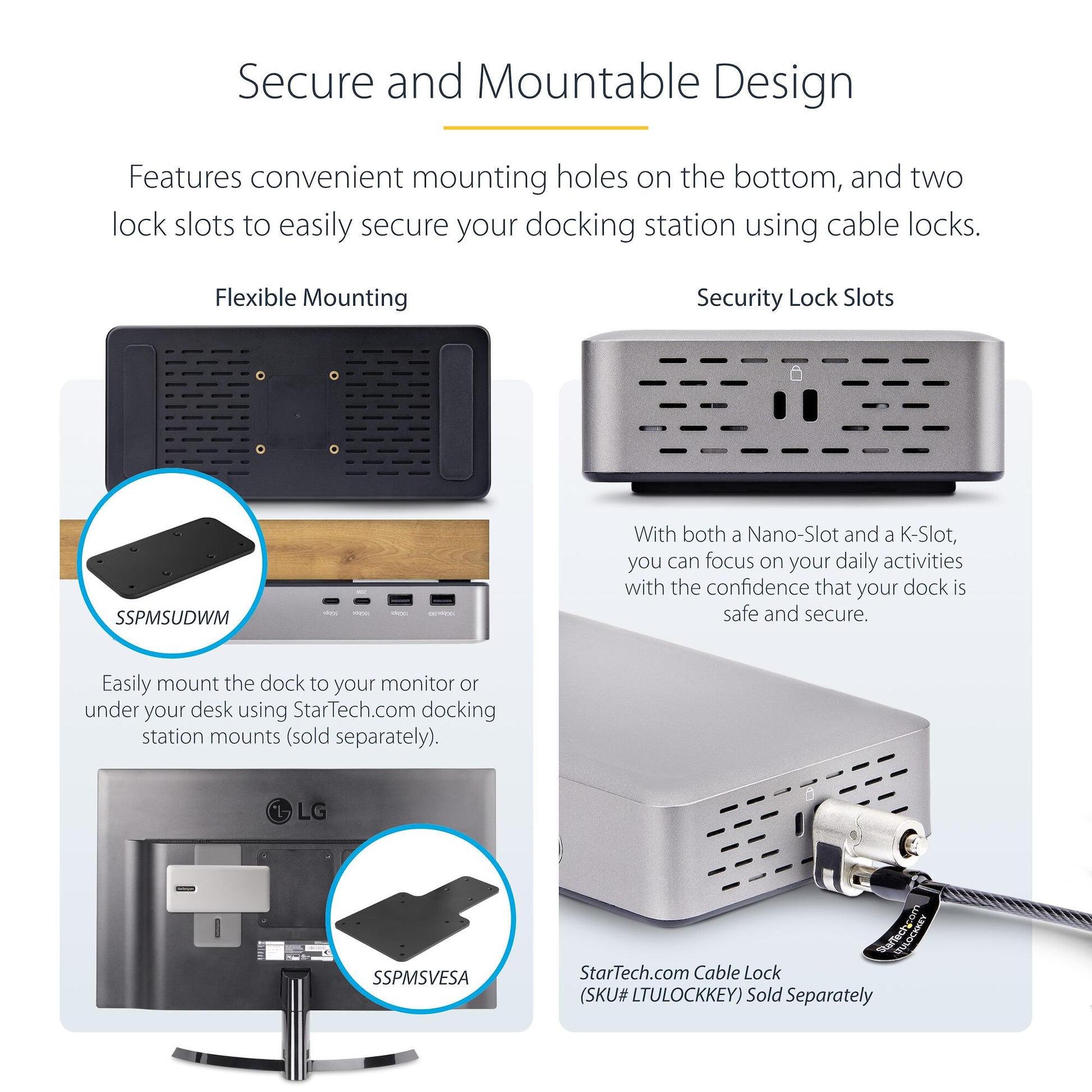

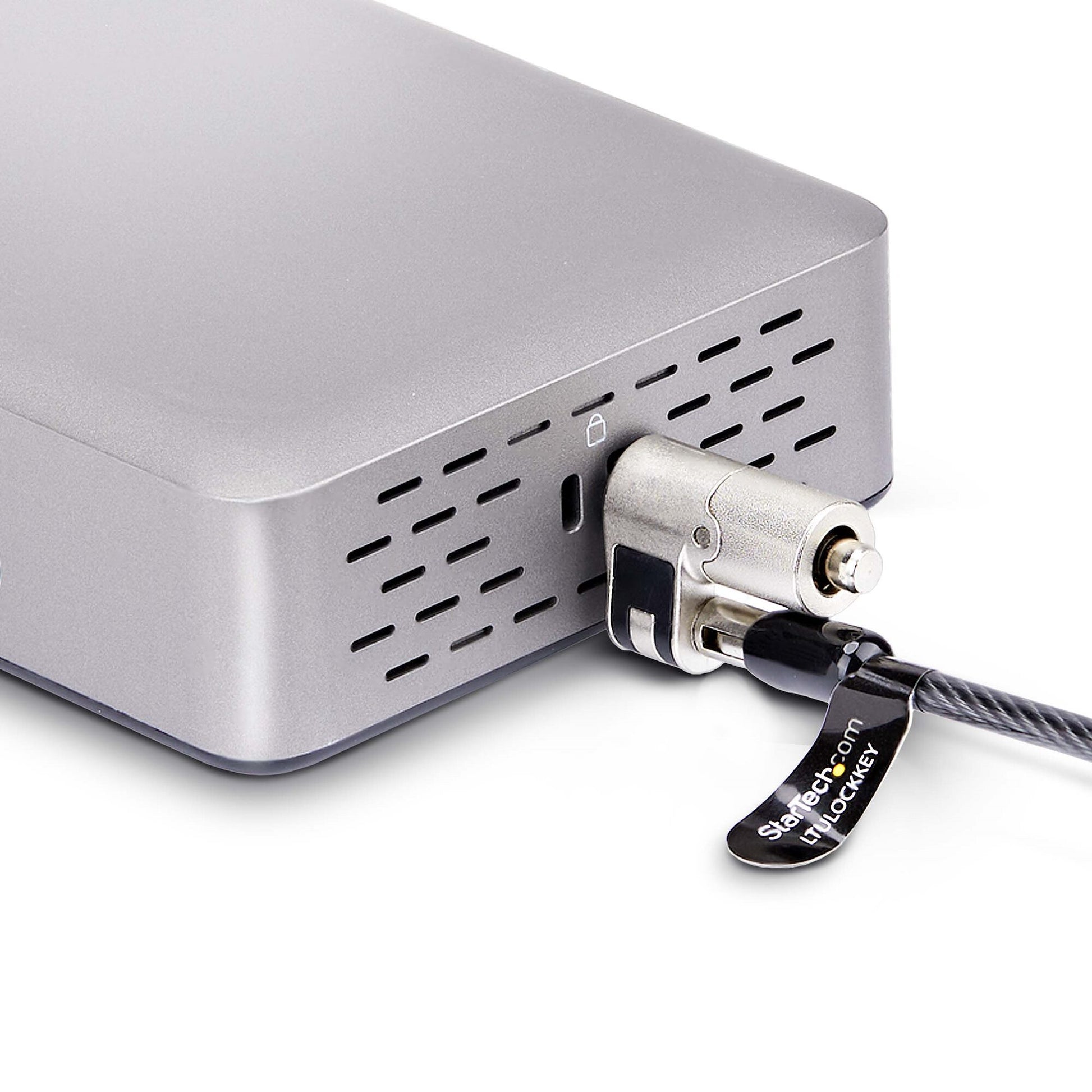

Mounting and Security: Multi-monitor dock features built-in lock slots for physical security; Supports surface or VESA mounting to keep the dock secured and out of the way (mounting accessories sold separately: SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA)
The IT Pro's Choice: Our docking stations are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability and cross-platform compatibility; Built to support large-scale deployments, Windows 11 upgrades, and the shift to AI-enabled PCs

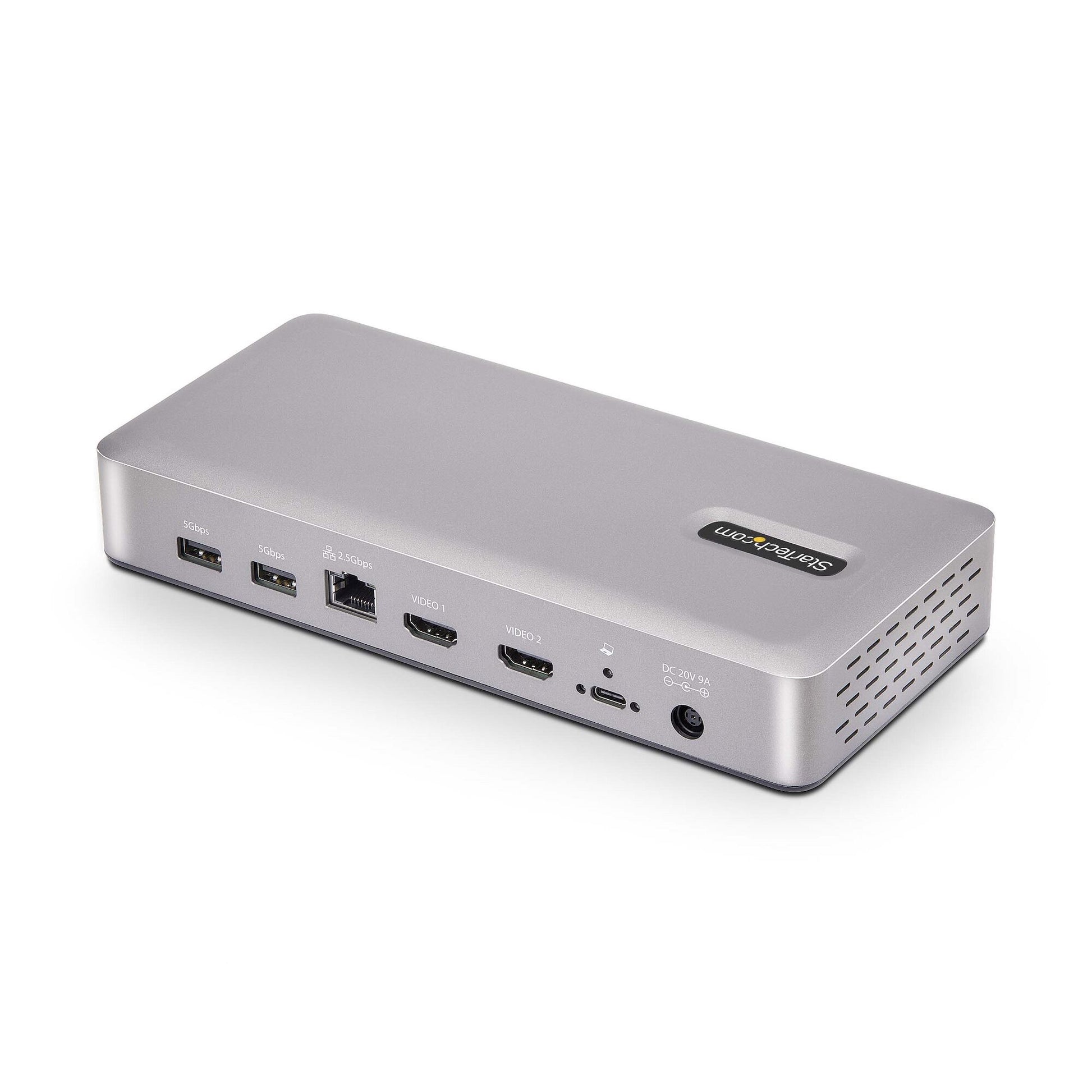

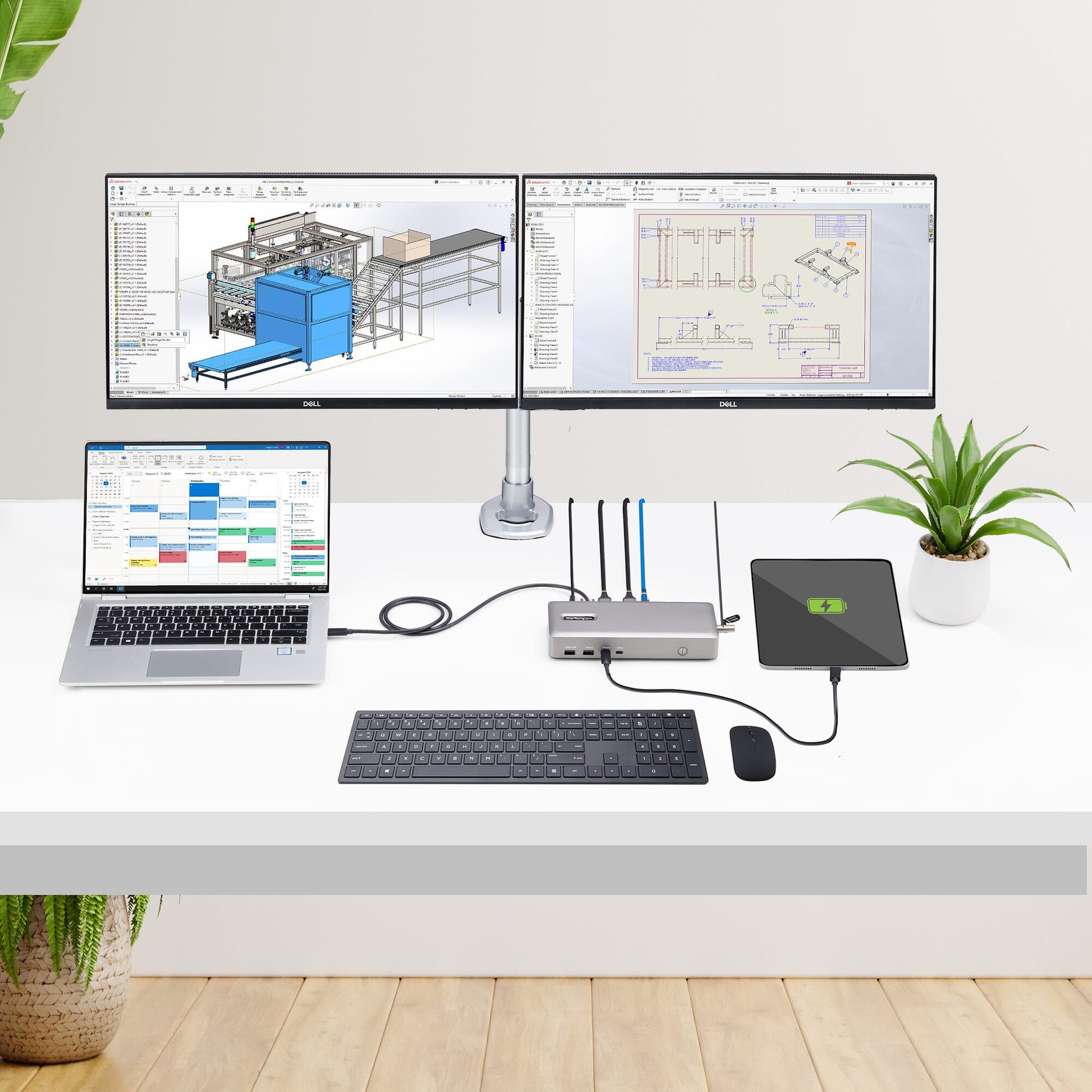

Turn your USB4 laptop into a multi-monitor high-resolution workstation with 6 USB ports, 2.5 Gigabit Ethernet and 100W Laptop Charging
This USB4 (USB-C 40Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.
Flexible High-Performance Video

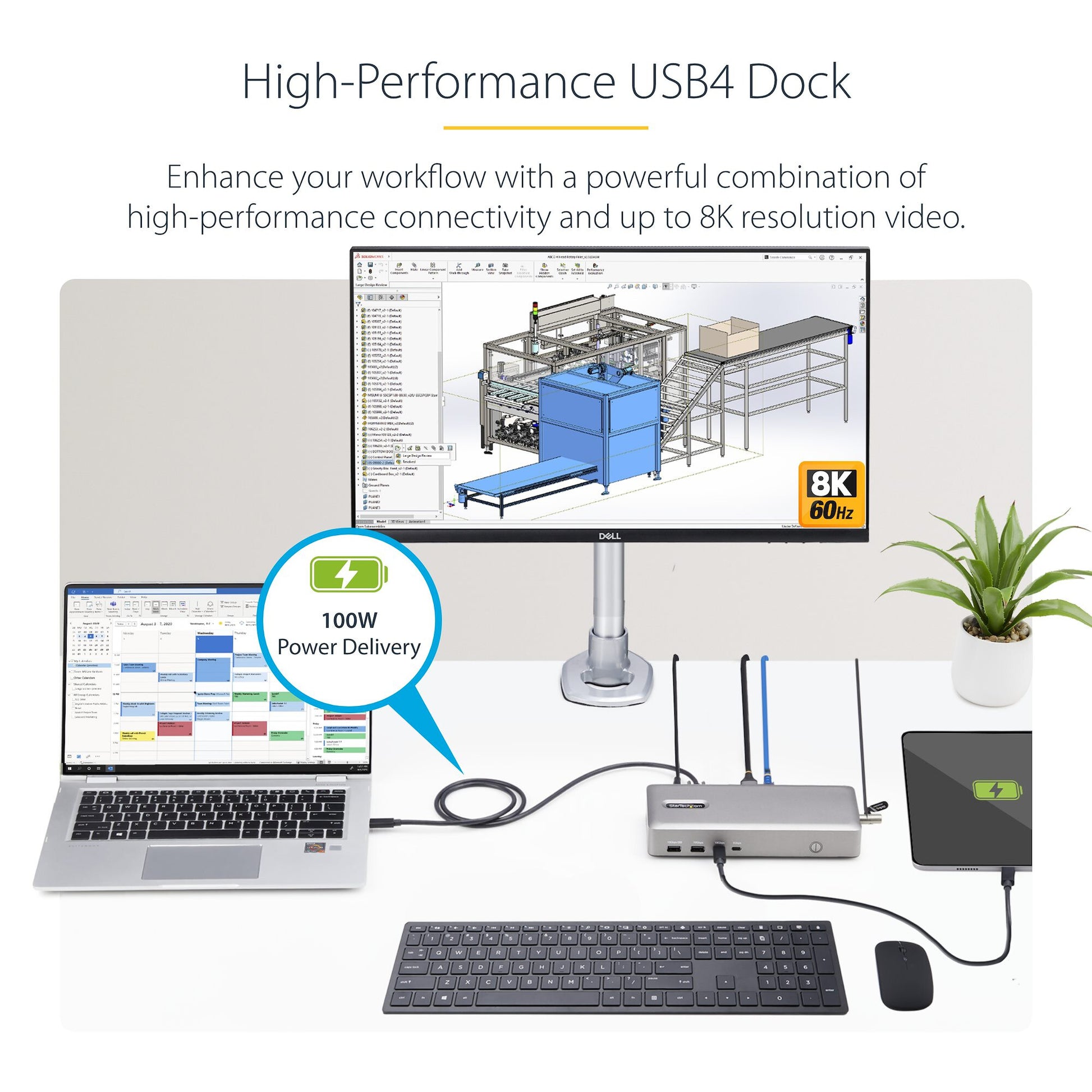

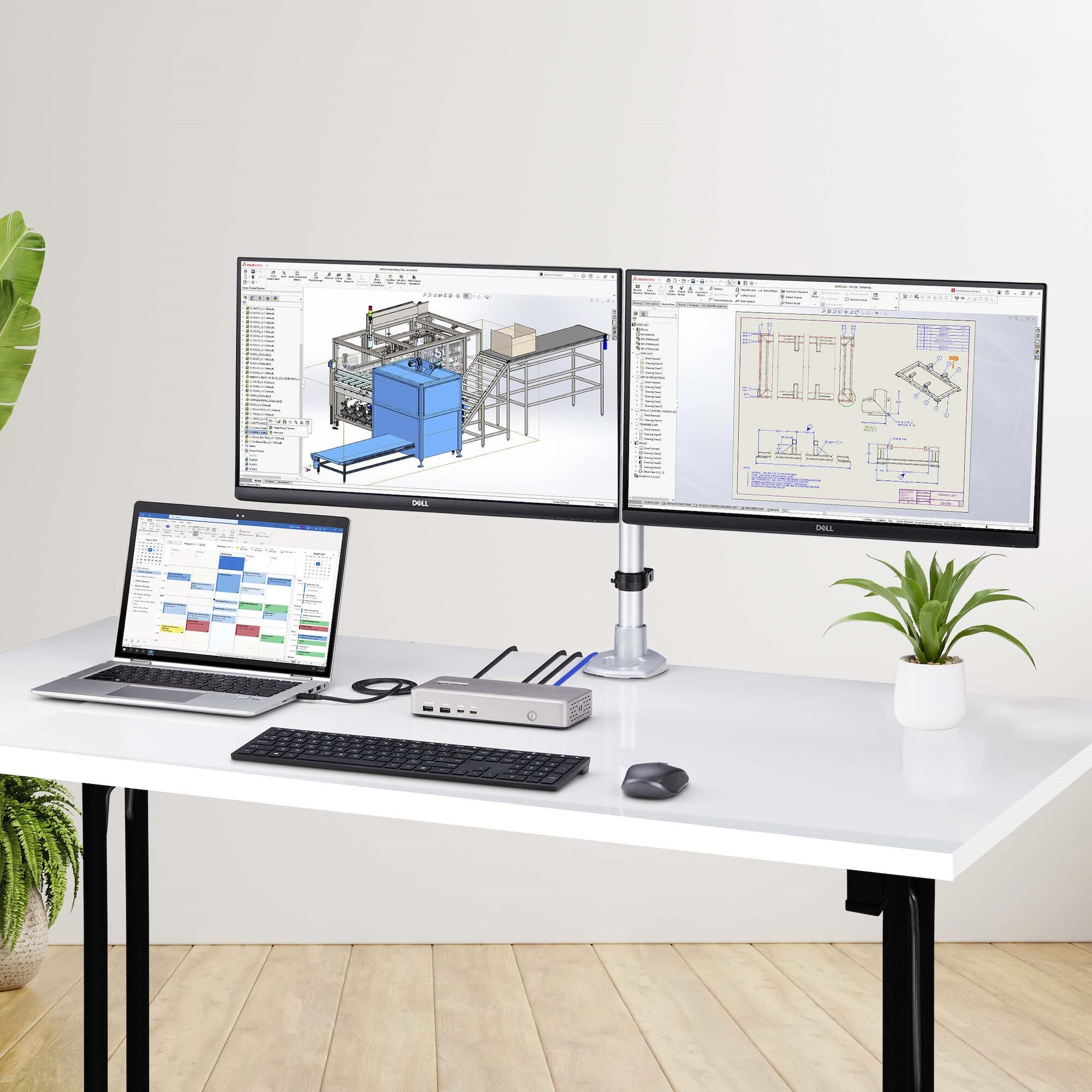

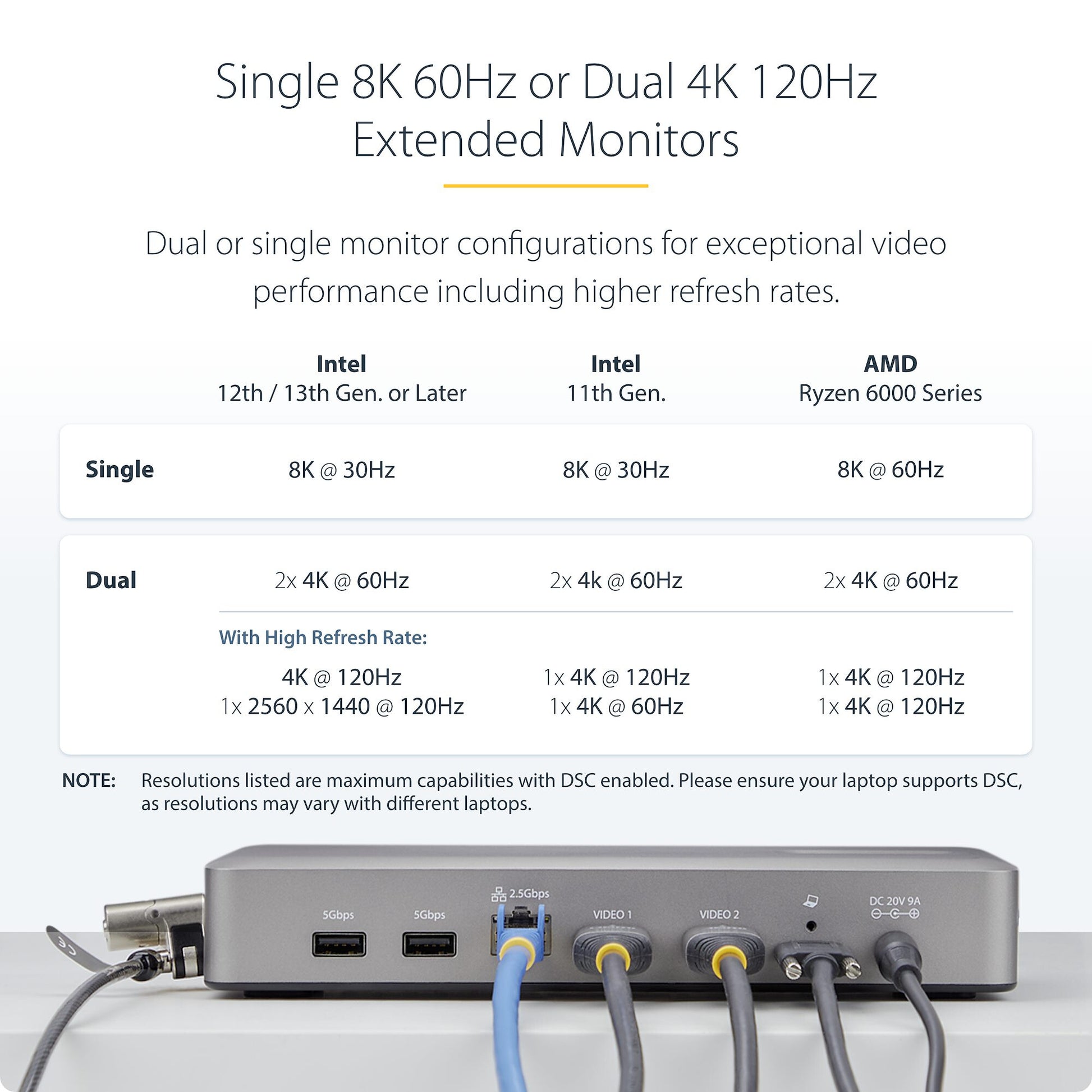

The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.
Port Connectivity
The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.
The dock features:

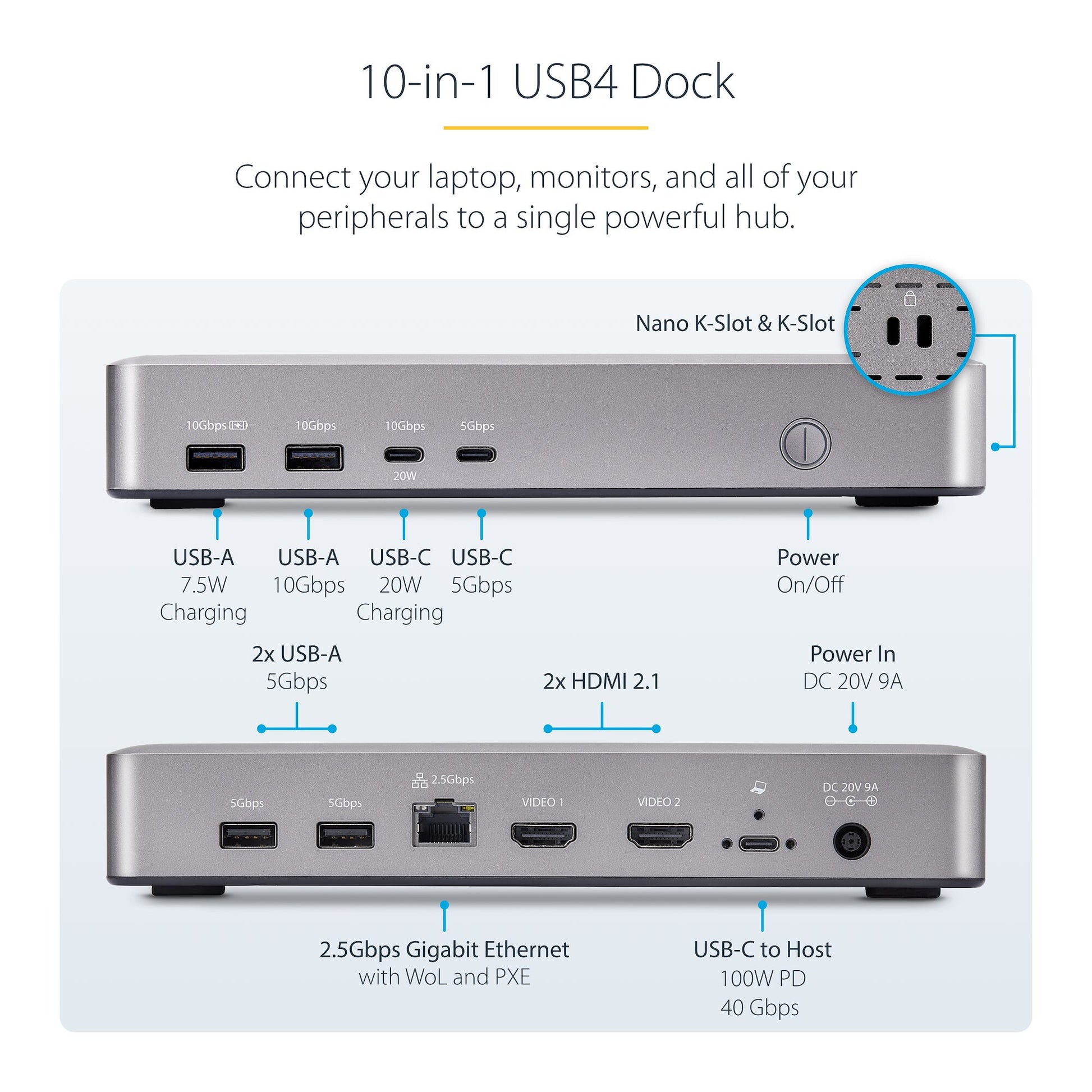

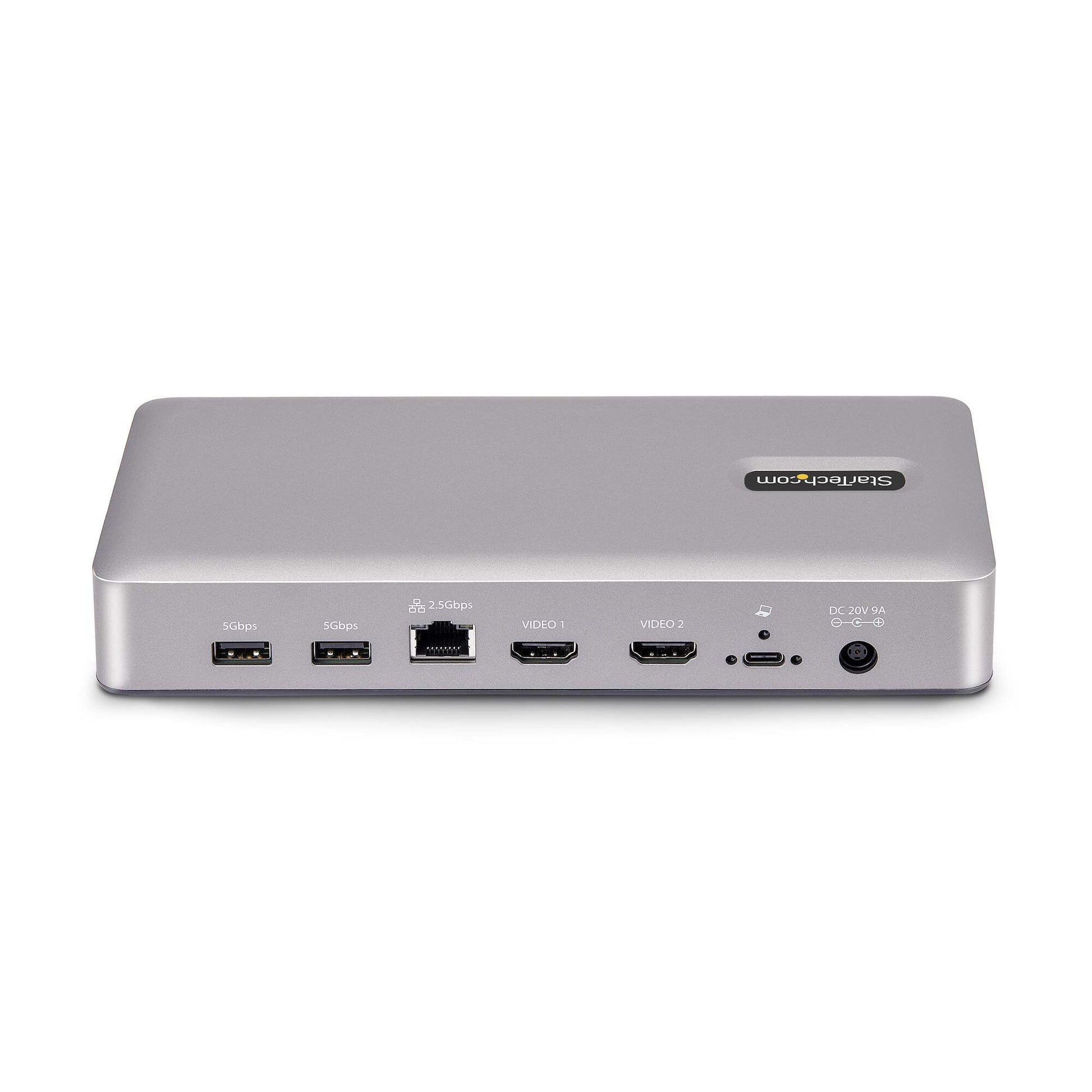

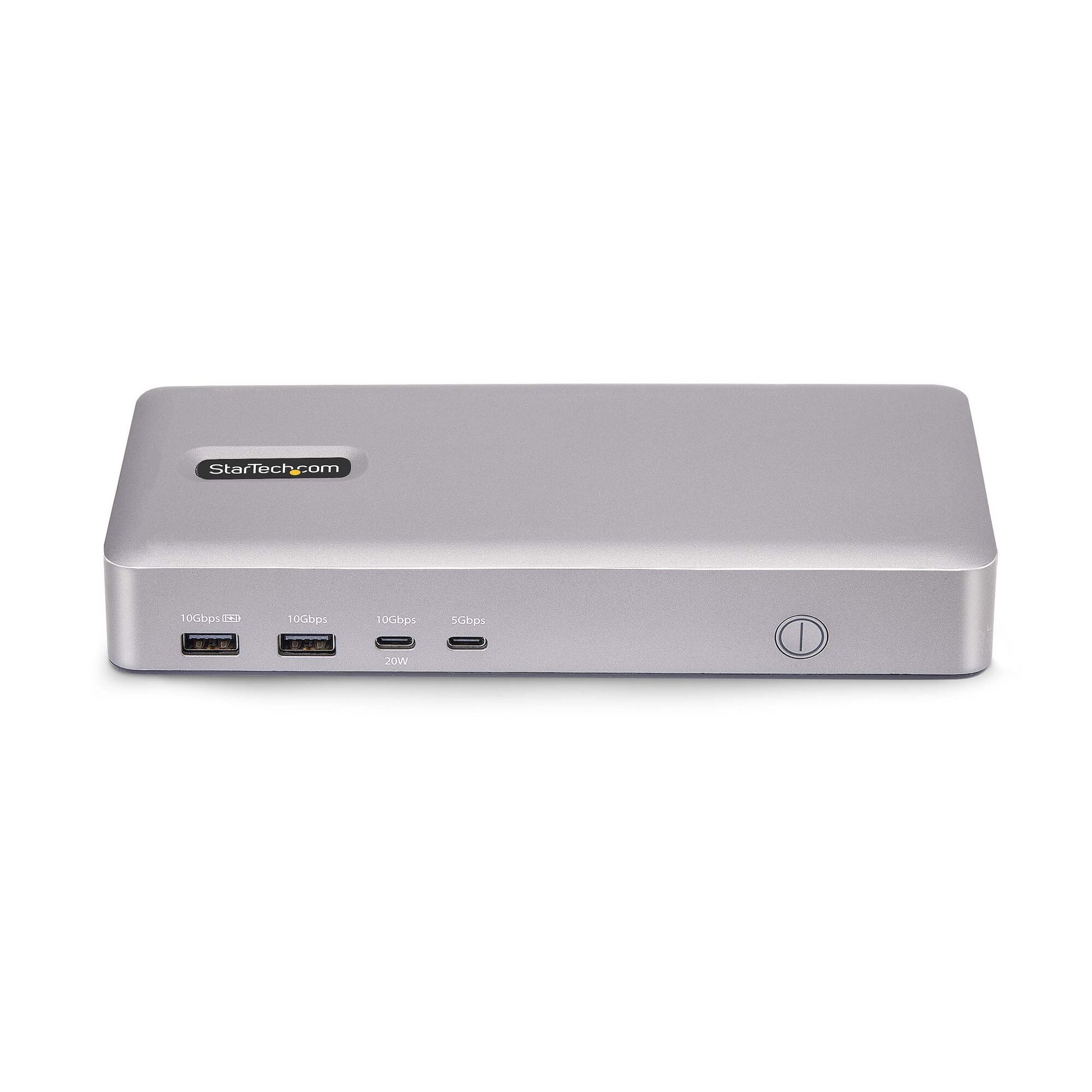

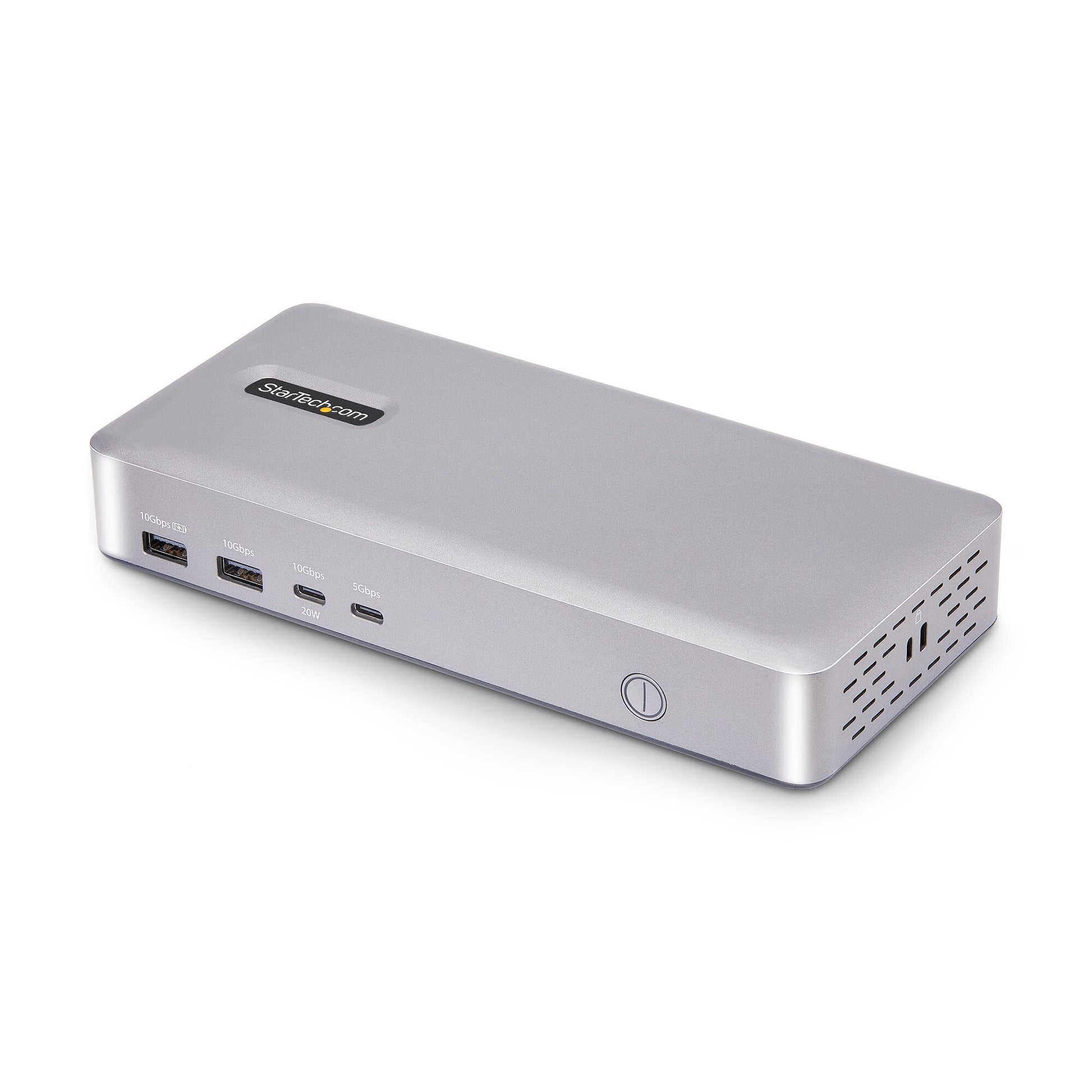

• 2x HDMI ports to connect displays. • 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices. • 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)

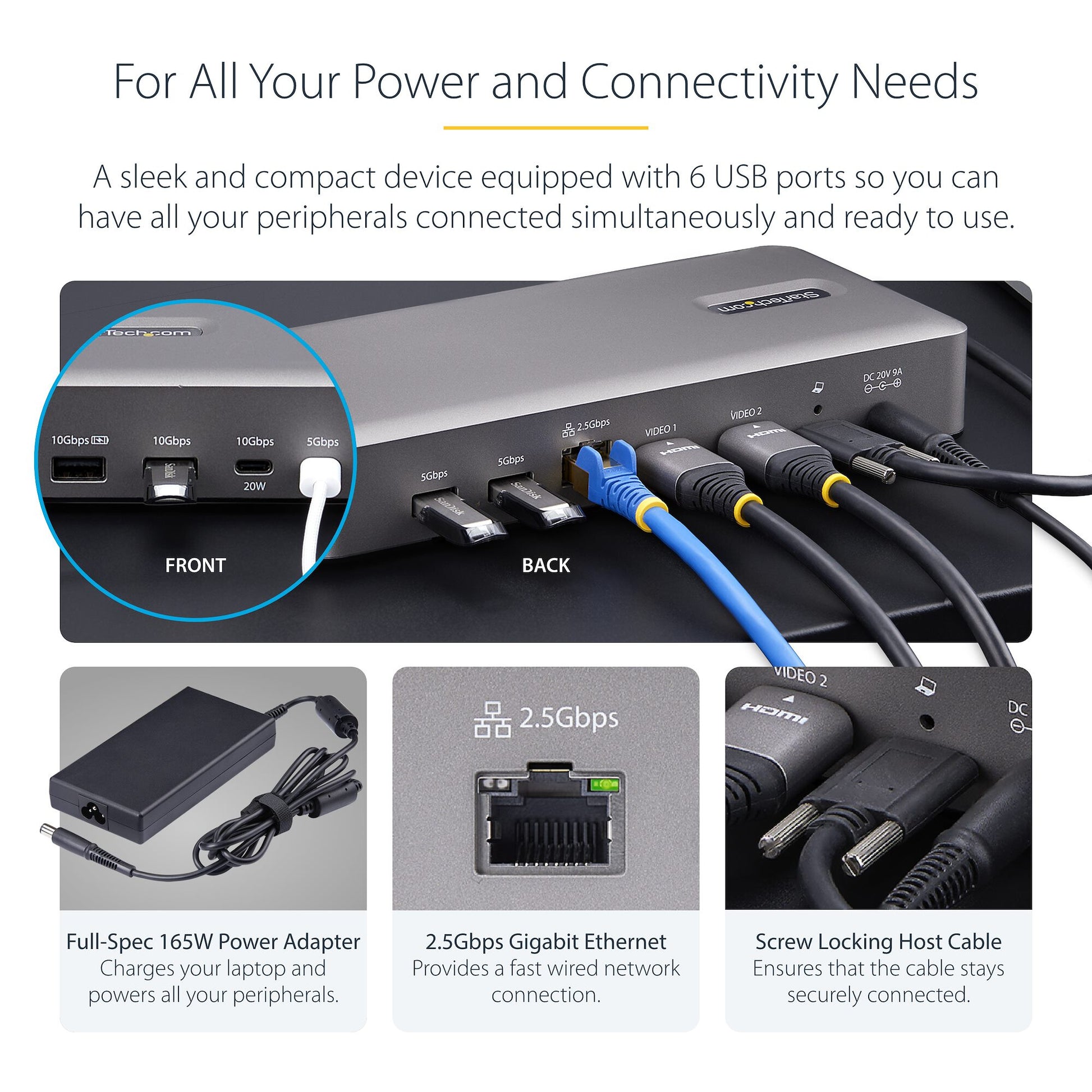

100W USB Power Delivery

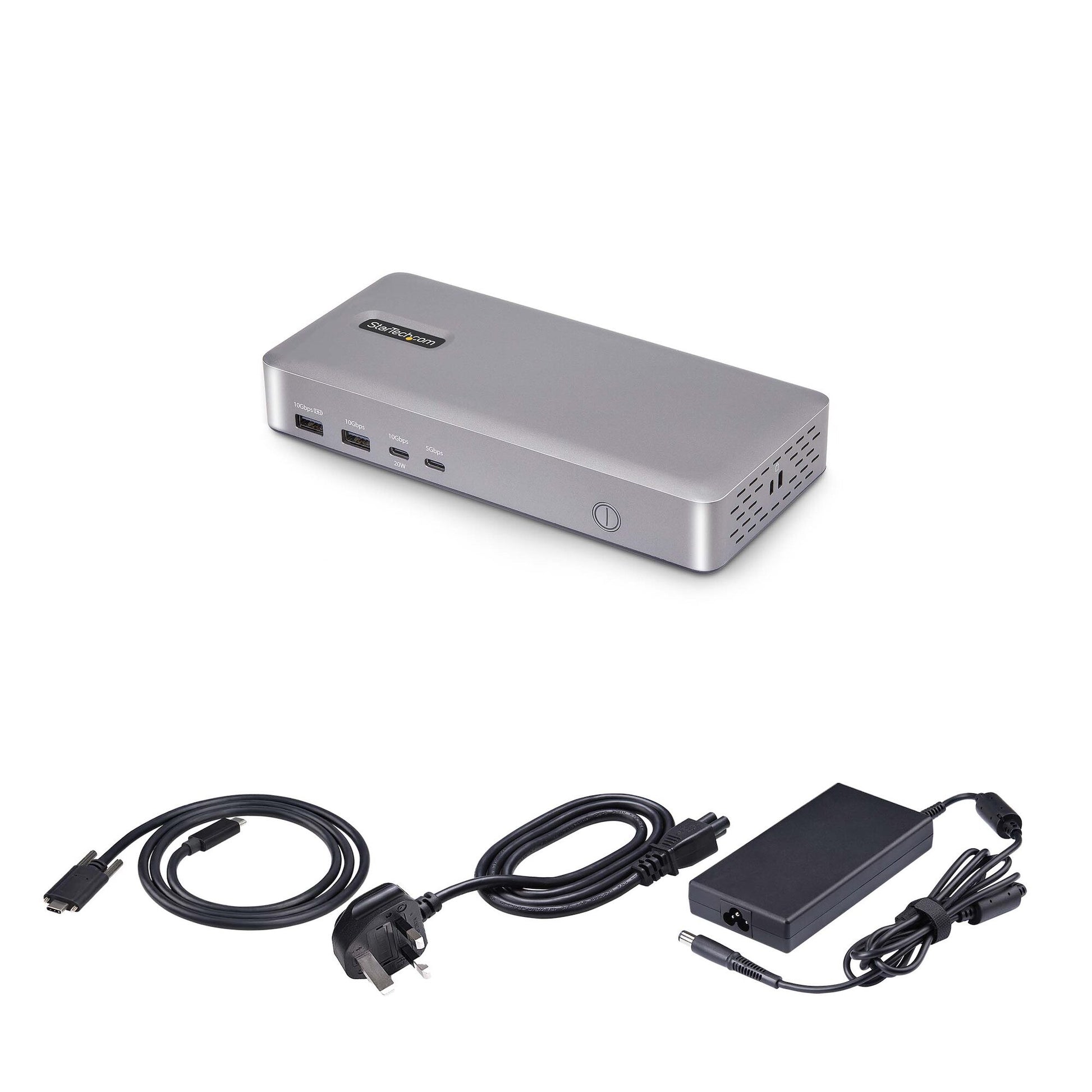

Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App
Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
Performance
Product colour
Silver
Card reader integrated
No
Data transfer rate
40 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Maximum refresh rate
120 Hz
Number of displays supported
2
Cable lock slot
Yes
Cable lock slot type
Kensington, Nano
On/off switch
Yes
UASP support
Yes
Housing material
Plastic
LED indicators
Yes
Power
Power source type
DC
AC input voltage
100 - 240 V
Input current
2.5 A
Output current
9 A
Output voltage
20 V
Power consumption (typical)
165 W
Power plug type
Type M
Compatible power plug types
EU, UK

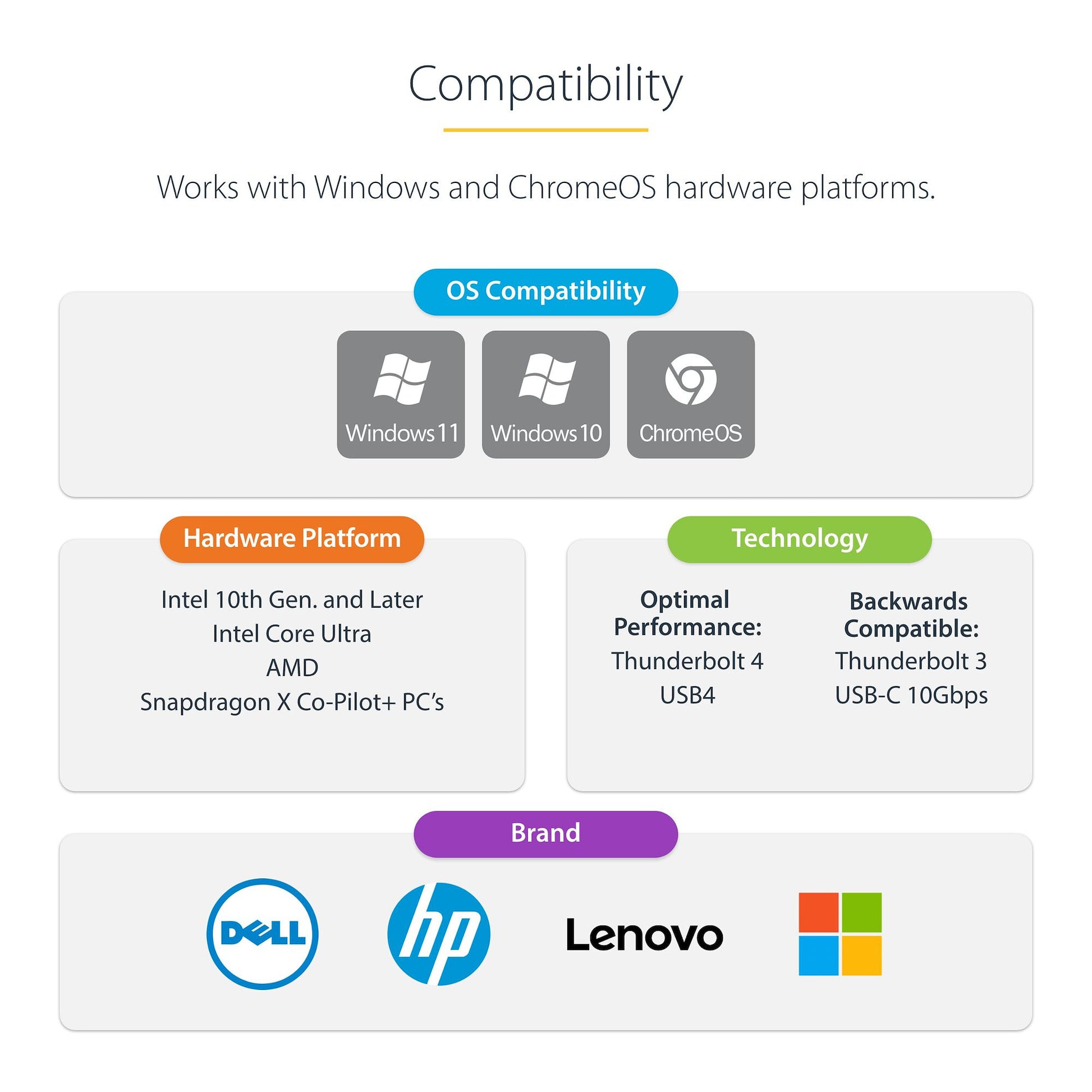

Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%

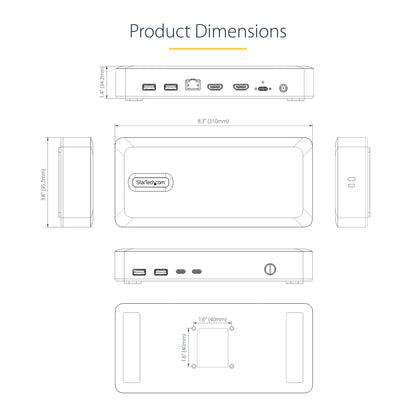

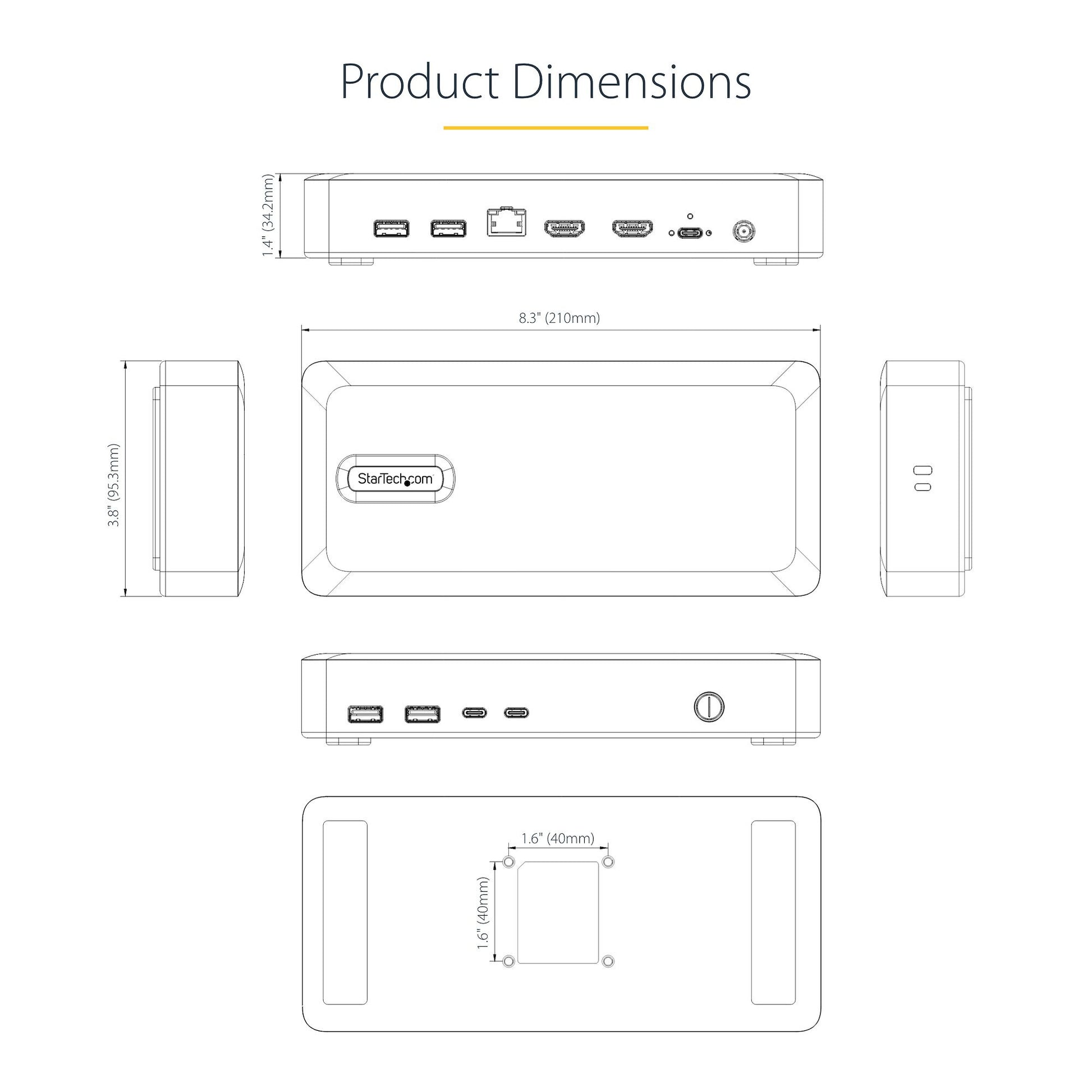

Weight & dimensions
Width
210 mm
Depth
95 mm
Height
34 mm
Weight
138.6 g
Packaging data
Package width
145 mm
Package depth
230 mm
Package height
89 mm
Package weight
1.3 kg

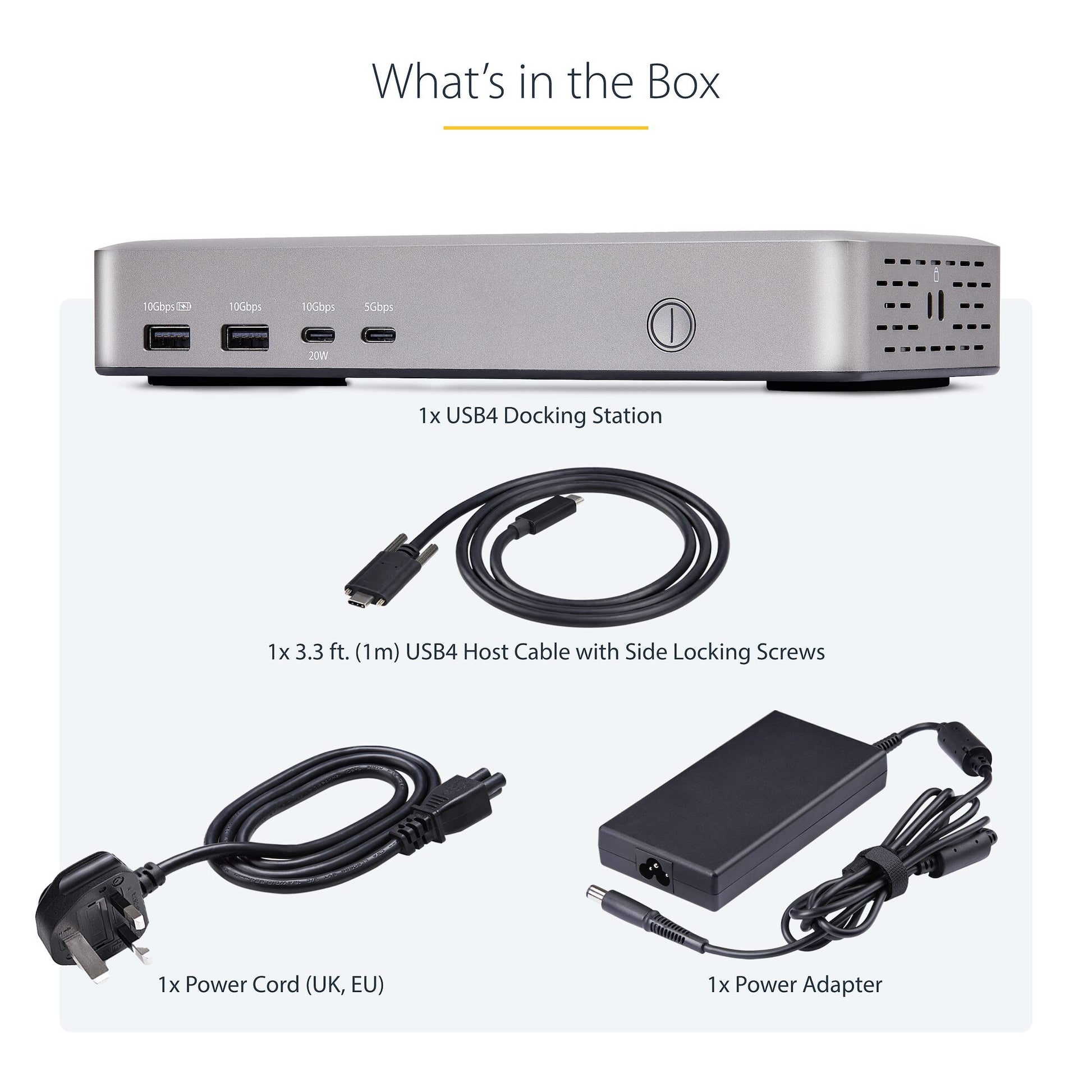

Packaging content
Cables included
USB
Quick start guide
Yes
Logistics data
Master (outer) case height
265 mm
Master (outer) case length
375 mm
Master (outer) case width
305 mm
Products per master (outer) case
8 pc(s)
Other features
Chipset
VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE
