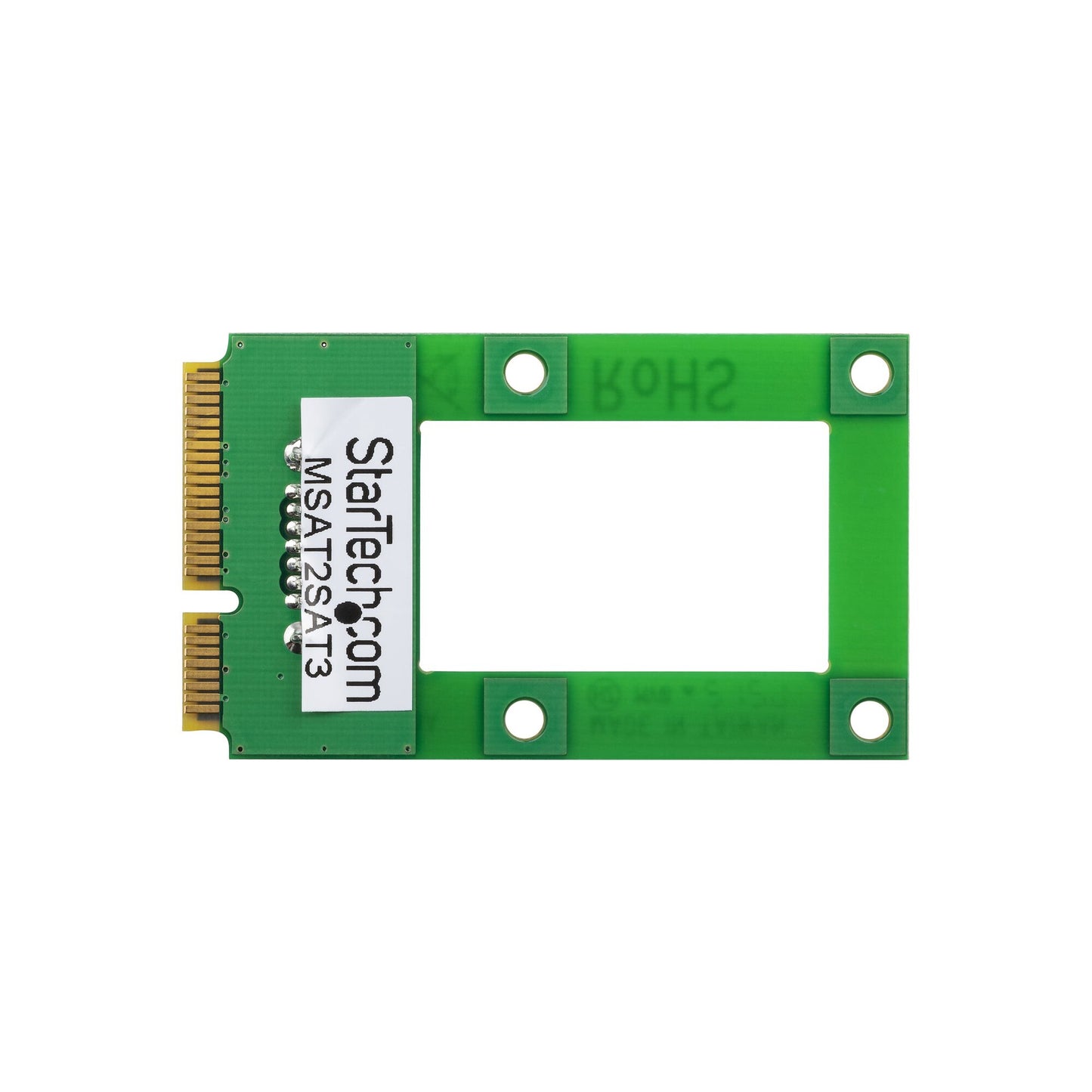

StarTech.com SATA Drive to mSATA Host Adapter for 2.5in / 3.5in SATA Drives

StarTech.com SATA Drive to mSATA Host Adapter for 2.5in / 3.5in SATA Drives

Regular price £21.04 GBP
Regular price Sale price £21.04 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:MSAT2SAT3

Low stock: 6 left

  • Compliant with SATA revision I/II/III (1.5/3.0/6.0 Gbps)
StarTech.com mSATA to SATA HDD / SSD Adapter – Mini SATA to SATA Converter Card - mSATA to SATA 2.5/3.5 Hard Drive Adapter Converter Card (MSAT2SAT3)

Turn an mSATA host connection into a standard SATA port

The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.

The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.

The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Ports & interfaces
SATA revision 3.0
Output interface SATA
Host interface mSATA
Design
Product colour Green
Internal Yes
Features
Data transfer rate (max) 6 Gbit/s
Operational conditions
Storage relative humidity (H-H) 15 - 90%
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 5 - 50 °C
Technical details
Compliance certificates CE, RoHS
Weight & dimensions
Weight 10 g
Height 8 mm
Depth 51 mm
Width 30 mm
Packaging data
Package weight 15 g
Package height 10 mm
Package depth 225 mm
Package width 125 mm
User guide Yes
Screws included Yes
Logistics data
Master (outer) case height 215 mm
Master (outer) case length 690 mm
Master (outer) case width 295 mm
Products per master (outer) case 100 pc(s)
Harmonized System (HS) code 84733020
