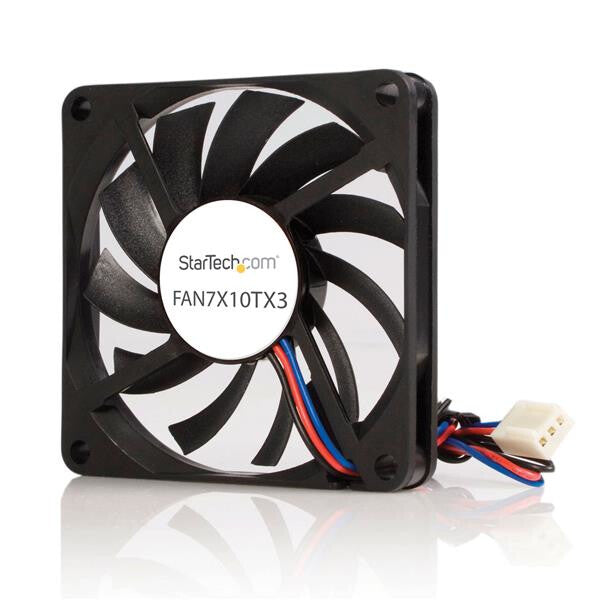

StarTech.com Replacement 70mm TX3 Dual Ball Bearing CPU Cooler Fan
StarTech.com Replacement 70mm TX3 Dual Ball Bearing CPU Cooler Fan
SKU:FAN7X10TX3
Low stock: 4 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Dual ball bearing design
- 3-pin connector with tachometer wire
Keep a system running cooler with a 70mm ball bearing case fan
This 70mm TX3 Dual Ball Bearing CPU Cooler Fan is a cost-effective replacement fan for standard CPUs as well as many different types of 1U or low profile CPU coolers that use a 70mm fan.
For peace of mind, the CPU cooling fan features a Tachometer pin on the TX3 motherboard connector that provides the host system with fan operating status, while a dual ball bearing design helps provide smooth operation and longer (fan) lifespan.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 7 cm |
| Rotational speed (max) | 3500 RPM |
| Noise level (high speed) | 33 dB |
| Maximum airflow | 21.33 cfm |
| Design | |
|---|---|
| Product colour | Black |
| Material | Plastic |
| Power | |
|---|---|
| Power consumption (typical) | 2.16 W |
| Voltage | 12 V |
| Rated current | 0.25 A |
| Weight & dimensions | |
|---|---|
| Width | 10 mm |
| Depth | 70 mm |
| Height | 70 mm |
| Weight | 35 g |
| Package width | 143 mm |
| Package depth | 95 mm |
| Package height | 35 mm |
| Package weight | 58 g |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 366 mm |
| Master (outer) case length | 586 mm |
| Master (outer) case height | 222 mm |
| Products per master (outer) case | 100 pc(s) |
