StarTech.com

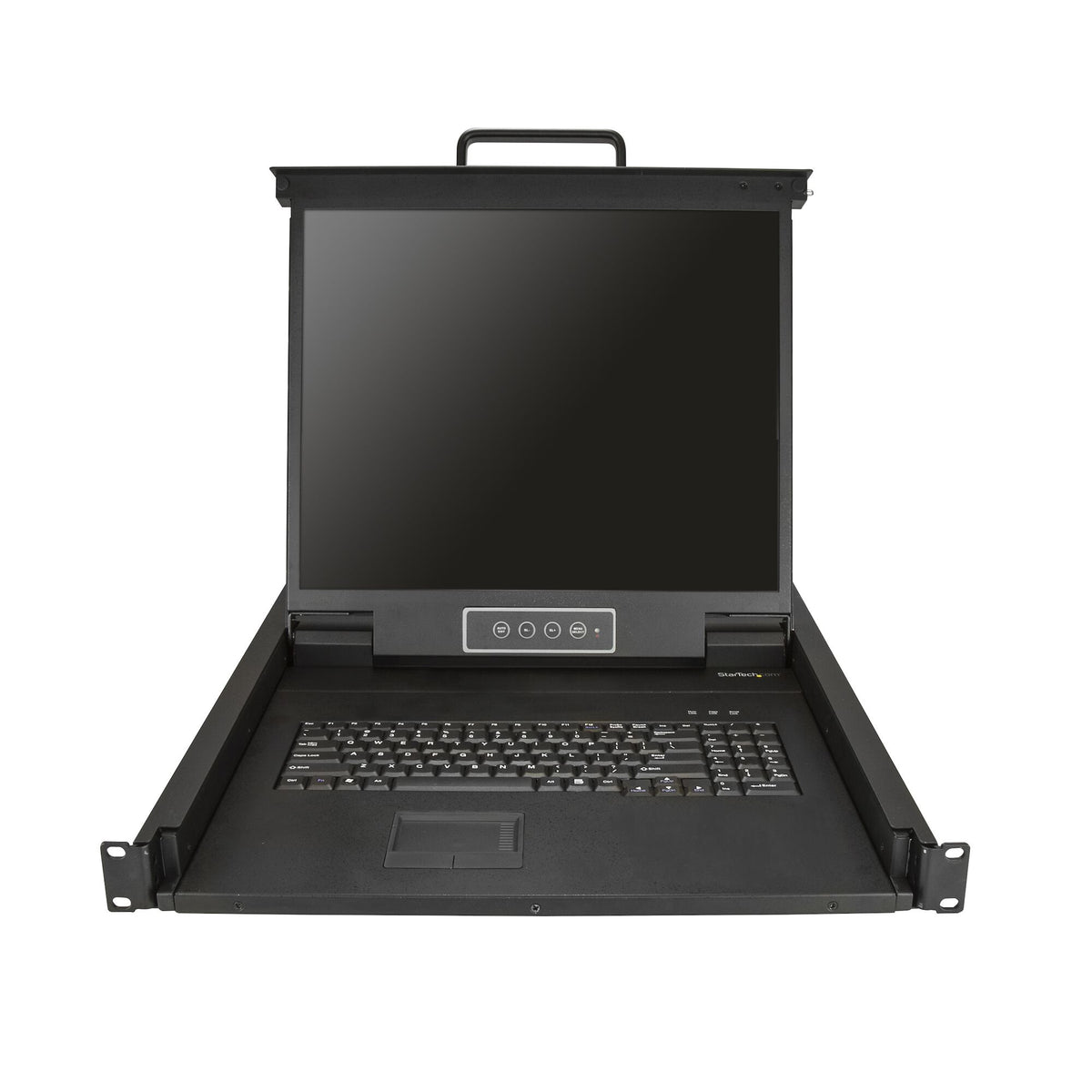

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 19" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 19" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

Regular price £809.48 GBP
Regular price Sale price £809.48 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:RKCONS1901

Low stock: 10 left

  • FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
  • VERSATILE INTERFACES: Rack mount monitor w/ 19" Active Matrix TFT 1280 x 1024 LCD/ 1U height / 99 key full keyboard with numeric keypad + Trackpad / Supports VGA and USB / Integrated Power Supply
  • MAX DURABILITY: Features durable steel housing design and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 50,000 hour MTBF
  • TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
  • KVM Collection: Can be purchased with integrated 8-port (RKCONS1908K) or 16-port (RKCONS1916K) KVM or use with StarTech.com enterprise KVM switches: SV831DUSB, SV831DUSBUK, SV1631DUSBU, SV1631DUSBUK
StarTech Rackmount KVM Console - Single Port VGA KVM with 19" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF (RKCONS1901)

Control your server or KVM switch from a centralized rack console

This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard (QWERTY) and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.

Maximize your screen space

This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.

Clutter-free monitoring

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.

The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Display
Display diagonal 48.3 cm (19")
Display resolution 1280 x 1024 pixels
Display number of colours 16.78 million colours
Aspect ratio 4:3
Pixel pitch 0.264 x 0.264 mm
On Screen Display (OSD) Yes
Viewing angle, vertical 170°
Viewing angle, horizontal 176°
Display type LCD
Contrast ratio (typical) 1000:1
Display brightness 250 cd/m²
Technical details
Material Steel
Key lock No
Daisy chain Yes
Mean time between failures (MTBF) 50000 h
Compliance certificates RoHS
LED indicators Yes
Operating relative humidity (H-H) 10 - 80%
Product colour Black
Rack capacity 1U
Audio support No
IP control No
Ports & interfaces
Video port type VGA
Keyboard
Hot keys Yes
Built-in touchpad Yes
Certificates
Certification CE, FCC
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Power
Power consumption (typical) 17 W
Weight & dimensions
Width 483 mm
Height 430 mm
Depth 533 mm
Weight 12.2 kg
Mounting depth (min) 50 cm
Mounting depth (max) 78 cm
Packaging data
Package weight 16 kg
Package width 781 mm
Package depth 619 mm
Package height 190 mm
Packaging content
Cables included AC, KVM
Screws included Yes
Mounting brackets included Yes
Included power plug types ANZ, EU, JP, NA, UK
Quick installation guide Yes
Logistics data
Master (outer) case width 781 mm
Master (outer) case length 619 mm
Master (outer) case height 190 mm
Products per master (outer) case 1 pc(s)
