StarTech.com

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

Regular price £725.46 GBP
Regular price Sale price £725.46 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:RKCONS1701

18 in stock

  • FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
  • VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD/ 1U height / 99 key full keyboard with numeric keypad + Trackpad / Supports VGA and USB / Integrated Power Supply
  • MAX DURABILITY: Features durable steel housing design and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 50,000 hour MTBF
  • TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
  • KVM Collection: Can be purchased with integrated 8-port (RKCONS1708K) or 16-port (RKCONS1716K) KVM or use with StarTech.com enterprise KVM switches: SV831DUSB, SV831DUSBUK, SV1631DUSBU, SV1631DUSBUK.
StarTech Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF (RKCONS1701)

KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

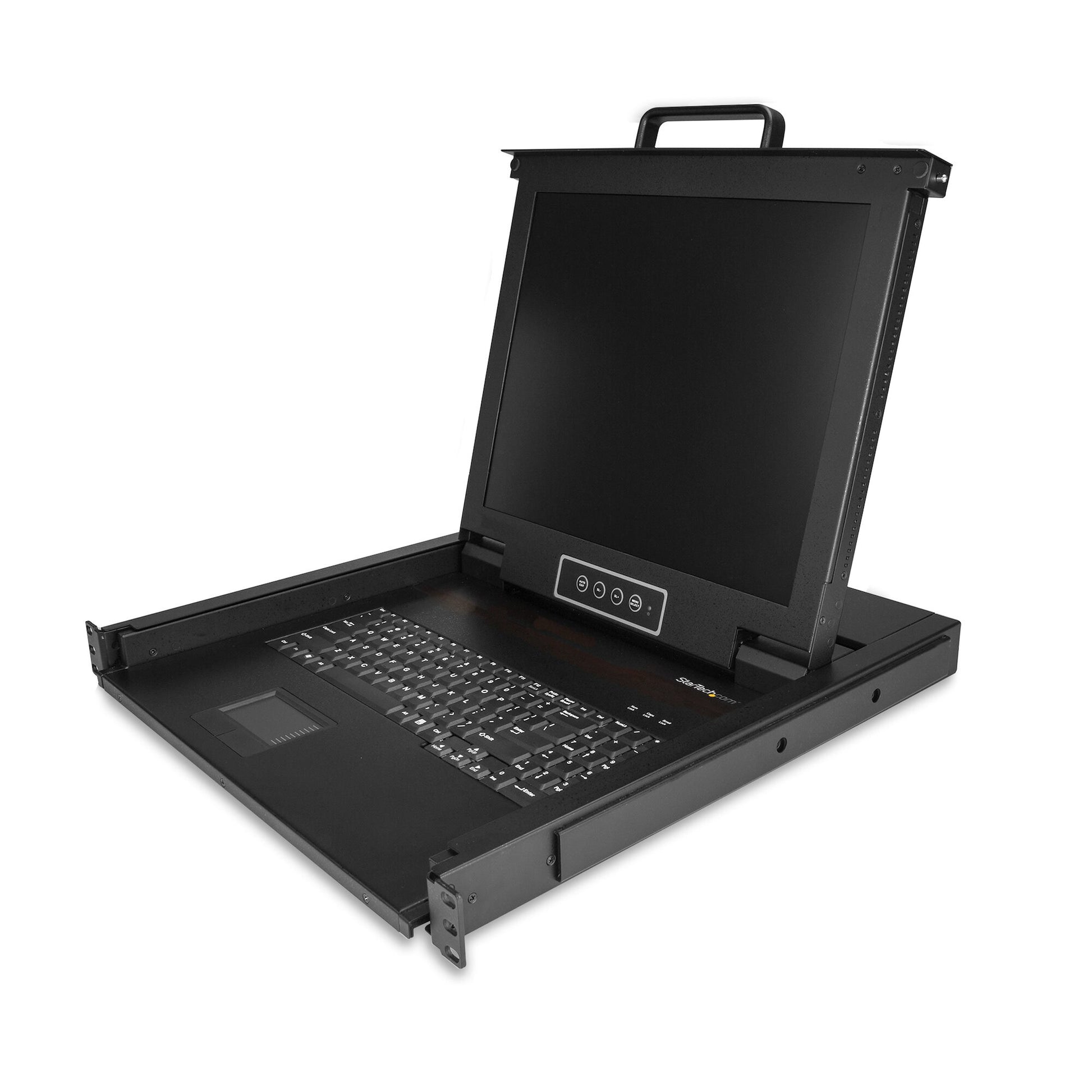

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

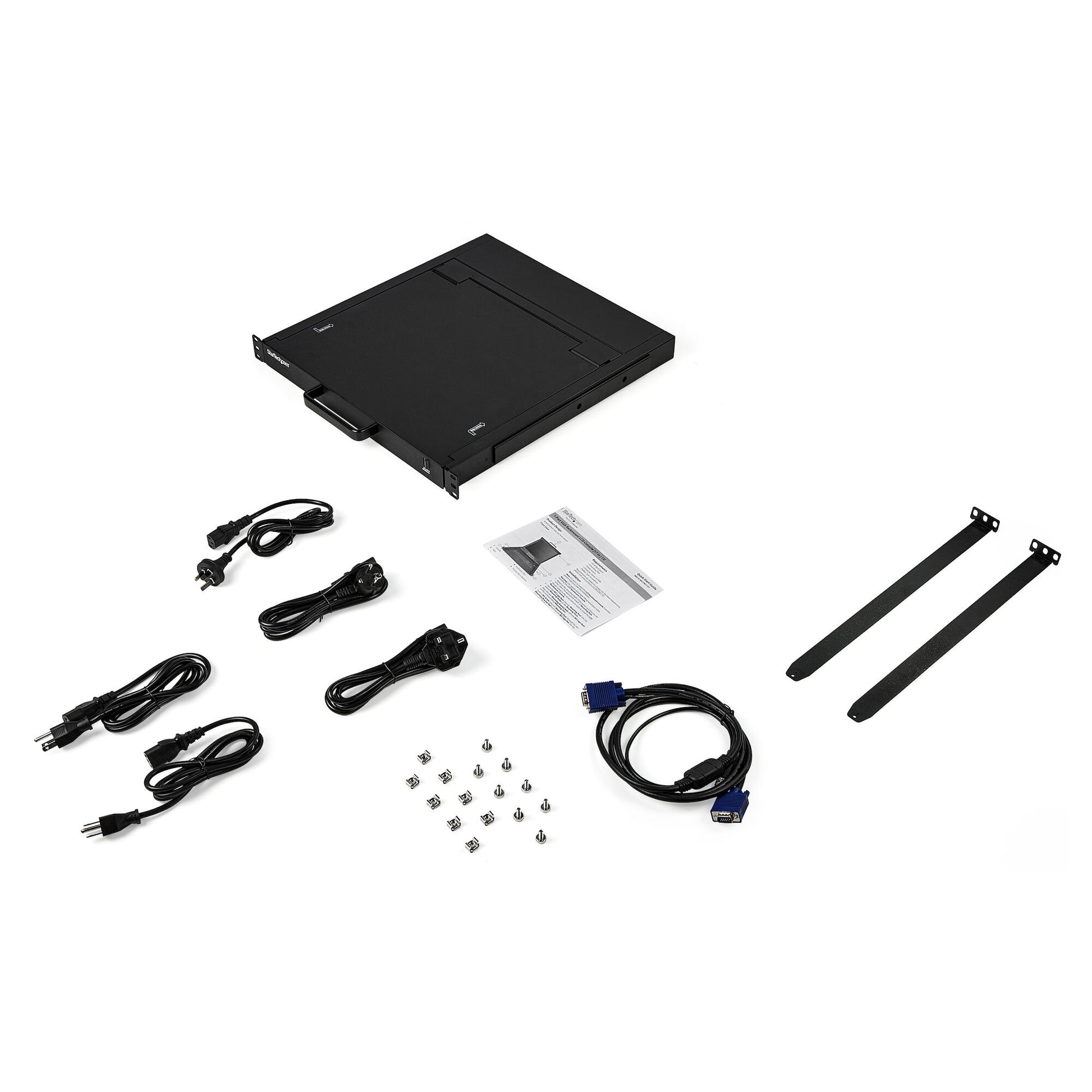

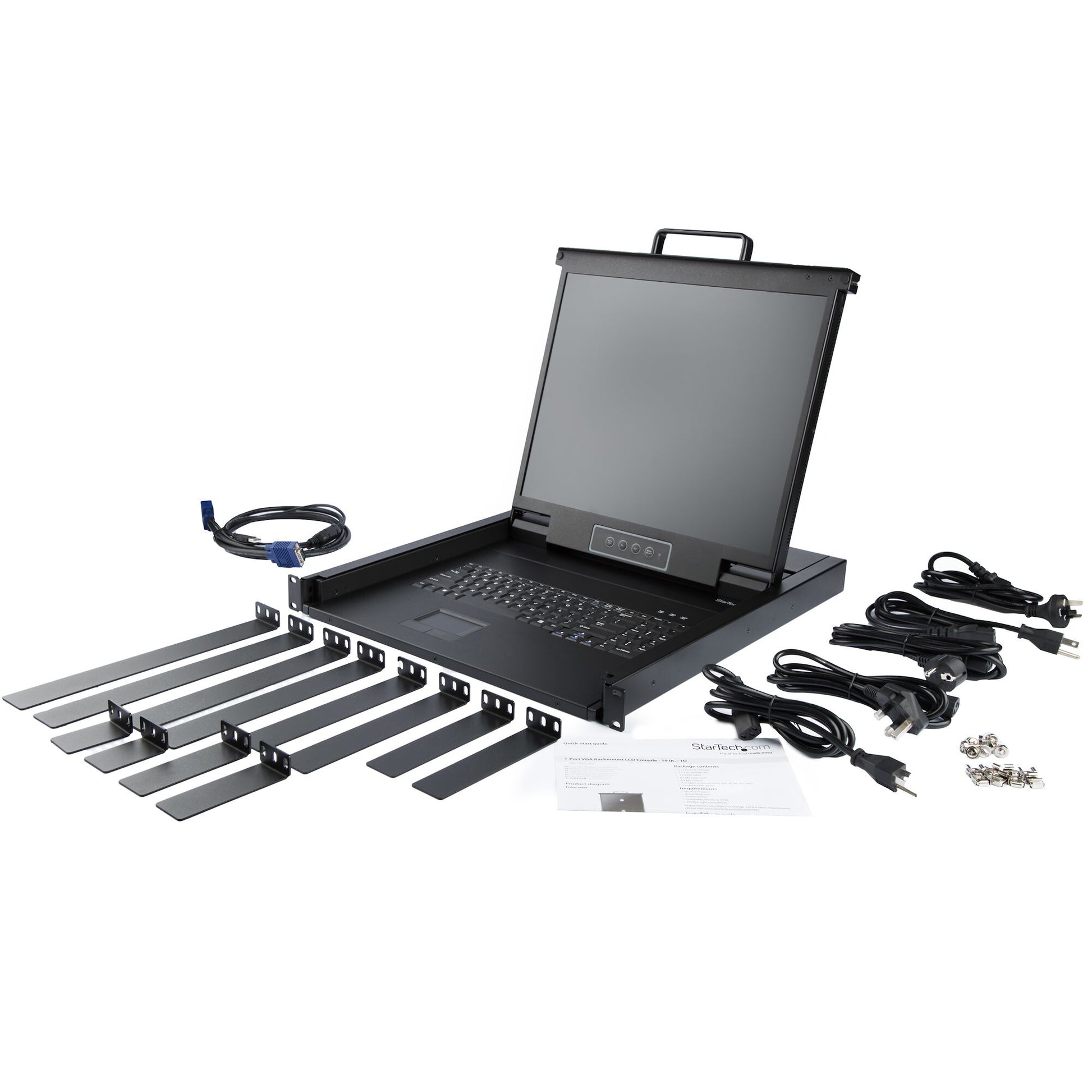

This single-port KVM console includes everything you need to set up right out of the box:

• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Display
Display diagonal 43.2 cm (17")
Display resolution 1280 x 1024 pixels
Colour depth 8 bit
Display number of colours 16.78 million colours
Response time 5 ms
Aspect ratio 5:4
Pixel pitch 0.264 x 0.264 mm
Viewing angle, vertical 160°
Viewing angle, horizontal 170°
Display type LCD
Contrast ratio (typical) 1000:1
Display brightness 250 cd/m²
Technical details
Material Steel
Cable length 1.82 m
Key lock No
Daisy chain No
Mean time between failures (MTBF) 50000 h
Compliance certificates RoHS
LED indicators Power, Status
Operating relative humidity (H-H) 10 - 80%
Rack mounting Yes
Rack capacity 1U
IP control No
Ports & interfaces
Video port type VGA
Mouse port type USB
Keyboard port type USB
Certificates
Certification CE, FCC, PSE, UL
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Power
Power consumption (typical) 13 W
AC adapter input voltage 100 - 240 V
Input current 1.5 A
Weight & dimensions
Width 448 mm
Height 471 mm
Depth 42.5 mm
Weight 11.6 kg
Mounting depth (min) 45 cm
Mounting depth (max) 79 cm
Packaging data
Package weight 17.1 kg
Package width 781 mm
Package depth 624 mm
Package height 196 mm
Packaging content
Cables included KVM
Number of screws 8
Screws included Yes
Mounting brackets included Yes
Included power plug types ANZ, EU, JP, NA, UK
Number of cage nuts 8
Cage nuts included Yes
Quick installation guide Yes
Rack mount kit Yes
Logistics data
Master (outer) case width 781 mm
Master (outer) case length 624 mm
Master (outer) case height 196 mm
Products per master (outer) case 1 pc(s)
