StarTech.com

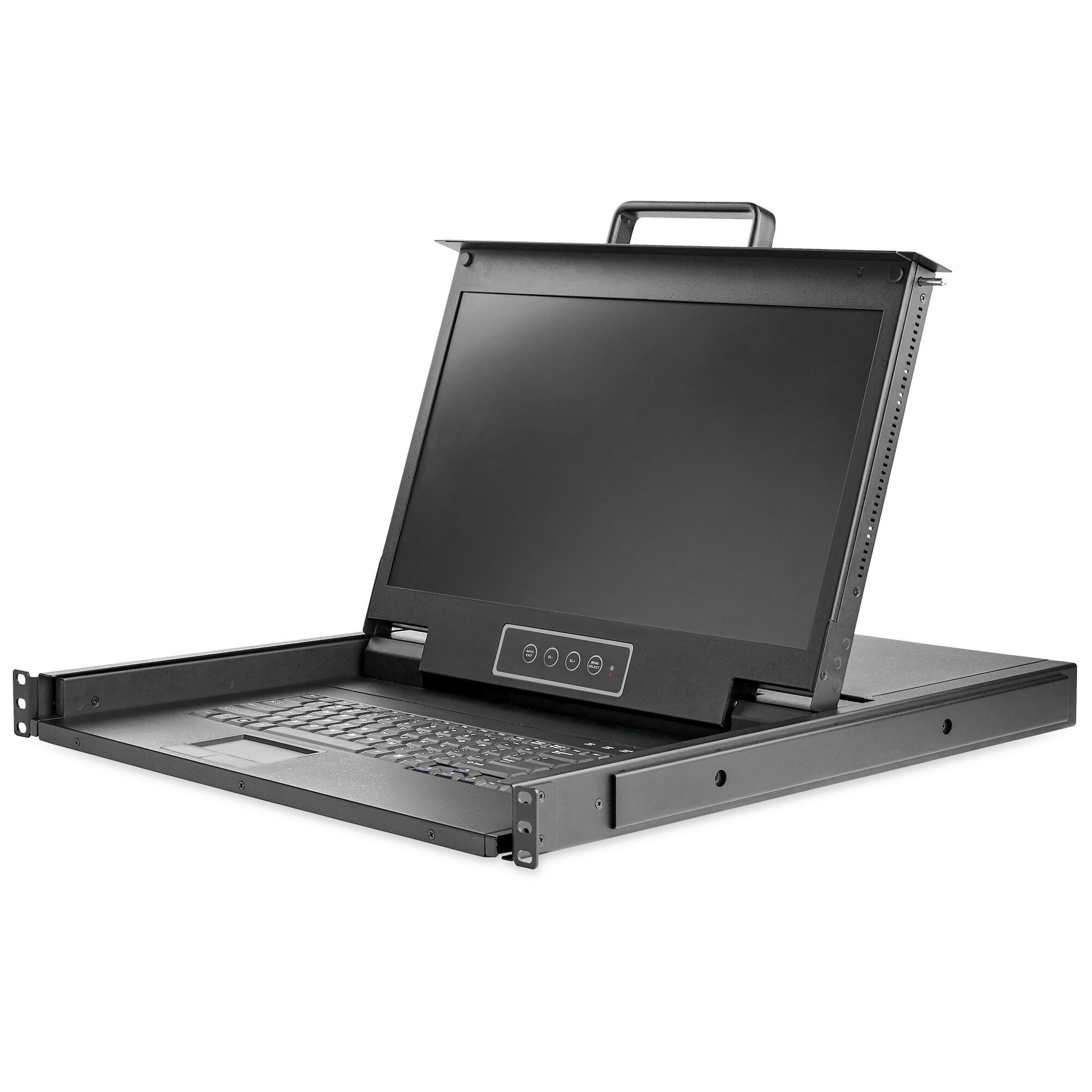

StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

Regular price £889.13 GBP
Regular price Sale price £889.13 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:RKCONS17HD

12 in stock

  • HIGH DEFINITION: Rackmount KVM console w/high-resolution widescreen (16:9) 1080p LCD panel is perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring
  • WIDE COMPATIBILITY: This HD KVM console drawer works with virtually any KVM switch brand or model that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
  • VERSATILE INTERFACES: Rack mount monitor with 17.3" Active Matrix TFT 16:9 widescreen / 1U height / Single Port /Full keyboard + Trackpad / Integrated Power Supply / Supports VGA + USB
  • MAX DURABILITY: Features durable steel housing and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 44,230 hour MTBF with 24/5 Tech Support
  • TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
StarTech Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF (RKCONS17HD)

Control your server or KVM switch from a centralized HD KVM console

Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.

High-Definition LCD Monitor

The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.

Clutter-Free Monitoring

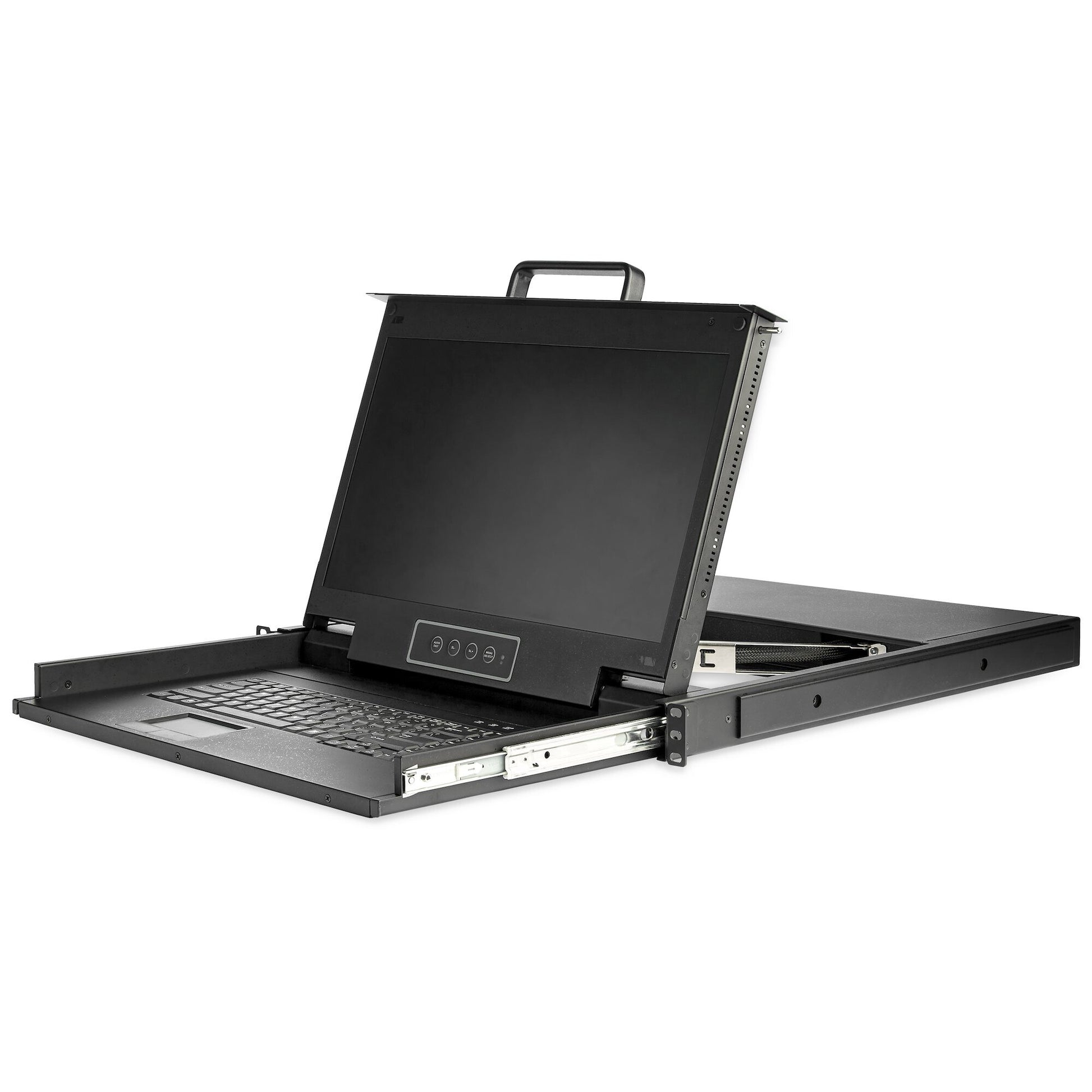

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

Simple Setup

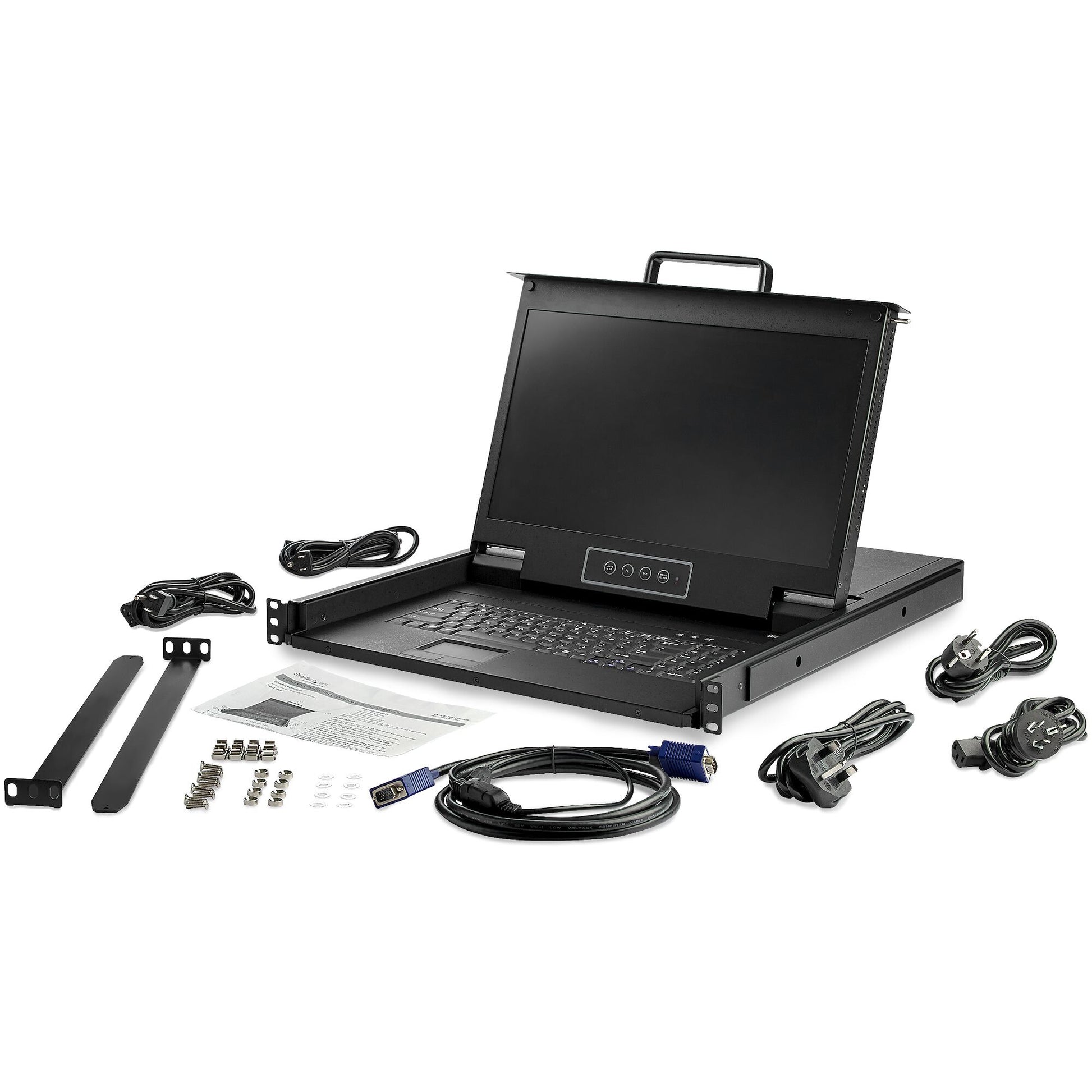

This single-port KVM console comes with everything you need to set up:

• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws

Cost Effective Solution

This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.

StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.

Display
Display diagonal 43.9 cm (17.3")
Display resolution 1920 x 1080 pixels
Display TFT LCD
Colour depth 6 bit
Display number of colours 262144 colours
Aspect ratio 16:9
Pixel pitch 0.1989 x 0.1989 mm
Viewing angle, vertical 170°
Viewing angle, horizontal 170°
Display type LCD
Contrast ratio (typical) 800:1
Display brightness 300 cd/m²
Technical details
Material Steel
Cable length 1.8 m
Daisy chain No
Mean time between failures (MTBF) 50000 h
Compliance certificates RoHS
LED indicators Power, Status
Operating relative humidity (H-H) 10 - 80%
Rack mounting Yes
Product colour Black
Rack capacity 1U
Audio support No
IP control No
Ports & interfaces
Video port type VGA
Keyboard
Built-in touchpad Yes
Certificates
Certification CE, FCC, PSE, UL, REACH
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Power
Power consumption (typical) 13 W
AC adapter input voltage 100 - 240 V
Input current 1.5 A
Weight & dimensions
Width 483 mm
Height 565 mm
Depth 43 mm
Weight 11.2 kg
Mounting depth (min) 51 cm
Mounting depth (max) 85 cm
Packaging data
Package weight 16 kg
Package width 780 mm
Package depth 616 mm
Package height 191 mm
Packaging content
Cables included KVM
Number of screws 8
Screws included Yes
Included power plug types ANZ, EU, JP, NA, UK
Number of cage nuts 8
Cage nuts included Yes
Quick installation guide Yes
Logistics data
Master (outer) case width 780 mm
Master (outer) case length 616 mm
Master (outer) case height 191 mm
Products per master (outer) case 1 pc(s)
