StarTech.com PCI Express X1 to X16 Low Profile Slot Extension Adapter - TAA
StarTech.com PCI Express X1 to X16 Low Profile Slot Extension Adapter - TAA
SKU:PEX1TO162
Low stock: 3 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- x16 lane PCIe slot connector to x1 lane
- Designed to properly mount a low profile card into a full profile slot
- Complete pass-through designs supports the latest PCI Express speeds

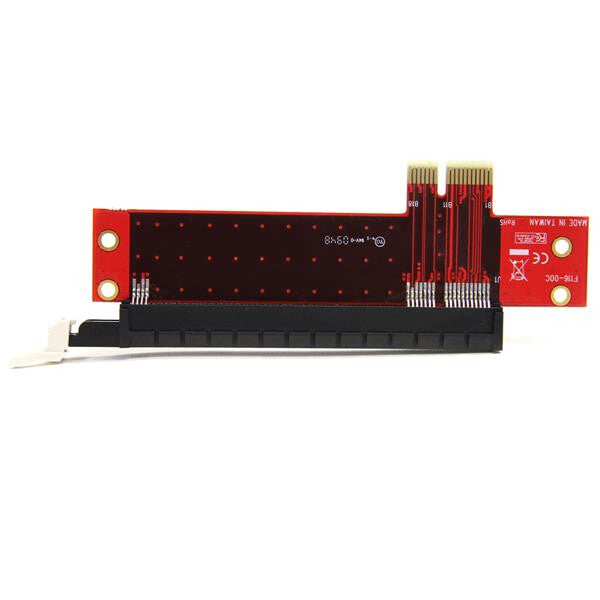

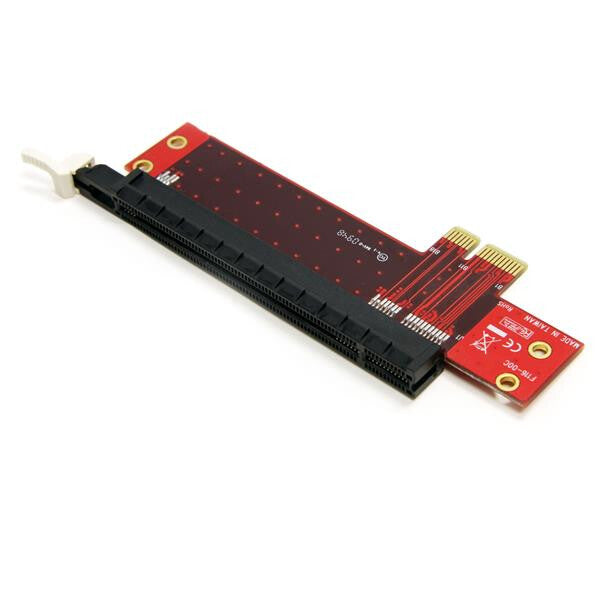

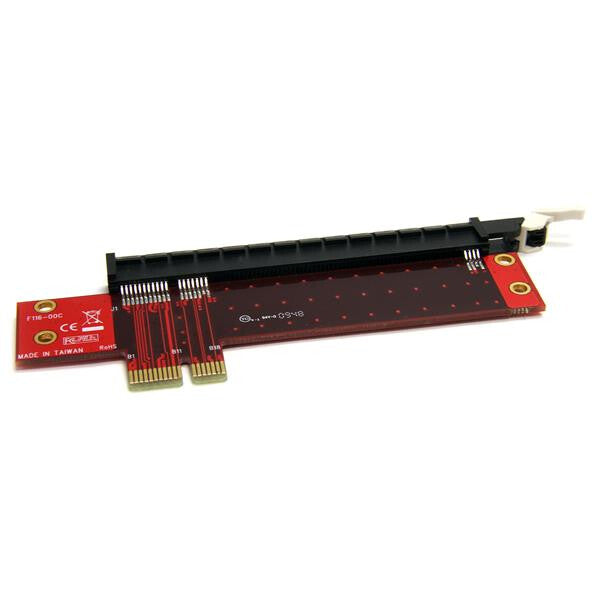

Connect a low profile x16 PCI Express Card to an x1 slot
This PCIe x1 to PCIe x16 Slot Extension adapter provides enhanced compatibility between motherboards and a variety of PCI Express expansion cards, allowing you to install a PCIe card (x1 - x16) in an x1 slot.
The PCI Express x1 to x16 adapter accommodates low profile x2, x4, x8, x12 or x16 PCI Express cards, eliminating the cost and hassle of upgrading a PCIe card or replacing the motherboard for the sake of compatibility.
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | PCIe |
| Design | |
|---|---|
| Internal | Yes |
| Product colour | Red |
| Certification | CE, REACH, TAA |
| Features | |
|---|---|
| Data transfer rate (max) | 2.5 Gbit/s |
| Weight & dimensions | |
|---|---|
| Width | 44.3 mm |
| Depth | 127 mm |
| Height | 8 mm |
| Weight | 12 g |
| Packaging data | |
|---|---|
| Manual | Yes |
| Package width | 143 mm |
| Package depth | 175 mm |
| Package height | 33 mm |
| Package weight | 80 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 322 mm |
