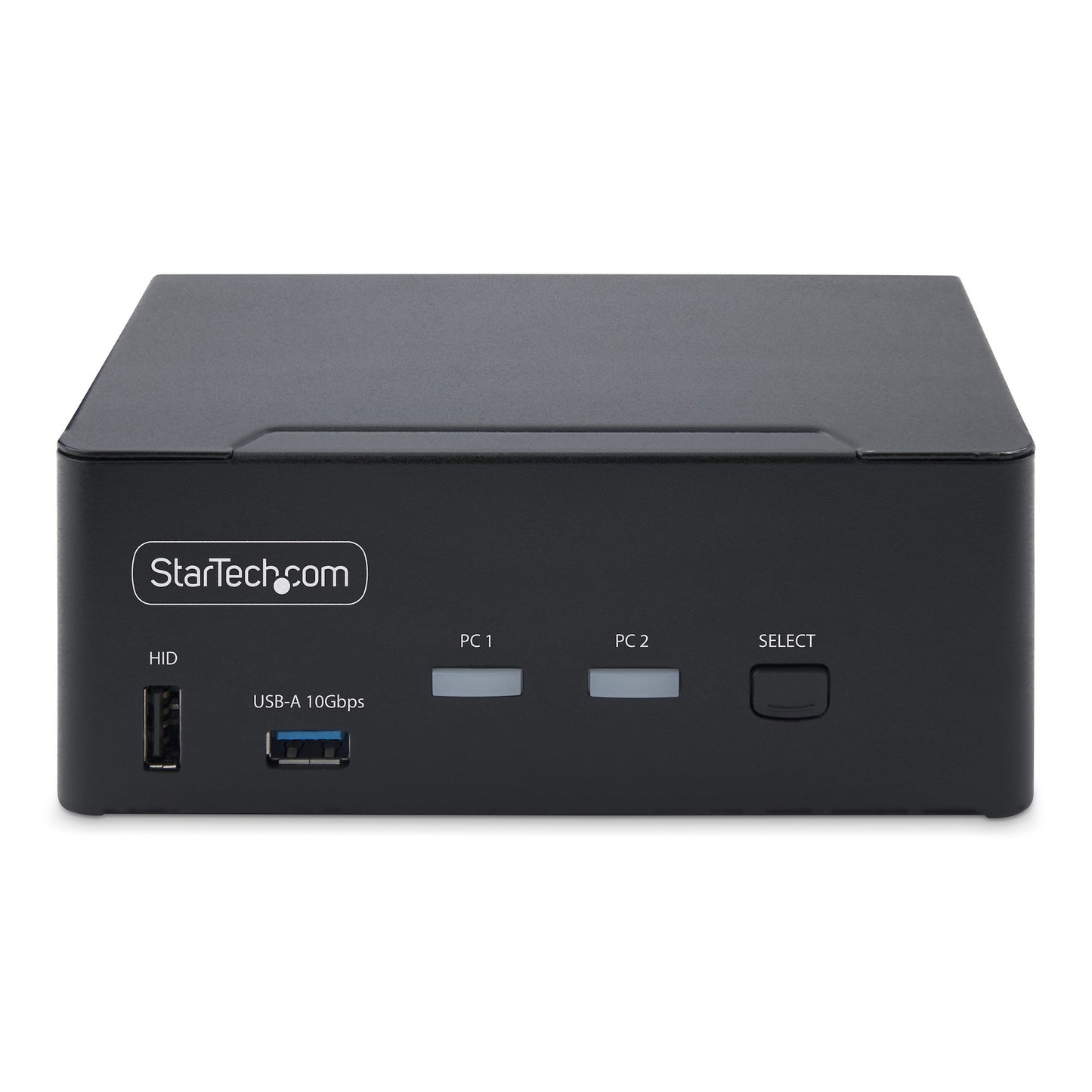

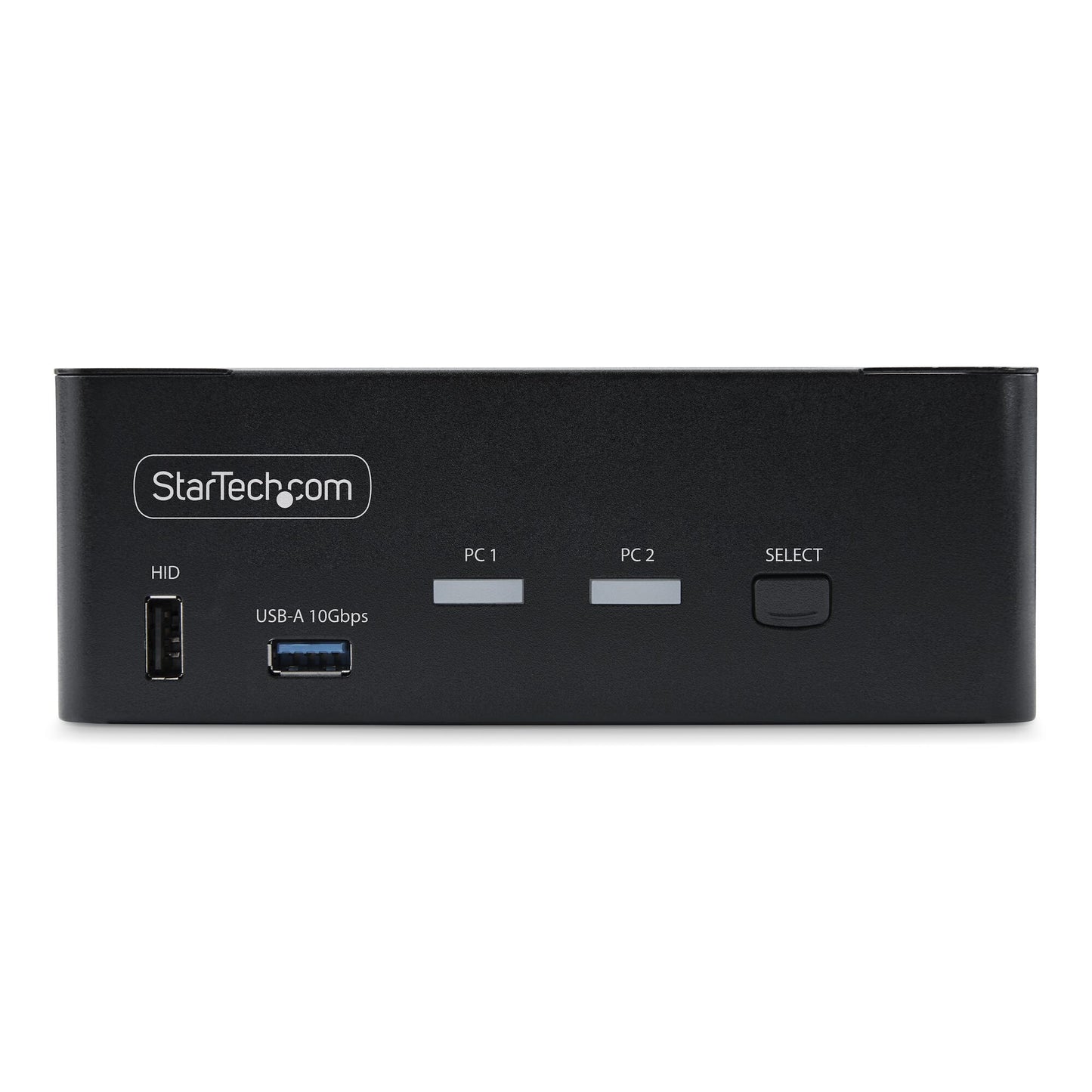

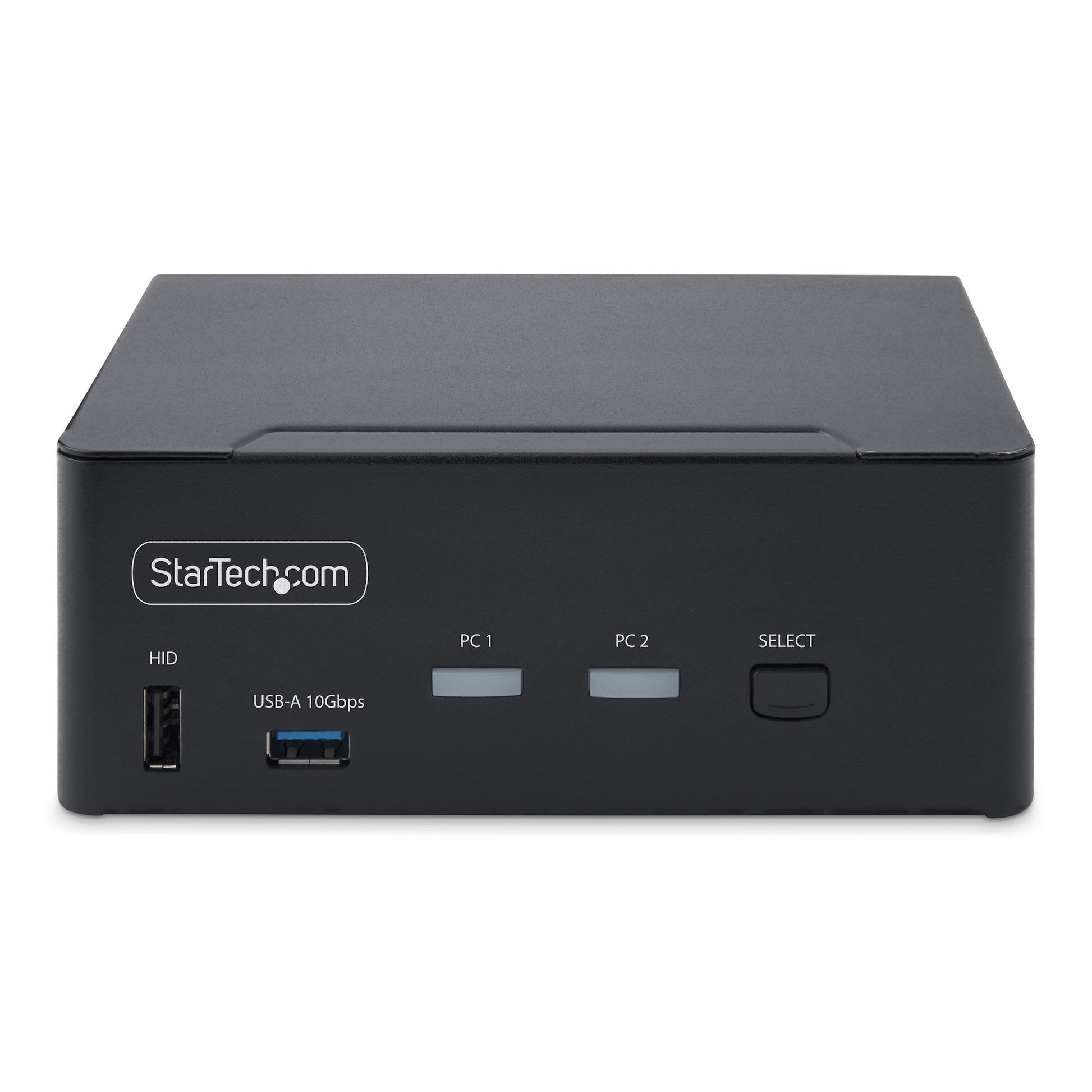

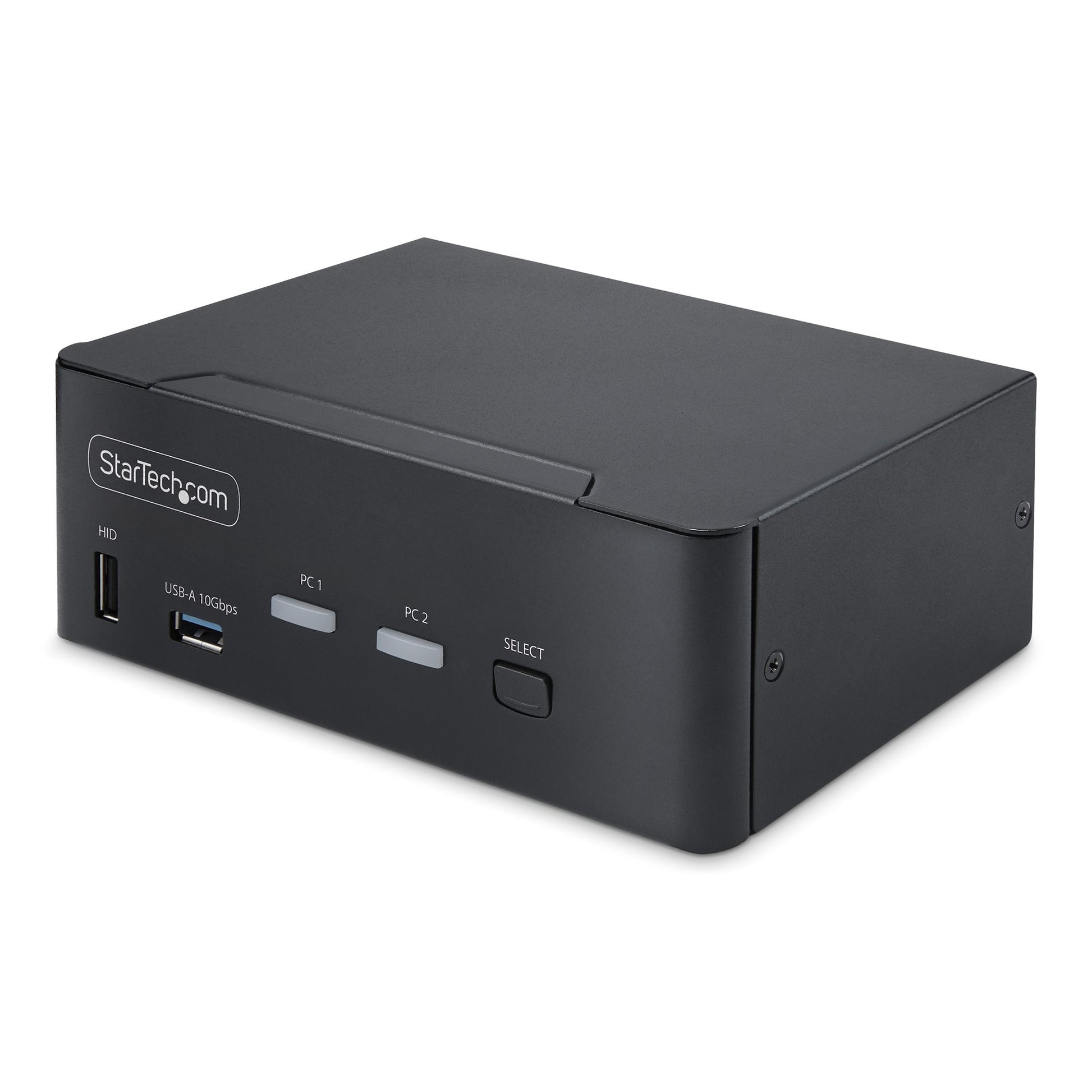

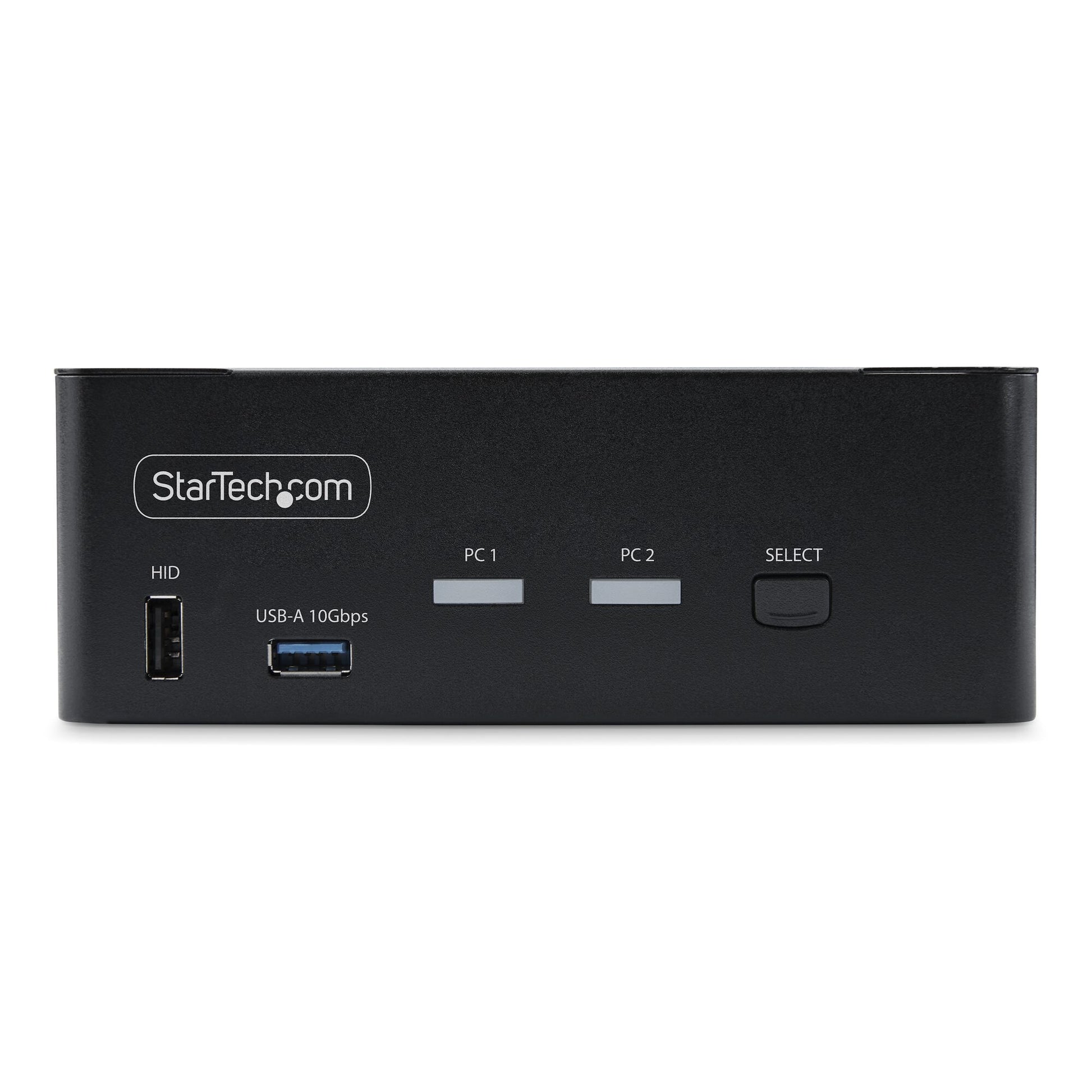

StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4, 2x USB 10Gbps Ports, 4x USB HID Ports, Hotkey Switching, TAA Compliant
StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4, 2x USB 10Gbps Ports, 4x USB HID Ports, Hotkey Switching, TAA Compliant
SKU:P2CDD143-KVM-SWITCH
12 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- DUAL 8K 60HZ WITH HDR: Control two USB and DisplayPort-enabled desktops from a shared keyboard, mouse, audio device, and dual 8K 60Hz, 4K 144Hz, or 4K 120Hz DP 1.4 monitors; Supports HDR (up to 10-bit YCbCr 4:4:4); DSC required for maximum performance
- FAST & COMPATIBLE SWITCHING: USB Emulation enables fast switching of up to four USB HID devices between two desktops/workstations; USB Emulation ensures compatibility with combo keyboards/mice; Works with any operating system and all hardware platforms
- 2X FASTER DATA TRANSFER: Two USB 3.2 Gen 2 (10Gbps) ports enable faster transfer speeds than USB Gen 1 (5Gbps) KVMs; Ideal for transferring large files or editing high-resolution photos/videos on external storage; 2x USB-C to USB-A 10Gbps cables included
- MULTIPLE SWITCHING OPTIONS: Universal KVM Switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling the other
- DURABLE DESIGN: Durable steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability/reliability of the KVM; Sturdy construction is ideal for installation in various environments; 8kV Air/6kV Contact ESD protection; TAA Compliant
Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers
This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.
Dual-8K 60Hz Displays & USB 10Gbps Hub Ports
This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.
Fast Switching with USB Emulation
USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.
Switching Options
This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

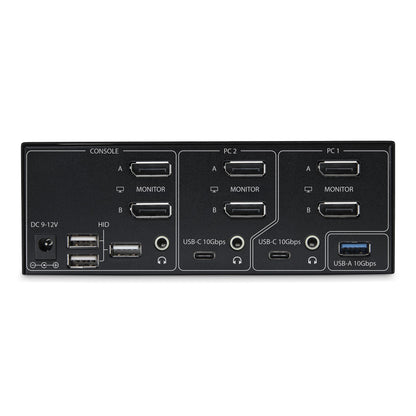

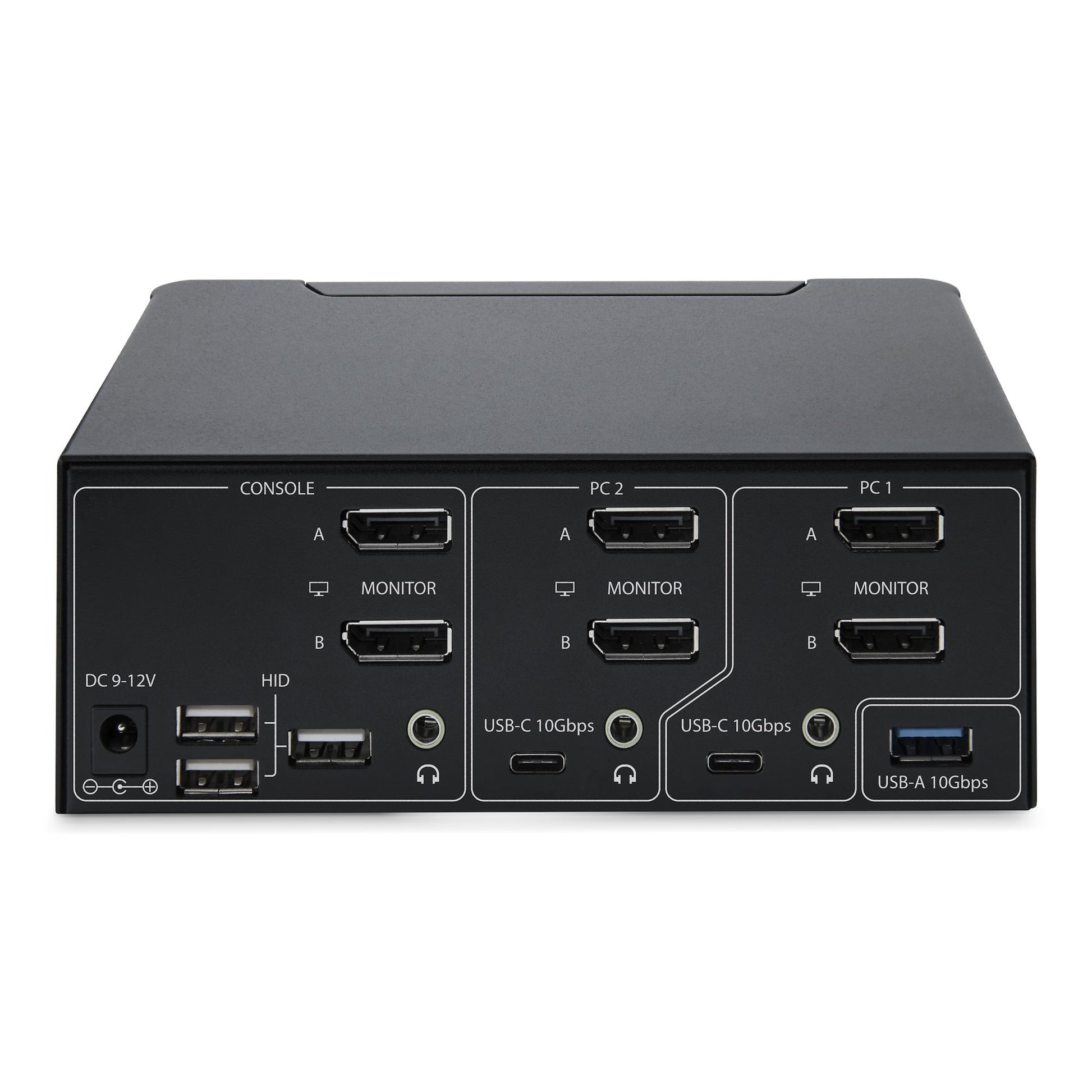

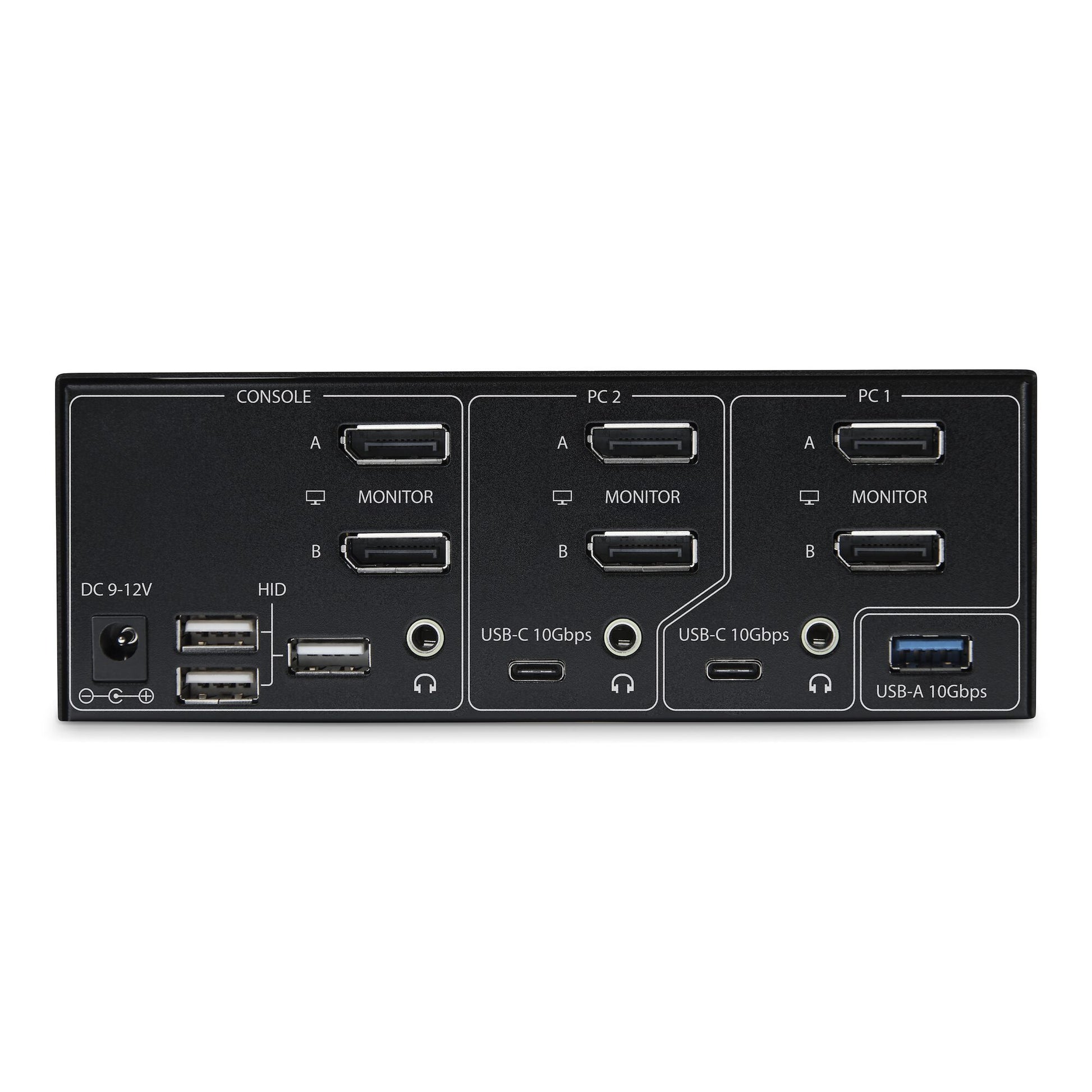

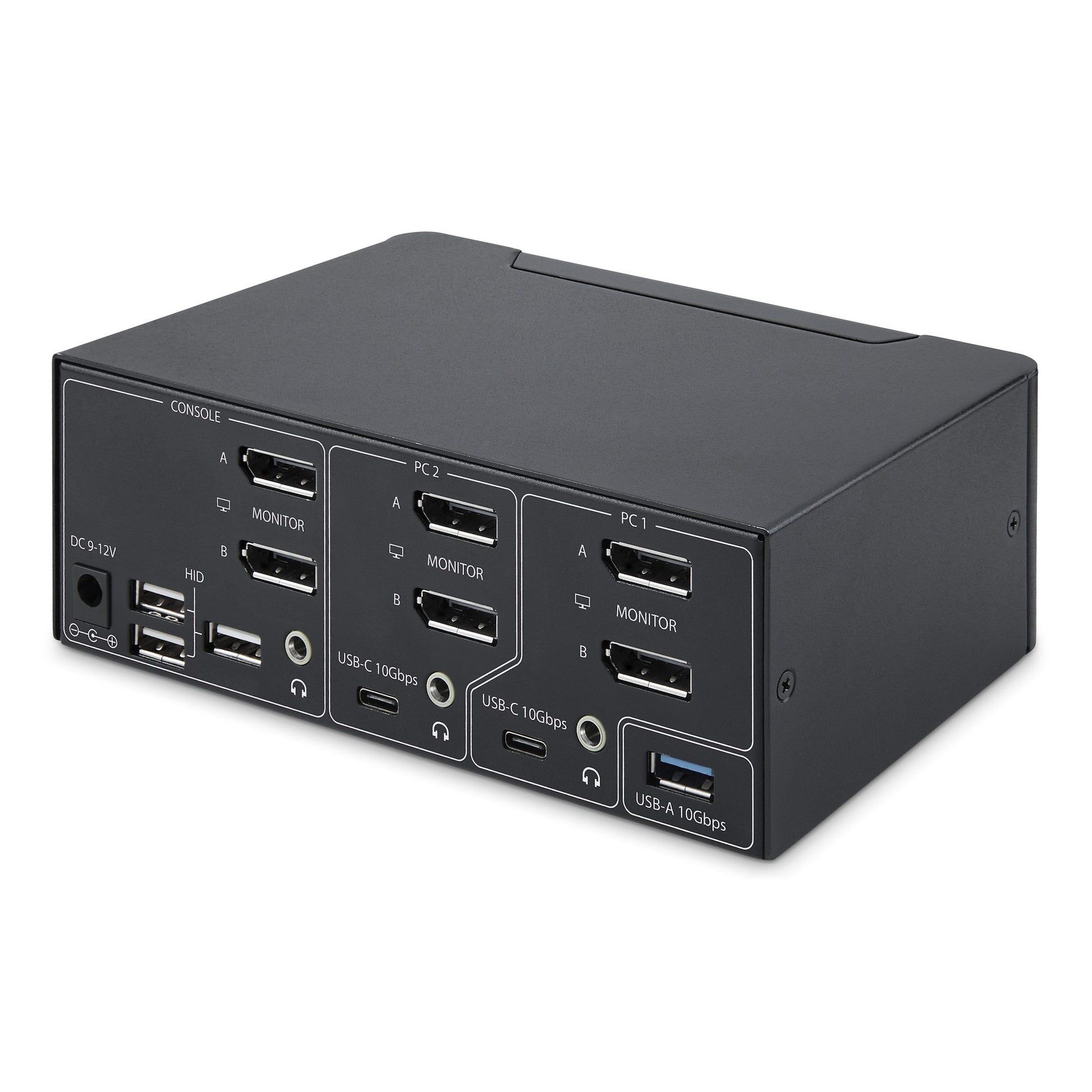

| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Console USB ports quantity | 3 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console DisplayPorts ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| Performance | |
|---|---|
| HD type | 8K Ultra HD |
| Maximum resolution | 7680 x 4320 pixels |
| Data transfer rate (max) | 10 Gbit/s |
| Scan interval | 3,8,15,30 s |
| High Dynamic Range (HDR) supported | Yes |
| Number of users | 1 user(s) |
| Maximum refresh rate | 144 Hz |
| Chipset | Genesys Logic - GL3590 |
| Number of displays supported | 2 |
| Design | |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 168000 h |
| Display | |
|---|---|
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Power consumption (typical) | 36 W |
| Sustainability | |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 100 mm |
| Depth | 160 mm |
| Height | 60 mm |
| Weight | 800 g |
| Packaging data | |
|---|---|
| Package width | 238 mm |
| Package depth | 184 mm |
| Package height | 89 mm |
| Package weight | 1.4 kg |

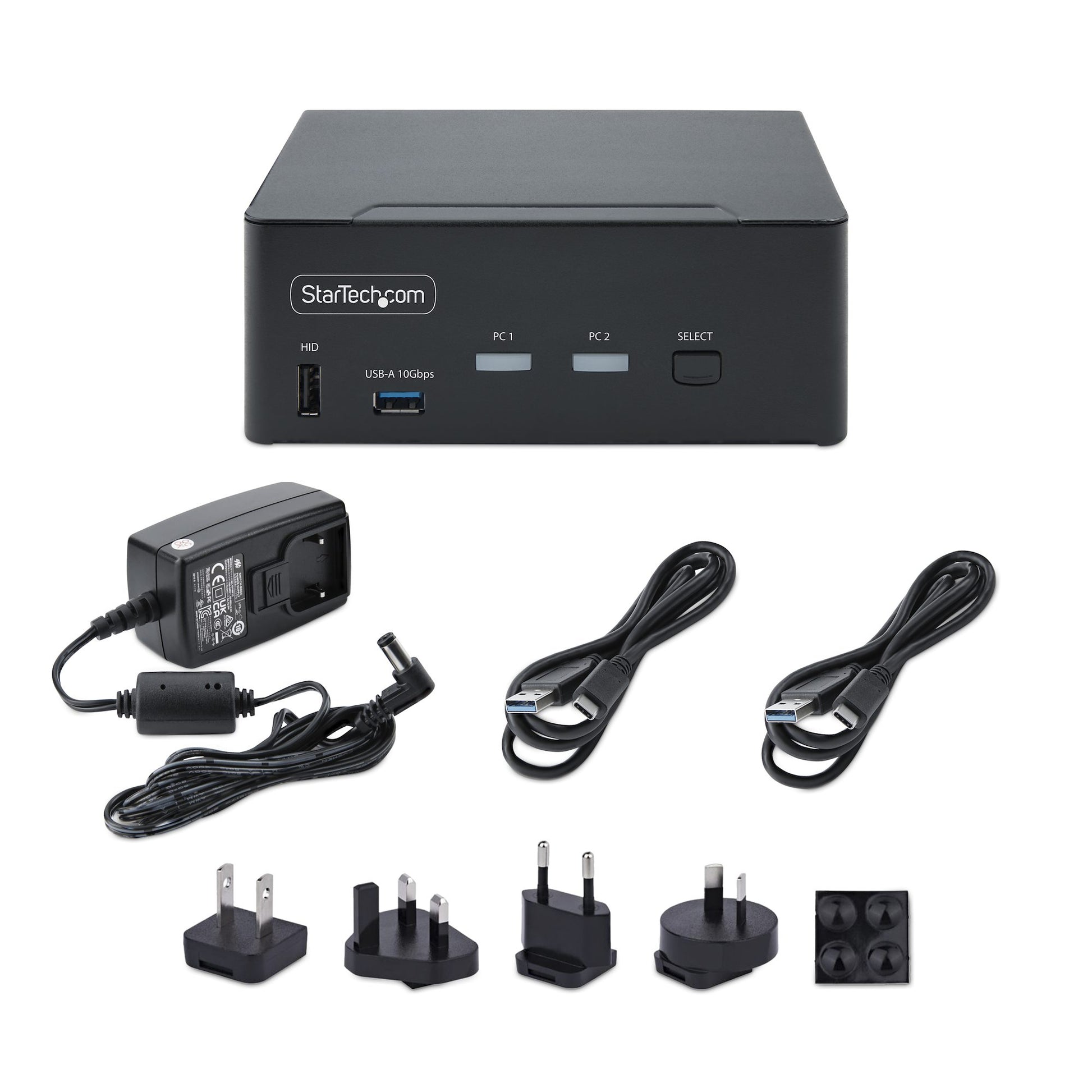

| Packaging content | |
|---|---|
| Cables included | USB Type-A to USB Type-C |
| Rubber feet | Yes |
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Master (outer) case width | 260 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 300 mm |
| Products per master (outer) case | 6 pc(s) |
| Other features | |
|---|---|
| IP control | No |
