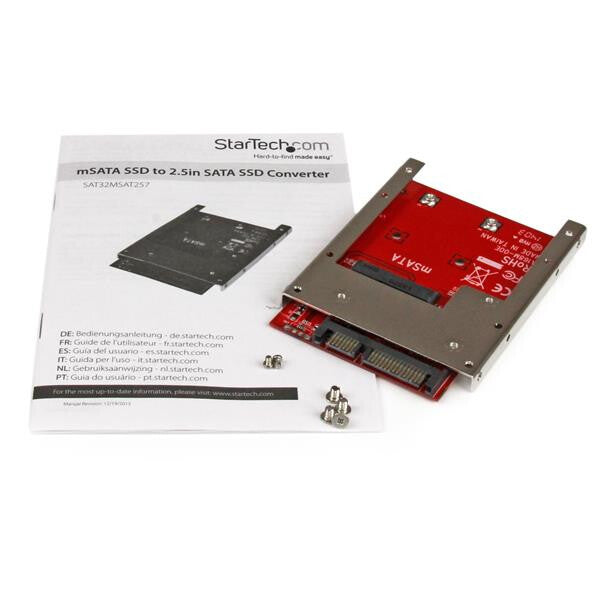

StarTech.com mSATA SSD to 2.5in SATA Adapter Converter - TAA

StarTech.com mSATA SSD to 2.5in SATA Adapter Converter - TAA

SAT32MSAT257

£30.96 GBP£25.80 GBP
£0.00 GBP £30.96 GBP£25.80 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 4 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Open frame aluminum bracket
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Supports 7mm or larger 2.5" SATA bays
  • 2.5in SATA form factor housing
  • Supports full length mSATA SSD Solid State Drives
StarTech mSATA SSD to 2.5in SATA Adapter Converter - mSATA to SATA Adapter for 2.5in bay with Open Frame Bracket and 7mm Drive Height , TAA (SAT32MSAT257)

Convert an mSATA SSD into a 7mm high 2.5in SATA 6Gbps Open Frame SSD

Vastly increase system performance by adding the speed of an mSATA SSD in any 2.5" SATA application, with the SAT32MSAT257 mSATA to SATA adapter.

Utilize the full potential of your SATA III controller, with an mSATA SSD reducing your DATA transfer bottle neck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.

Help protect the health of your drive with an open frame design ensuring maximum heat dissipation.

The SAT32MSAT257 is backed by a StarTech.com 2-year warranty, and lifetime technical support.

Ports & interfaces
Host interface SATA
Output interface mSATA
SATA revision 3.0
Design
Internal Yes
Product colour Black, Red, Silver
Certification CE, FCC
Features
Data transfer rate (max) 6 Gbit/s
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Technical details
Compliance certificates RoHS
System requirements
Windows operating systems supported Yes
Mac operating systems supported Yes
Linux operating systems supported Yes
Weight & dimensions
Width 70 mm
Depth 100 mm
Height 7 mm
Weight 48 g
Packaging data
Mounting brackets included Yes
Manual Yes
Package width 143 mm
Package depth 174 mm
Package height 33 mm
Package weight 33 g
Logistics data
Harmonized System (HS) code 84733020
Products per master (outer) case 60 pc(s)
Master (outer) case width 382 mm
Master (outer) case length 496 mm
Master (outer) case height 322 mm
