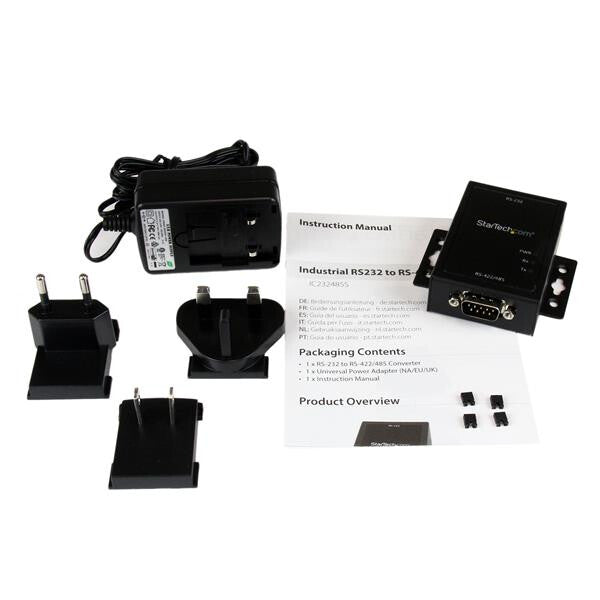

StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection

StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection

Regular price £86.92 GBP
Regular price Sale price £86.92 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:IC232485S

36 in stock

  • Host interface: RS-232
  • Output interface: RS-232
  • Connector 1: DB-9 Connector 2: DB-9
  • Male/Female
  • Maximum cable length: 1200 m
  • Black
StarTech.com Industrial RS232 to RS422/485 Serial Port Converter w/ 15KV ESD Protection - RS232 to RS 422 RS485 Converter Adapter

Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter

The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.

Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.

The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Protect sensitive industrial equipment with integrated ESD protection
- Communicate efficiently with connected devices through high-speed 921Kbps support
- Suitable for industrial environments with a rugged, wall-mountable enclosure

Technical details
Product colour Black
Maximum cable length 1200 m
Compliance certificates RoHS
Connector gender Male/Female
Connector 2 DB-9
Connector 1 DB-9
Output interface RS-232
Host interface RS-232
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 85%
Material
Housing material Steel
Power
Input current 0.3 A
Input voltage 110 - 240 V
Weight & dimensions
Package weight 351 g
Package height 41 mm
Package depth 146 mm
Package width 208 mm
Weight 143 g
Height 22 mm
Depth 117 mm
Width 59 mm
Packaging data
Manual Yes
Certificates
Certification CE, FCC, REACH
