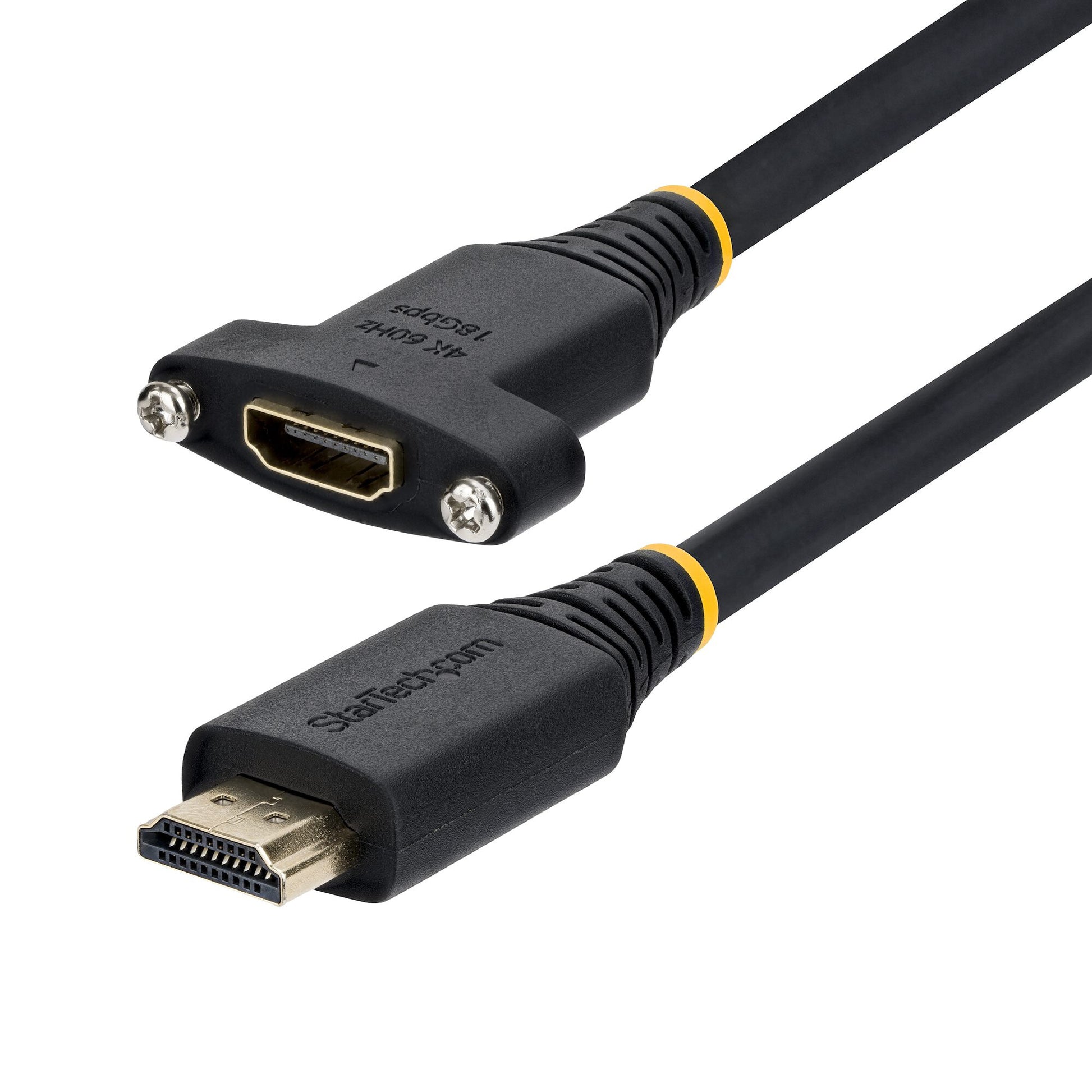

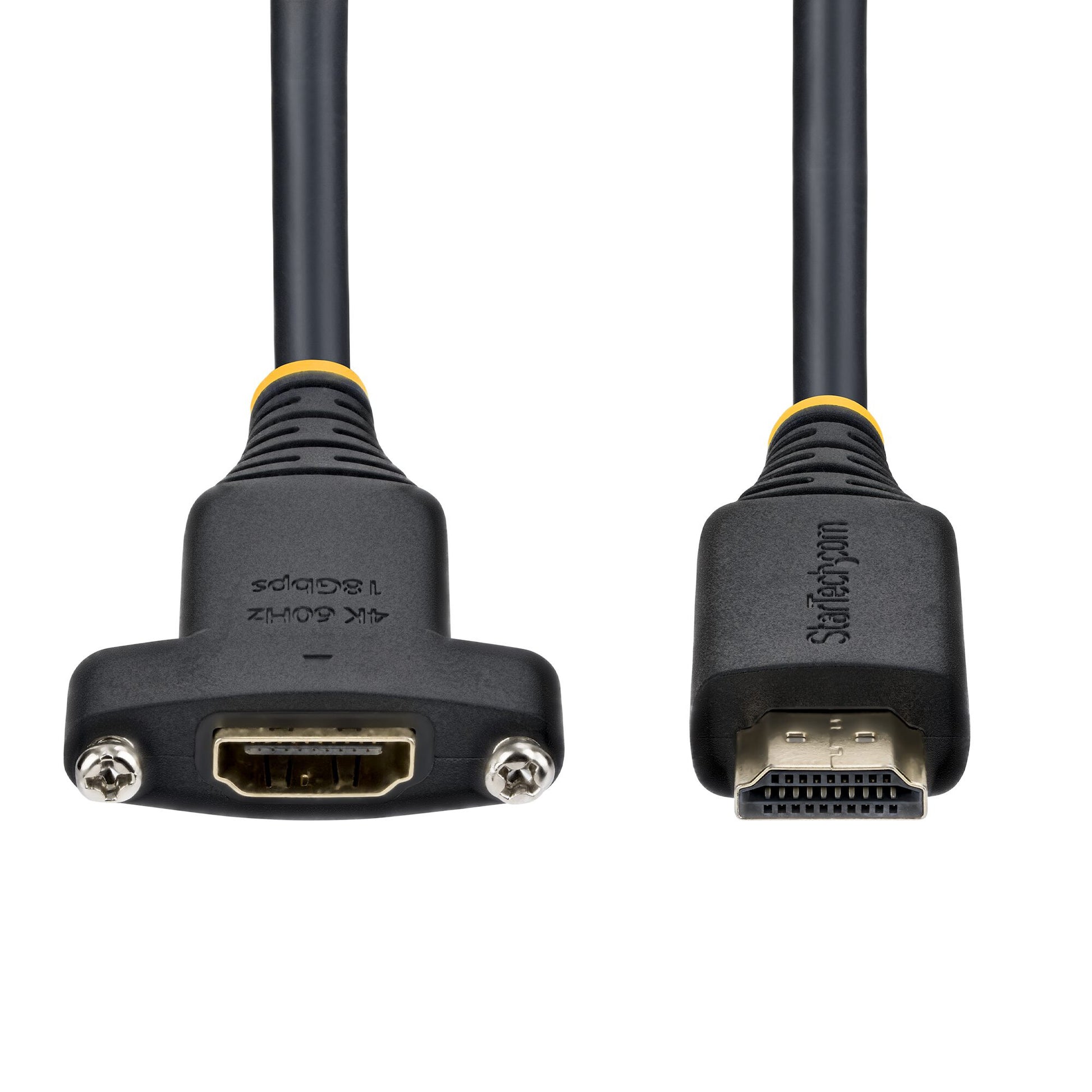

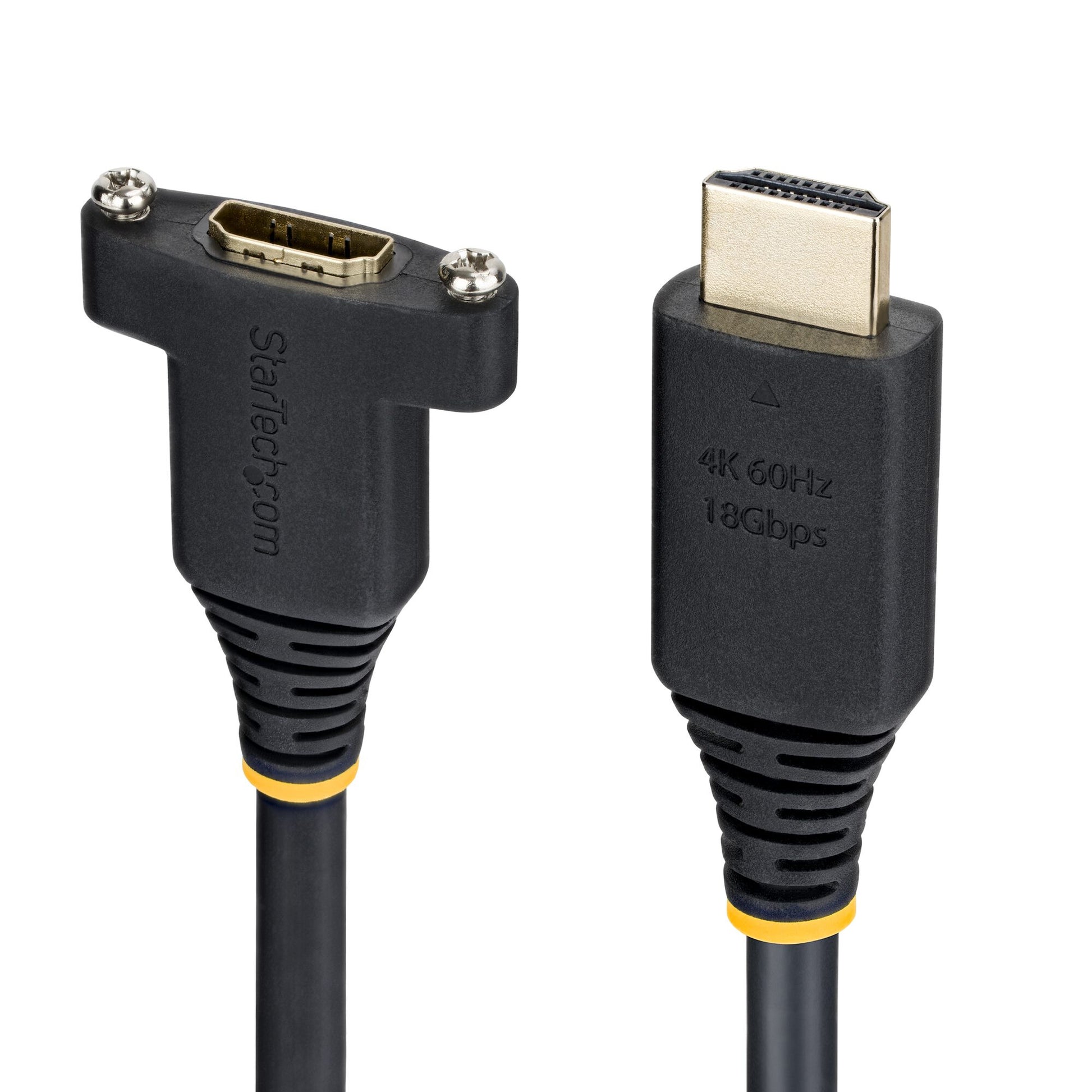

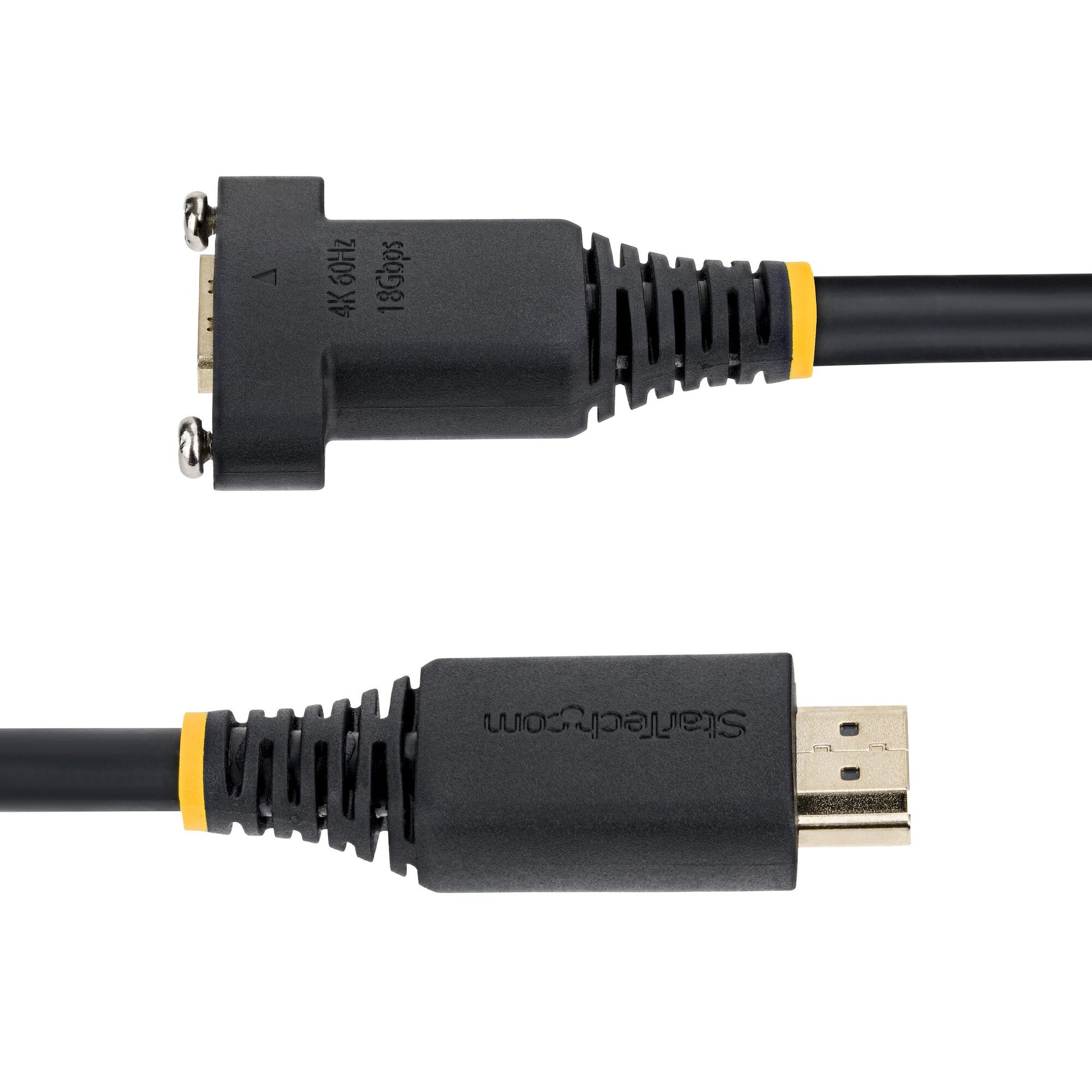

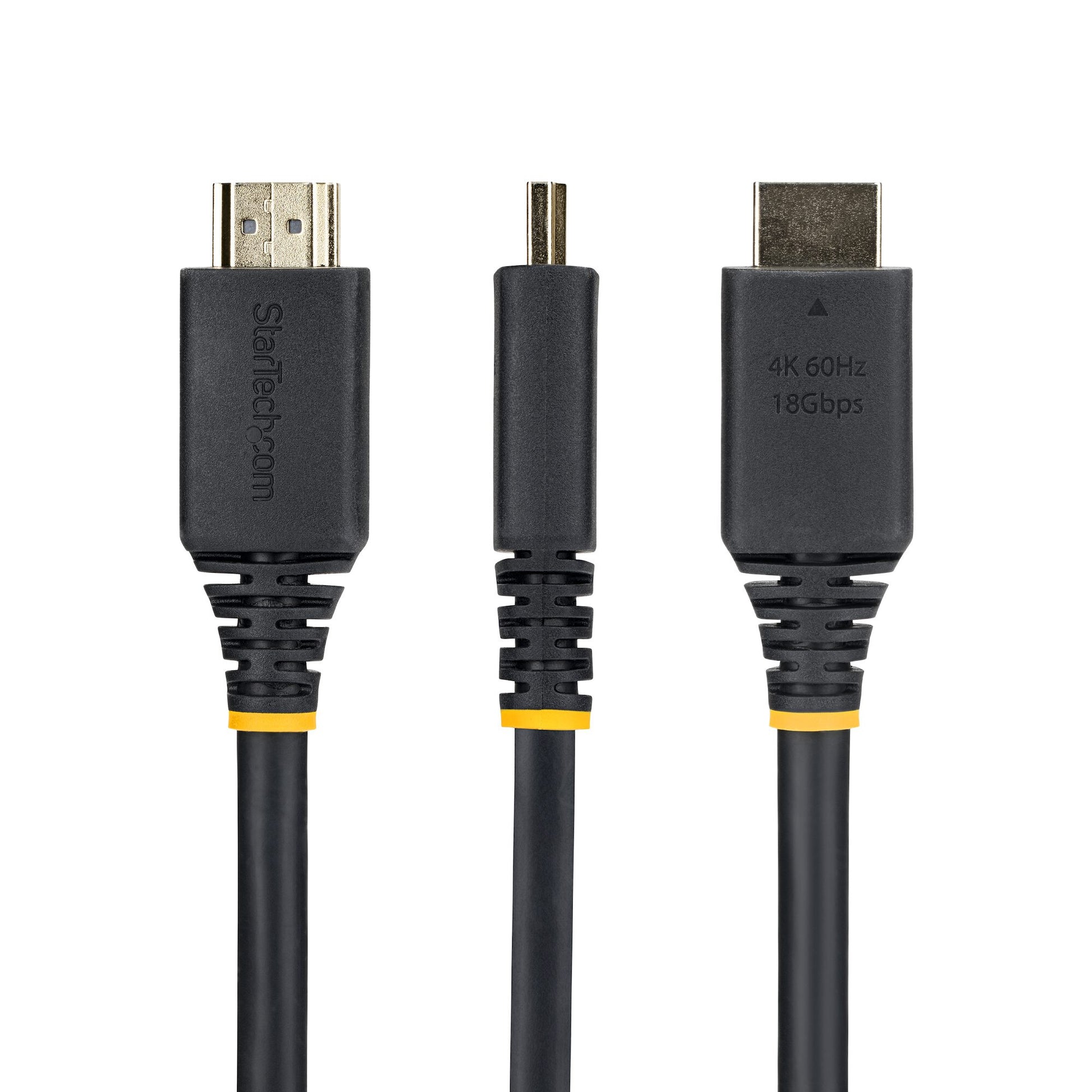

StarTech.com HDMI2PNLFM-2M HDMI cable HDMI Type A (Standard) Black
StarTech.com HDMI2PNLFM-2M HDMI cable HDMI Type A (Standard) Black
SKU:HDMI2PNLFM-2M
22 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Add a Panel-Mounted HDMI Port: Extend an HDMI 2.0 connection with a panel mount HDMI female port, enabling seamless integration into faceplates, AV panels, and workstations for easy external access and simplified port layouts

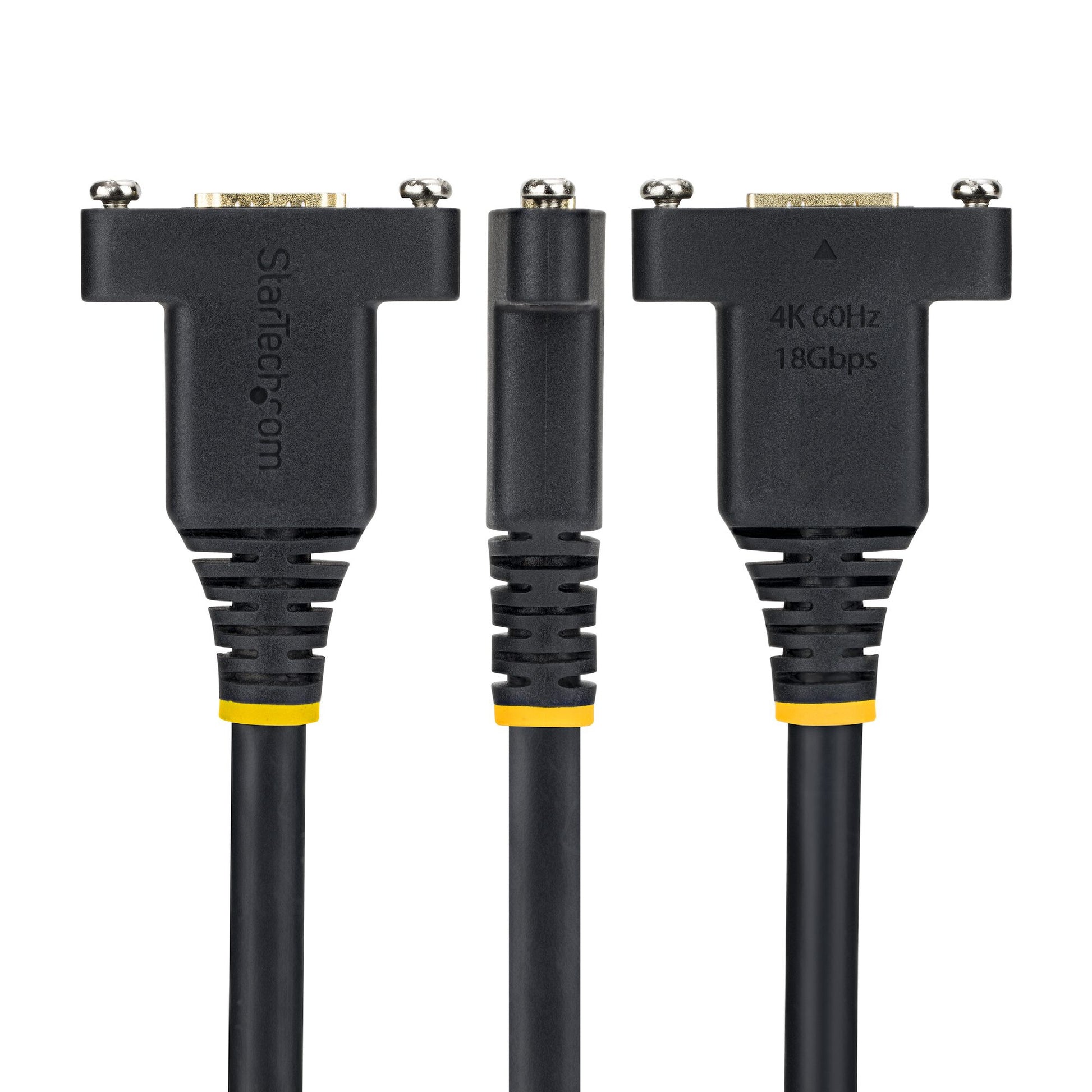

- Secure, Screw-Mounted Connector Design: Female HDMI connector features integrated mounting flanges with screws, ensuring a stable, fixed connection point in high-use or vibration-prone environments; Flexible TPE jacket withstands tight bends and is RoHS compliant
- Maintain HDMI 2.0 Performance: Ensure full 18 Gbps HDMI 2.0 performance to connected HDMI devices, delivering sharp 4K 60Hz/1440p 144Hz video with HDR10, Dolby Vision, HDCP 2.2, and 32-ch audio, 7.1 TrueHD, and ARC support
- Improve Access and Reduce Port Wear: Relocate frequently used HDMI ports to a convenient panel location, minimizing strain on host device ports; Create a clean HDMI connection point for retail kiosks and public booths, conference rooms, and other shared AV environments
- The IT Pro's Choice: Our digital display cables are rigorously lab-tested for signal integrity, durability, and compatibility across HDMI, DisplayPort, USB-C, and legacy interfaces; Backed by free lifetime 24/5 multi-lingual technical assistance
Extend an HDMI connection to an AV panel or face plate using this HDMI male to panel mount female extension cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked HDMI cables. Eliminate guesswork and always choose the appropriate cable to support full HDMI 2.0 with Ethernet capabilities.
| Features | |
|---|---|
| Cable length | 2 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| HDMI cable type | High Speed HDMI cable |
| Product colour | Black |
| HDMI version | 2.0 |
| Supported graphics resolutions | 5120 x 2880, 3840 x 2160, 2560 x 1400, 1920 x 1080 (HD 1080) |
| Dolby technologies | Dolby TrueHD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Data transfer rate | 18 Gbit/s |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Dolby Vision |
| Supported digital audio channels (uncompressed) | 32, 7.1 |
| Connector contacts plating | Gold |
| Cable type | Round cable |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Cable shielding | Aluminum mylar foil |
| Colour depth | 10 bit |
| Colour sampling | 4:4:4 |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Package width | 190 mm |
| Package depth | 110 mm |
| Package height | 23 mm |
| Package weight | 125 g |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Master (outer) case width | 400 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 60 pc(s) |
