StarTech.com

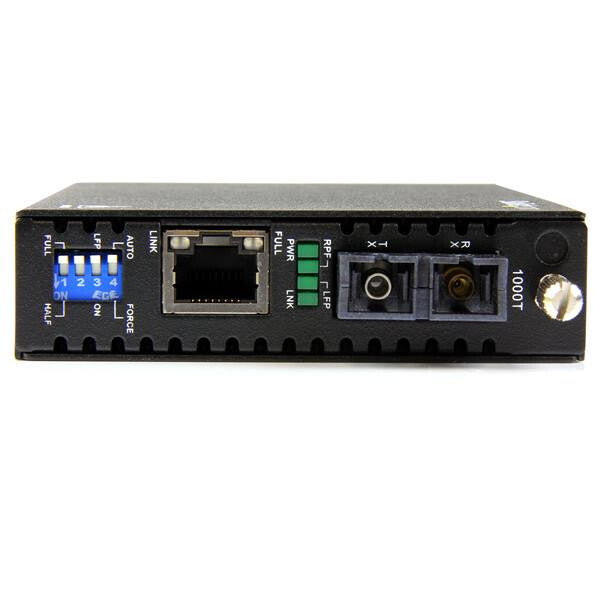

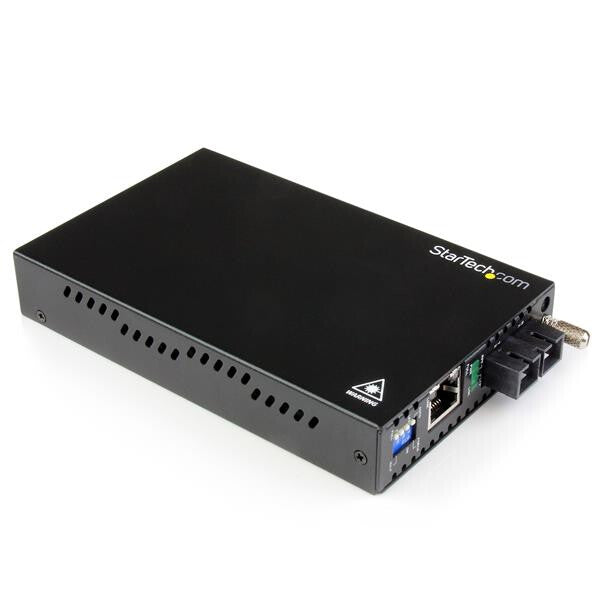

StarTech.com Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps

StarTech.com Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps

Regular price £550.38 GBP
Regular price Sale price £550.38 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:ET91000SM402

Low stock: 1 left

  • Wired
  • 2000 Mbit/s 40000 m 1310 nm
  • Ethernet LAN (RJ-45) ports: 1 DC-in jack
  • Single-mode Fiber ports quantity: 1 SC
  • Black
Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps

Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40 km over Single Mode SC fiber
The ET91000SM402 1000 Mbps Gigabit Single Mode Fiber Media Converter SC (40 km) lets you extend a Gigabit Ethernet network over single mode fiber by up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

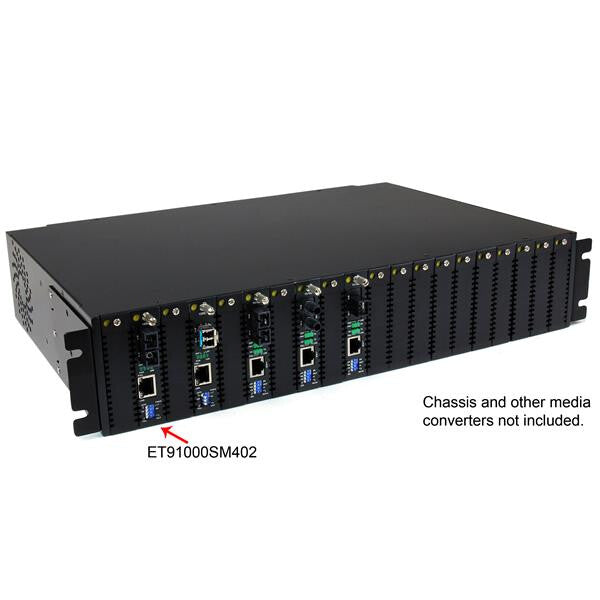

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments

Network
Duplex system Full, Half
Auto MDI/MDI-X Yes
Ethernet LAN data rates 1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Converter output interface 1000Base-LX, 1000Base-SX
Converter input interface 1000Base-T
Maximum data transfer rate 2000 Mbit/s
Ports & interfaces

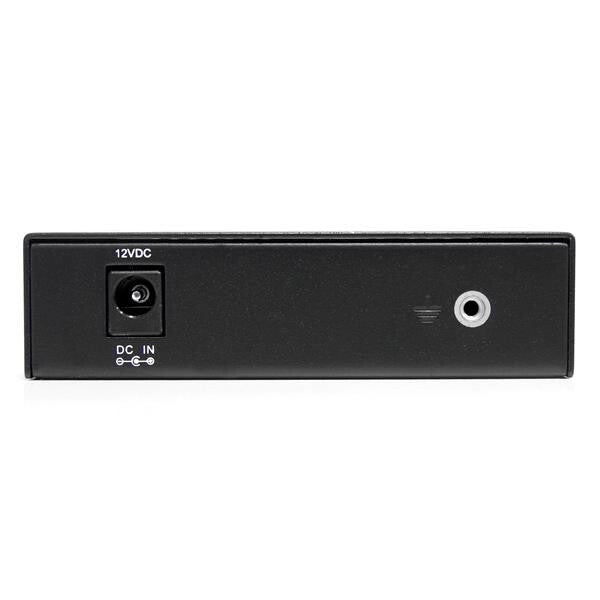

DC-in jack Yes
Fiber optic connector SC
Fiber ports quantity 1
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Performance
Mean time between failures (MTBF) 65000 h
Fiber mode structure Single-mode
Wavelength 1310 nm
Maximum transfer distance 40000 m
Design
Certification CE, FCC
Product colour Black
Internal No
Power
External power adapter Yes
Power consumption (typical) 4 W
Output current 1 A
Output voltage 12 V
Management features
Plug and Play Yes
Weight & dimensions
Weight 600 g
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 60 °C
Packaging data
Package weight 700 g
Package height 91 mm
Package depth 205 mm
Package width 140 mm
Packaging content
Manual Yes
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
Other features
Dimensions (WxDxH) 95 x 160 x 20 mm
Full duplex Yes
