StarTech.com Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC - 10 km

StarTech.com Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC - 10 km

Regular price £272.14 GBP
Regular price Sale price £272.14 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:ET91000SM10

23 in stock

  • ETHERNET OVER FIBER EXTENSION: Use this full / half duplex fiber media converter to convert and extend a Gigabit Ethernet connection up to 10km (6.2mi) using singlemode LC fiber cable
  • INCLUDES SFP: For added convenience, this IT-grade network fiber media converter includes an SFP transceiver (mini gbic), enabling an 1310nm LC single mode Gigabit fiber connection
  • MAXIMUM DURABILITY: Built to withstand harsh environments, this rugged media converter has a durable steel housing, and has an operating temperature range of 0°C-50°C (32°F-122°F)
  • SPECS: Supports Link Fault Passthrough (LFP), Auto Laser Shutdown (ALS), VLAN tagging, and Auto MDIX; Up to 9.6K Jumbo Frame support; Compatible with Gigabit (1000Mbps) copper (IEEE 802.3ab, 1000BASE-T) and fiber (IEEE 802.3z, 1000BASE-LX) protocols
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this ethernet fiber converter is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance
StarTech.com Singlemode (SM) LC Fiber Media Converter for 1Gbe Network - 10km - Gigabit Ethernet - 1310nm - with SFP Transceiver (ET91000SM10)

This Gigabit Ethernet to fiber media converter is a cost-effective way to extend your network, or extend the distance between two devices by up to 10 km (6.2 mi.).

Fiber network connections provide greater distance and security, with less electromagnetic interference (EMI) than typical RJ45 copper-based networks, making it perfect for IT professionals and secure setups in government, business, or educational applications.

Flexible integration into mixed network environments
This versatile copper-to-fiber converter supports standalone operation, or alternatively it can be installed into the StarTech.com Rackmount Chassis (ETCHS2U - sold separately), giving you more options for integration into your existing network. The card module can also be inserted back into the ET91000SM10 enclosure, plus it’s compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately).

The converter features a pre-installed Gigabit SFP transceiver with LC connectors. Should your network infrastructure change in the future, you can easily swap and replace the module to adapt the media converter to your new network requirements.

With flexible integration and connectivity up to 10 km away, you can provide network access to remote areas in other buildings, or in areas where Wi-Fi® is unreliable or unavailable.

Rugged and reliable
This heavy-duty fiber media converter is designed for maximum reliability. It features a metal (steel) enclosure, so it can withstand the demands of harsh environments such as factories or warehouses.

Plus, by relying on this more durable fiber media converter, you can reduce the strain on your existing copper-based network equipment and potentially extend the life of those devices, which helps save future expenses.

Diagnose and correct issues easily
This high-performance media converter supports a range of network setup and diagnostic protocols (for example, Link Fault Passthrough, Auto Laser Shutdown (ALS), and Auto MDIX, so you can set up and troubleshoot your network easily.

Prepare your network for the future
If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together.

The ET91000SM10 is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

Network
Duplex system Full, Half
Auto MDI/MDI-X Yes
Flow control support No
Jumbo frames 9600
Jumbo frames support Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Networking standards IEEE 802.3ab, IEEE 802.3z
Converter output interface 1000Base-LX
Converter input interface 1000Base-T
Maximum data transfer rate 2000 Mbit/s
Ports & interfaces
Fiber optic connector LC
Fiber ports quantity 1
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Performance
Mean time between failures (MTBF) 65000 h
Fiber mode structure Single-mode
Wavelength-division multiplexing (WDM) No
Wavelength 1310 nm
Maximum transfer distance 10000 m
Design
Certification CE, FCC, TAA, REACH
Housing material Plastic, Steel
LED indicators Link, Power
Product colour Black
Internal No
Power
Power plug type Type M
Power over Ethernet (PoE) No
Power consumption (max) 19.2 W
Output current 1.6 A
Output voltage 12 V
Input current 0.48 A
Input voltage 100 - 240 V
Weight & dimensions
Weight 411 g
Height 23 mm
Depth 163 mm
Width 88 mm
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Packaging data
Package weight 774 g
Package height 90 mm
Package depth 136 mm
Package width 206 mm

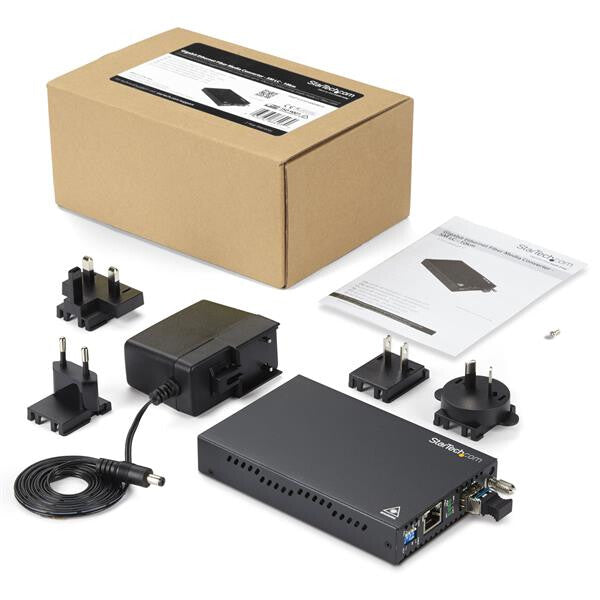

Packaging content
Manual Yes
AC adapter included Yes
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
