StarTech.com

StarTech.com Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF

StarTech.com Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF

Regular price £1,421.72 GBP
Regular price Sale price £1,421.72 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:RKCOND17HD

Low stock: 4 left

  • Flexible Design: Rackmount KVM console w/ dual rails that allow the screen & keyboard to be pulled in & out independently, perfect for system monitoring as needed and to be put away when not in use
  • High Definition: Rack mount monitor w/high-resolution widescreen (16:9) 1080p LCD panel perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring
  • Versatile Interfaces: 17.3" Active Matrix TFT 16:9 widescreen
  • Dual Rails
  • 1U height
  • Full keyboard + Trackpad
StarTech.com Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF (RKCOND17HD)

1080p Display | 17 Inch | 1U | DVI & VGA Interface | Cables Included

Providing centralized control of your single PC or dozens of servers, this dual rail rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet.

Dual Rail Design

The dual rail KVM console design maximizes space in your datacenter’s rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors.

High Definition LCD Monitor

The 1080p KVM console is 17.3” and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920x1080 providing sharper video performance.

Digital & Analog Support

Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals.

Simple Setup

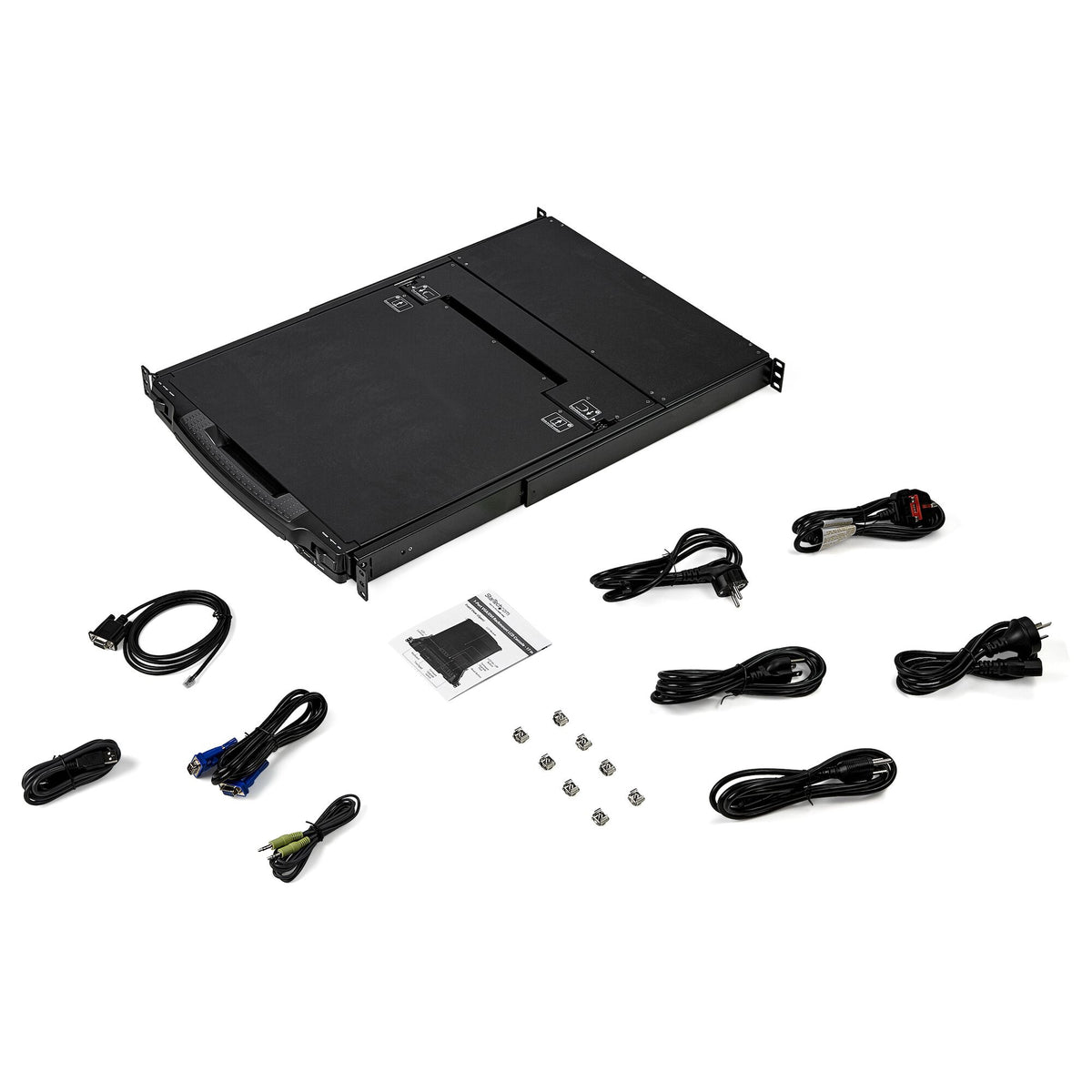

This KVM console comes with everything you need to set up:

✔ 1 Audio Cable
✔ 1 Set of KVM Cables (USB/VGA)
✔ 2 Rear Mounting Brackets
✔ M5 Cage Nuts and Screws

Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mousethumb drive.

StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This dual rail KVM console is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Display
Supported resolutions 1024x5761152x6481280x7201366x761600x9001920x1080
Viewing angle, horizontal 140°
Viewing angle, vertical 120°
On Screen Display (OSD) No
Pixel pitch 0.199 x 0.199 mm
Aspect ratio 16:9
Response time 8 ms
Display number of colours 262144 colours
Display brightness 250 cd/m²
Contrast ratio (typical) 650:1
Display type LCD
Display TFT LCD
Display resolution 1920 x 1080 pixels
Display diagonal 43.9 cm (17.3")
Technical details
Rack capacity 1U
Operating relative humidity (H-H) 0 - 80%
LED indicators Yes
Compliance certificates RoHS
Mean time between failures (MTBF) 44230 h
Product colour Black
Rack mounting Yes
Material Steel
Ports & interfaces
USB 2.0 Type-A ports quantity 2
USB 2.0 Type-B ports quantity 1
Keyboard port type USB
Mouse port type USB
Video port type DVI/VGA
DVI input ports 1
DVI output ports 1
DVI connector type DVI-D
3.5 mm (1/8-inch) in Yes
3.5 mm (1/8-inch) out Yes
Keyboard
Hot keys Yes
Certificates
Certification CE, FCC, UL, REACH
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Power
Input current 1 A
AC adapter input voltage 100 - 240 V
Power consumption (typical) 19.4 W
Weight & dimensions
Mounting depth (max) 100 cm
Mounting depth (min) 65 cm
Weight 13.6 kg
Depth 727 mm
Height 44 mm
Width 480 mm
Packaging data
Package height 133 mm
Package depth 840 mm
Package width 680 mm
Package weight 18.9 kg
Packaging content
Quick installation guide Yes
Cage nuts included Yes
Number of cage nuts 8
Included power plug types ANZ, EU, JP, NA, UK
Mounting brackets included Yes
Screws included Yes
Number of screws 8
Cables included Audio (3.5mm), KVM
Logistics data
Products per master (outer) case 1 pc(s)
Master (outer) case height 133 mm
Master (outer) case length 840 mm
Master (outer) case width 680 mm
