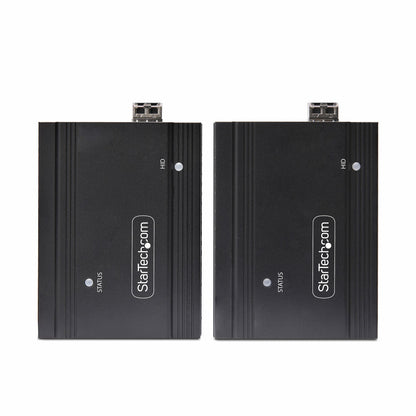

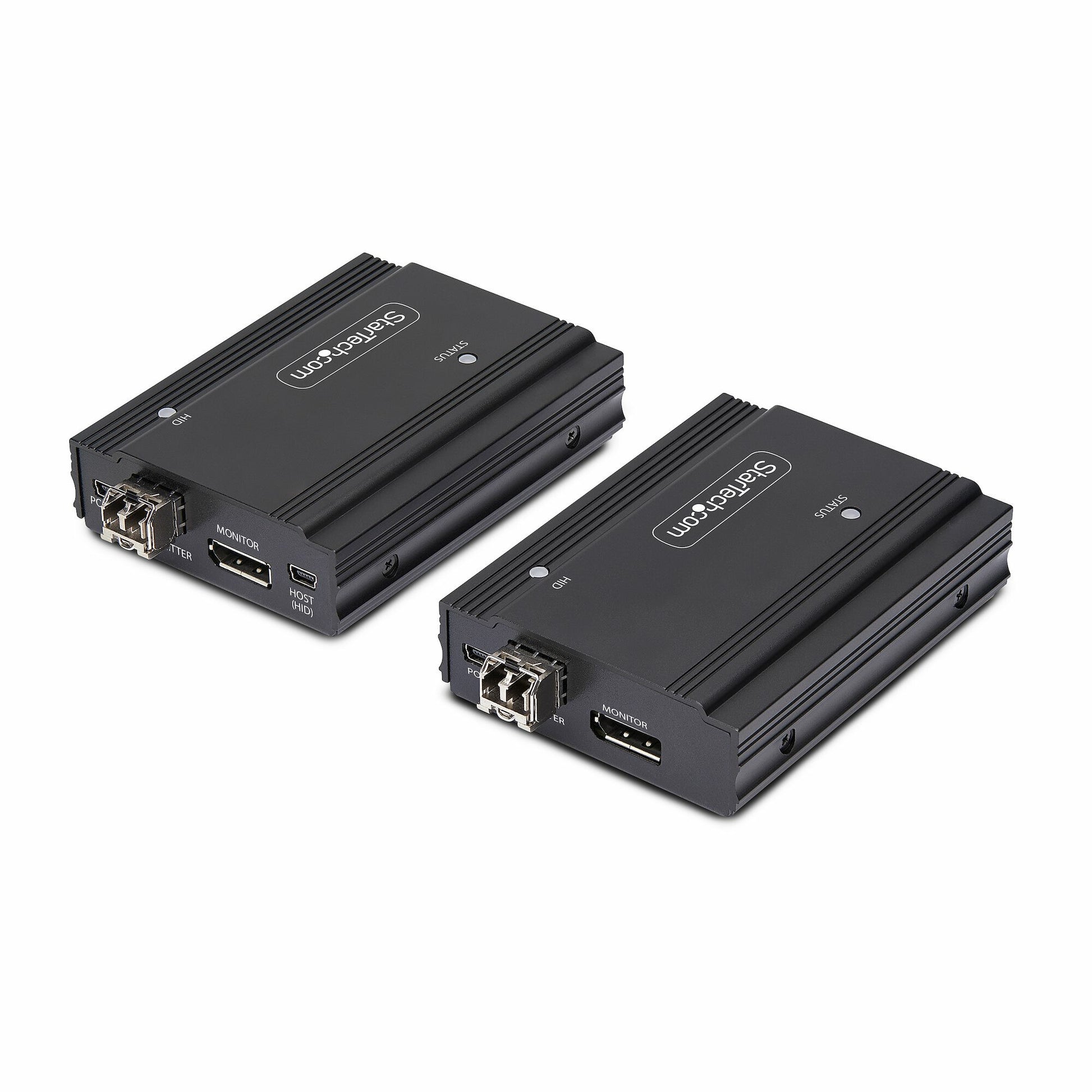

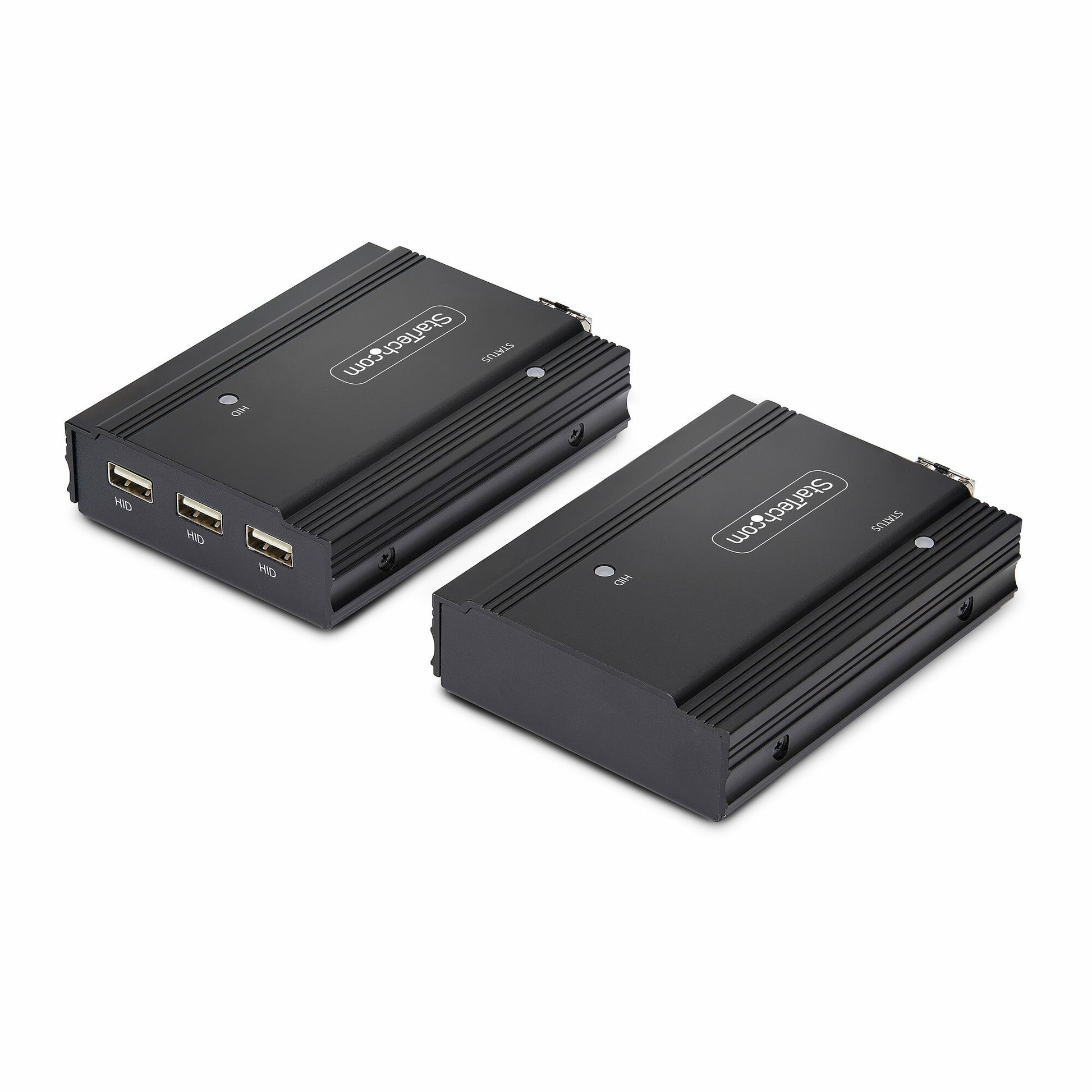

StarTech.com DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode) with Pre-installed SFP+ Modules, 3x USB HID - TAA
StarTech.com DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode) with Pre-installed SFP+ Modules, 3x USB HID - TAA
Couldn't load pickup availability
SKU:FD121-KVM-EXTENDER
Low stock: 7 left

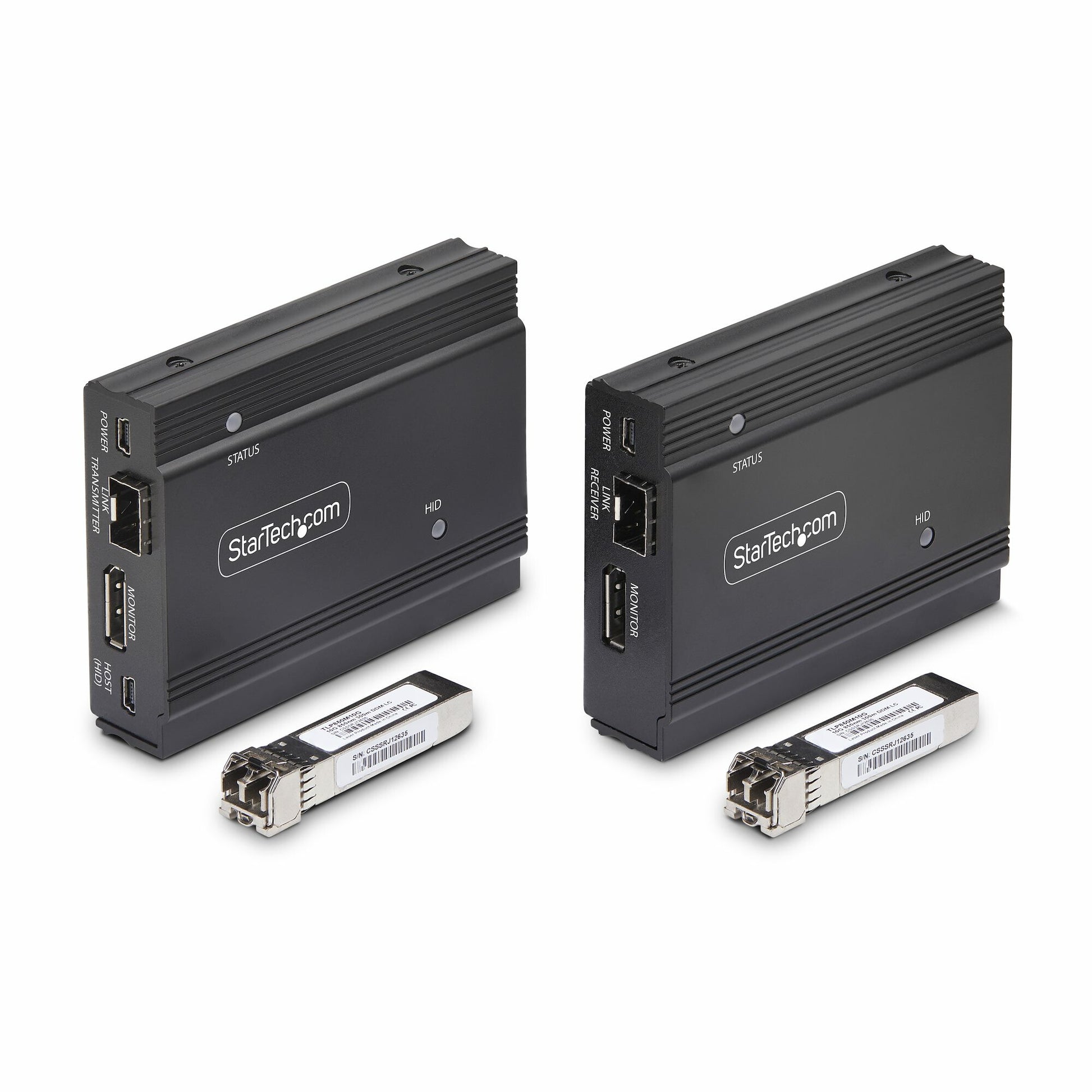

- FIBER OPTIC KVM EXTENDER: Control a KVM switch, console, or PC at a distance of up to 984ft (300m) away over multi-mode cabling using pre-installed SFP+ modules; Supports single-mode SFP+ modules (sold separately) to extend the range up to 1,640ft (500m)
- 4K 60HZ DISPLAYPORT VIDEO: Transmitter and receiver extension kit supports UHD resolutions up to 3840x2160 60Hz (4:4:4); EDID pass-through ensures optimal signal quality and compatibility by providing real-time display information; DP 1.2 compliant
- UNIVERSAL COMPATIBILITY: No drivers or software required and works with any operating system including Windows, macOS, and Linux; Point-to-point fiber connection means no network settings to configure or manage; SFP+ slots support MSA-compliant modules
- USB PERIPHERAL PORTS: USB HID ports allow users to connect a variety of peripherals, including mice, keyboards, or other input devices; Ideal for remote device control, flexible workstation setups, and collaborative multimedia environments
- DURABLE DESIGN: Durable steel housing and fiber extension method help prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the extender; Sturdy construction makes it ideal for installation in a variety of environments
Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cable
The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).

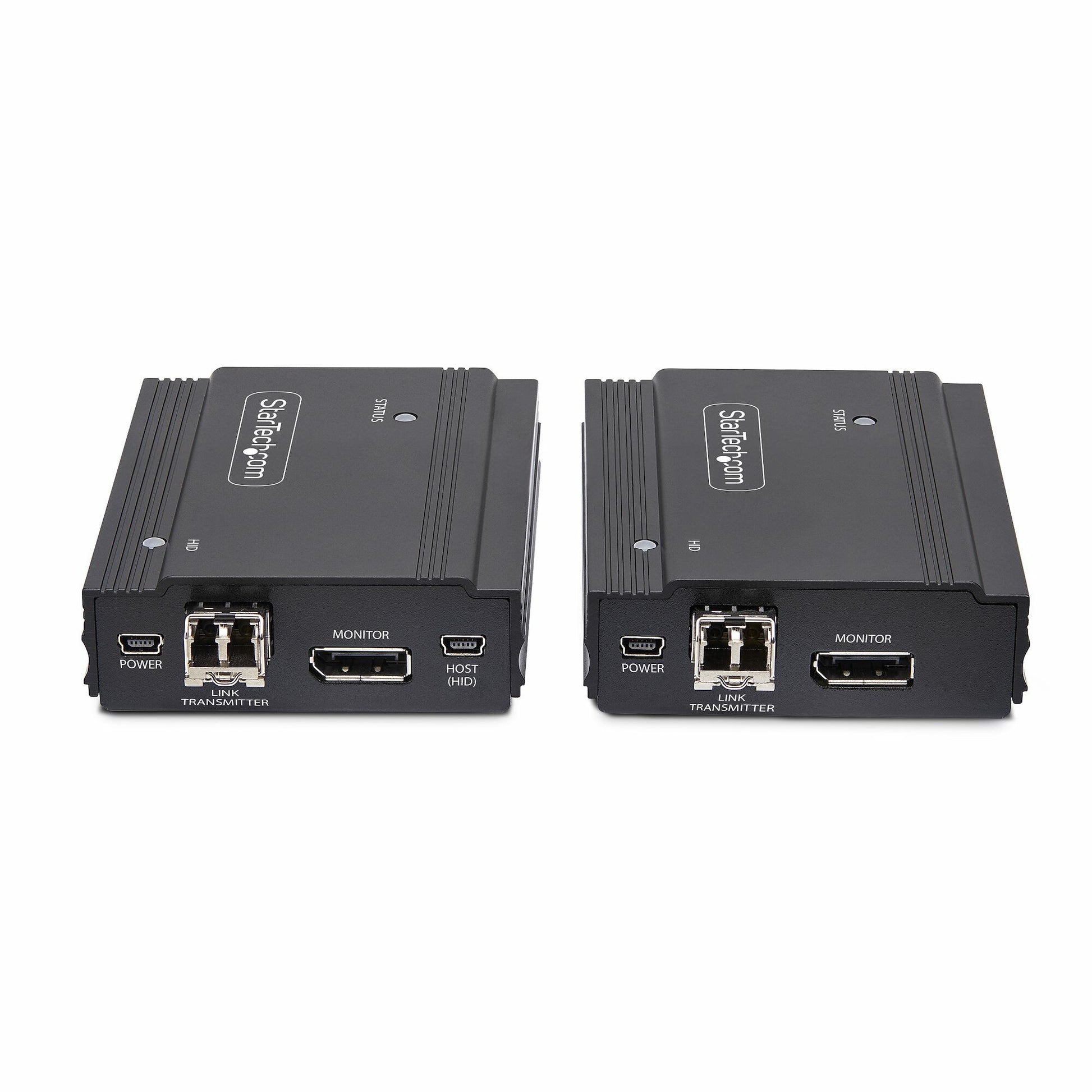

4K 60Hz DisplayPort Video
The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.
Universal Compatibility
The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.

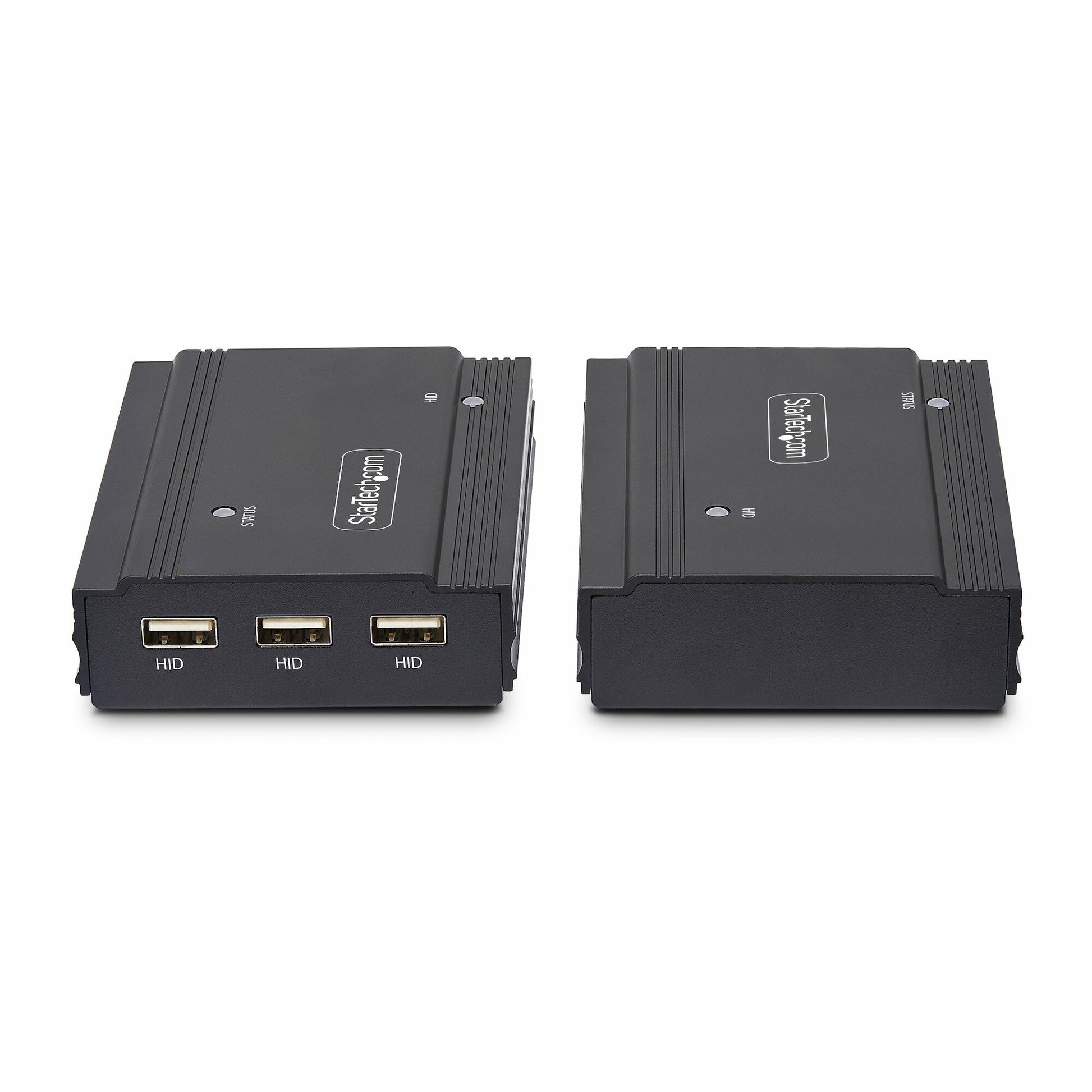

Built-In USB Hub
Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.
Durable Design
The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 300 m |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Supported resolutions | 4096 x 2160 @ 60hz 3840 x 2160 @ 60hz 3440 x 1440 @ 60hz 3200 x 1800 @ 60hz 3072 x 1728 @ 60hz 2560 x 1440 @ 60hz 2048 x 1536 @ 60hz 1920 x 1200 @ 60hz 3840 x 1080 @ 60hz 1920 x 1080 @ 60hz 1760 x 990 @ 60hz 1680 x 1050 @ 60hz 1600 x 1200 @ 60hz 1600 x 900 @ 60hz 1440 x 900 @ 60hz 1366 x 768 @ 60hz 1280 x 1024 @ 60hz 1280 x 720 @ 60hz 1128 x 634 @ 60hz 1024 x 768 @ 60hz 800 x 600 @ 60hz |
| Extended display identification data (EDID) | Yes |
| On Screen Display (OSD) | No |
| Product colour | Black |
| USB 1.1 ports quantity | 3 |
| LED indicators | Yes |
| Transmitter | |
|---|---|
| Transmitter local video port | Yes |
| Transmitter local video port type | DisplayPort |
| Number of displays supported | 1 |
| Transmitter Micro-USB ports quantity | 1 |
| Receiver | |
|---|---|
| Receiver Micro-USB ports quantity | 2 |
| Receiver local video port type | DisplayPort |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (transmitter) (max) | 10 W |
| Power consumption (receiver) (max) | 10 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Transmitter width | 7.4 cm |
| Transmitter depth | 10 cm |
| Transmitter height | 2.8 cm |
| Transmitter weight | 235 g |
| Receiver width | 7.4 cm |
| Receiver depth | 10 cm |
| Receiver height | 2.8 cm |
| Receiver weight | 235 g |
| Ports & interfaces | |
|---|---|
| Installed SFP+ modules quantity | 2 |

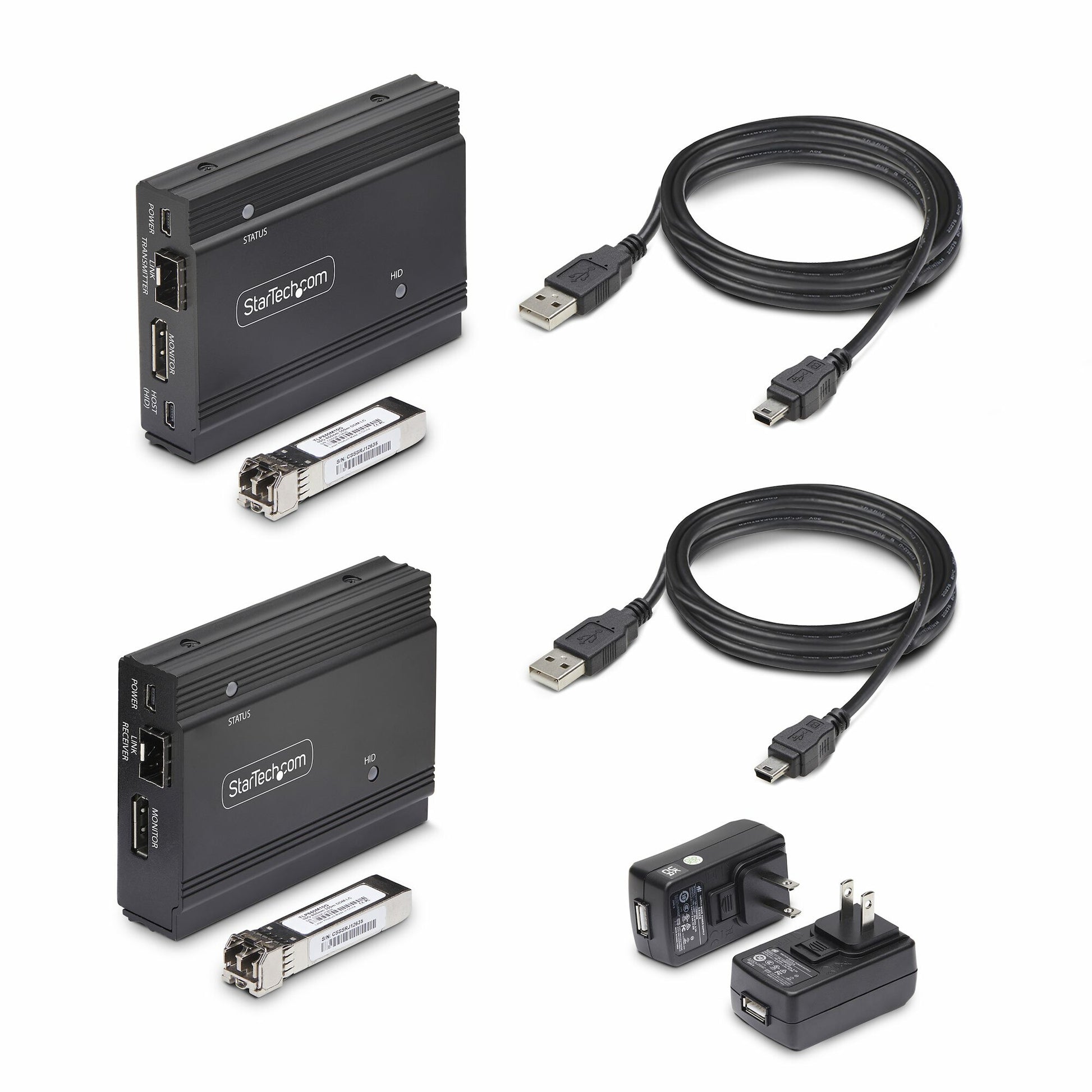

| Packaging content | |
|---|---|
| Cables included | Mini-USB |
| Quick installation guide | Yes |
| Included power plug types | ANZ, EU, NA, UK |
| Technical details | |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Sustainability compliance | Yes |
| Packaging data | |
|---|---|
| Package width | 308 mm |
| Package depth | 179 mm |
| Package height | 72 mm |
| Other features | |
|---|---|
| Mean time between failures (MTBF) | 156000 h |
| Logistics data | |
|---|---|
| Master (outer) case width | 420 mm |
| Master (outer) case length | 328 mm |
| Master (outer) case height | 265 mm |
| Products per master (outer) case | 6 pc(s) |
