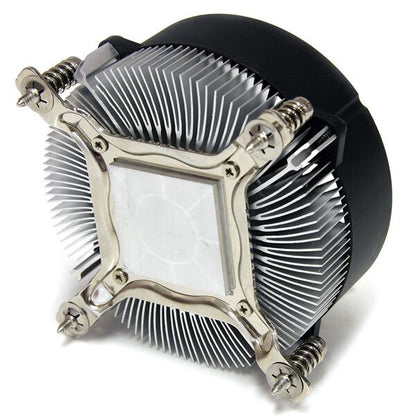

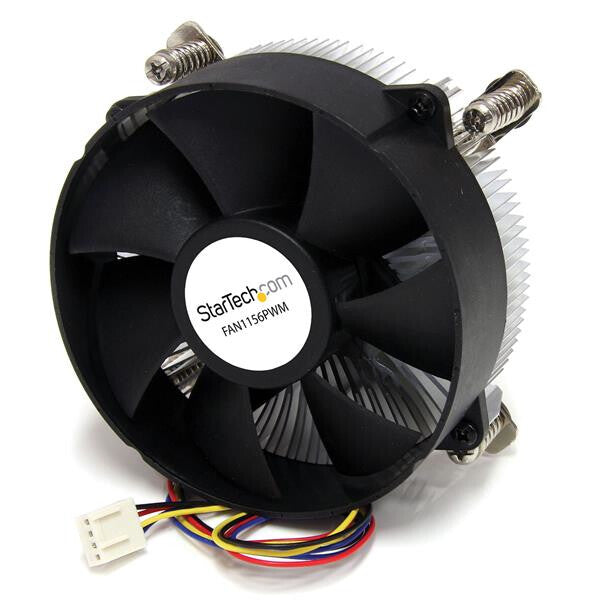

StarTech.com 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155/1150/1151/1200 with PWM
StarTech.com 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155/1150/1151/1200 with PWM
SKU:FAN1156PWM
Low stock: 5 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 4-pin Pulse Width Modulation (PWM) motherboard connector
- 95mm Ever Lubricate Bearing fan design
- Aluminum heatsink construction
Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 System
The FAN1156PWM CPU Cooler with PWM fan delivers reliable, efficient cooling for Intel® Core™ i3, i5, and i7 CPUs in Socket LGA1156 / 1155 / 1150 / 1151 / 1200 systems.
Pulse Width Modulation (PWM) technology enables the motherboard to automatically adjust fan speed based on system demand. This ensures quieter operation and reduced power consumption during idle periods, while providing maximum cooling performance under heavy workloads.
| Performance | |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Supported processor sockets | LGA 1156 (Socket H) |
| Mean time between failures (MTBF) | 40000 h |
| Operating temperature (T-T) | -10 - 70 °C |
| Design | |
|---|---|
| Product colour | Black |
| Power | |
|---|---|
| Voltage | 12 V |
| Rated current | 0.35 A |
| Weight & dimensions | |
|---|---|
| Weight | 272 g |
| Package width | 102 mm |
| Package depth | 102 mm |
| Package height | 87 mm |
| Package weight | 313 g |
| Other features | |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Rotational speed | 3000 RPM |
| Dimensions (WxDxH) | 95 x 95 x 55 mm |
| Airflow | 65.61 CFM |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 326 mm |
| Master (outer) case length | 526 mm |
| Master (outer) case height | 218 mm |
| Products per master (outer) case | 30 pc(s) |
