StarTech.com 80x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector
StarTech.com 80x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector
SKU:FAN8025PWM
Low stock: 5 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 4-pin Pulse Width Modulation (PWM) motherboard connector
- Ever Lubricate Bearing design

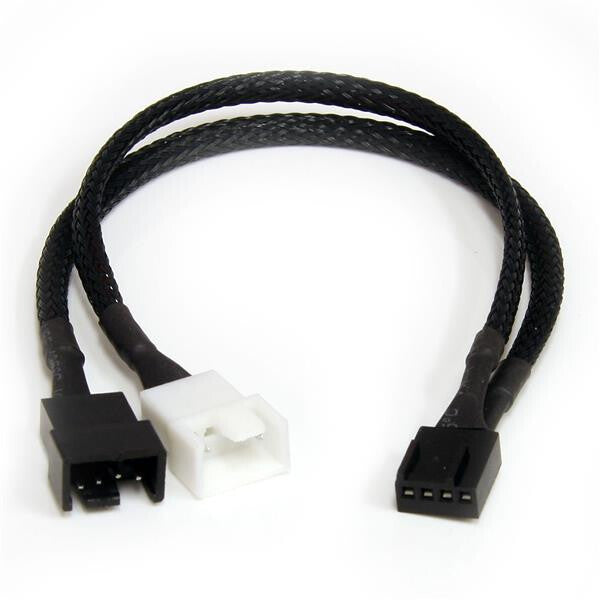

- Includes a PWM Y-split cable
Add a Variable Speed, PWM-Controlled Cooling Fan to a Computer Case
The FAN8025PWM 80mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures, to keep components running optimally.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 8 cm |
| Noise level (high speed) | 28 dB |
| Mean time between failures (MTBF) | 40000 h |
| Operating temperature (T-T) | -10 - 70 °C |
| Design | |
|---|---|
| Product colour | Black |
| Material | Plastic |
| Power | |
|---|---|
| Voltage | 12 V |
| Rated current | 0.16 A |
| Weight & dimensions | |
|---|---|
| Weight | 86 g |
| Package width | 396 mm |
| Package depth | 143 mm |
| Package height | 34 mm |
| Package weight | 111 g |
| Other features | |
|---|---|
| Operating relative humidity (H-H) | 0 - 65% |
| Storage relative humidity (H-H) | -20 - 70% |
| Fan performance | 25.02 cfm |
| Connector(s) | 1 - Molex Fan (4 pin; PWM) |
| Rotational speed | 2500 RPM |
| Dimensions (WxDxH) | 80 x 80 x 25 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 366 mm |
| Master (outer) case length | 588 mm |
| Master (outer) case height | 218 mm |
| Products per master (outer) case | 100 pc(s) |
