StarTech.com

StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support

StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support

Regular price £1,256.69 GBP
Regular price Sale price £1,256.69 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:RKCONS1908K

20 in stock

  • TECH SPECIFICATIONS: Rackmount KVM Console, 19" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
  • PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
  • INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 23.8" [60.5 cm] to 35" [89 cm] (incl. mounting hardware)
  • HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours
  • TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support
StarTech 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support (RKCONS1908K)

Control your server or KVM switch from a centralized LCD KVM drawer

This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This 8-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard (QWERTY) for intuitive control and an LCD display that supports resolutions up to 1280x1024.

Maximize your screen space

This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.

Clutter-free monitoring

The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

The RKCONS1908K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Display
Display diagonal 48.3 cm (19")
Display resolution 1280 x 1024 pixels
Display TFT LCD
Colour depth 8 bit
Display number of colours 16.78 million colours
Pixel pitch 0.264 x 0.264 mm
Display type LCD
Contrast ratio (typical) 1000:1
Display brightness 250 cd/m²
Technical details
Material Steel
Key lock No
Daisy chain No
Mean time between failures (MTBF) 50000 h
Compliance certificates CE, RoHS
Sustainability certificates UL ECOLOGO
Number of computers controlled 8
Operating relative humidity (H-H) 10 - 80%
Product colour Black
Rack capacity 1U
Audio support No
IP control No
Ports & interfaces
VGA (D-Sub) ports quantity 9
Video port type VGA
Mouse port type USB
Keyboard port type USB
USB 2.0 Type-A ports quantity 2
Keyboard
Built-in touchpad Yes
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Power
Power consumption (typical) 21 W
AC adapter input voltage 100 - 240 V
Input current 1.5 A
Weight & dimensions
Width 483 mm
Height 43 mm
Depth 643 mm
Weight 13.4 kg
Mounting depth (min) 60.5 cm
Mounting depth (max) 89 cm
Packaging data
Package width 775 mm
Package depth 624 mm
Package height 189 mm
Package volume 19000 cm³

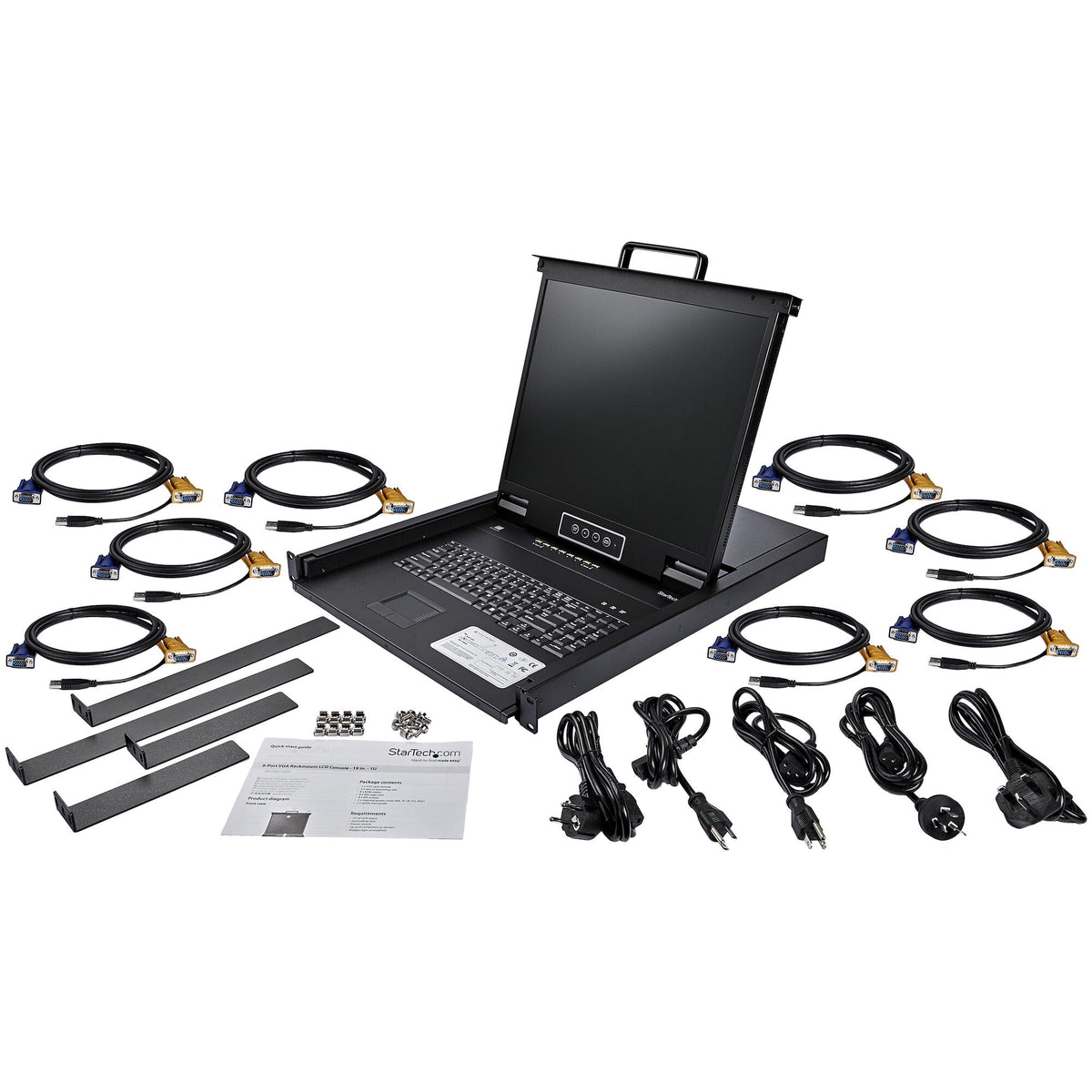

Packaging content
Cables included KVM
Number of screws 8
Screws included Yes
Mounting brackets included Yes
Included power plug types ANZ, EU, JP, NA, UK
Number of cage nuts 8
Cage nuts included Yes
Quick installation guide Yes
Logistics data
Master (outer) case width 780 mm
Master (outer) case length 629 mm
Master (outer) case height 189 mm
Products per master (outer) case 1 pc(s)
