StarTech.com

StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support

StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support

Regular price £1,388.90 GBP
Regular price Sale price £1,388.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:RKCONS1708K

Low stock: 2 left

  • TECH SPECIFICATIONS: Rackmount KVM Console, 17"" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
  • PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
  • INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22"" [56 cm] to 35"" [90 cm] (incl. mounting hardware)
  • HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours
  • TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support
StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support (RKCONS1708K)

KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included

Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

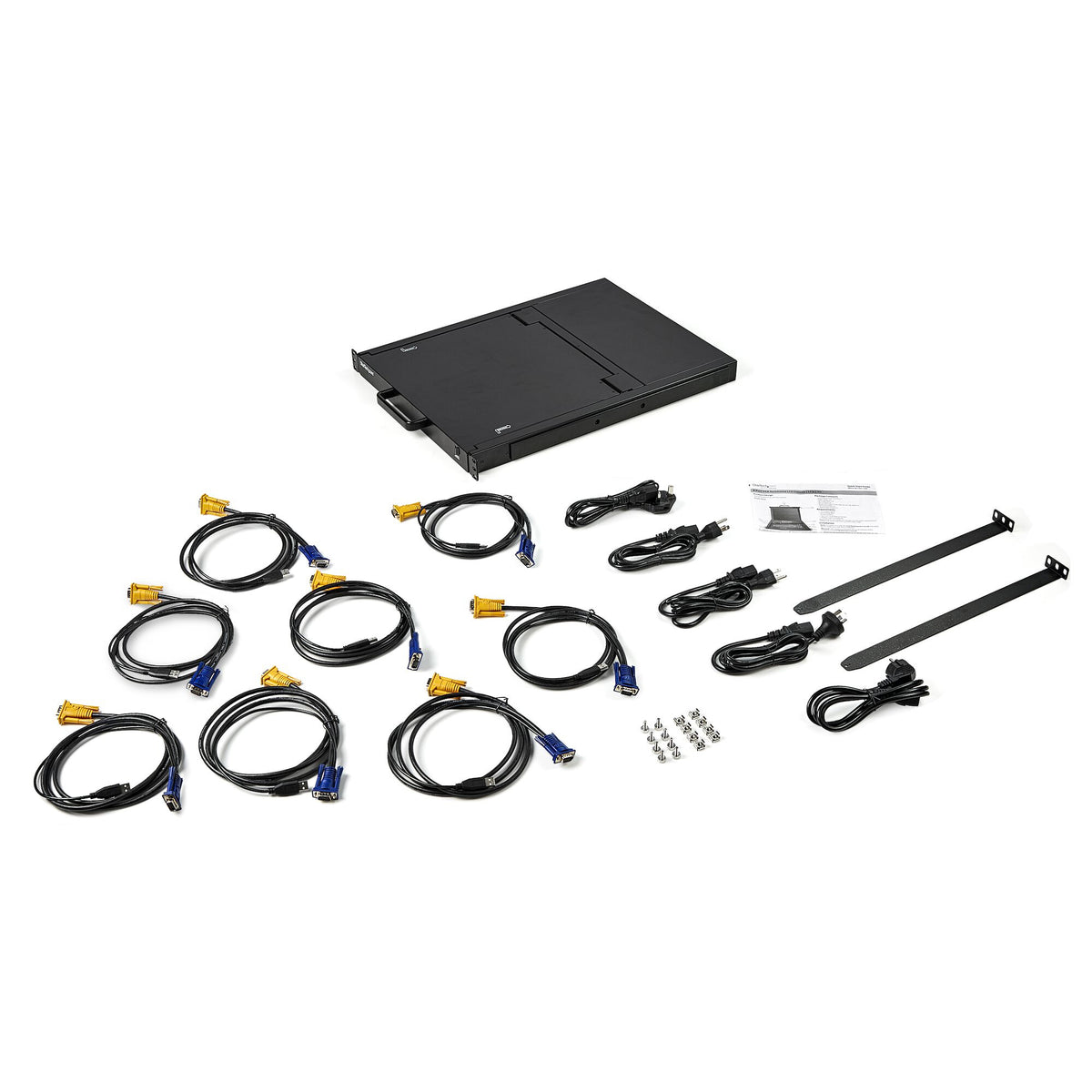

This 8-port KVM console comes with everything you need to set up right out of the box:

• 8 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support

The StarTech.com Advantage

Display
Viewing angle, horizontal 170°
Viewing angle, vertical 160°
On Screen Display (OSD) Yes
Pixel pitch 0.264 x 0.264 mm
Aspect ratio 5:4
Response time 5 ms
Display number of colours 16.78 million colours
Display brightness 250 cd/m²
Contrast ratio (typical) 1000:1
Display type LCD
Display TFT LCD
Display resolution 1280 x 1024 pixels
Display diagonal 43.2 cm (17")
Technical details
IP control No
Rack capacity 1U
Operating relative humidity (H-H) 10 - 80%
LED indicators Yes
Sustainability certificates UL ECOLOGO
Compliance certificates CE, RoHS
Mean time between failures (MTBF) 50000 h
Daisy chain No
Key lock No
Product colour Black
Rack mounting Yes
Material Steel
Ports & interfaces
USB 2.0 Type-A ports quantity 2
Keyboard port type PS/2
Mouse port type PS/2
Video port type VGA
VGA (D-Sub) ports quantity 8
Keyboard
Hot keys Yes
Power
Input current 1.5 A
AC adapter input voltage 100 - 240 V
Power consumption (typical) 13 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Weight & dimensions
Mounting depth (max) 90 cm
Mounting depth (min) 56 cm
Weight 17 kg
Depth 43 mm
Height 619 mm
Width 448 mm
Packaging data
Package height 182 mm
Package depth 617 mm
Package width 76 mm
Package weight 19.7 kg
Packaging content
Manual Yes
Cage nuts included Yes
Number of cage nuts 8
Included power plug types ANZ, EU, JP, NA, UK
Screws included Yes
Number of screws 8
Cables included KVM
Logistics data
Products per master (outer) case 1 pc(s)
Master (outer) case height 182 mm
Master (outer) case length 617 mm
Master (outer) case width 767 mm
