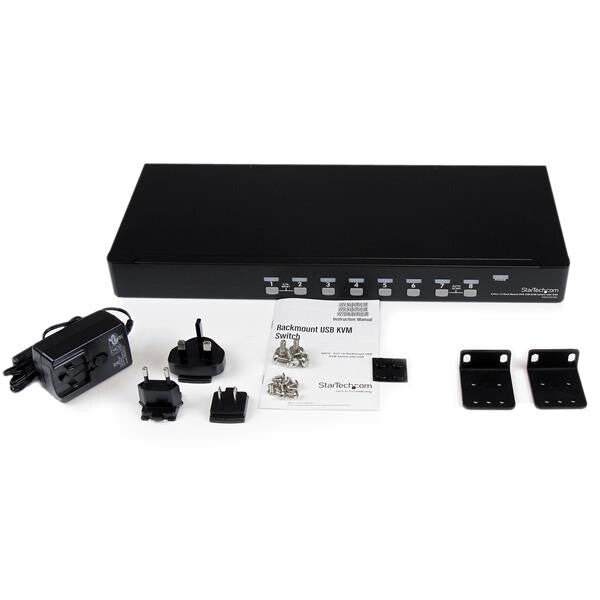

StarTech.com 8 Port 1U Rackmount USB KVM Switch with OSD

StarTech.com 8 Port 1U Rackmount USB KVM Switch with OSD

Regular price £365.98 GBP
Regular price Sale price £365.98 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:SV831DUSBU

Low stock: 9 left

  • Rack mounting 1U Black
  • Number of computers controlled: 8
  • Keyboard port type: USB Mouse port type: USB Video port type: VGA
  • 1920 x 1440 pixels
  • Housing material: Steel
8 Port 1U Rackmount USB KVM Switch with OSD

Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor
The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- Cascade configuration supported for one spot control of up to 64 computers
- Rugged, rack mountable 1U metal chassis is ideal for any environment

Ports & interfaces
DC-in jack Yes
Audio connections No
Console ports USB A, VGA (D-Sub)
Console USB ports quantity 2
VGA (D-Sub) ports quantity 9
Video port type VGA
Mouse port type USB
Keyboard port type USB
Number of computers controlled 8
Performance
Daisy chain Yes
Plug and Play Yes
Maximum resolution 1920 x 1440 pixels
Design
Certification CE, FCC, TAA, REACH
Mean time between failures (MTBF) 150000 h
LED indicators Yes
Housing material Steel
Product colour Black
Rack capacity 1U
Rack mounting Yes
Display
On Screen Display (OSD) Yes
Built-in display No
Power
Power plug type Type M
Compatible power plug types EU, UK, US
Output current 1.5 A
Output voltage 12 V
Input current 0.8 A
Input voltage 100 - 240 V
Sustainability
Compliance certificates RoHS
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 5 - 40 °C
Weight & dimensions
Weight 2.9 kg
Height 45 mm
Depth 180 mm
Width 540 mm
Packaging data
Package weight 3.3 kg
Package height 268 mm
Package depth 573 mm
Package width 89 mm
Packaging content
AC adapter included Yes
Rubber feet Yes
Manual Yes
Logistics data
Harmonized System (HS) code 85176200
Other features
IP control No
Audio support No
Ports quantity 8
Power requirements 110 - 240 AC
Dimensions (WxDxH) 540 x 180 x 45 mm
Connectivity technology Wired
