StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables

StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables

Regular price £517.97 GBP
Regular price Sale price £517.97 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:SV831DUSBUK

Low stock: 4 left

  • Rack mounting 1U Black
  • Number of computers controlled: 8
  • Keyboard port type: USB Mouse port type: USB Video port type: VGA
  • 1920 x 1440 pixels
  • Housing material: Steel
  • Hot keys
  • 12 W External power adapter
StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - Rack mount KVM - VGA KVM Switch - 8 Port KVM Switch

The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.

The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.

A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

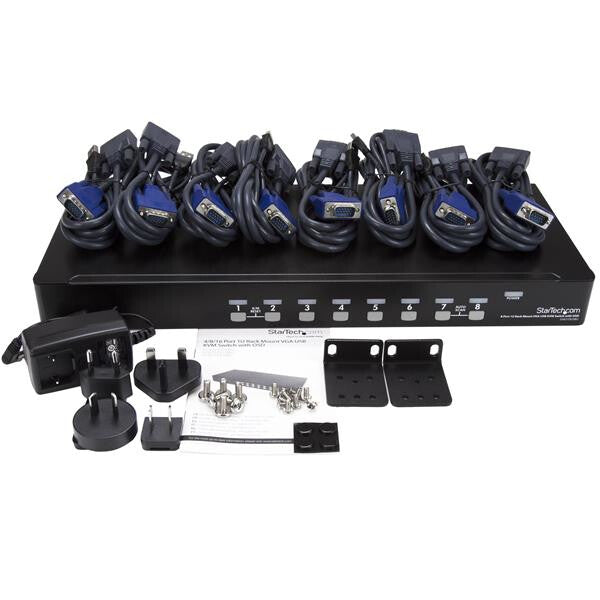

- For simple setup, the USB/VGA KVM cables to connect all 8 ports to servers and PCs are included in the box
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; unlike most KVMs, this unique model extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in almost any environment

Ports & interfaces
DC-in jack Yes
USB connector type USB Type-A
USB 2.0 ports quantity 2
Console ports USB A, VGA (D-Sub)
Console USB ports quantity 2
VGA (D-Sub) ports quantity 9
Video port type VGA
Mouse port type USB
Keyboard port type USB
Number of computers controlled 8
Performance
Daisy chain Yes
Plug and Play Yes
Maximum resolution 1920 x 1440 pixels
Maximum analog resolution 1920 x 1440 pixels
Design
Certification CE, FCC, TAA, REACH
Hot keys Yes
LED indicators Power
Cascadable Yes
Housing material Steel
Product colour Black
Rack capacity 1U
Rack mounting Yes
Display
On Screen Display (OSD) Yes
Power
Compatible power plug types AU, EU, UK, US
Power consumption (typical) 12 W
External power adapter Yes
Output current 1 A
Output voltage 12 V
Input voltage 100 - 240 V
Sustainability
Compliance certificates RoHS
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 5 - 40 °C
Weight & dimensions
Weight 2.2 kg
Height 45 mm
Depth 180 mm
Width 435 mm
Packaging data
Package weight 4.7 kg
Package height 121 mm
Package depth 606 mm
Package width 262 mm
Packaging content
Rack mount kit Yes
AC adapter included Yes
Manual Yes
Cables included KVM
Logistics data
Harmonized System (HS) code 85176200
Other features
IP control No
Audio support No
