StarTech.com
StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector
StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector
Regular price
£27.89 GBP
Regular price
Sale price
£27.89 GBP
Unit price
/
per
SKU:DP2VGAMM6B
115 in stock
- DISPLAYPORT TO VGA CABLE: 6ft (1.8m) DisplayPort 1.2 (HBR2) adapter cable lets you connect a single VGA display supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display
- COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- INTEGRATED DISPLAY CABLE: Adapter cable has a slim & flexible design w/ adapter chip built into VGA connector reducing clutter & providing a tidy install at your desk workstation in the office or home office
- LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection, and chip built into VGA connector minimizes signal loss / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection
- EASY TO USE: With no software or drivers required, the DP to VGA video converter cable/cord works with any OS including macOS, Windows & Ubuntu / DP Source to VGA Monitor/Display/Projector/ DisplayPort Male to VGA Male Cable
StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector (DP2VGAMM6B)

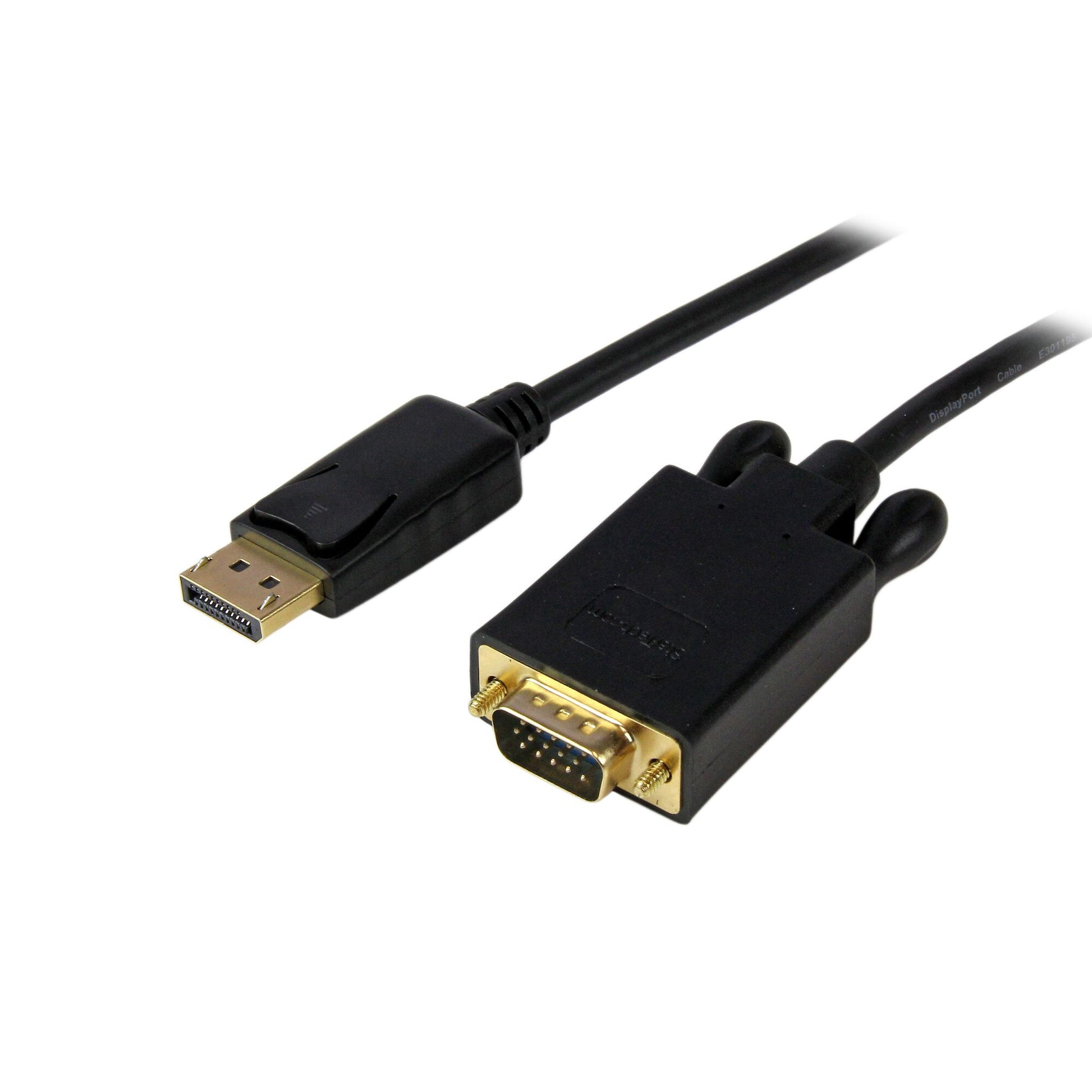

Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 6ft cable
The DP2VGAMM6B 6ft active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The DP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Features | |
---|---|
Converter type | Active video converter |
Plug and Play | Yes |
Chipset | Analogix - 9832 |
Product colour | Black |
HBR2 support | Yes |
Maximum refresh rate | 60 Hz |
Supported video modes | 1080p |
Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280 |
Maximum resolution | 2048 x 1280 pixels |
DisplayPort version | 1.2 |
Connector 2 form factor | Straight |
Connector 1 form factor | Straight |
Connector 2 gender | Male |
Connector 1 gender | Male |
Connector 2 | VGA (D-Sub) |
Connector 1 | DisplayPort |
Cable length | 1.8 m |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 40 - 85% |
Storage temperature (T-T) | -10 - 70 °C |
Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions | |
---|---|
Height | 15 mm |
Depth | 1840 mm |
Width | 35 mm |
Weight | 103.67 g |
Packaging data | |
---|---|
Package weight | 128 g |
Package height | 20 mm |
Package depth | 220 mm |
Package width | 195 mm |
Quantity per pack | 1 pc(s) |
Technical details | |
---|---|
Compliance certificates | CE, RoHS |
Logistics data | |
---|---|
Products per master (outer) case | 120 pc(s) |
Master (outer) case height | 435 mm |
Master (outer) case length | 415 mm |
Master (outer) case width | 420 mm |
Harmonized System (HS) code | 84733080 |
