StarTech.com

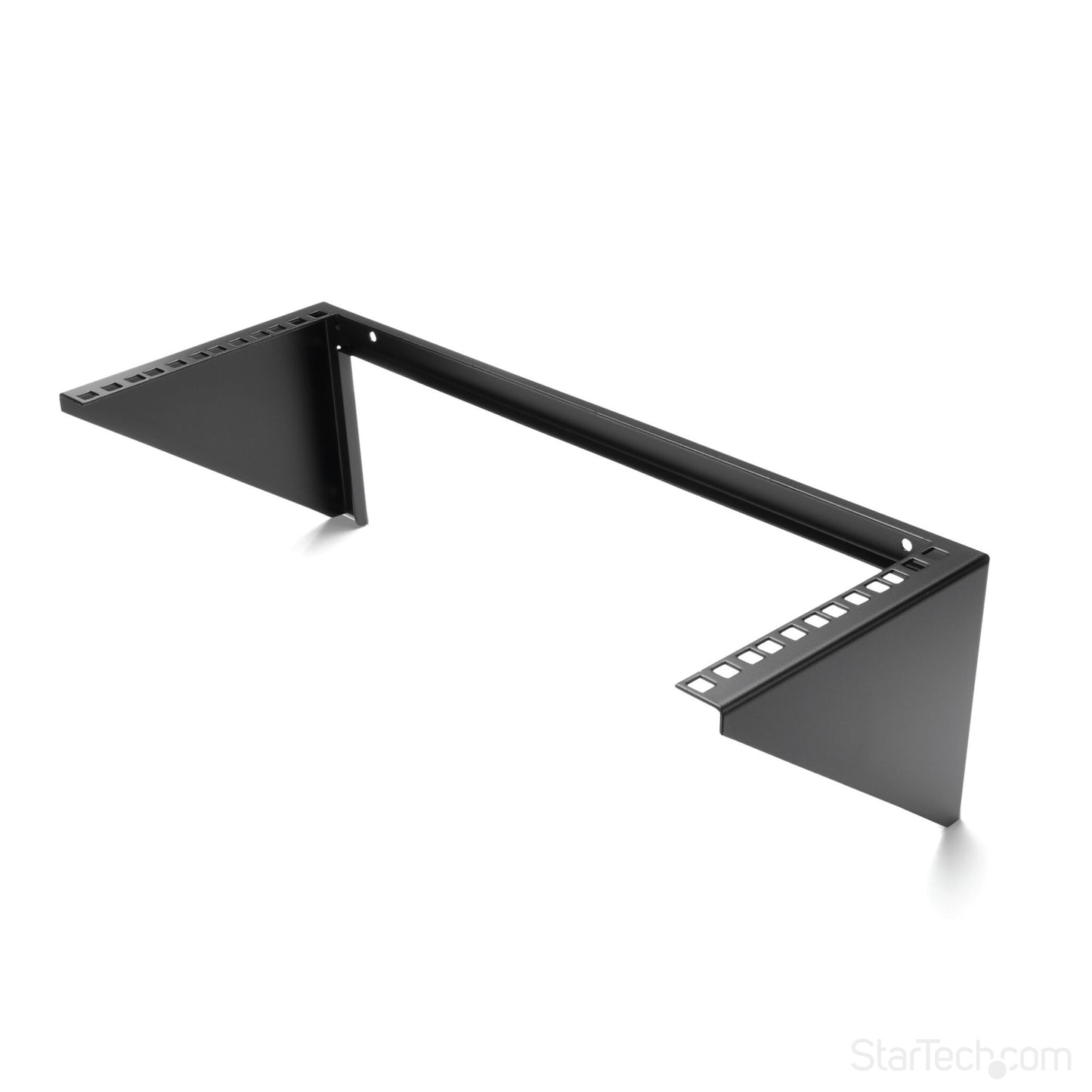

StarTech.com 4U 19in Steel Vertical Wall Mount Equipment Rack Bracket

StarTech.com 4U 19in Steel Vertical Wall Mount Equipment Rack Bracket

Regular price £72.59 GBP
Regular price Sale price £72.59 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:RK419WALLV

Low stock: 2 left

  • 4U Wall mounted rack 56.7 kg
  • Frame type: Open 2-post
  • Steel
  • Black
StarTech.com 4U Wall Mount Patch Panel Bracket - 19 inch Steel Vertical Mounting Bracket for Network and Data Equipment (RK419WALLV)

Mount server, network or telecommunications devices vertically with this 4U wall-mountable rack

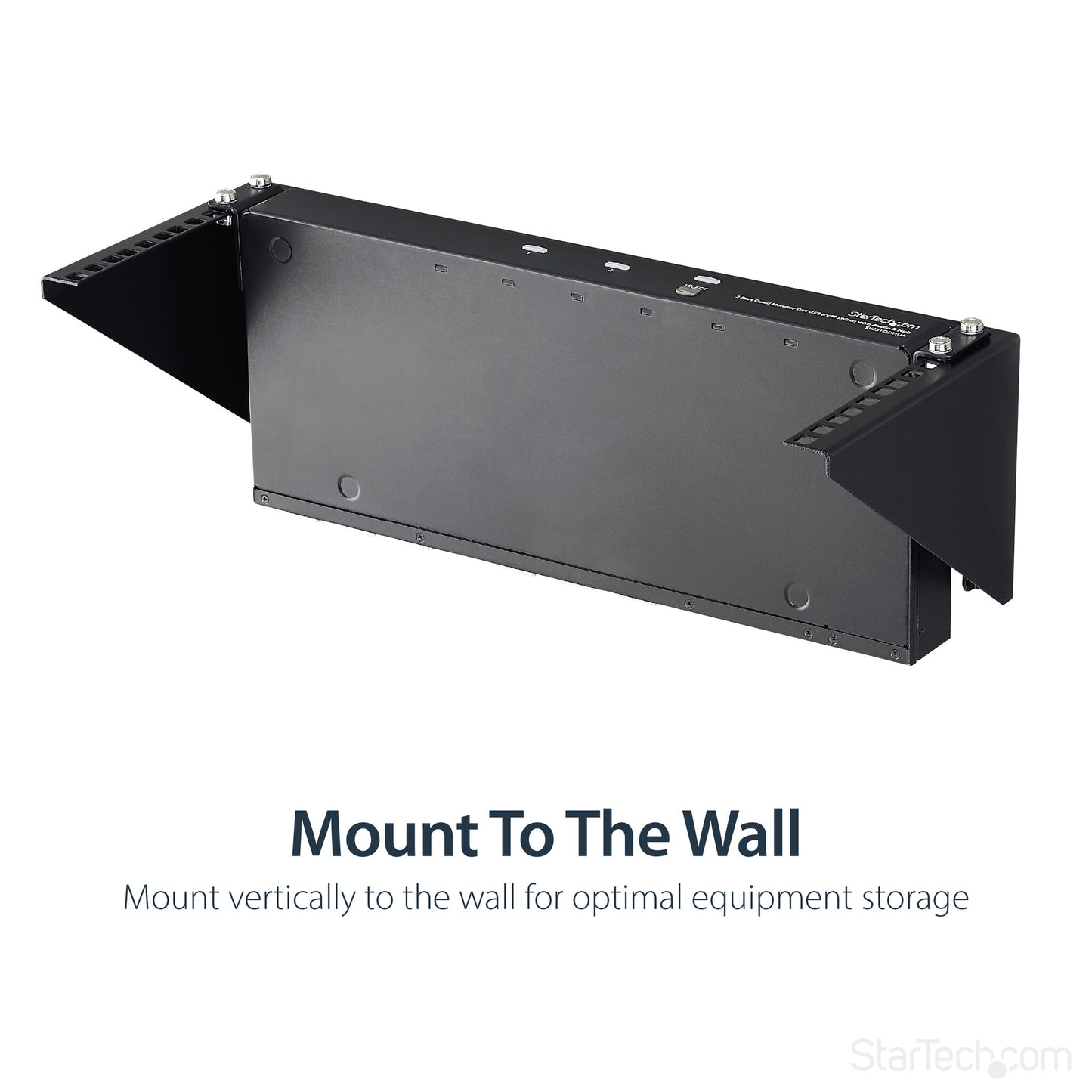

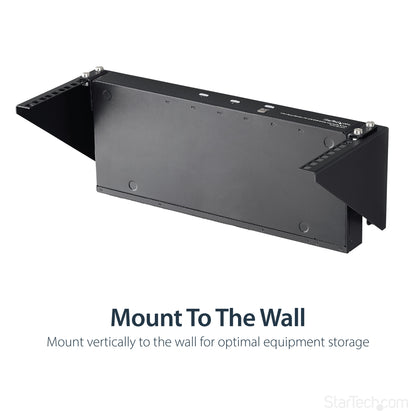

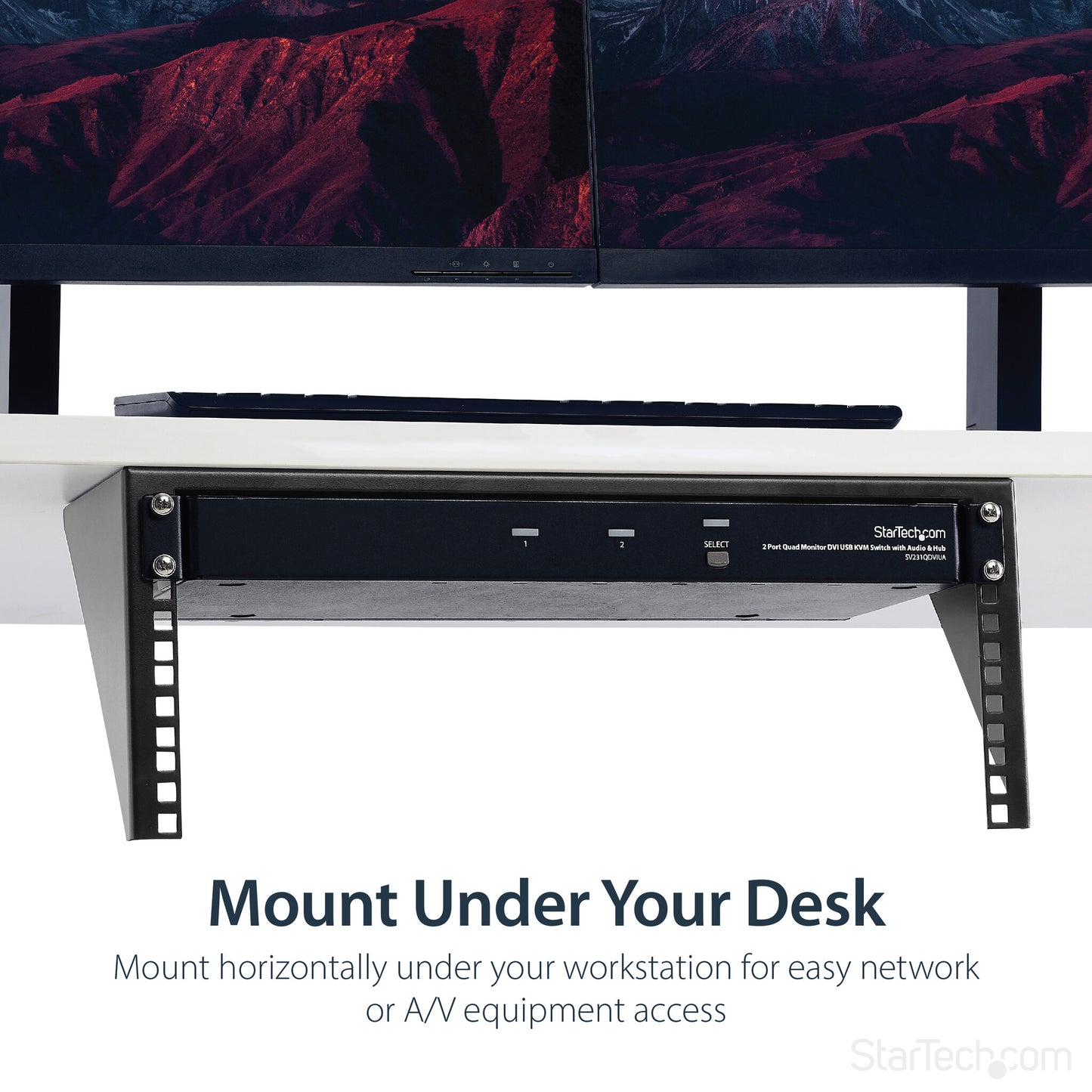

The RK419WALLV 4U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 4U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.

Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.

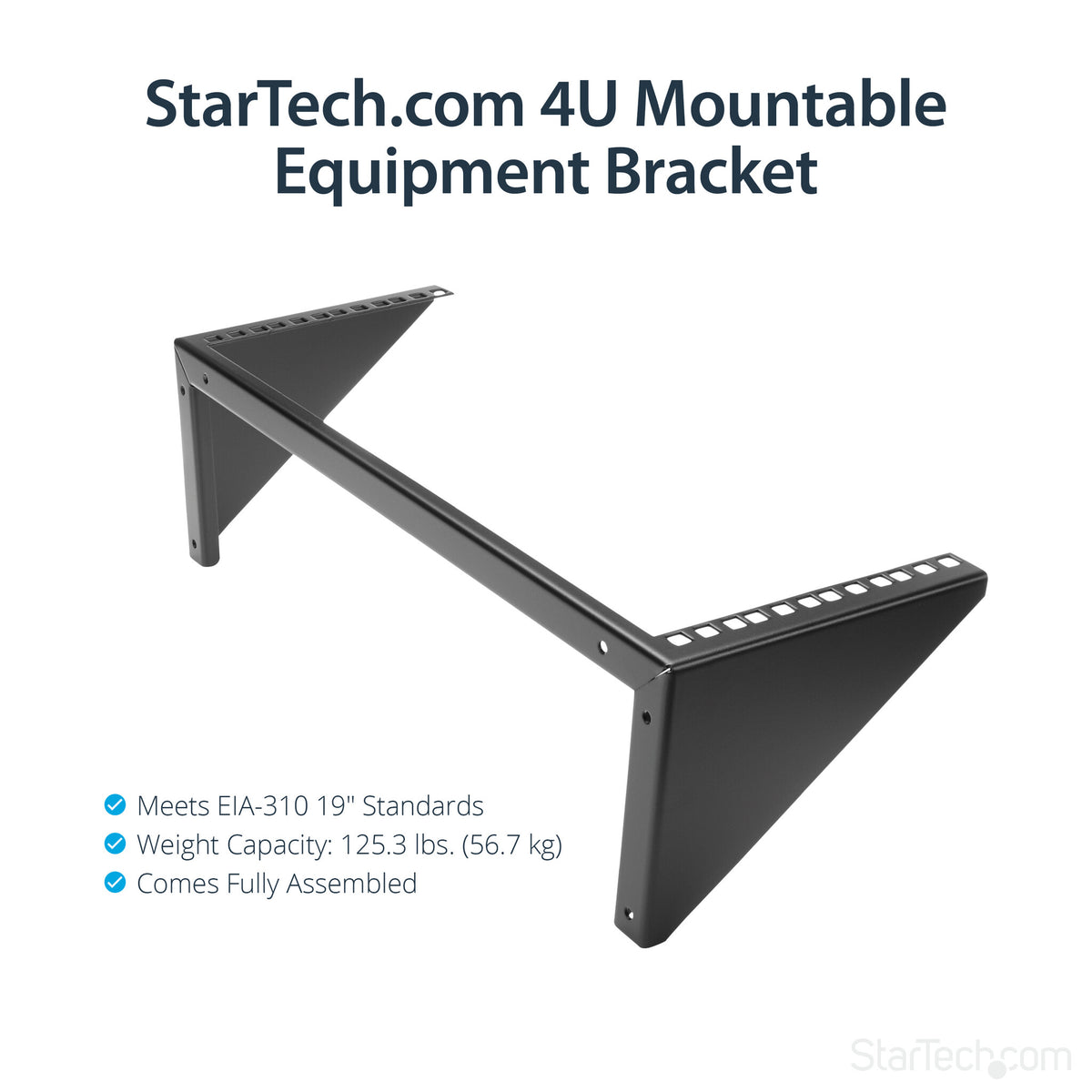

Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.

Need more storage space? StarTech.com also offers a 1U 19in Wallmount Bracket, a 2U 19in Wallmount Bracket and a 3U 19in Wallmount Bracket.

The StarTech.com Advantage

Features
Certification TAA, CE, UL, REACH
Castor wheels No
Mounting hole shape Square
Cable management No
Adjustable mounting rails No
Side panel key lock No
Front door key lock No
Back door key lock No
Product design 2-post
Frame type Open
Material Steel
Product colour Black
Maximum weight capacity 56.7 kg
Type Wall mounted rack
Rack capacity 4U

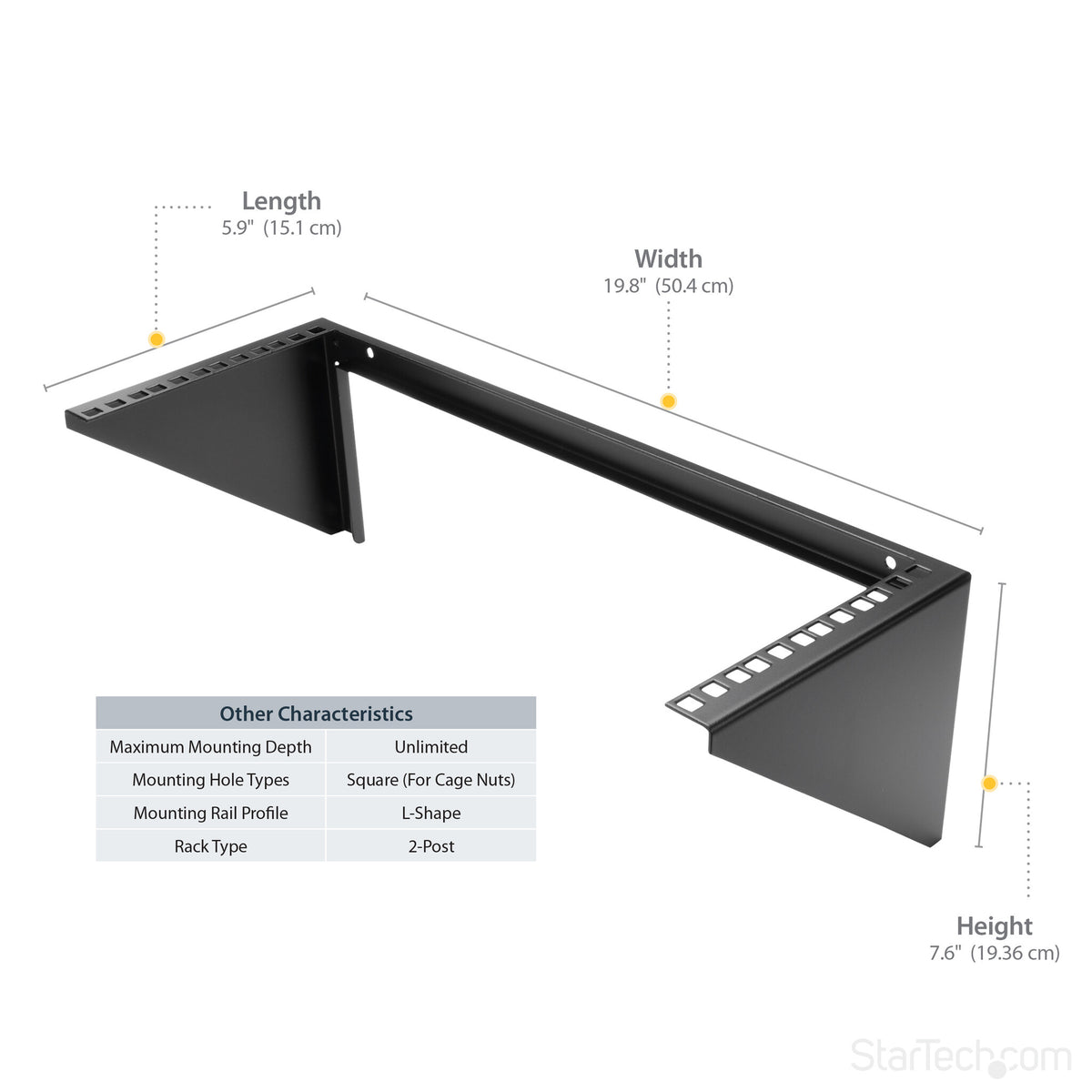

Weight & dimensions
Weight 1.1 kg
Inner width 45 cm
Height 151 mm
Depth 193 mm
Width 504 mm
Size (imperial) 48.3 cm (19")
Packaging data
Package weight 1.69 kg
Package height 162 mm
Package depth 519 mm
Package width 211 mm

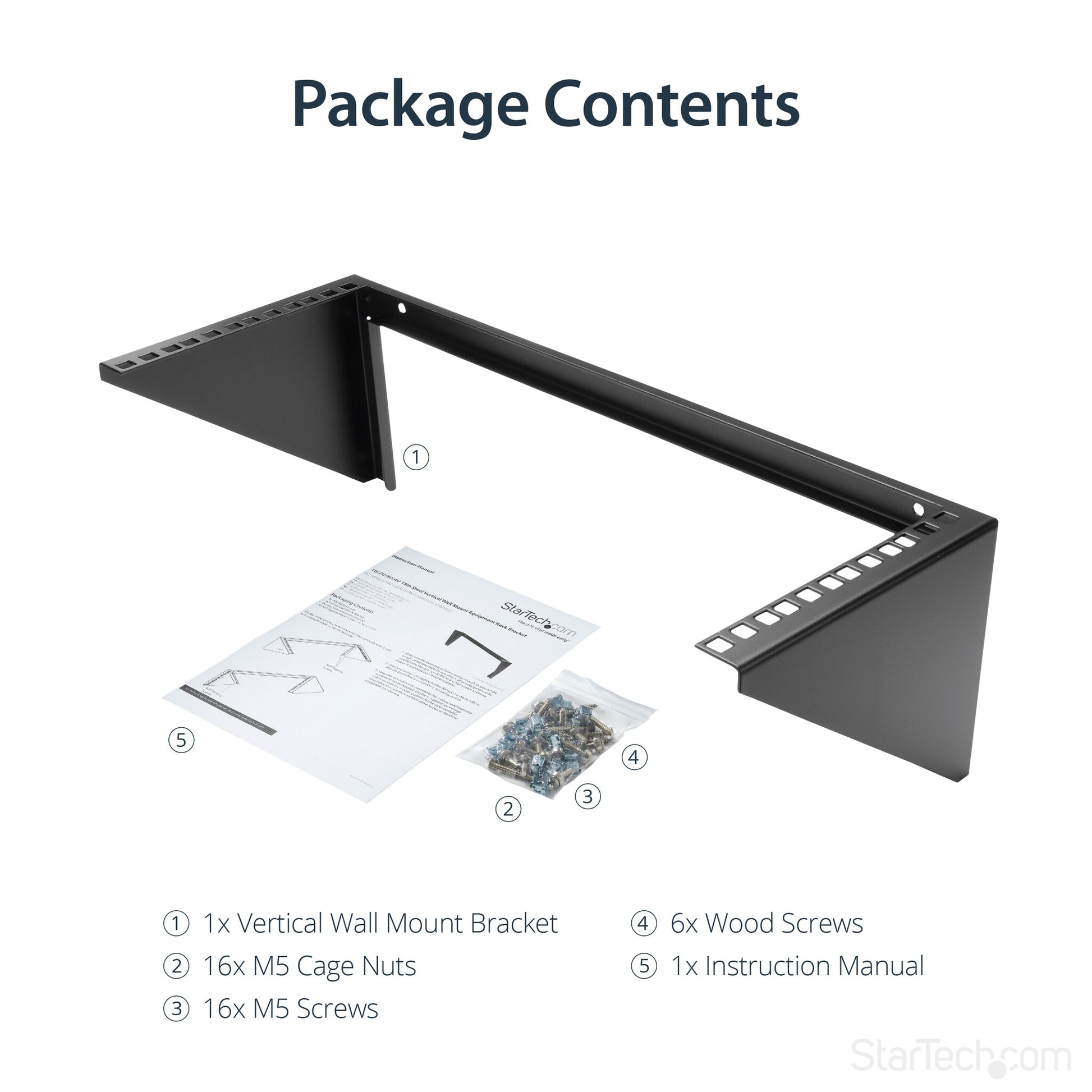

Wall mounting kit Yes
Mounting kit Yes
Screws included Yes
Number of screws 22
Number of nuts 16
Nuts included Yes
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85381000
Other features
Compliance industry standards EIA/ECA-310-E
