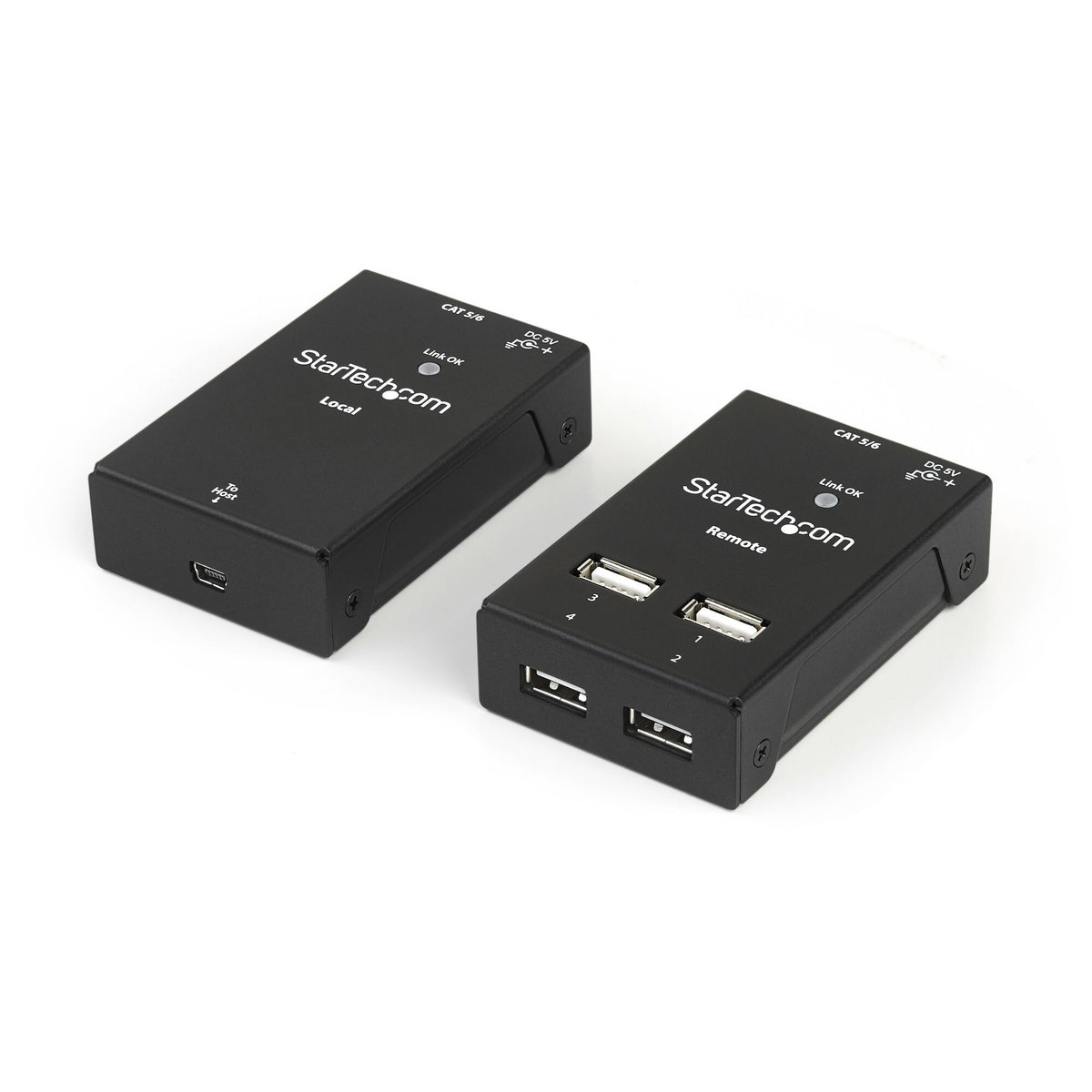

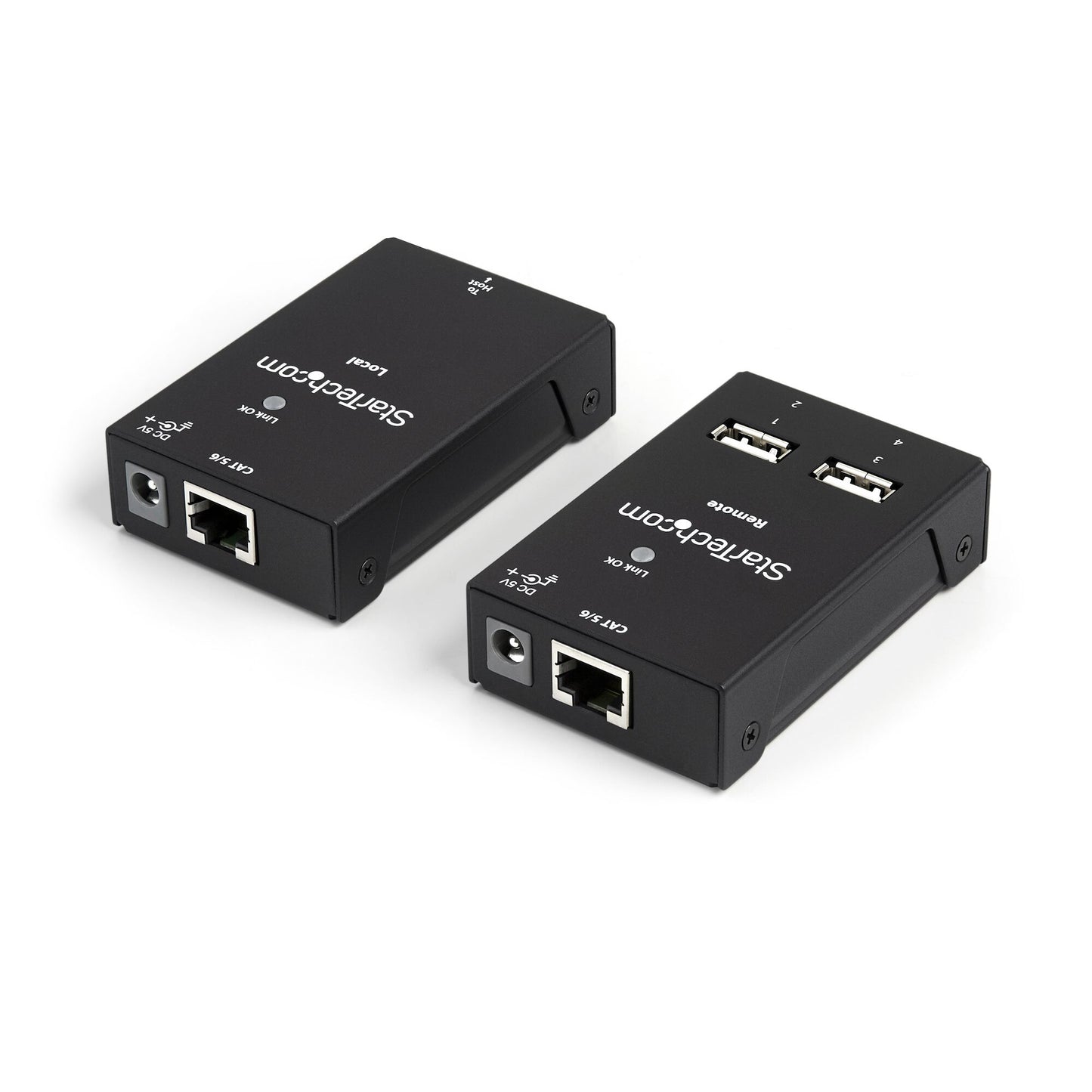

StarTech.com 4-Port USB 2.0-Over-Cat5-or-Cat6 Extender - 130ft (40m) - TAA
StarTech.com 4-Port USB 2.0-Over-Cat5-or-Cat6 Extender - 130ft (40m) - TAA
SKU:USB2004EXTV
Low stock: 6 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Place your devices where you need them with this cost-effective USB extender

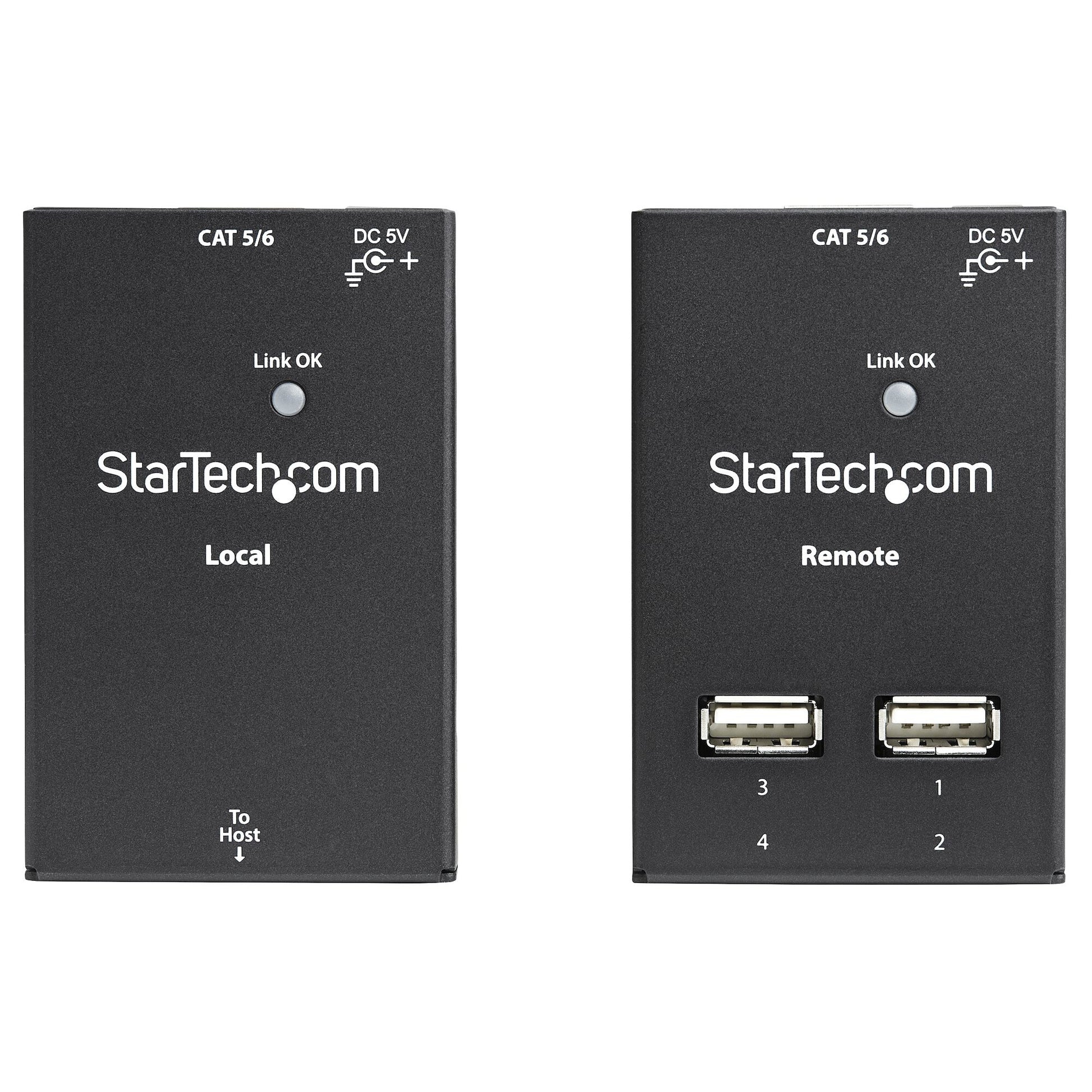

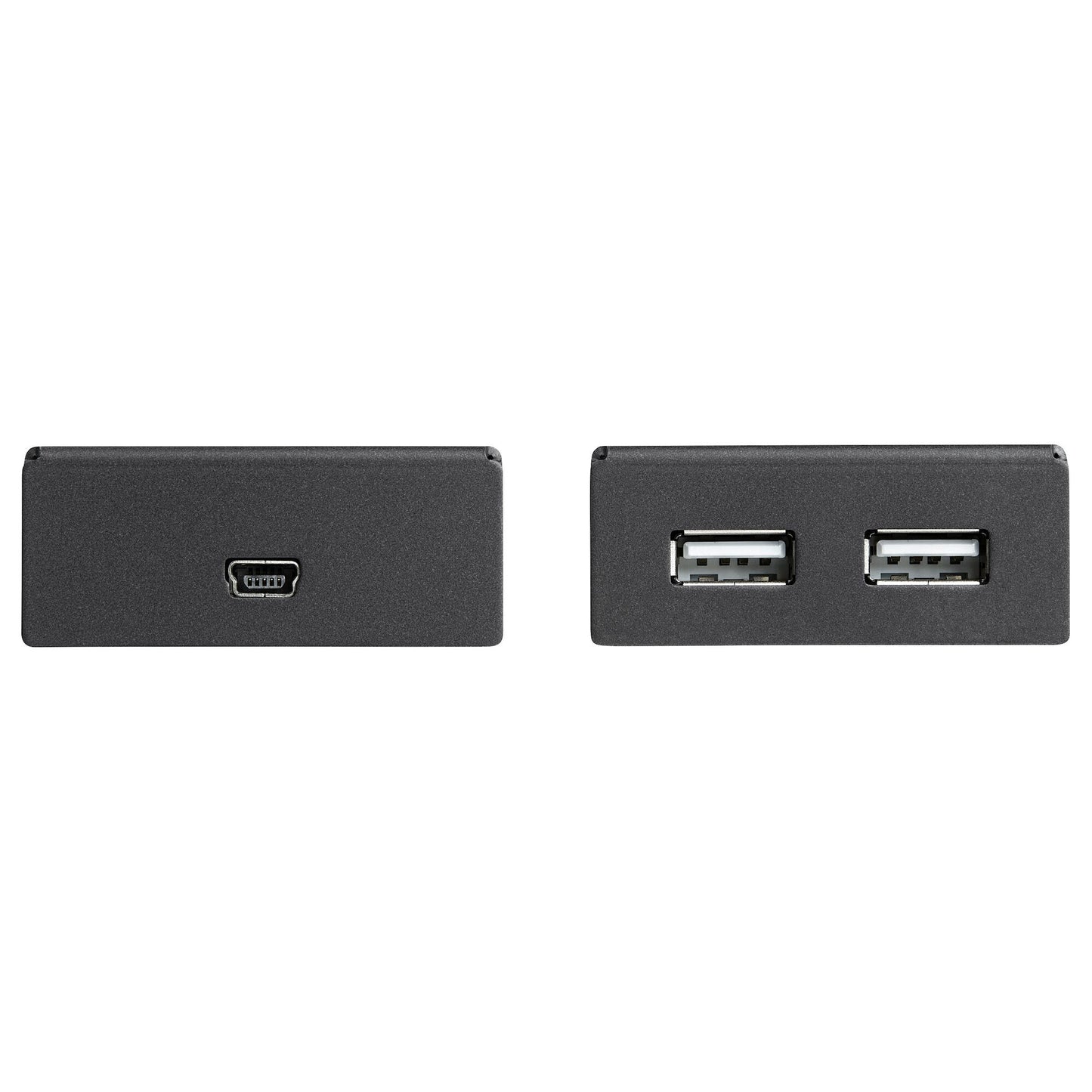

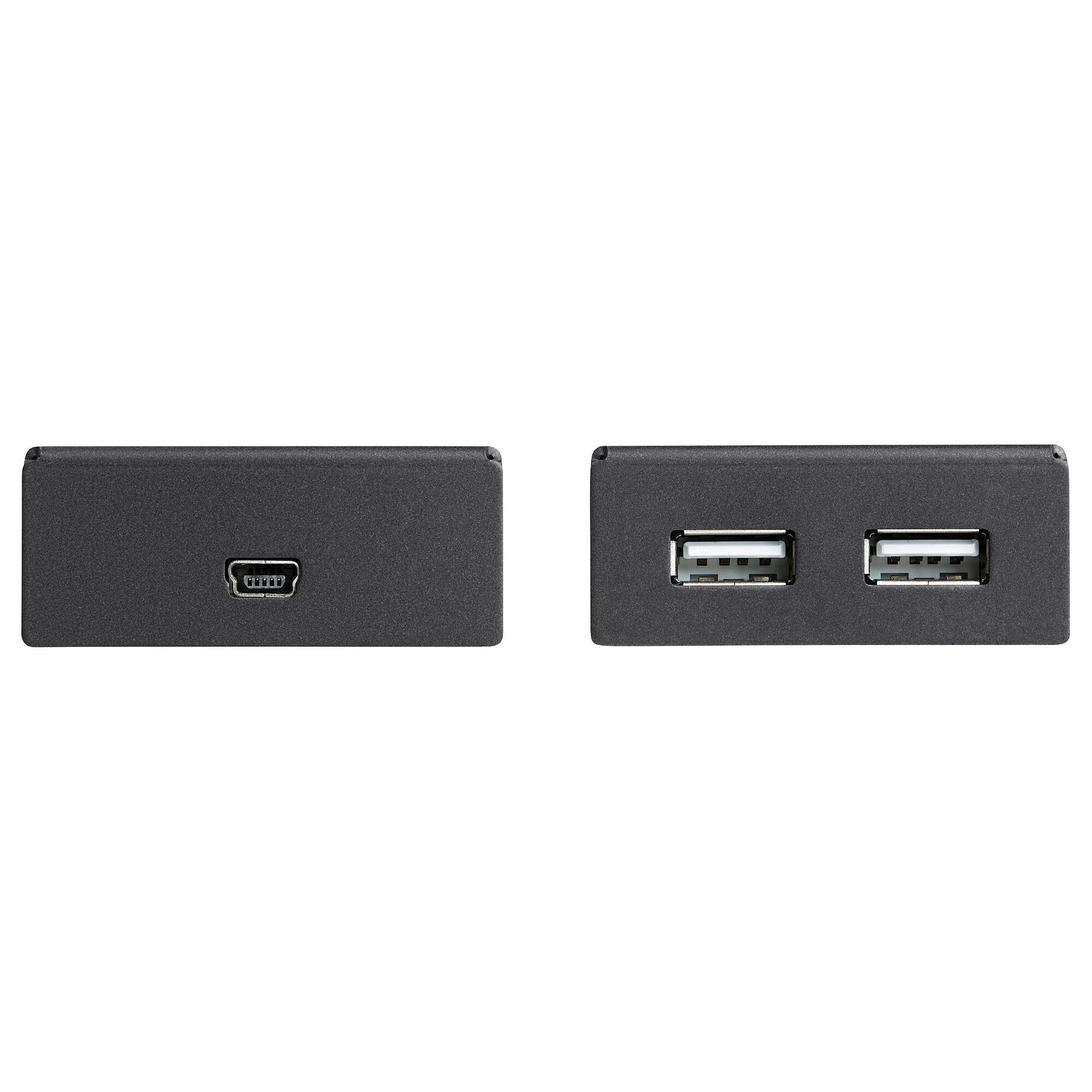

- Unique 4-port design with 2 ports on top for easy access
- OS independent for fast, hassle-free set-up

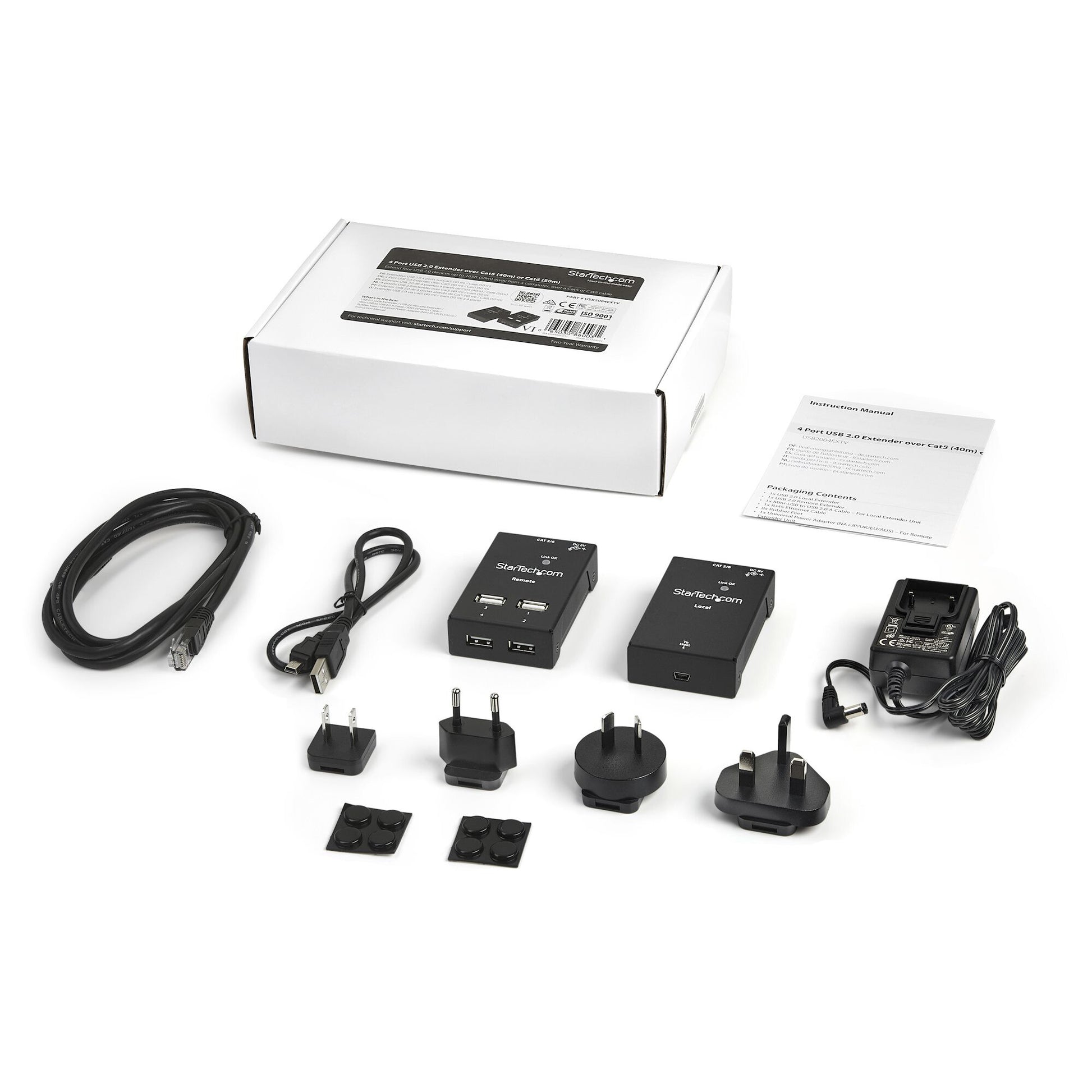

- Kit includes a transmitter and a 4-port hub receiver
- Supports transfer rates of up to 480 Mbps
- Plug-and-play and hot-swap compatible
Connect four USB 2.0 devices away from your computer over Cat5 or Cat6 (40m)
This 4-port USB 2.0 extender is an easy and inexpensive solution for creating workspace freedom. Now you can extend the distance of your USB 2.0 devices over a single Ethernet cable, up to 130ft (40m) over Cat5 or Cat6.
Go the extra distance for increased productivity
Overcome the 16ft USB cable length limitation to create a more flexible and efficient workspace. Now you can place up to four USB devices in remote locations away from the host computer system. Position your hard drive enclosure, printer, scanner, webcam and other popular peripherals right where you need them, to save time and enhance your productivity.
Port location enables fast and easy connections
Gain quick access to the USB devices you use most frequently. Often on the go? Use the two top ports for fast, easy connections to portable devices like flash drives, smartphones and tablets. Plus, you still have two front-facing ports for printers or other devices requiring a more permanent set-up.
Supports any operating system and older devices
The versatile USB2004EXTV supports Windows®; Mac® and Linux systems. Set-up is easy with no additional drivers or software required, and the extender is backward compatible with USB 1.1 and 1.0 peripherals.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
| Technical details | |
|---|---|
| Type | Console transmitter & receiver |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 50 m |
| Product colour | Black |
| Rubber feet | Yes |
| Compliance certificates | CE, RoHS |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6a, Cat6e, Cat7 |
| LED indicators | Link, Power |
| Housing material | Steel |
| Sustainability compliance | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 Type-A ports quantity | 4 |
| Mini-USB 2.0 ports quantity | 1 |

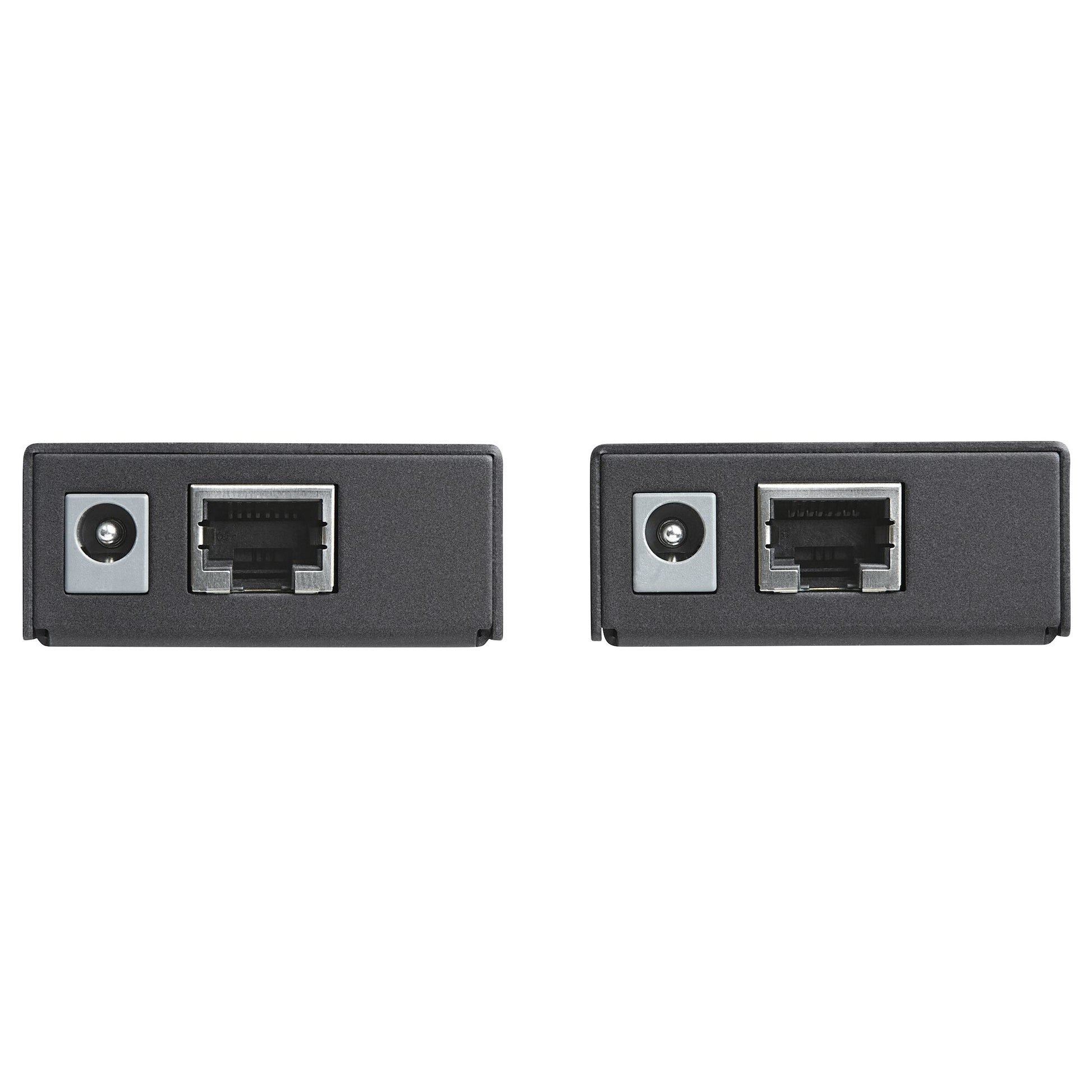

| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| Weight & dimensions | |
|---|---|
| Width | 52 mm |
| Depth | 80 mm |
| Height | 22 mm |
| Weight | 319 g |
| Package width | 156 mm |
| Package depth | 234 mm |
| Package height | 68 mm |
| Package weight | 700 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), USB |
| Manual | Yes |
| Power | |
|---|---|
| Power consumption (max) | 10 W |
| Input voltage | 100 - 240 V |
| Input current | 0.4 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power plug type | Type N |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case width | 326 mm |
| Master (outer) case length | 412 mm |
| Master (outer) case height | 264 mm |
| Products per master (outer) case | 12 pc(s) |
