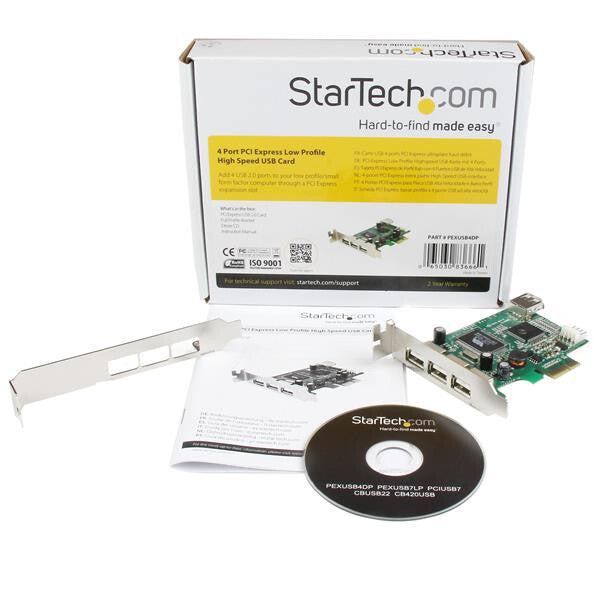

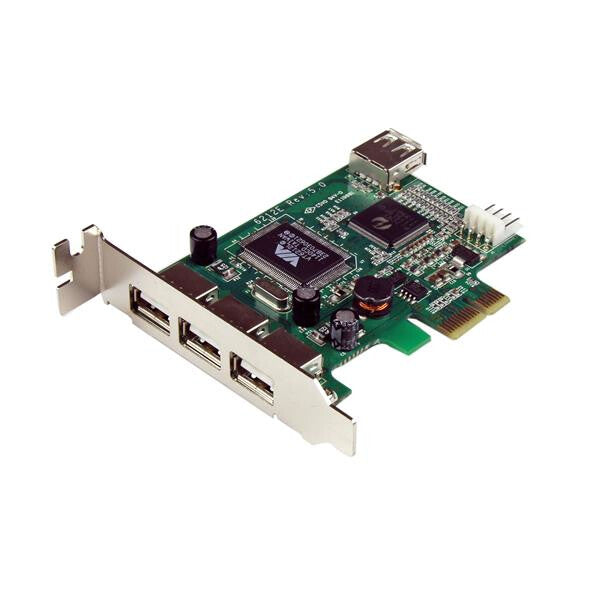

StarTech.com 4 Port PCI Express Low Profile High Speed USB Card
StarTech.com 4 Port PCI Express Low Profile High Speed USB Card
SKU:PEXUSB4DP
213 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Internal
- Host interface: PCIe
- Output interface: USB 2.0
- 0.48 Gbit/s
- Green
Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot

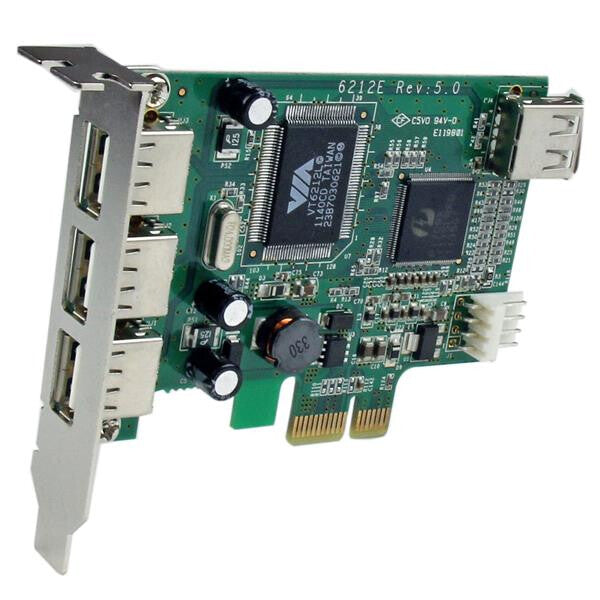

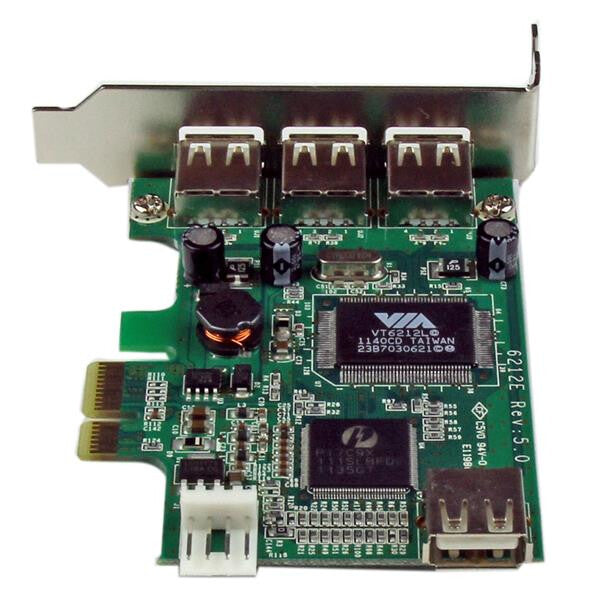

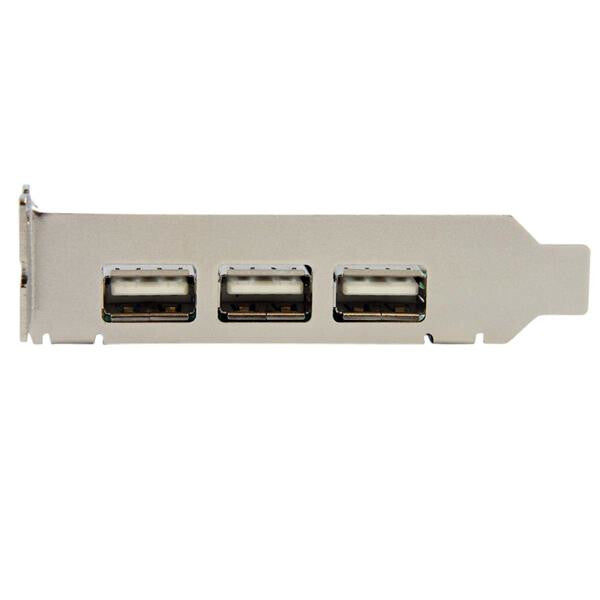

The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance. Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation. Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.
The StarTech.com Advantage
- Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
- Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | USB 2.0 |
| USB 2.0 ports quantity | 3 |
| Internal USB 2.0 ports quantity | 1 |
| Design | |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Certification | CE, FCC, REACH, TAA |
| Features | |
|---|---|
| Chipset | VIA/VLI - VT6212 |
| Data transfer rate (max) | 0.48 Gbit/s |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 75 °C |
| Storage temperature (T-T) | -40 - 125 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Weight & dimensions | |
|---|---|
| Width | 80 mm |
| Depth | 90 mm |
| Height | 20 mm |
| Weight | 46 g |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 174 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 132 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
