StarTech.com

StarTech.com 4-Port Dual DisplayPort KVM Switch - 4K 60Hz

StarTech.com 4-Port Dual DisplayPort KVM Switch - 4K 60Hz

Regular price £821.65 GBP
Regular price Sale price £821.65 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:SV431DPDDUA2

Low stock: 5 left

  • Rack mounting 2U Black
  • Number of computers controlled: 4
  • Keyboard port type: USB Mouse port type: USB Video port type: DisplayPort
  • 4K Ultra HD 3840 x 2160 pixels
  • Housing material: Steel
  • Hot keys
  • AC 18 W External power adapter
StarTech.com DisplayPort KVM - 4 port - 4K 60Hz - Dual Monitor KVM - DisplayPort Switch - KVM DisplayPort - Desktop KVM Switch (SV431DPDDUA2)

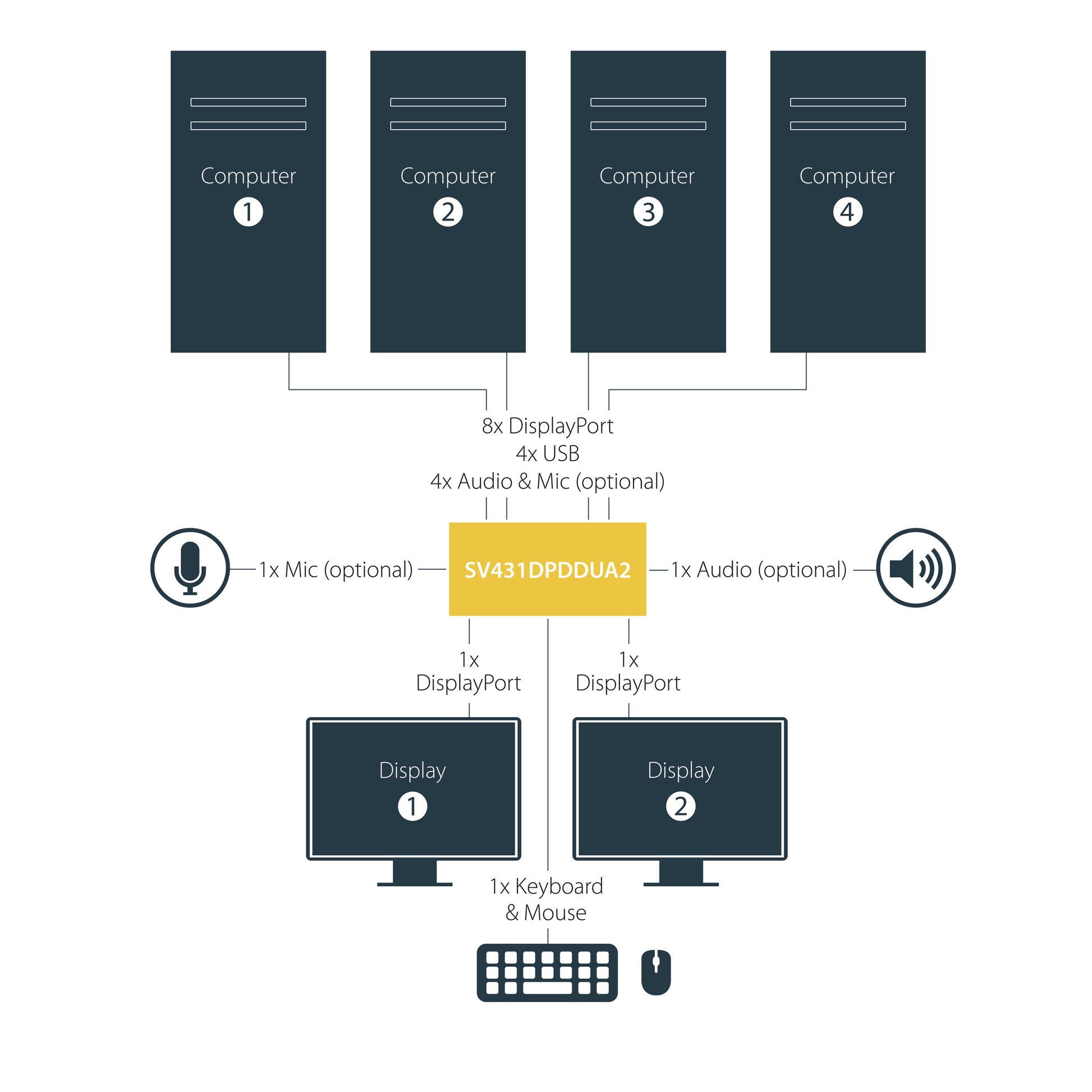

This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers

This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.

Maximize productivity with dual video

With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Convenient multimedia and peripheral sharing

The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.

The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.

The StarTech.com Advantage

- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz

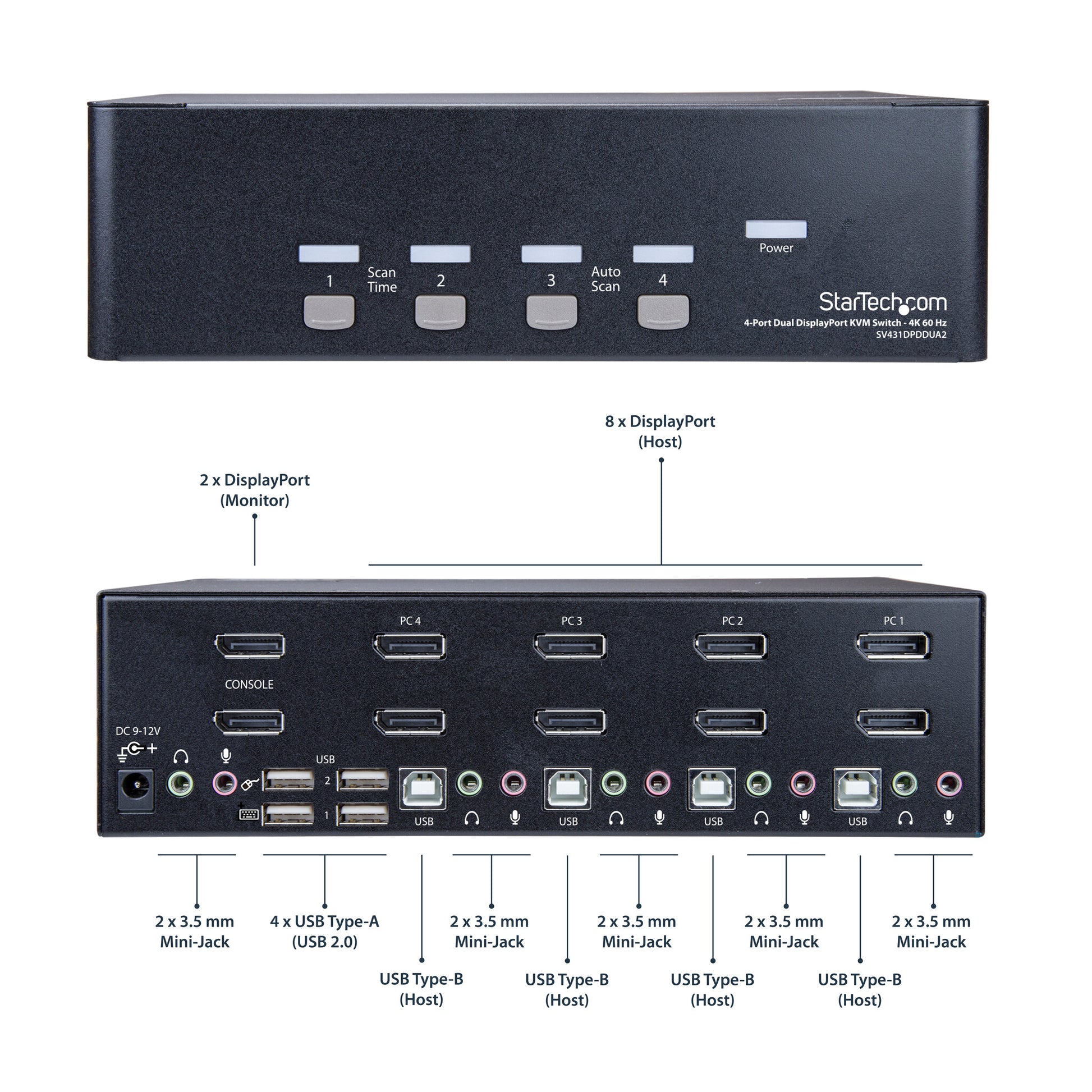

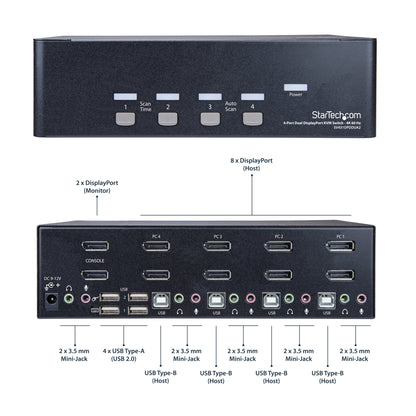

Ports & interfaces
DC-in jack Yes
Audio connections Yes
USB connector type USB Type-A
USB hub Yes
Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity 4
DisplayPorts quantity 10
Video port type DisplayPort
Mouse port type USB
Keyboard port type USB
Number of computers controlled 4
Performance
Daisy chain No
Scan interval 3,8,15,30 s
Data transfer rate (max) 0.5 Gbit/s
Maximum resolution 3840 x 2160 pixels
HD type 4K Ultra HD
Design
Certification CE, FCC, TAA, REACH
Mean time between failures (MTBF) 142000 h
Hot keys Yes
LED indicators Power
Housing material Steel
Product colour Black
Rack capacity 2U
Rack mounting Yes
Display
Built-in display No
Power
Power plug type Type M
Compatible power plug types AU, EU, JP, UK, US
Power consumption (typical) 18 W
External power adapter Yes
Output current 1.5 A
Output voltage 12 V
Input current 0.6 A
Input voltage 100 - 240 V
Power source AC
Sustainability
Compliance certificates RoHS
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -10 - 60 °C
Operating temperature (T-T) 0 - 40 °C

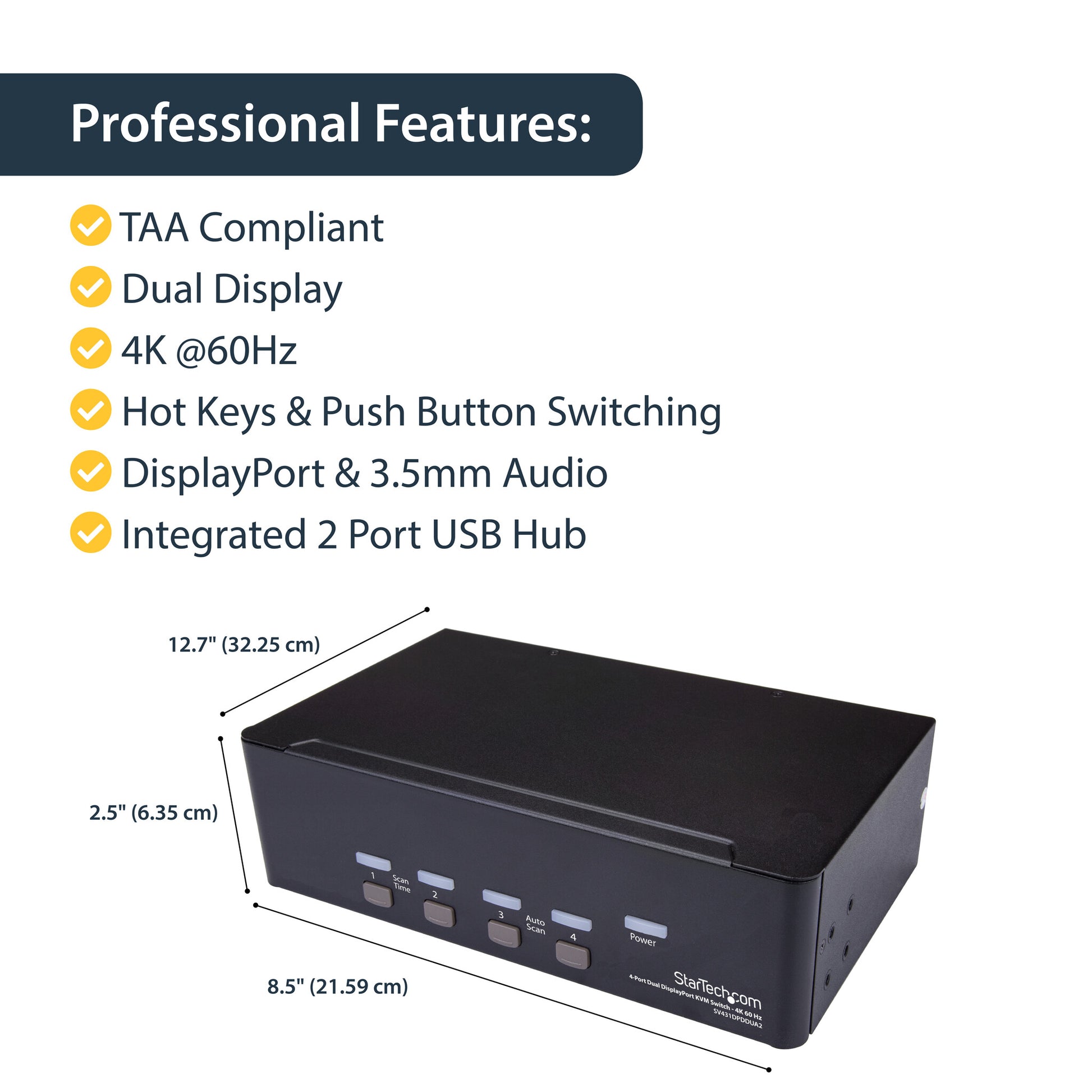

Weight & dimensions
Weight 1.2 kg
Height 63 mm
Depth 127 mm
Width 216 mm
Packaging data
Package weight 1.8 kg
Package height 87 mm
Package depth 297 mm
Package width 243 mm

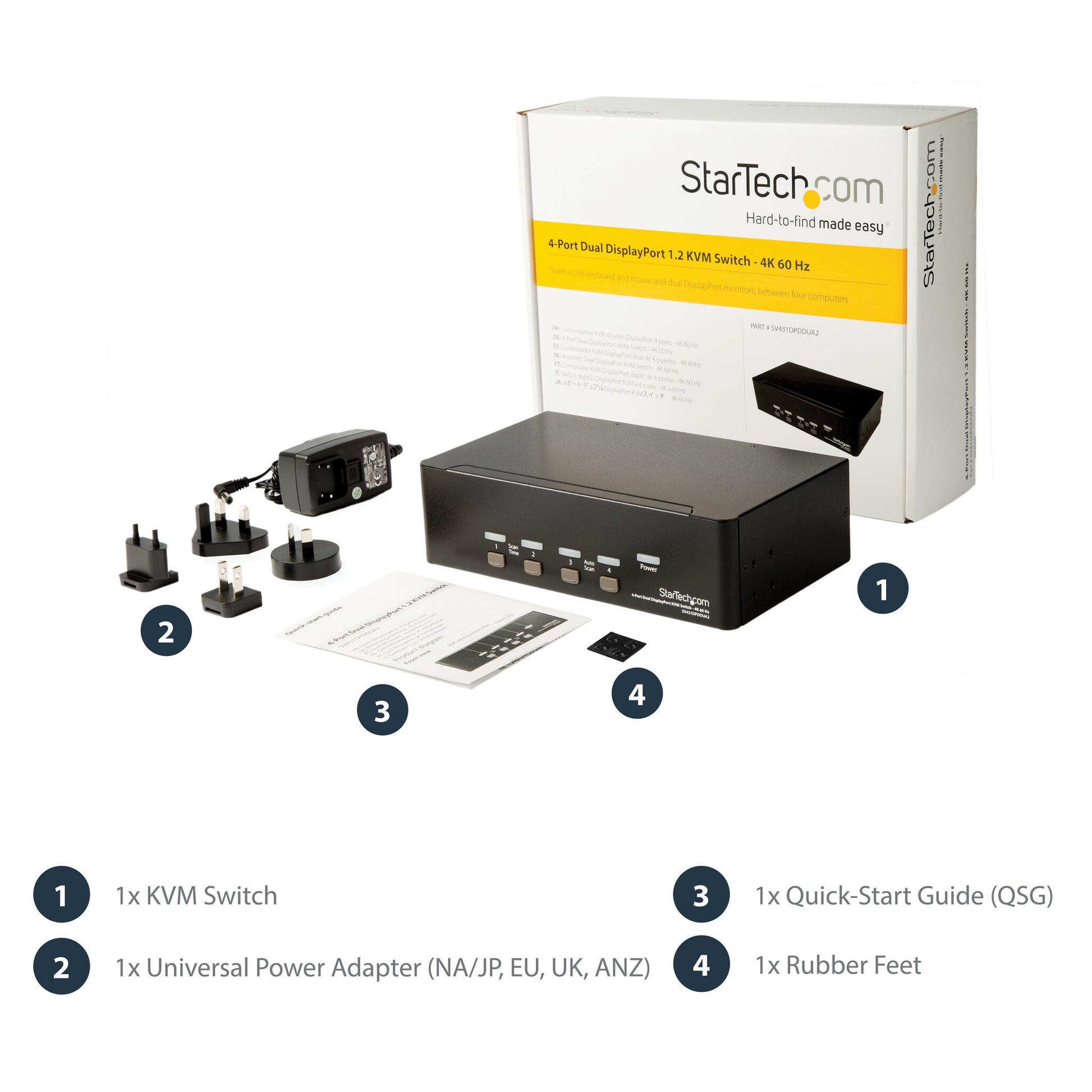

Packaging content
Rubber feet Yes
Quick installation guide Yes
Logistics data
Harmonized System (HS) code 85176200
Other features
IP control No
Audio support Yes
