StarTech.com

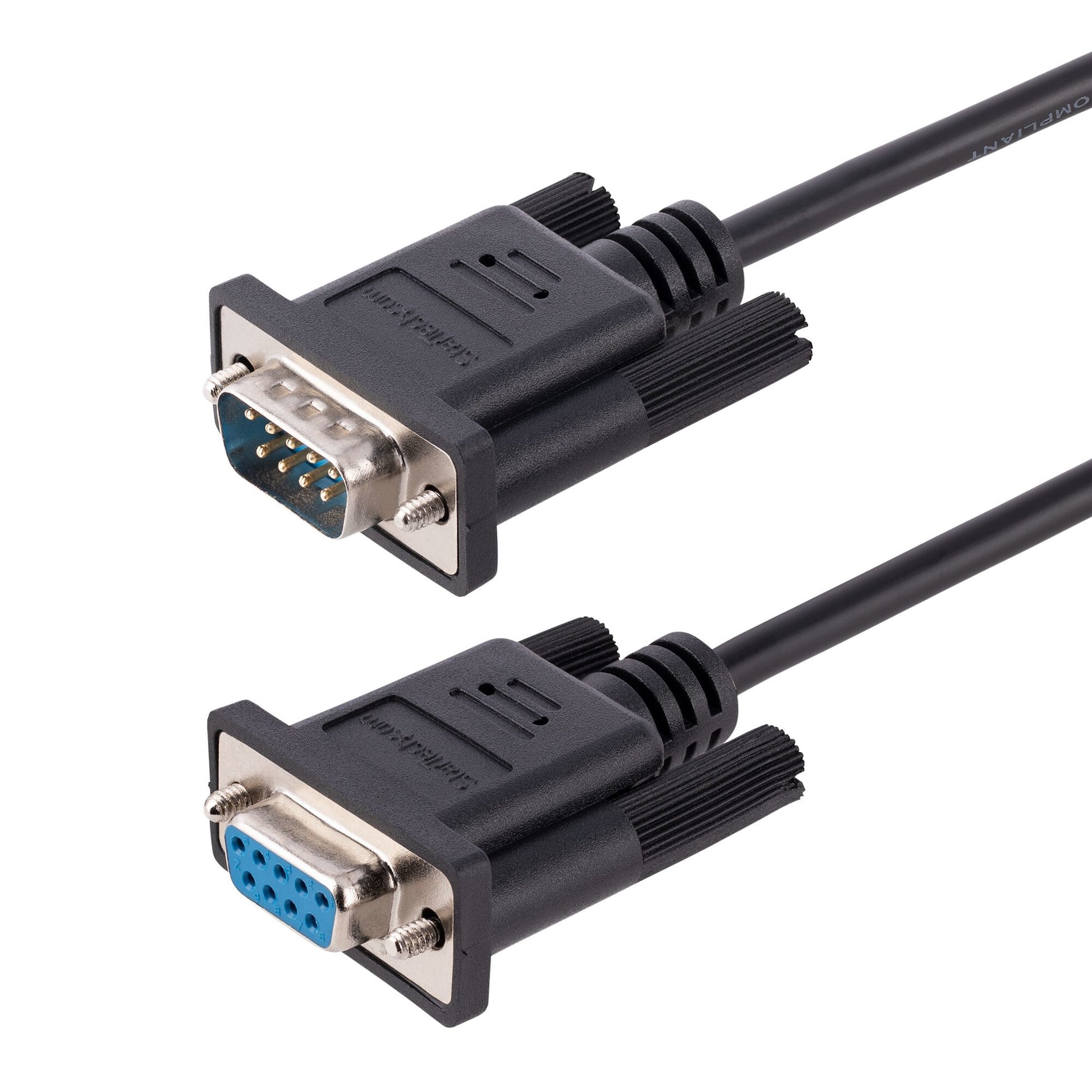

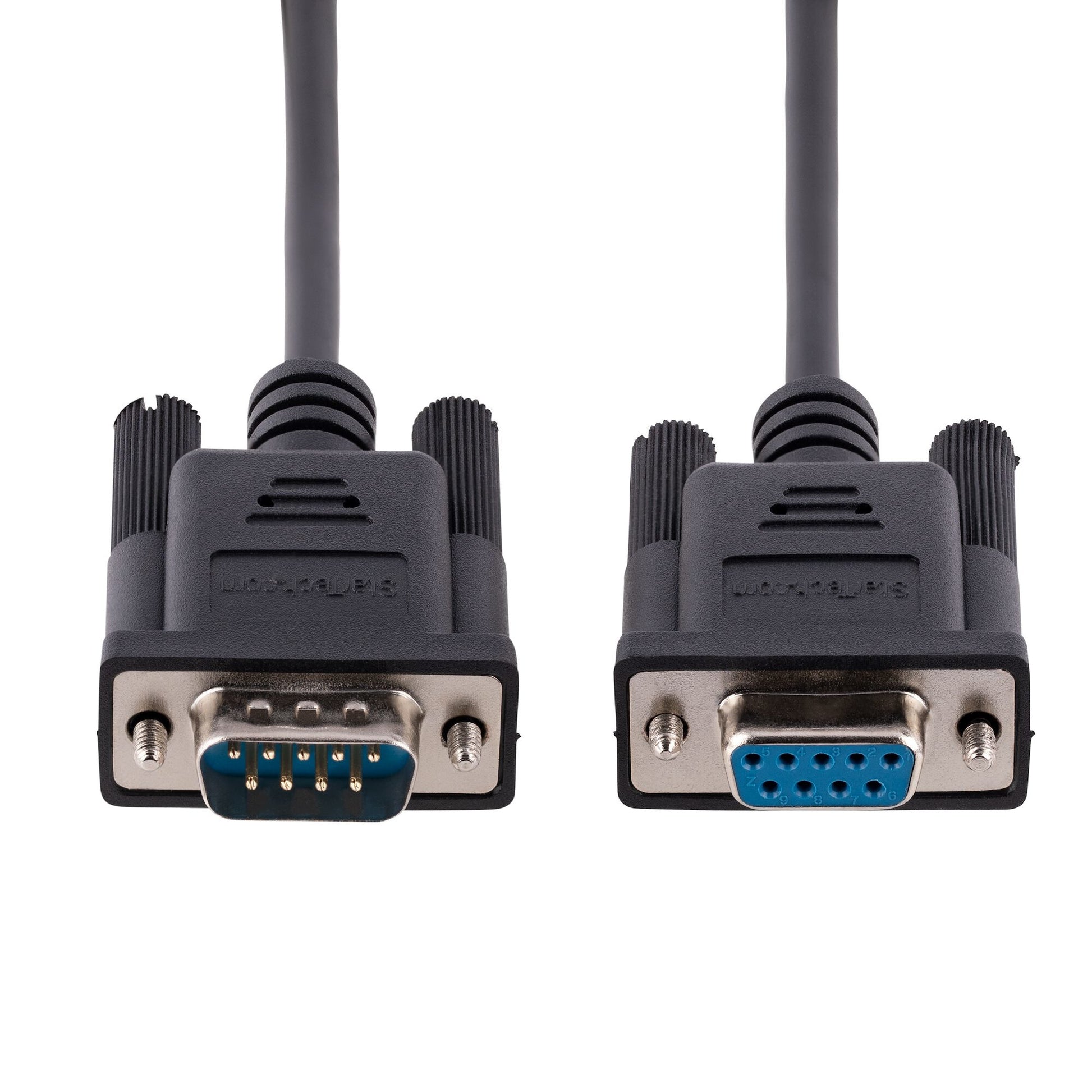

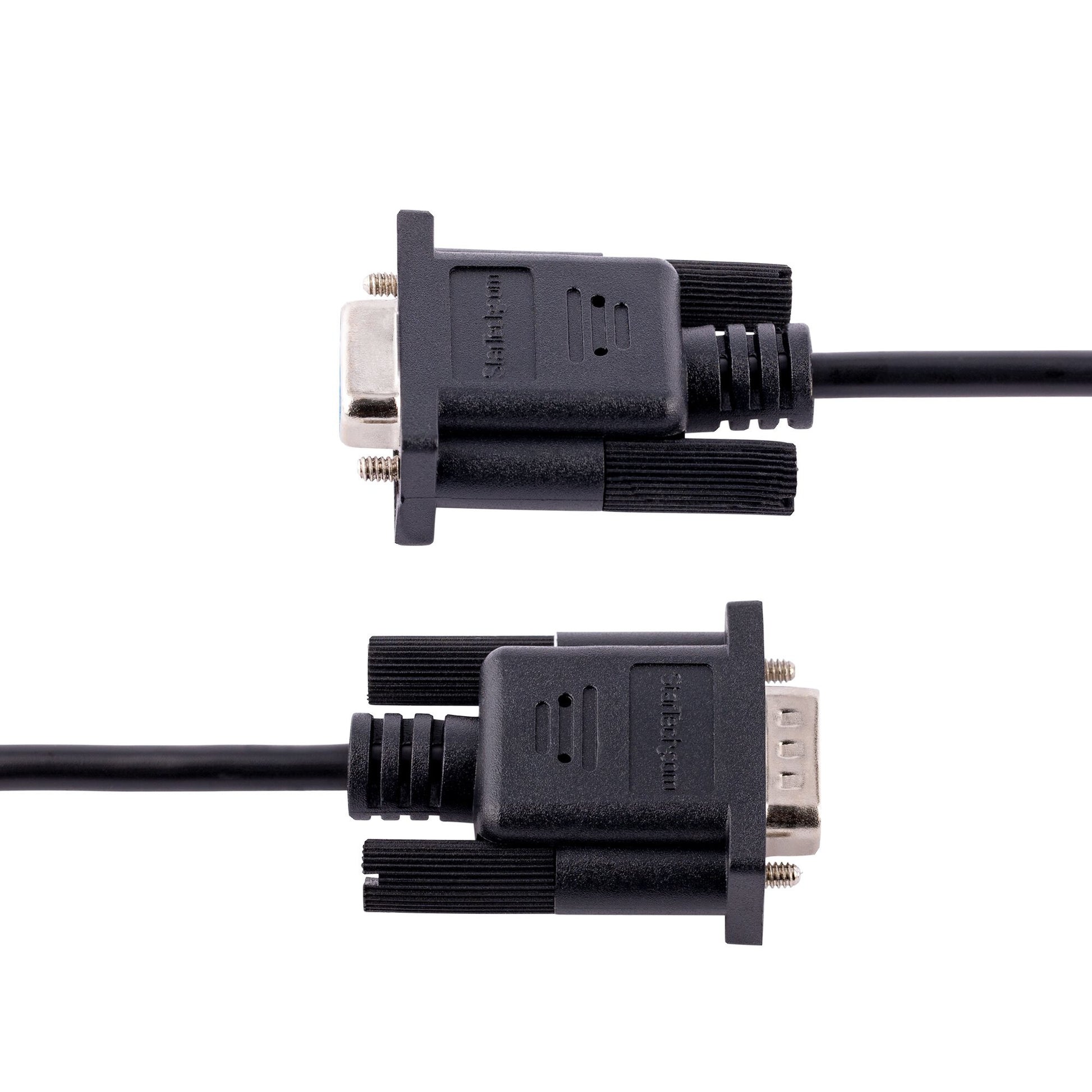

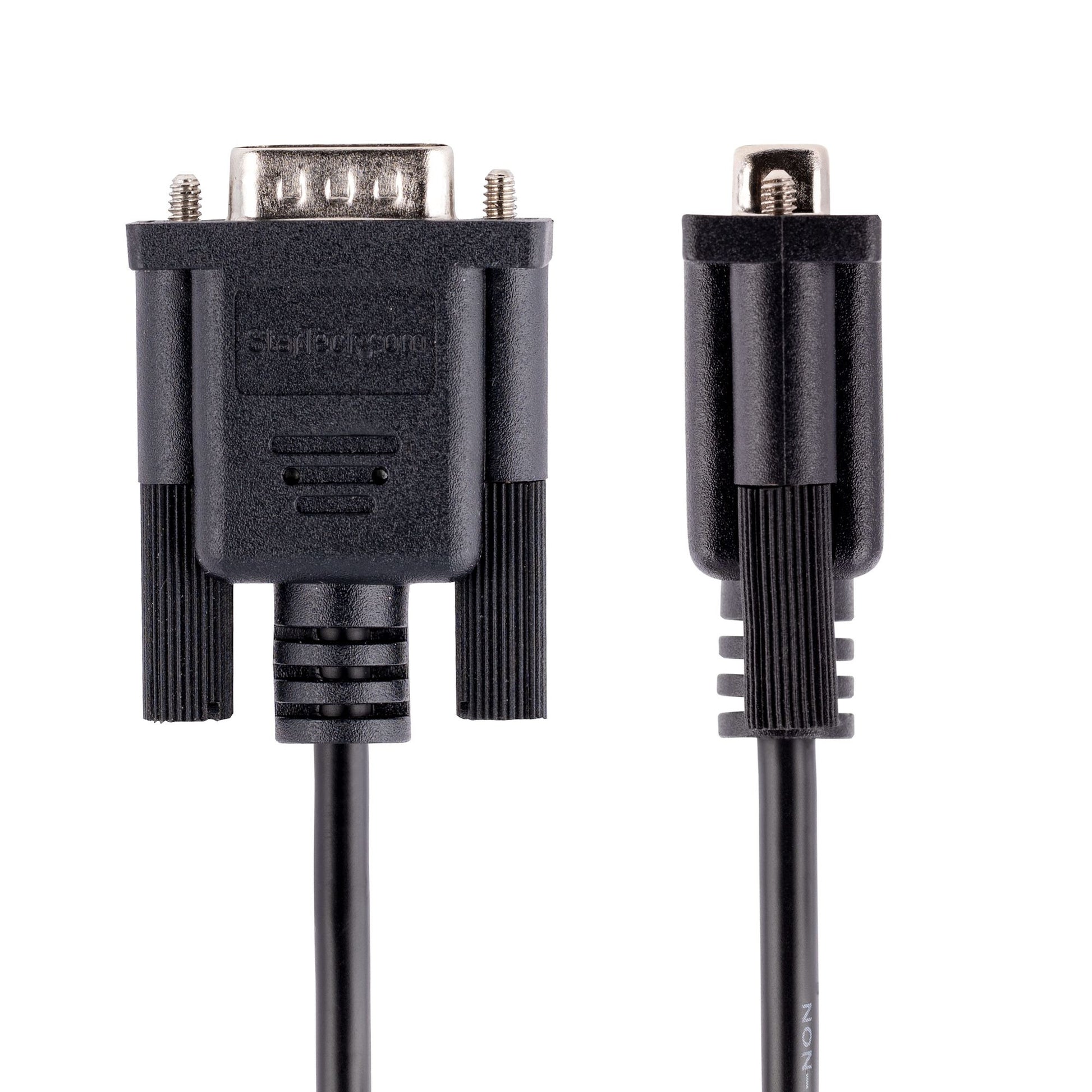

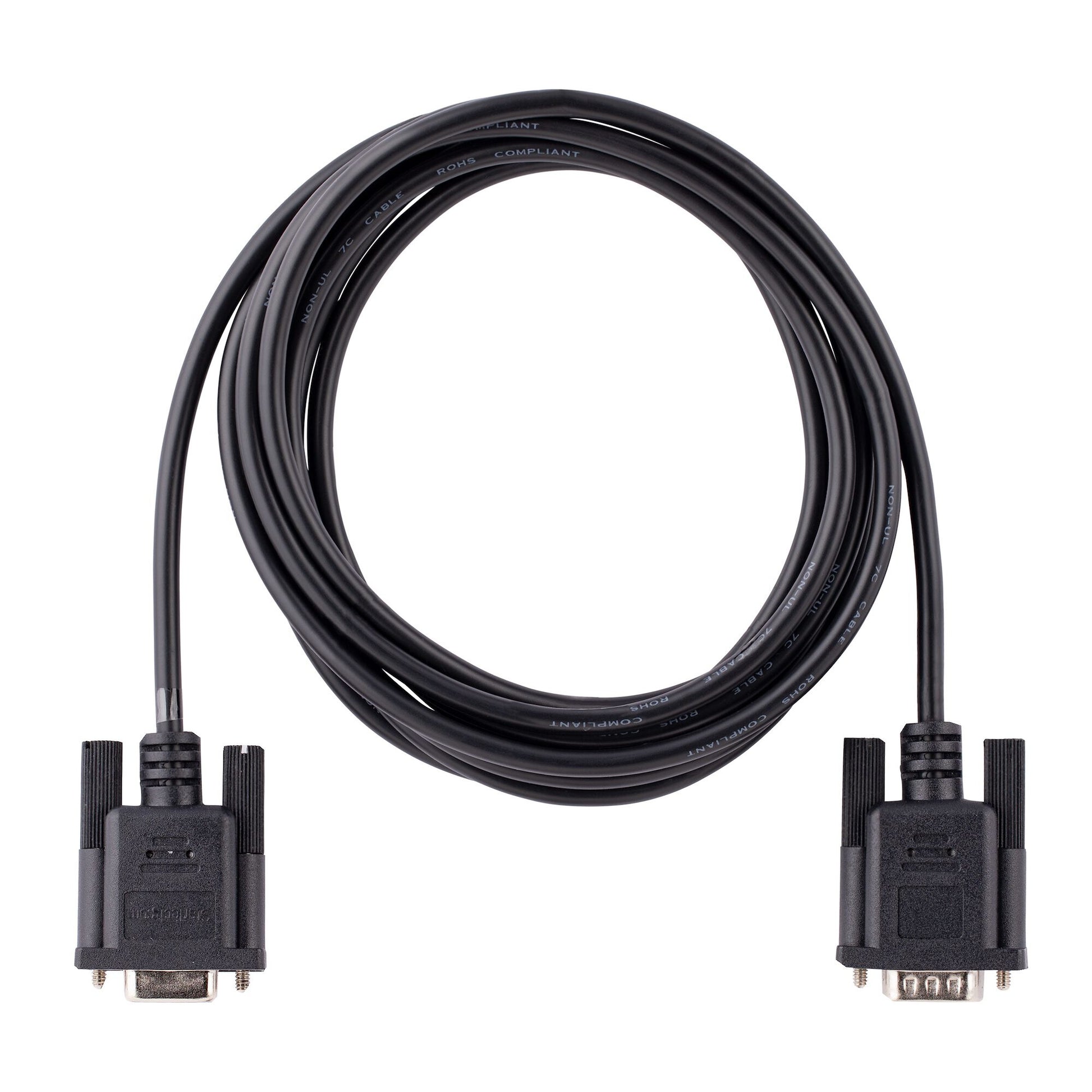

StarTech.com 3m RS232 Serial Null Modem Cable, Crossover Serial Cable w/Al-Mylar Shielding, DB9 Serial COM Port Cable Female to Male, Compatible w/DTE Devices, Black, F/M

StarTech.com 3m RS232 Serial Null Modem Cable, Crossover Serial Cable w/Al-Mylar Shielding, DB9 Serial COM Port Cable Female to Male, Compatible w/DTE Devices, Black, F/M

Regular price £6.65 GBP
Regular price Sale price £6.65 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:9FMNM-3M-RS232-CABLE

98 in stock

  • RS232 SERIAL NULL MODEM CABLE: DB9 male to female serial cable enables a connection between two DTE devices at a distance of up to 3 meters, reducing cable length restrictions and providing flexible serial device setup configuration
  • QUALITY CONSTRUCTION: High quality 28 AWG tinned wires with aluminum mylar cable shielding and shielded metal shell connectors prevent EMI interference; Molded PVC connectors with strain reliefs and PVC cable jacket prevent damage due to bends
  • SCREW LOCKING NULL-MODEM CABLE: This crossover cable features thumbscrews that prevent accidental disconnection which can lead to data loss
  • SPECIFICATIONS: 3m (9.8ft) / DB9 male to DB9 female / Color: Black / 28AWG / OD: 4.8mm / Al-Mylar cable shield & Metal shell connectors / Molded PVC strain reliefs and jacket / Note: This is a null-modem cable, it is not a straight-through cable
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this serial null-modem DB9 cable is backed for life, including free lifetime 24/5 multi-lingual technical assistance / This serial cable is available in other lengths
StarTech 3m RS232 Serial Null Modem Cable, Crossover Serial Cable w/Al-Mylar Shielding, DB9 Serial COM Port Cable Female to Male, Compatible w/DTE Devices, Black, F/M (9FMNM-3M-RS232-CABLE)

Connect serial enabled devices at a distance of up to 3m

This null modem serial cable features male and female DB9 connectors. It enables a connection between serial devices at a distance of up to 3 meters. The length of the cable allows for flexible serial device setup configuration.

The crossover serial cable mitigates EMI with its high-quality shielded metal shell connectors and aluminum mylar cable shielding.

Install and secure the RS232 serial cable, using the thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.

This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

Features
Product colour Black
Cable length 3 m
Connector 1 DB-9
Connector 2 DB-9
Connector 2 gender Female
Connector 1 gender Male
Connector 2 form factor Straight
Connector 1 form factor Straight
Cable shielding Aluminum mylar foil
AWG wire size 28
Jacket material Polyvinyl chloride (PVC)
Connector contacts plating Nickel
Packaging data
Quantity per pack 1 pc(s)
Package width 125 mm
Package depth 187 mm
Package height 24 mm
Package weight 150 g
Operational conditions
Operating temperature (T-T) 20 - 80 °C
Storage temperature (T-T) 20 - 80 °C
Operating relative humidity (H-H) 15 - 60%
Sustainability
Sustainability compliance Yes
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84733080
Master (outer) case width 432 mm
Master (outer) case length 385 mm
Master (outer) case height 282 mm
Products per master (outer) case 100 pc(s)
