StarTech.com 3m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/ST
StarTech.com 3m Fiber Optic Cable - Multimode Duplex 62.5/125 LSZH Fiber Jumper Cord - LC/ST
SKU:FIBLCST3
23 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Attenuation loss meets or exceeds industry standards
- LSZH (Low-Smoke, Zero-Halogen) cable jacket
- Immune to electrical interference
Connect fiber network devices for high-speed transfers with LSZH rated cable

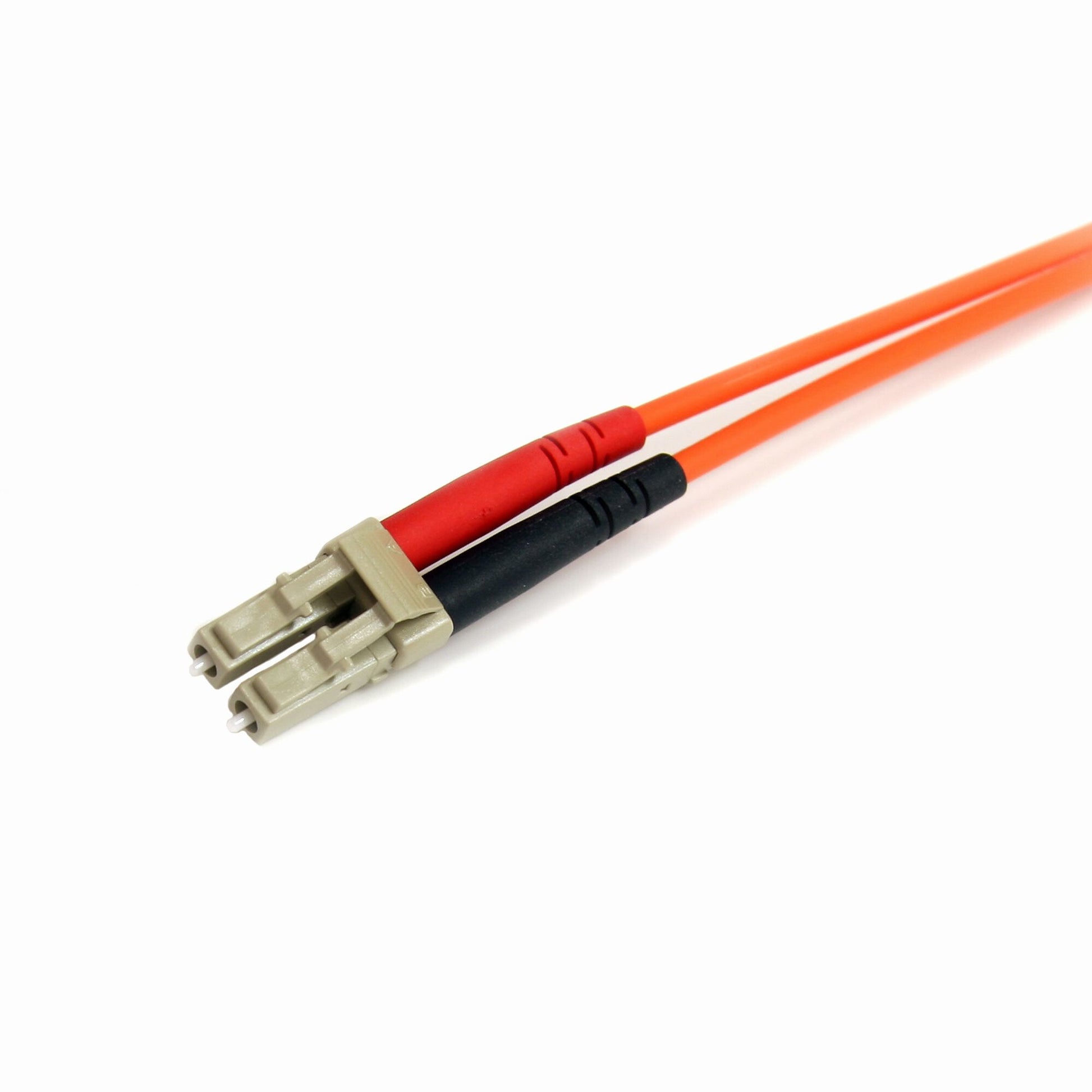

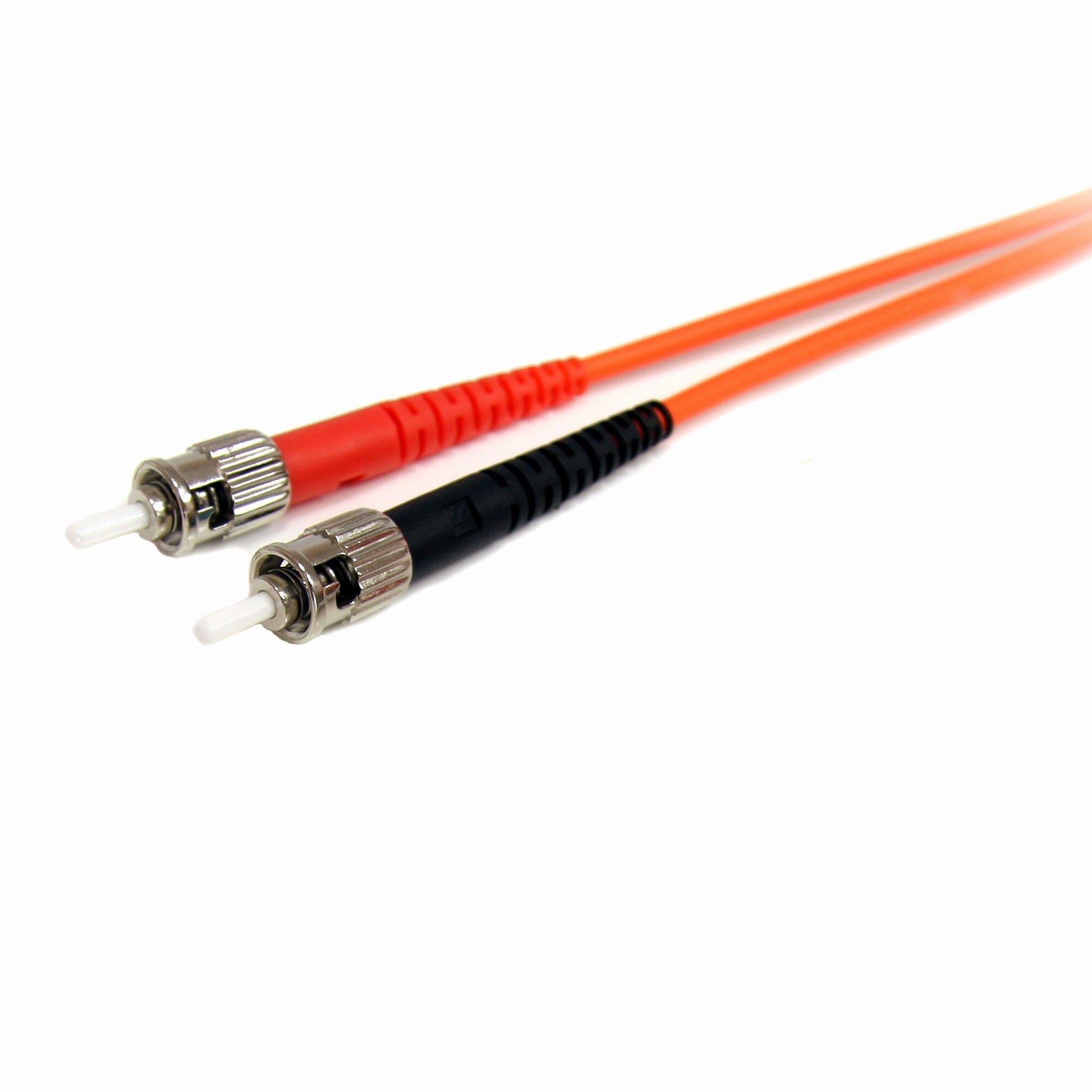

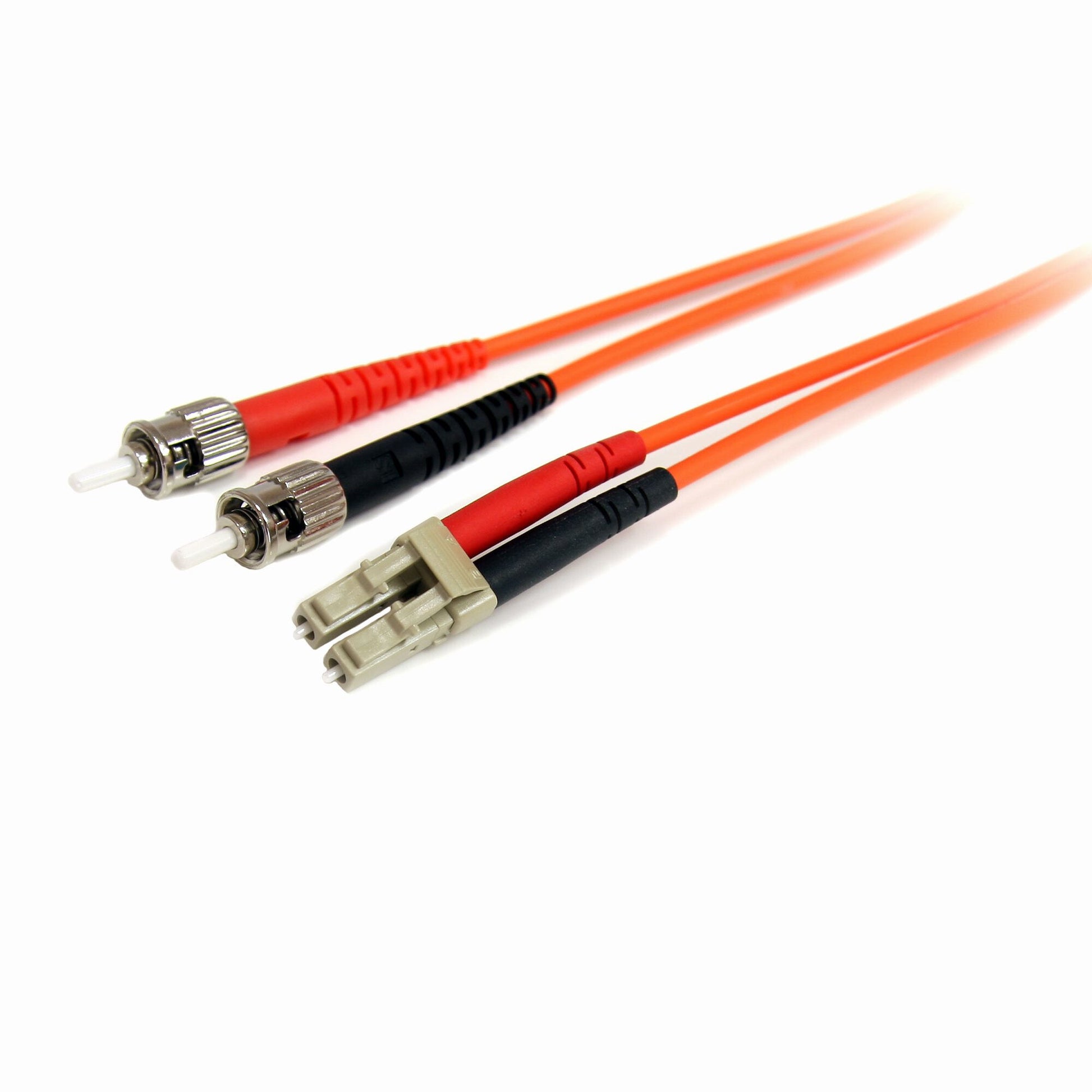

The FIBLCST3 3-meter (10ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one LC (male) connector and one ST (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This LC-ST patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our LC-ST Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
| Features | |
|---|---|
| Cable length | 3 m |
| Fibre optic type | OM1 |
| Connector 1 | LC |
| Connector 2 | ST |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Product colour | Orange |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 10 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Technical details | |
|---|---|
| Compliance certificates | RoHS, CE |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 52 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 168 mm |
| Package depth | 174 mm |
| Package height | 30 mm |
| Package weight | 61 g |
| Logistics data | |
|---|---|
| Master (outer) case width | 406 mm |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 438 mm |
| Products per master (outer) case | 200 pc(s) |
