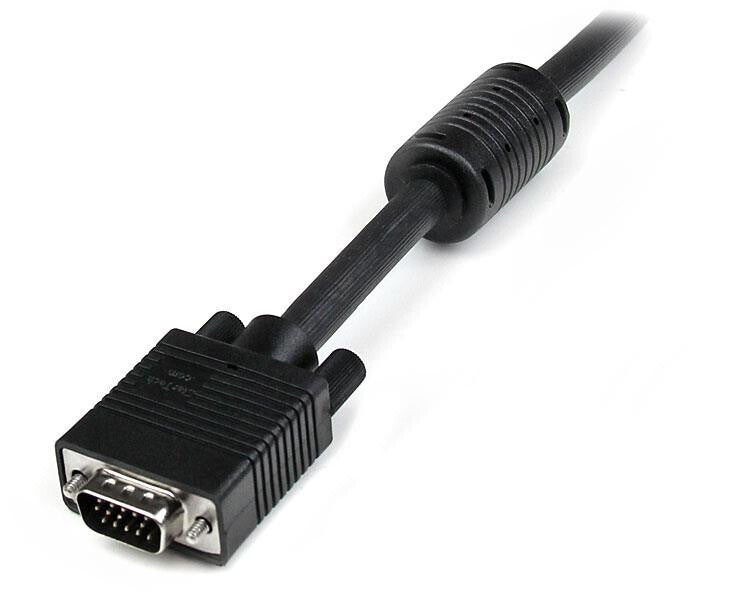

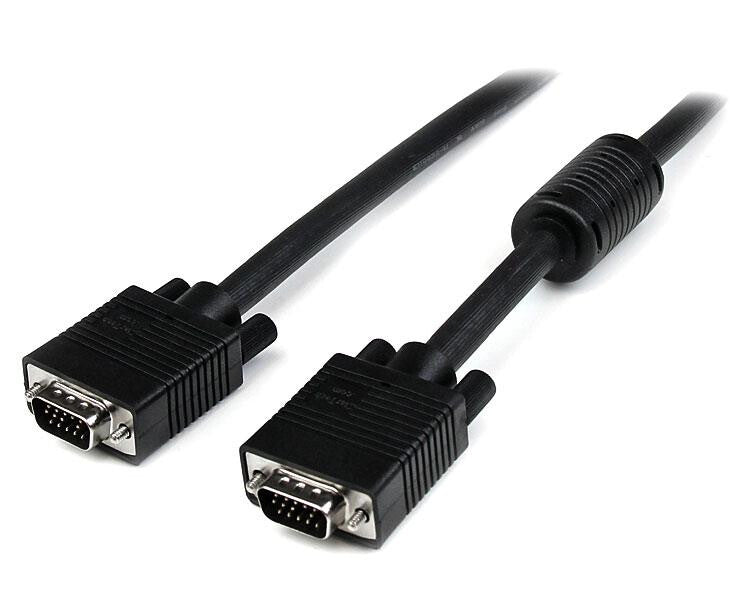

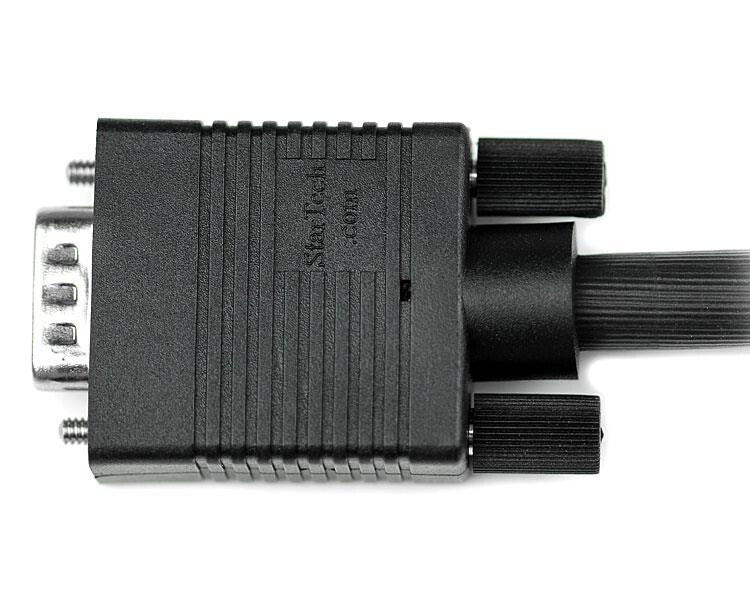

StarTech.com 3m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M
StarTech.com 3m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M
SKU:MXTMMHQ3M
72 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Triple coaxial + twisted-pair wire for crystal clear display
- Durably constructed cable, with high quality HD15 connectors
- Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor
- High quality VGA connectors with molded PVC strain relief
Connect your VGA monitor with the highest quality connection available
The MXTMMHQ3M High Resolution VGA Cable (3-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
| Features | |
|---|---|
| Cable length | 3 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| AWG wire size | 28 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Ferrite bead | Yes |
| Plug and Play | Yes |
| Certification | RoHS |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 400 g |
| Package width | 133 mm |
| Package depth | 338 mm |
| Package height | 49 mm |
| Package weight | 384 g |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 272 mm |
| Products per master (outer) case | 50 pc(s) |
