StarTech.com

StarTech.com 3m (10ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors

StarTech.com 3m (10ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors

Regular price £23.53 GBP
Regular price Sale price £23.53 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:DISPL3M

111 in stock

  • HIGH PERFORMANCE CABLE: This 3m (10ft) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
  • RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
  • QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
  • APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display

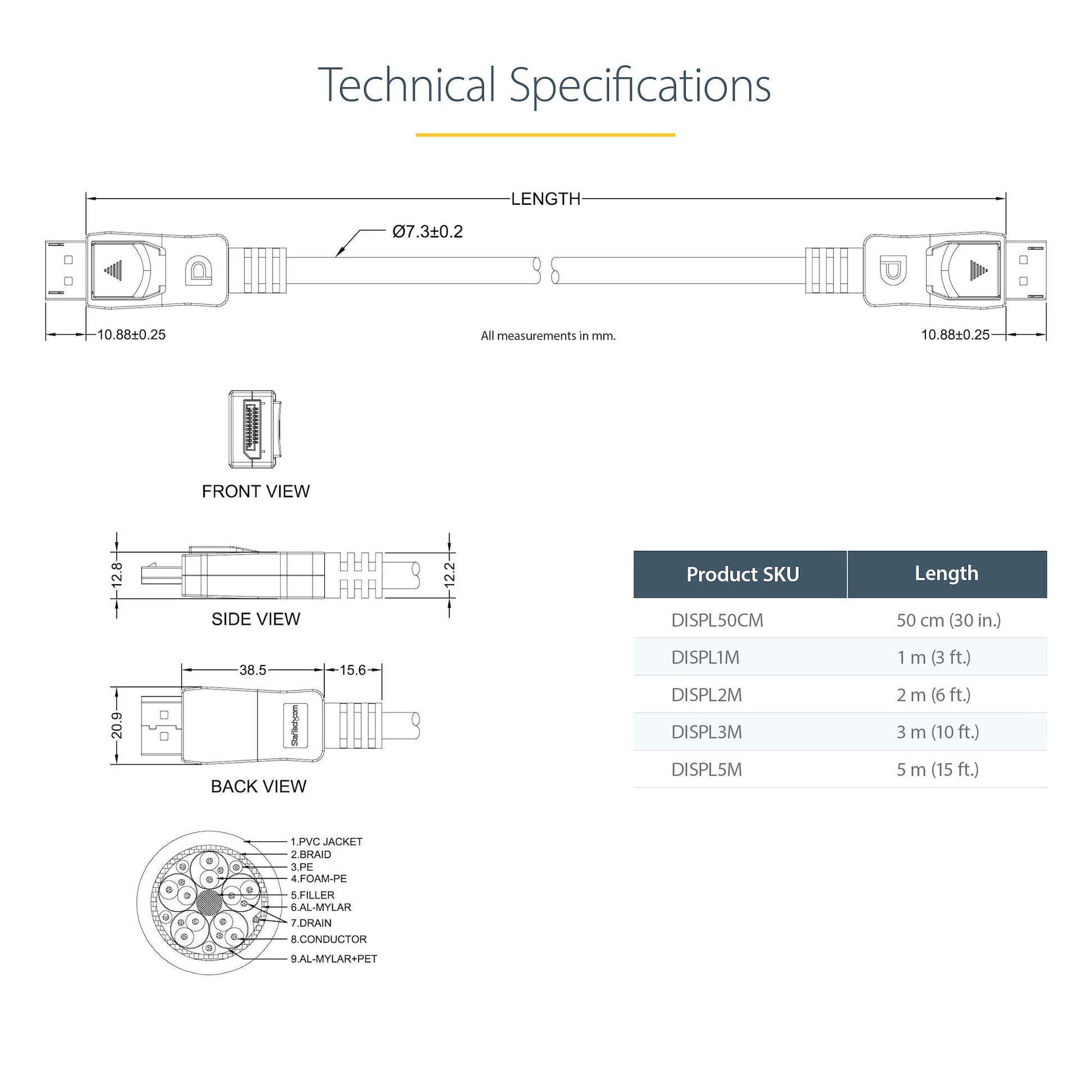

  • SPECS: 3 m (10 ft) / Black / DisplayPort v1.2 / DP Latching Male to Male / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC / Lifetime Warranty
StarTech.com 3m (10ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors (DISPL3M)

Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devices

The DISPL3M 3m DisplayPort™ 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.

The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

The DISPL3M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

The StarTech.com Advantage

Features
Number of conductors 19
Multi-Stream Transport (MST) Yes
Plug and Play Yes
Bandwidth 21600 MB/s
AWG wire size 28
Jacket material Polyvinyl chloride (PVC)
Cable shielding Aluminum mylar foil
Cable rating CMG (CM)
Product colour Black
Latching connectors Yes
DisplayPort Content Protection (DPCP) Yes
HDCP Yes
Maximum refresh rate 60 Hz
Supported graphics resolutions 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA)
Maximum resolution 3840 x 2400 pixels
DisplayPort version 1.2
Connector contacts plating Nickel
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 DisplayPort
Connector 1 DisplayPort
Cable length 3 m
Packaging data
Package weight 219 g
Package height 22 mm
Package depth 220 mm
Package width 200 mm
Quantity per pack 1 pc(s)
Weight 210 g
Cable diameter 7.3 mm
Technical details
Compliance certificates RoHS, CE
Logistics data
Products per master (outer) case 50 pc(s)
Master (outer) case height 280 mm
Master (outer) case length 500 mm
Master (outer) case width 330 mm
Harmonized System (HS) code 84733080
