StarTech.com

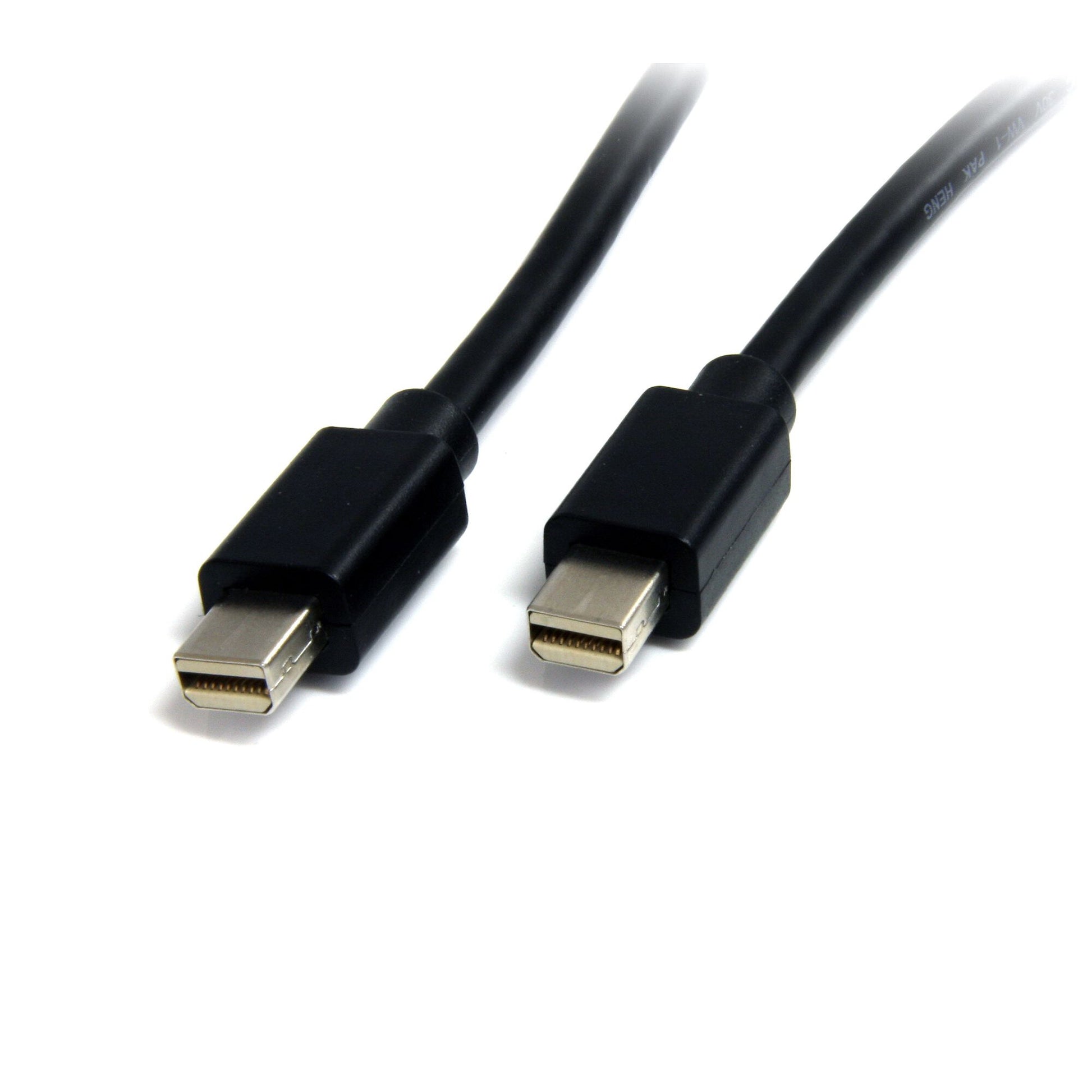

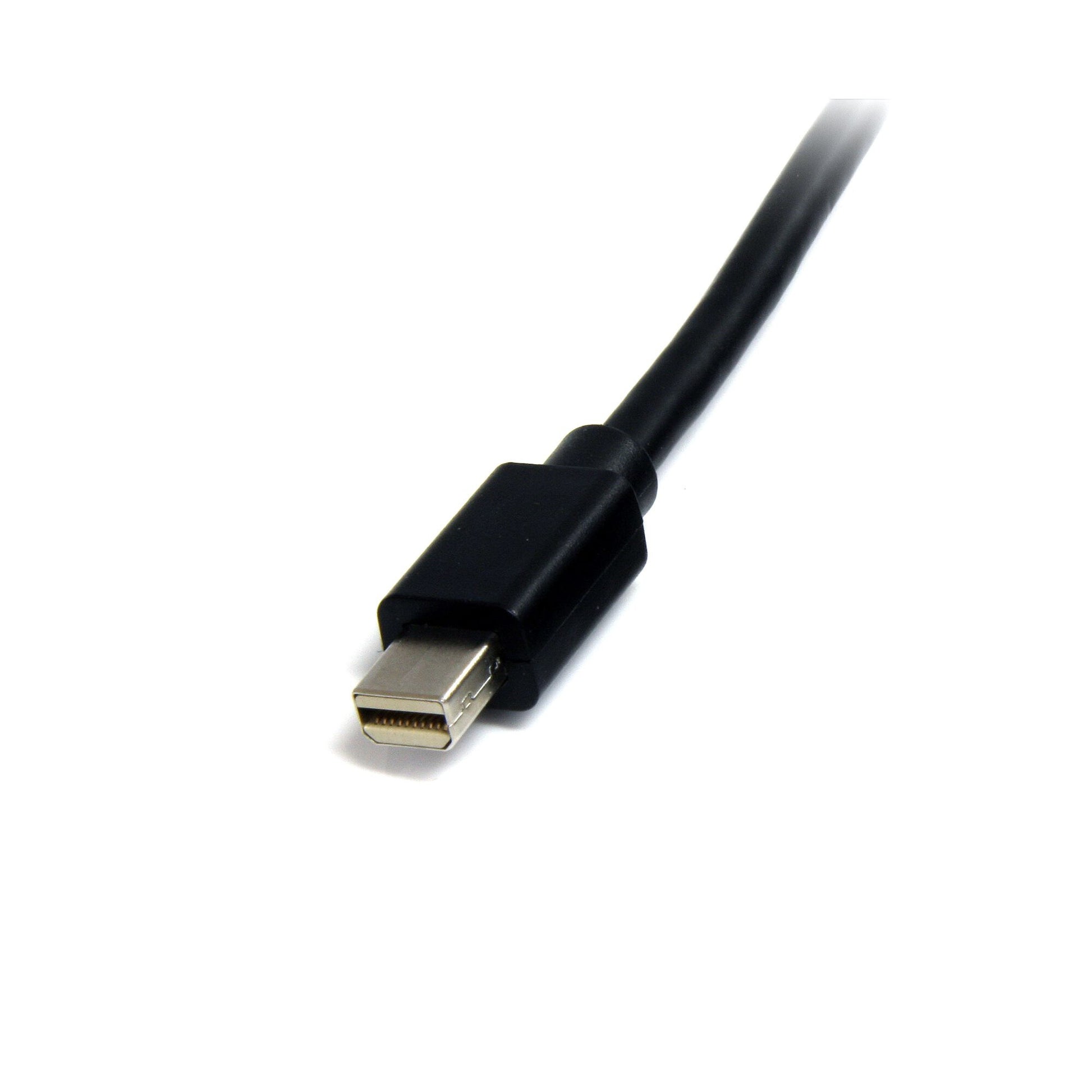

StarTech.com 3ft (1m) Mini DisplayPort Cable, 8K 60Hz HDR10, Ultra HD 4K 120Hz Video, mDP 1.4 Cable for Monitors Displays, Mini DisplayPort Cord - M/M

StarTech.com 3ft (1m) Mini DisplayPort Cable, 8K 60Hz HDR10, Ultra HD 4K 120Hz Video, mDP 1.4 Cable for Monitors Displays, Mini DisplayPort Cord - M/M

Regular price £18.47 GBP
Regular price Sale price £18.47 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:MDISP1M

Low stock: 4 left

  • COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
  • HIGH PERFORMANCE: Mini DisplayPort 1.4 cable; 8K 60Hz (7680x4320p), 4K 120Hz (3840x2160p), 32.4Gbps bandwidth, HDR10, 32Ch Audio, MST, GTC for precise audio channel timing; future-proof your equipment by making it 8K ready
  • RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
  • QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.2 and DP1.1
  • SPECS: 3.3 feet (1 m); Black Mini DP Cable; DisplayPort v1.4; mDP Male to mDP Male Cord; 32 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR3, MST, GTC; Backed for Life
StarTech.com 3ft (1m) Mini DisplayPort Cable, 8K 60Hz HDR10, Ultra HD 4K 120Hz Video, mDP 1.4 Cable for Monitors, Mini DisplayPort Cord - M/M

Create a high-resolution 8k or 4k connection with HBR3 support between your Mini DisplayPort™-equipped laptop and monitor

This Mini DisplayPort™ 1.4 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.

The mDP cable supports high resolutions of up to 8k (7680 x 4320) @ 60Hz with a maximum HBR3 bandwidth of 32.4 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

Ensures reliable performance and proper display of digitally protected content, with support for both HDCP and DPCP.

Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.

Please note: This is not a Thunderbolt cable, and therefore does not work for Thunderbolt peripherals (displays, docks, drive enclosures, audio interfaces, etc).

Features
Number of conductors 19
Multi-Stream Transport (MST) Yes
Plug and Play Yes
Bandwidth 21600 MB/s
AWG wire size 32
Jacket material Polyvinyl chloride (PVC)
Cable shielding Aluminum mylar foil
Cable rating CMG (CM)
Product colour Black
DisplayPort Content Protection (DPCP) Yes
HDCP Yes
Maximum refresh rate 60 Hz
Supported video modes 720p, 1080p, 2160p
Supported graphics resolutions 2560 x 1600 (WQXGA), 3840 x 2400
Maximum resolution 3840 x 2400 pixels
DisplayPort version 1.2
Connector contacts plating Nickel
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 Mini DisplayPort
Connector 1 Mini DisplayPort
Cable length 1 m
Sustainability
Sustainability compliance Yes
Packaging data
Package weight 40.3 g
Package height 12 mm
Package depth 220 mm
Package width 200 mm
Quantity per pack 1 pc(s)
Weight 39.9 g
Technical details
Compliance certificates CE, RoHS
Logistics data
Products per master (outer) case 100 pc(s)
Master (outer) case height 210 mm
Master (outer) case length 500 mm
Master (outer) case width 320 mm
Harmonized System (HS) code 84733080
